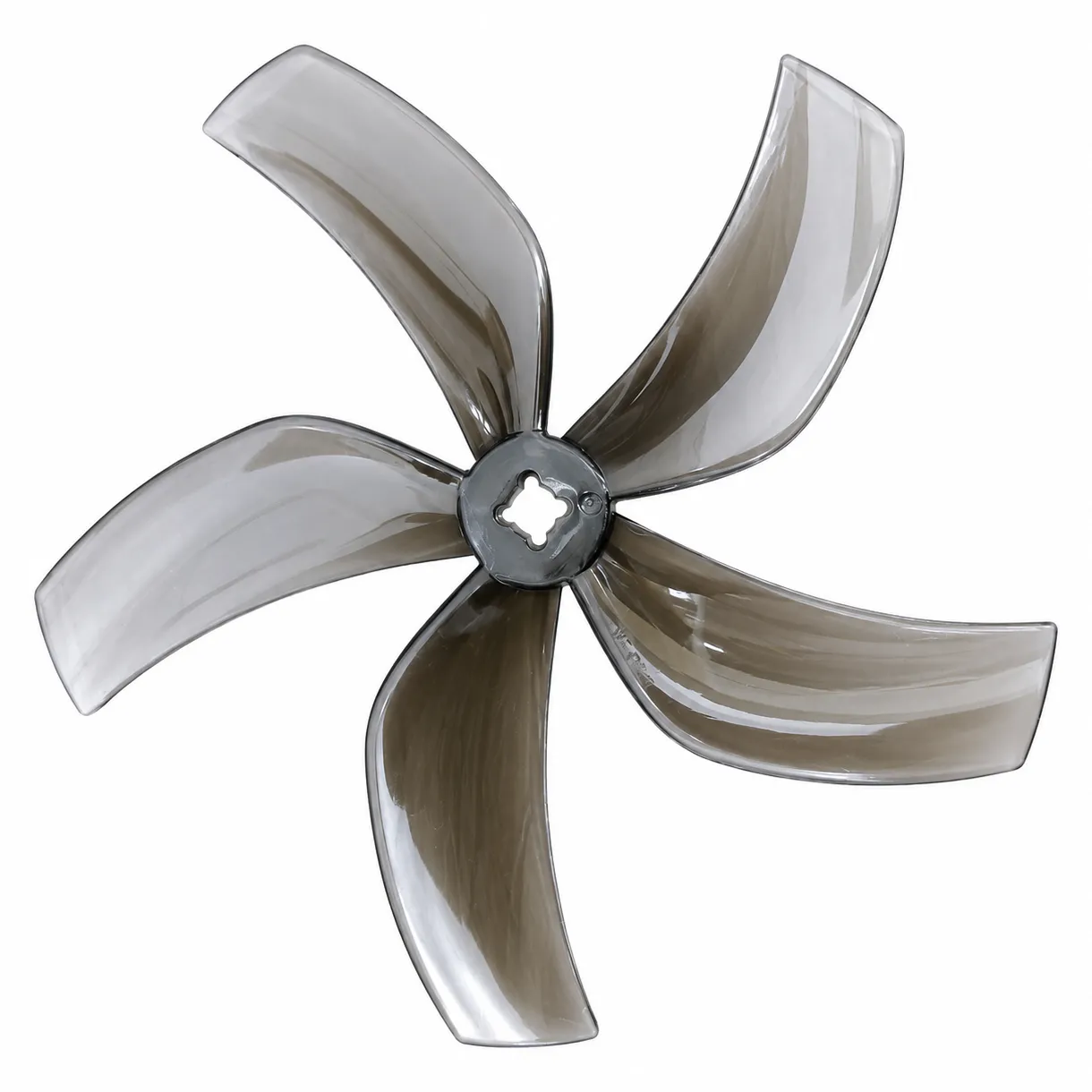

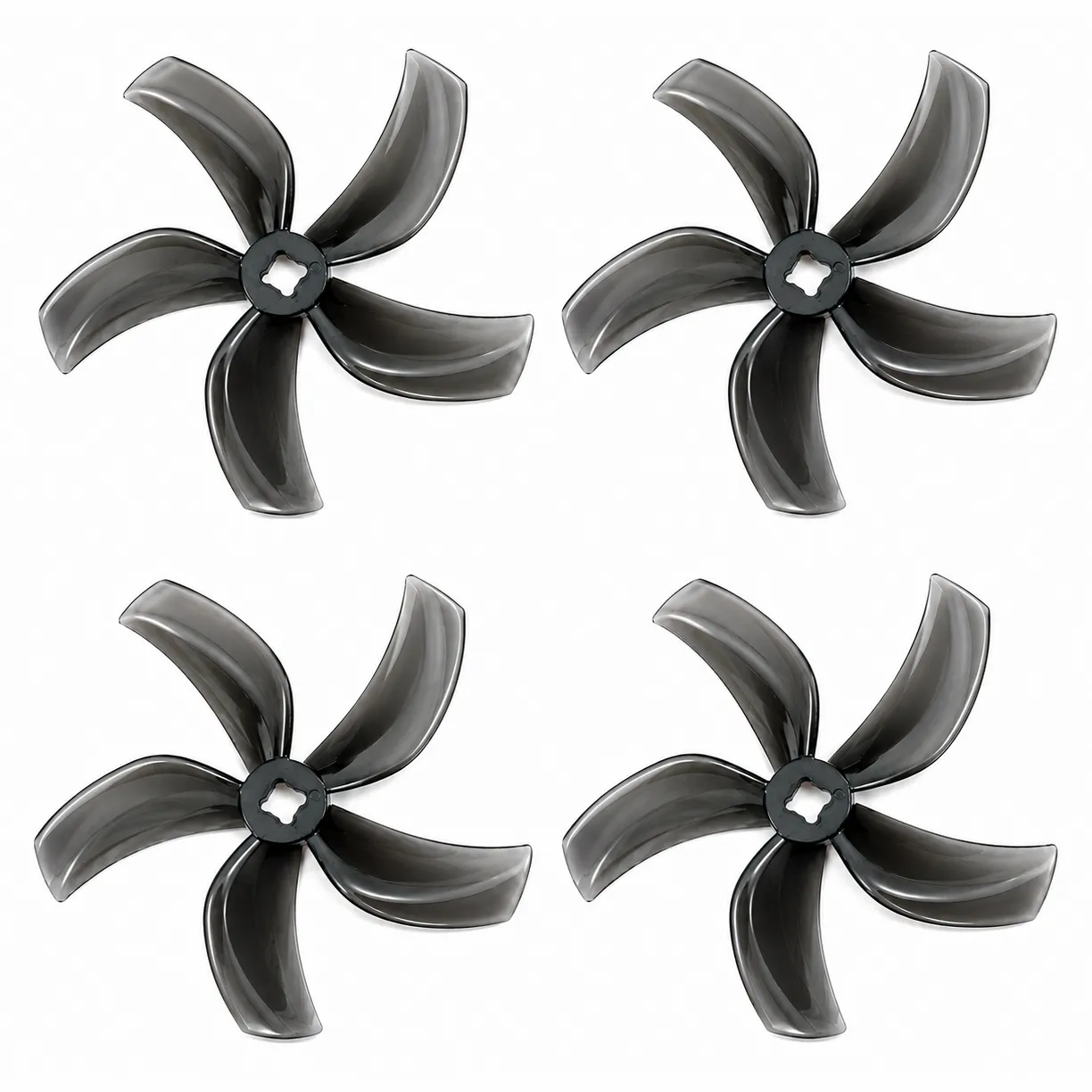

Gemfan D90 Ducted PC 5-Blade Propeller (T-Mount, M5 Adapters)

The Gemfan D90 is a 90mm (3.5-inch) five-blade ducted propeller built for cinewhoop and ducted-frame builds that need strong static thrust in a tight, protected footprint. It has a T-mount hub for 1.5mm and 2mm shafts, ships with M5 adapters, and is offered in Clear Grey, Black, Whiskey and White.

Key features

• Five-blade design generates high thrust for its size, suited to ducted airframes carrying an action camera.
• 2.4-inch pitch favours low-end grip and control over top-end speed, useful for tight proximity flying.
• Polycarbonate construction flexes rather than shatters against duct walls on minor knocks.
• T-mount hub fits 1.5mm and 2mm motor shafts; the included M5 adapters fit standard 5mm-shaft cinewhoop motors.

Specifications

• Diameter: 90mm (3.5")
• Pitch: 2.4"
• Blades: 5
• Material: Polycarbonate
• Centre thickness: 5.5mm
• Mount: T-mount (1.5mm / 2mm), M5 adapters included
• Colour: Clear Grey, Black, Whiskey or White

Built specifically for 90mm ducted frames; check your duct and stator size before ordering, since ducted props are not interchangeable with open-frame propellers of the same diameter.
