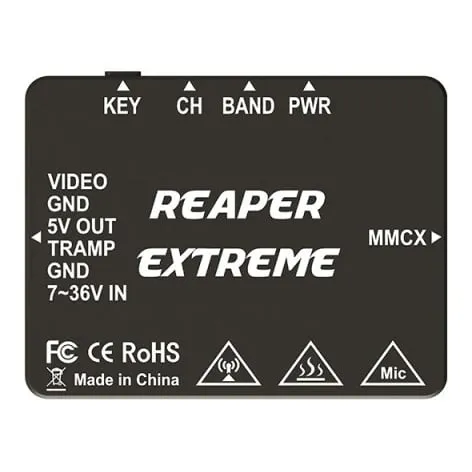

Foxeer Reaper Extreme V3 2.5W 80CH VTX (4.9–6G)

The Foxeer Reaper Extreme V3 is a high-powered analogue VTX built for long-range FPV, mountain surfing, and heavy-lift cinelifters requiring maximum signal penetration. Pushing up to 2.5W (2500mW) of output power, it operates across a wide 4.9-6.0GHz frequency range, giving you access to 80 channels to easily bypass crowded 5.8GHz interference.

Key features

• Six selectable power levels from Pit mode up to a massive 2500mW
• CNC aluminium heatsink enclosure for thermal management and crash protection
• Integrated IRC Tramp telemetry for easy flight controller integration and OSD adjustments
• Wide voltage input range supporting direct power from 3-8S LiPo batteries

Specifications

• Model: Foxeer Reaper Extreme V3
• Input voltage: 9-36V (3-8S LiPo)
• Output power: Pit / 25 / 200 / 500 / 1500 / 2500 mW
• Channels: 80CH (4.9-6.0 GHz)
• Mounting size: 20x20 mm (M2)
• Antenna connector: MMCX
• Control protocol: IRC Tramp
• BEC output: 5V
• Current draw: 1.2 A at 9 V
• Dimensions: 36 x 27.5 x 8 mm
• Weight: 13 g
• In the box: VTX, silicone cable

Note: Ensure the VTX is provided with adequate airflow during flight and never power it on without a properly secured antenna to avoid burning out the amplifier.
