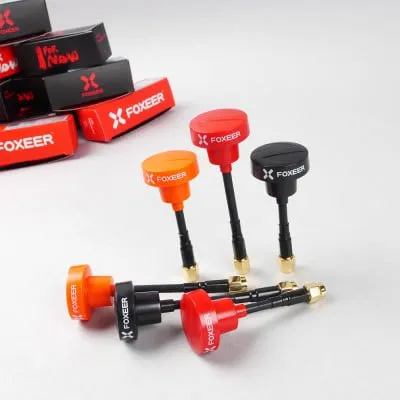

Foxeer Pagoda PRO 5.8G RHCP Omni FPV Antenna

The Foxeer Pagoda PRO is a 5.8GHz omnidirectional FPV antenna built upon Maarten Baert's proven Pagoda-2 design. Encased in a rugged, crash-resistant housing, it delivers a clean, interference-resistant video signal for analogue and 5.8GHz digital FPV systems. It is an excellent choice for freestyle and racing quads where a high axial ratio and a consistent radiation pattern are critical for maintaining video clarity in challenging environments.

Key features

• Manufactured with strict PCB tolerances to achieve a near-perfect axial ratio below 1.3.

• High radiation efficiency (95%) ensures maximum signal transmission and receiver penetration.

• Impact-resistant outer shell protects the delicate internal PCB tiers from strike damage during crashes.

• RHCP (Right Hand Circular Polarisation) configuration effectively rejects multipath interference.

Specifications

• Centre frequency: 5.8 GHz

• Bandwidth: 500 MHz (5.55 – 6.05 GHz)

• Gain: 2 dBi

• Axial ratio: < 1.3

• VSWR: < 1.22

• Polarisation: RHCP

• Radiation efficiency: 95%

Always pair this antenna with an RHCP receiving antenna on your goggles or ground station; mixing RHCP and LHCP polarisations will result in severe signal degradation.
