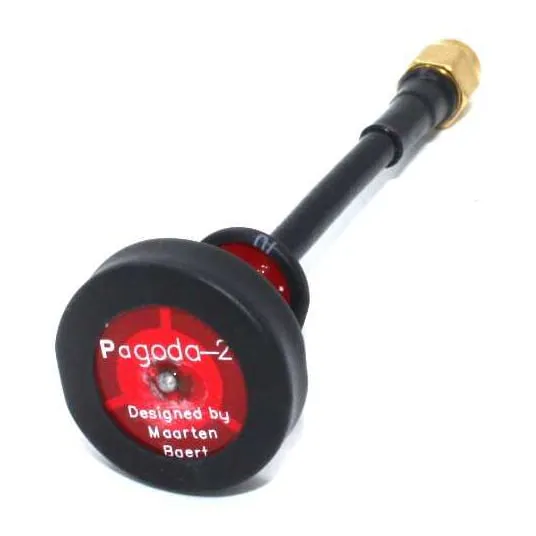

Pagoda 5.8G Omni FPV Antenna (SMA /
SKU PAGODA-58G-SMA-SHORT-BLK
Color: Black & Red
Length: Short
Connector: SMA
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

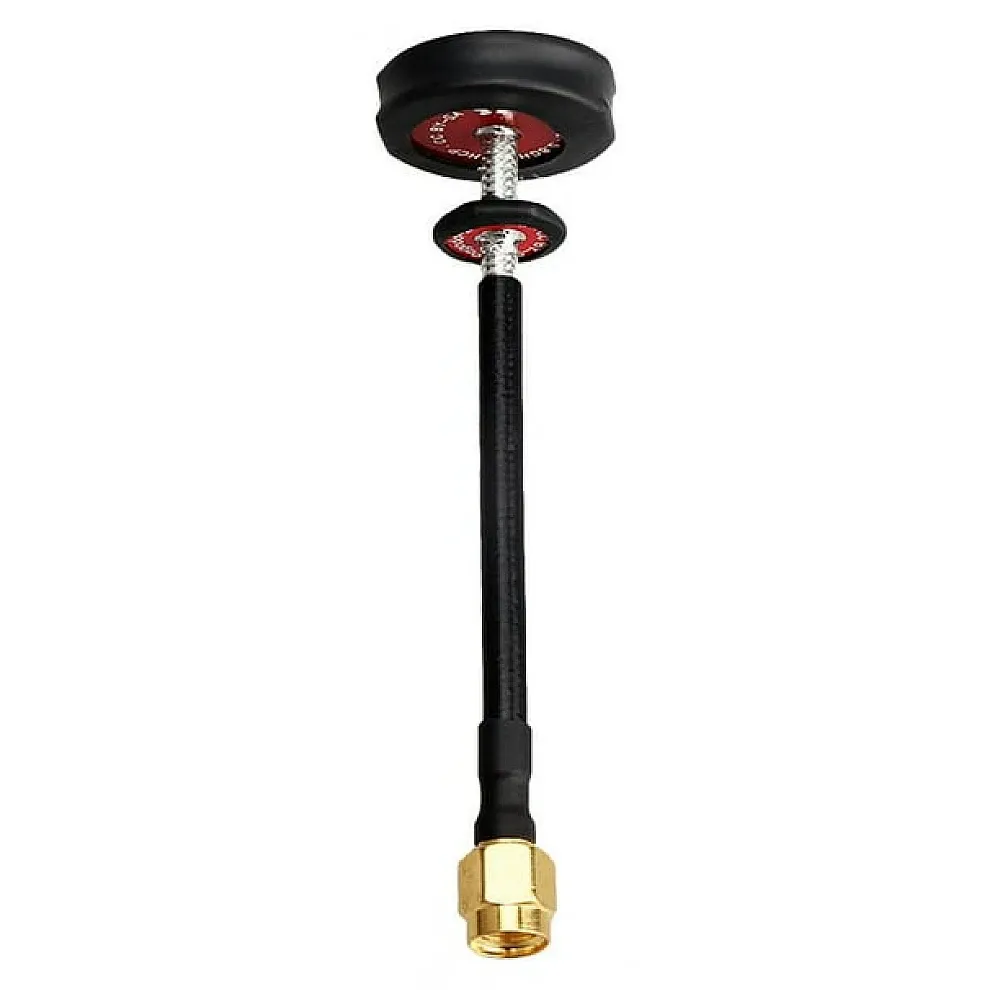

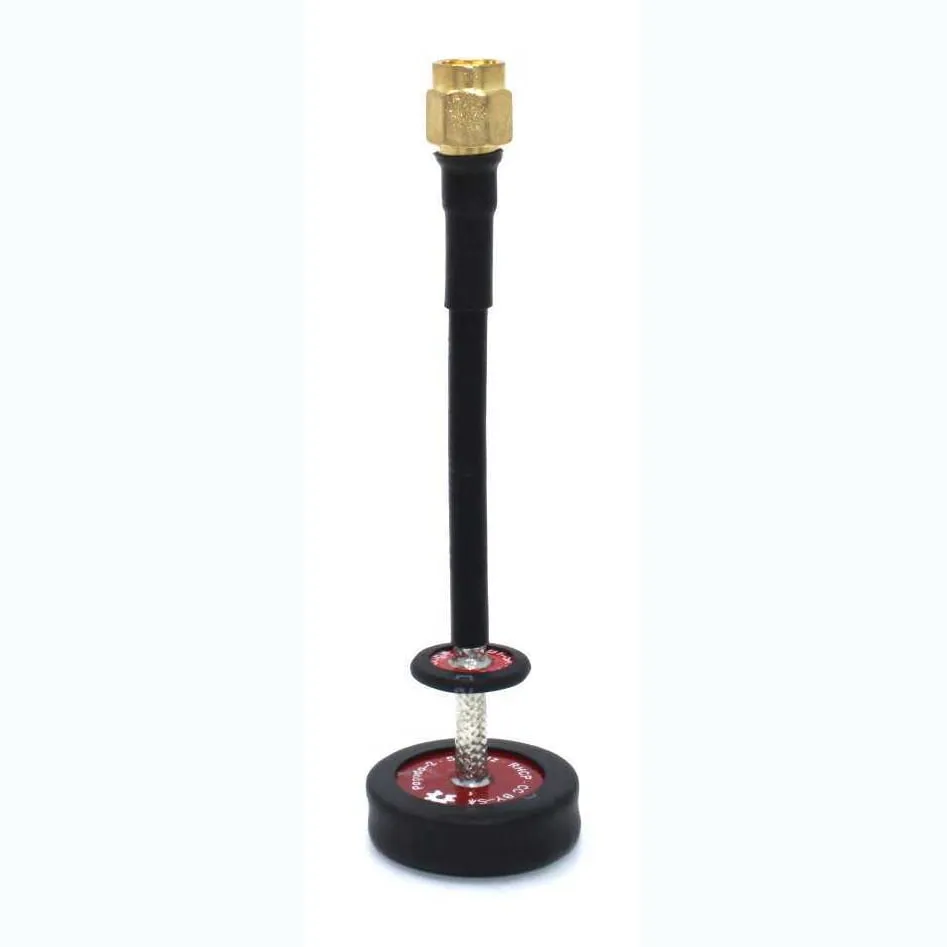

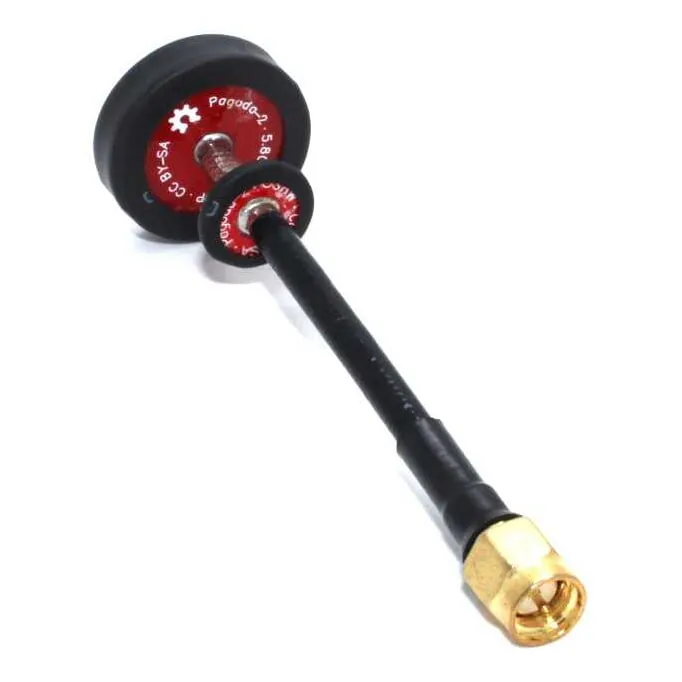

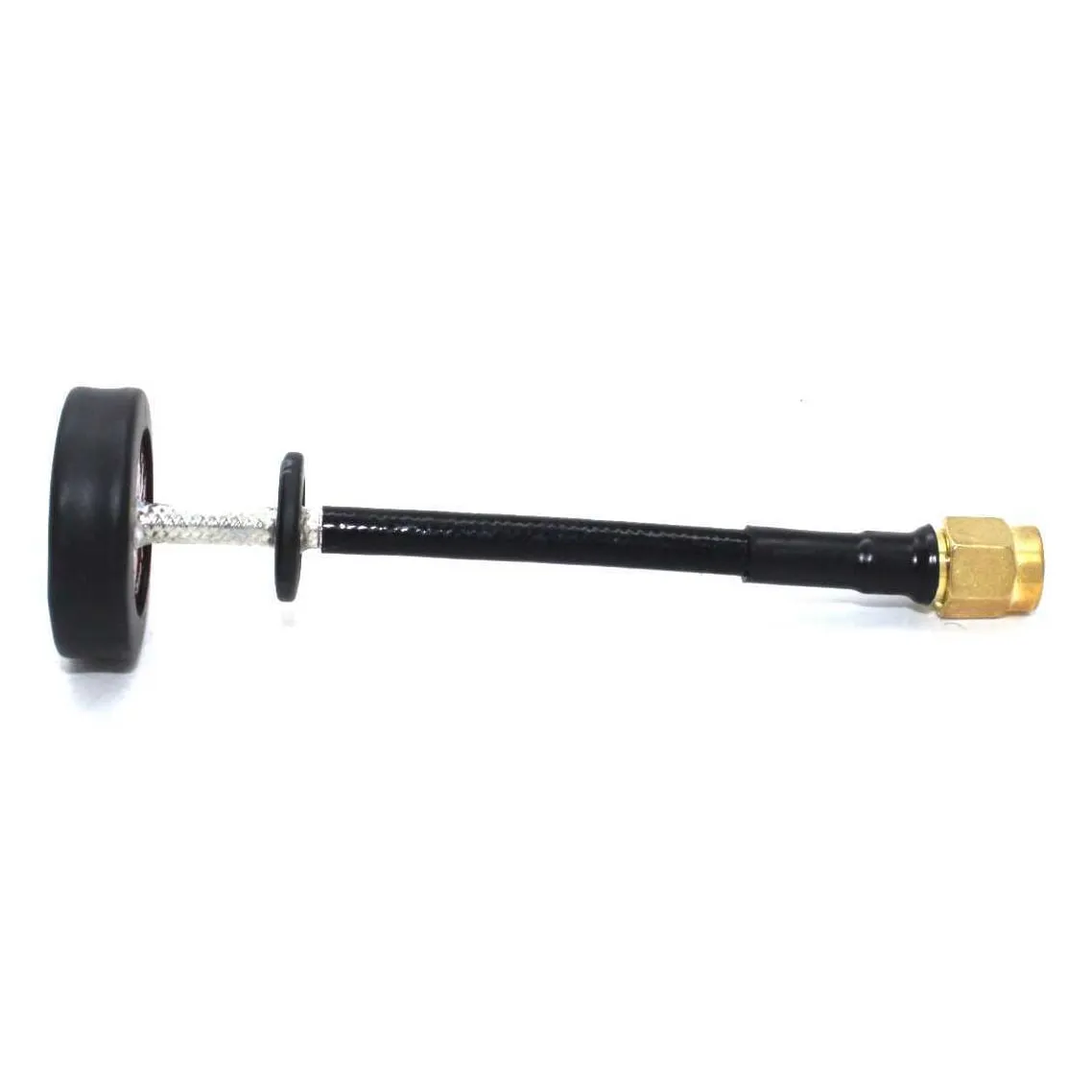

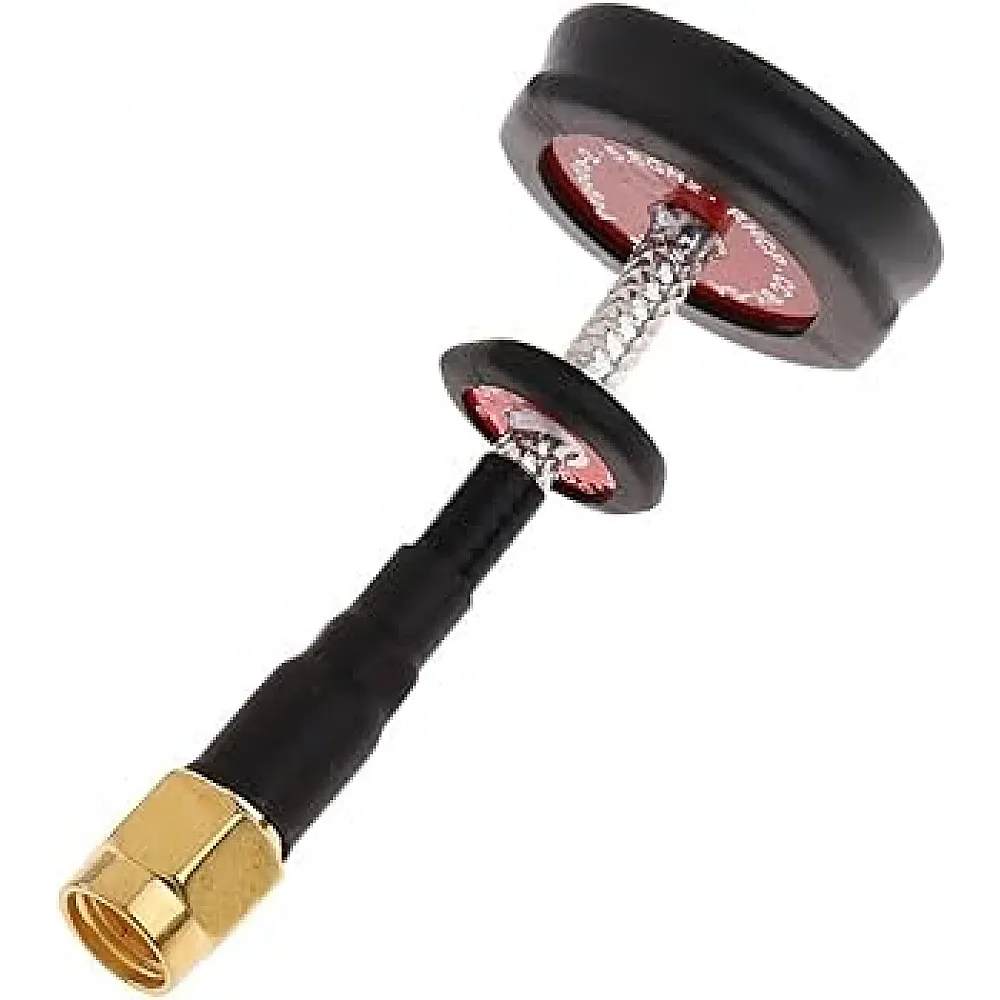

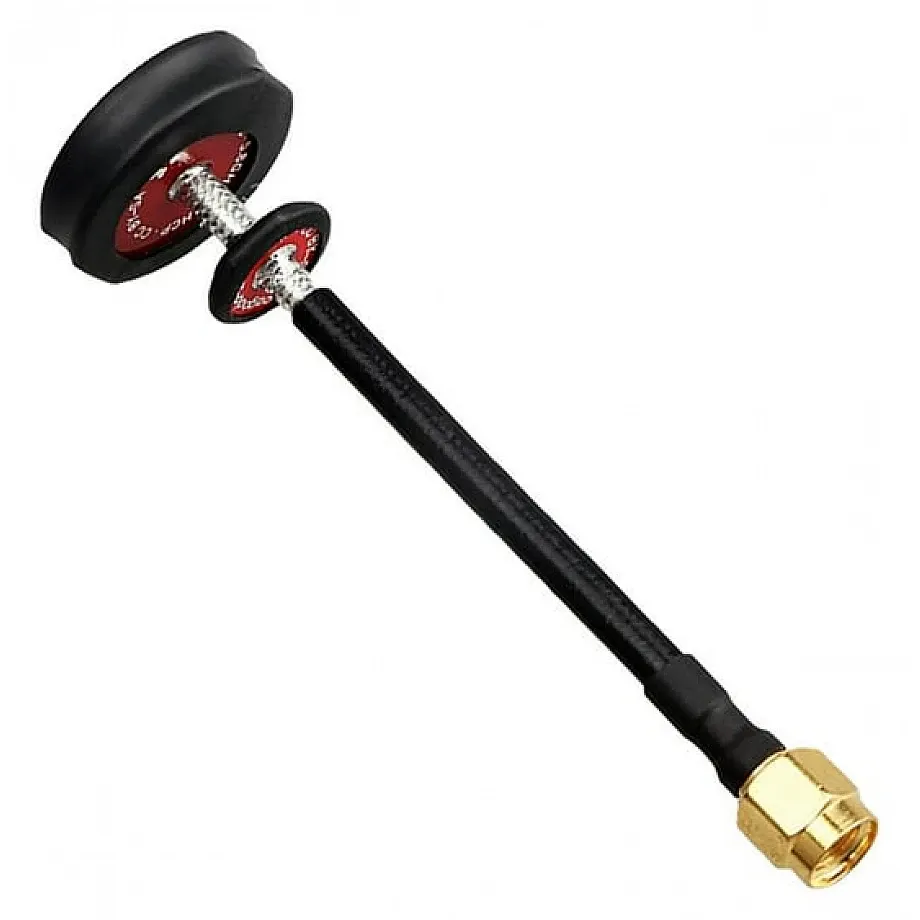

Pagoda-style 5.8GHz omnidirectional antenna for FPV video transmitters, goggles and ground receivers. The 25 mm circularly polarised element comes in a long or a short version, on either an SMA or an RP-SMA plug, to suit the jack and the mounting space on your craft or receiver.
Key features
- Omnidirectional pattern keeps reception even as the craft turns and flips
- Circular polarisation rejects reflected signal better than a linear whip, cutting multipath breakup

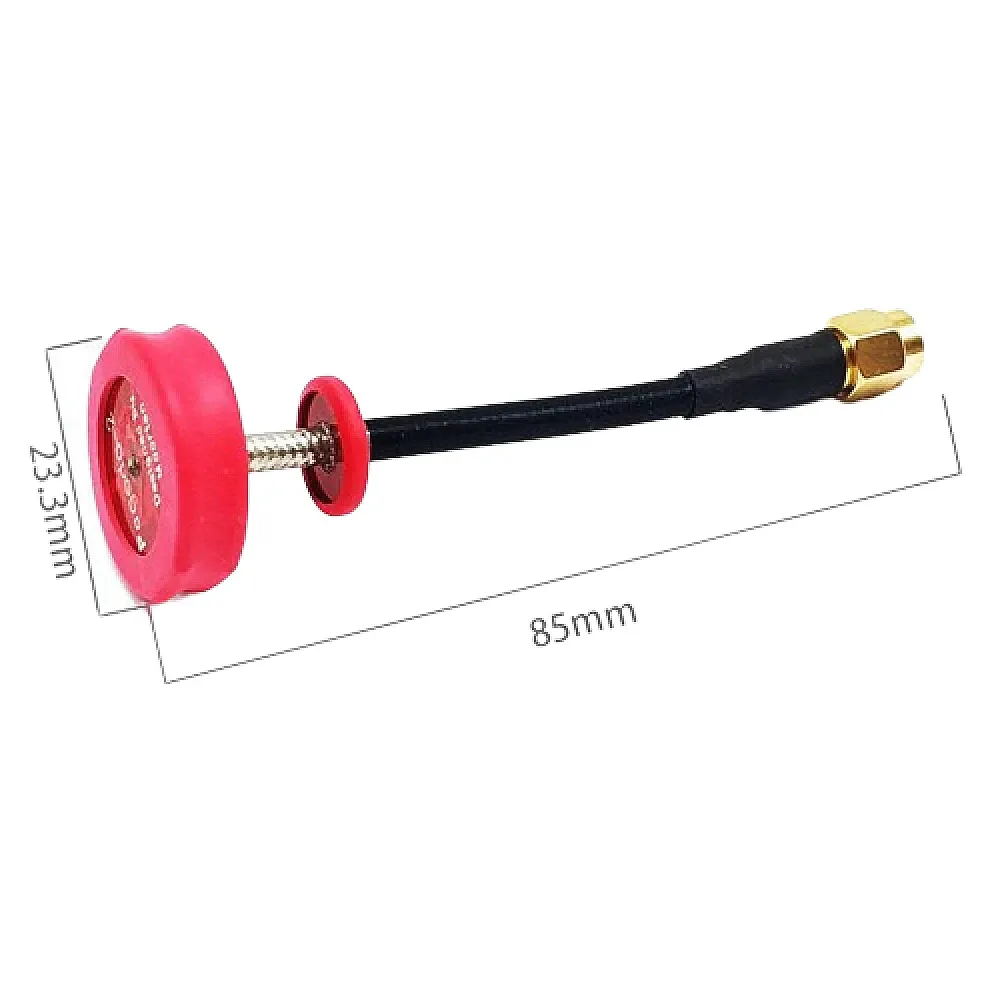

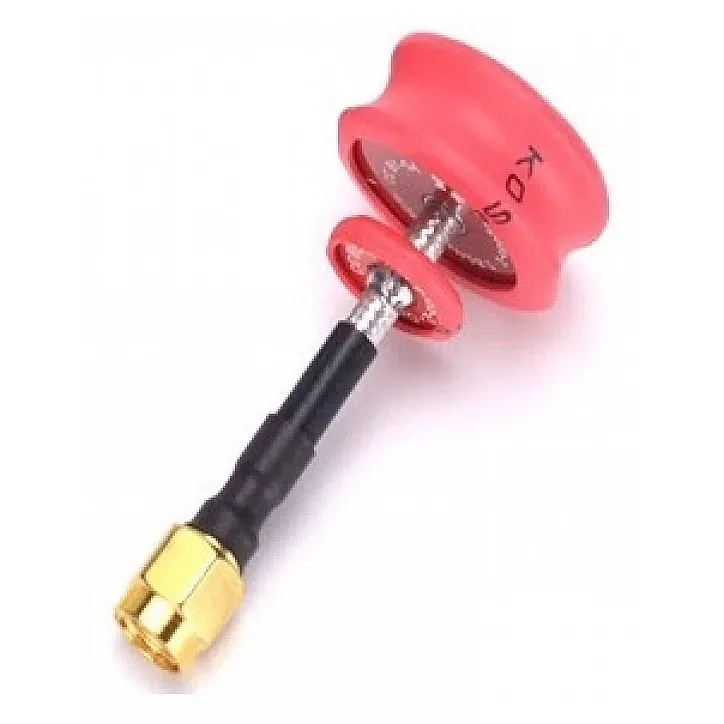

- Long version (85 mm) for receivers and open mounts; short version (55 mm) for compact rear mounts
- Black & red with an SMA plug, or red with an RP-SMA plug
Specifications
- Frequency: 5.8GHz
- Pattern: Omnidirectional
- Polarisation: Circular
- Element diameter: 25 mm
- Length: 85 mm (long), 55 mm (short)

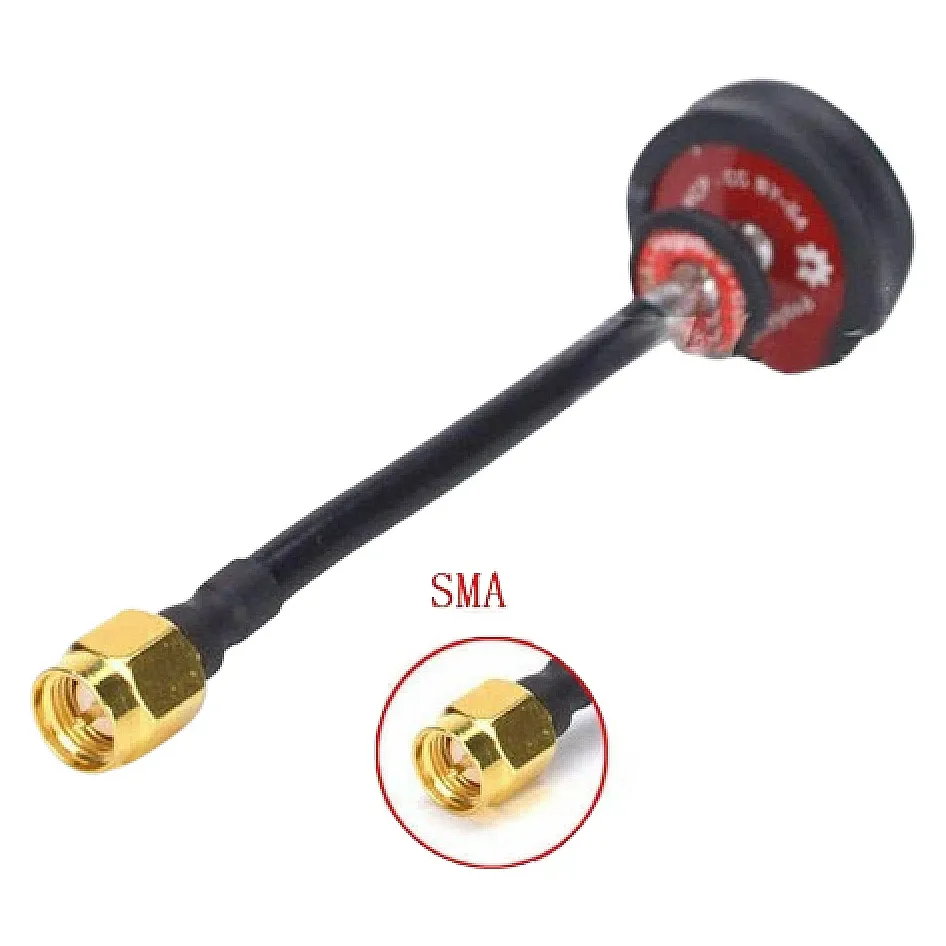

- Connector: SMA (black & red) or RP-SMA (red)
SMA and RP-SMA plugs do not mate with each other, so check the jack on your VTX, goggles or receiver module before choosing a version. For the strongest link, use the same polarisation handedness on the antennas at both ends.
| Antenna Connector | SMA, RP-SMA |
|---|---|
| Frequency | 5.8GHz |
| Made in India | No |
| Brand | Generic |
| Antenna Type | Omni |
