Flywoo GOKU F7 Pro V2 55A 32-Bit Stack (BL32, 30x30)

The Flywoo GOKU F7 Pro V2 55A 32-Bit Stack pairs an STM32F722 flight controller with a 55A BLHeli_32 ESC in a standard 30.5x30.5mm footprint, built for aggressive 5-inch freestyle, racing and mid-sized cinelifter builds.

Key features

• STM32F722 MCU running at up to 216MHz with an ICM42688 gyro for high PID loop rates and clean filtering.
• Integrated barometer (DPS310/SPL06) for altitude data.
• Snap-lock port sockets for solder-free connections, with solder pads still retained for a traditional build.

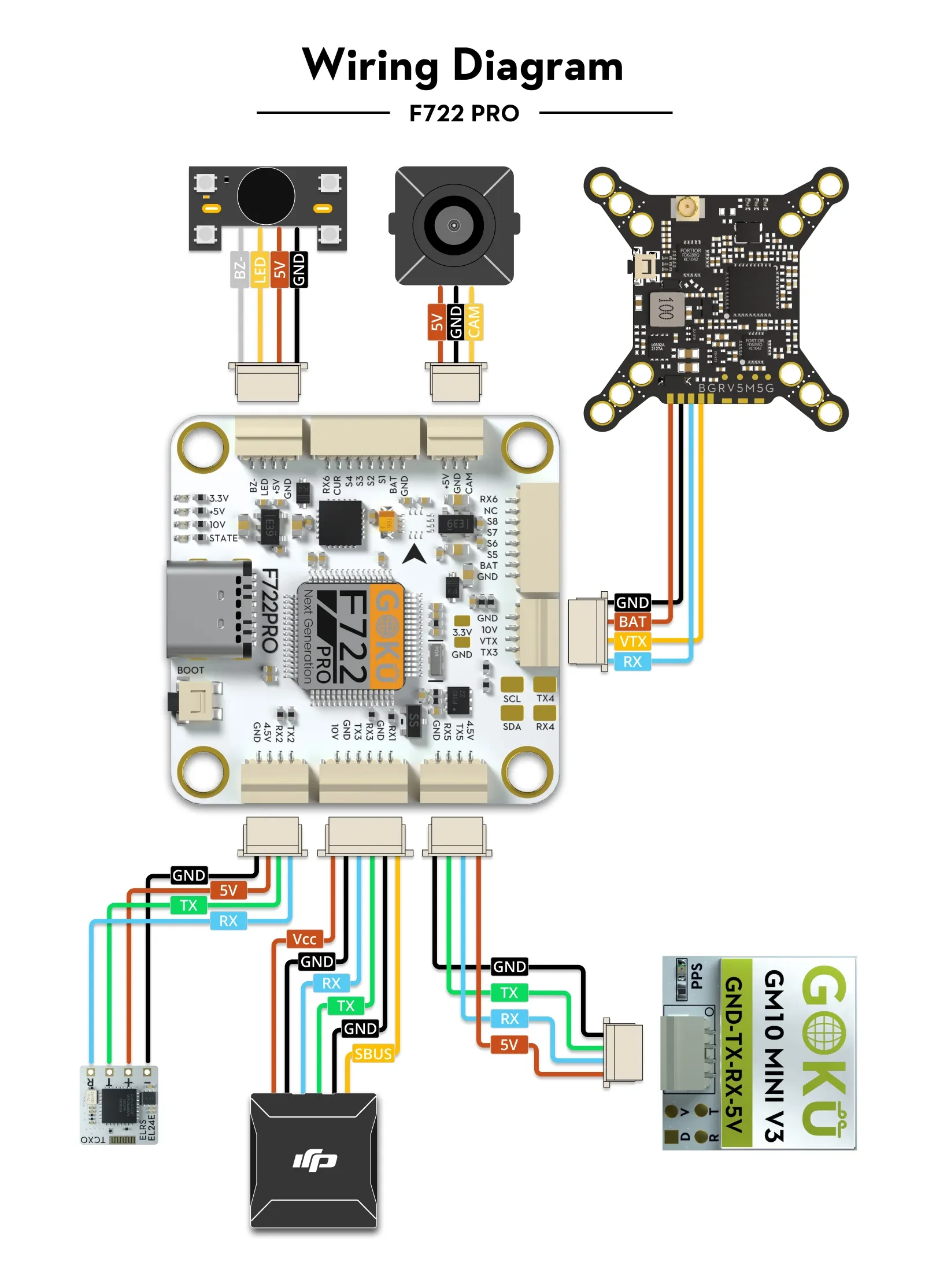

• Plug-and-play connector wired for the DJI O3 Air Unit, cutting soldering on digital HD builds.
• Supports 8 motor outputs with dual 4-in-1 ESC sockets reserved.
• 16MB onboard blackbox flash for tuning and vibration diagnostics.

Specifications

• MCU: STM32F722
• Gyro: ICM42688
• Barometer: integrated (DPS310/SPL06)
• OSD chip: AT7456E
• Continuous current: 55A
• Input voltage: 3-6S LiPo (FC alone accepts 2-6S)
• ESC firmware: BLHeli_32, DShot300/600/1200, PWM 24-128 kHz
• BEC: 5V/3A, 10V/3A
• UARTs: 6
• Blackbox: 16MB
• FC size: 37 x 37 x 8mm
• Weight: FC 9.9 g, ESC 15 g
• Mounting size: 30.5x30.5mm (M3)
• Supported firmware: Betaflight, INAV
• In the box: FC-to-ESC, buzzer, GPS, DJI O3, receiver, analog VTX and camera cables; 4 M3 damping balls; 7 M3 rubber rings

The immersion-gold PCB and snap-lock sockets keep the build tidy, whether you're wiring a digital HD system or a traditional analog setup.
