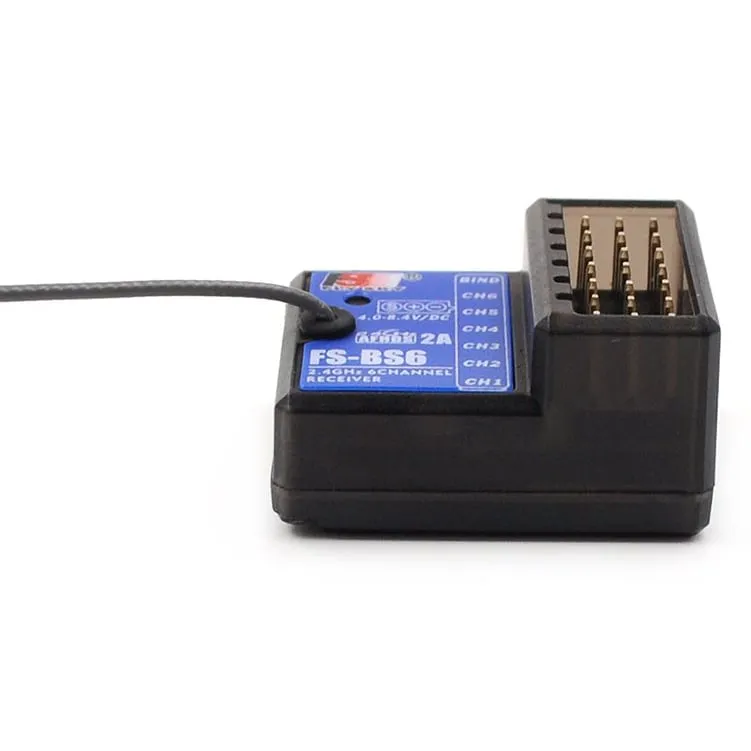

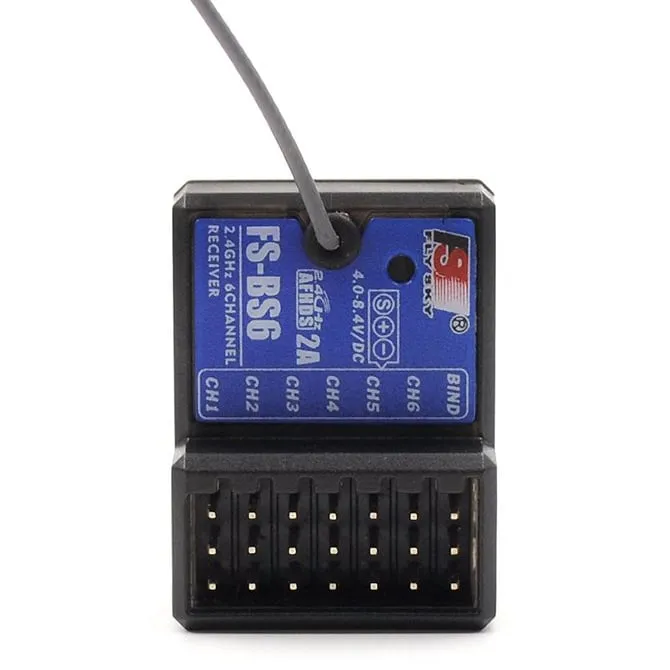

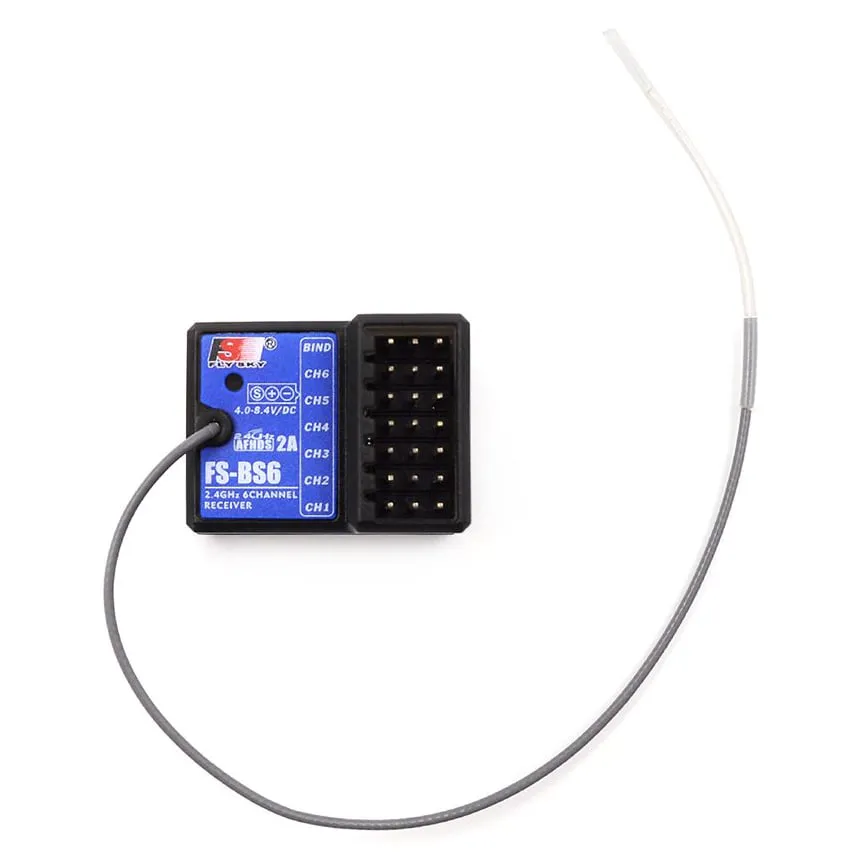

FlySky FS-BS6 6CH 2.4GHz Receiver

The FlySky FS-BS6 is a compact 6-channel PWM receiver for 2.4GHz AFHDS 2A radio systems, built for RC cars and boats, with a built-in gyro, and usable on other models that take individual PWM channel outputs rather than a bus protocol like SBUS.

Key features

• Six PWM output channels for direct connection to a flight controller or vehicle electronics.
• AFHDS 2A protocol on the 2.4GHz band, with RSSI output support.
• Built-in gyro that automatically corrects unexpected heading offsets, aimed at RC cars and boats.
• Single antenna, rated for roughly 100–300m ground range.
• Supports online firmware updates from a compatible FlySky transmitter.
• Wide -10°C to 60°C operating temperature range for outdoor use.
• Small and light enough for compact RC models.

Specifications

• Channels: 6 (PWM)
• Frequency: 2.4GHz, AFHDS 2A
• Operating voltage: 4.0–6.5V
• Range: 100–300m (ground)
• Dimensions: 29 x 22 x 16.2mm
• Weight: 7.6g
• Compatible transmitters: FlySky FS-GT5, FS-iT4S and other AFHDS 2A radios

Check that your transmitter supports AFHDS 2A binding and that your flight controller accepts individual PWM channel inputs.
