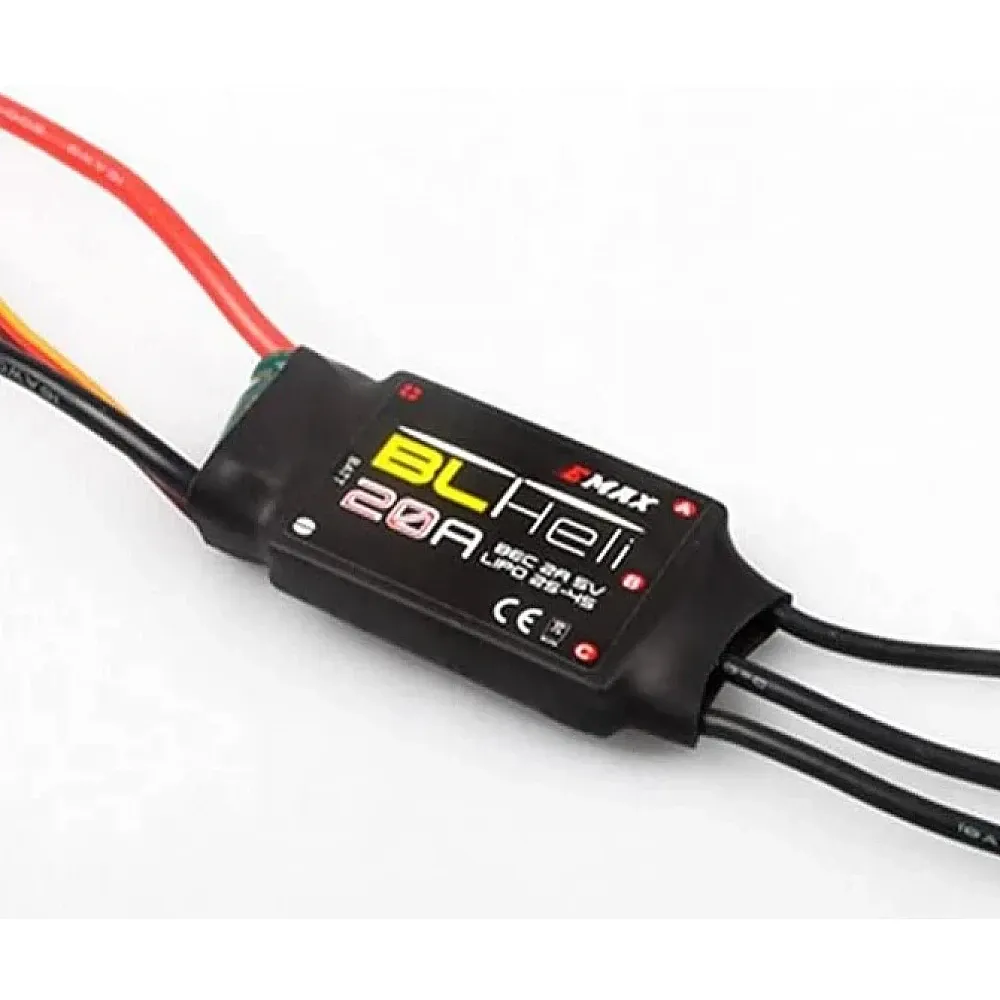

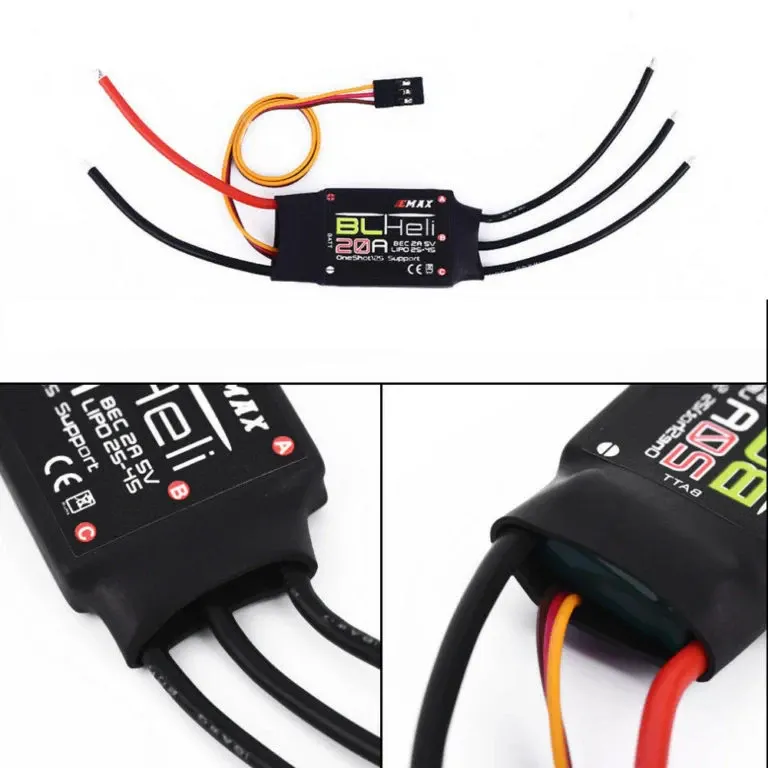

EMAX BLHeli 20A ESC
₹799Incl. GST
SKU EMAX-BLHELI-20A
ESC Current: 20 AInput Voltage: 2–4SESC Firmware: BLHeliMade in India: No
Dispatched within 3–4 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The EMAX BLHeli 20A ESC is a single controller for brushless motor builds in compact RC models. Its BLHeli firmware identifies the control platform, while the 20A rating defines the listed current capacity. Use it when one separate ESC is required rather than a 4-in-1 board or an integrated flight controller.
Key features
- 20A current rating for one motor channel.
- BLHeli firmware for compatible brushless motor systems.
- Single ESC design for standalone installations.
- Suitable for compact RC and drone motor builds where the voltage is compatible.
- Programmable motor direction (normal, reverse or bidirectional), with low-voltage cut-off, over-heat and throttle-signal-loss protection.
Specifications
- ESC firmware: BLHeli (OneShot supported)
- ESC current: 20A
- Burst current: 25A (10 s)
- Input voltage: 2-4S LiPo
- BEC: 5V / 2A, linear
- Motor type: Brushless
- Dimensions: 52 x 26 x 7 mm
- Weight: 28 g
Check the motor current demand, battery voltage and wiring before installation; this unit is not a replacement for a brushed-motor controller.
| ESC Current | 20 A |
|---|---|
| Input Voltage | 2–4S |
| ESC Firmware | BLHeli |
| Made in India | No |
| Brand | EMAX |
| Weight | 28 g |
| BEC | Yes |
