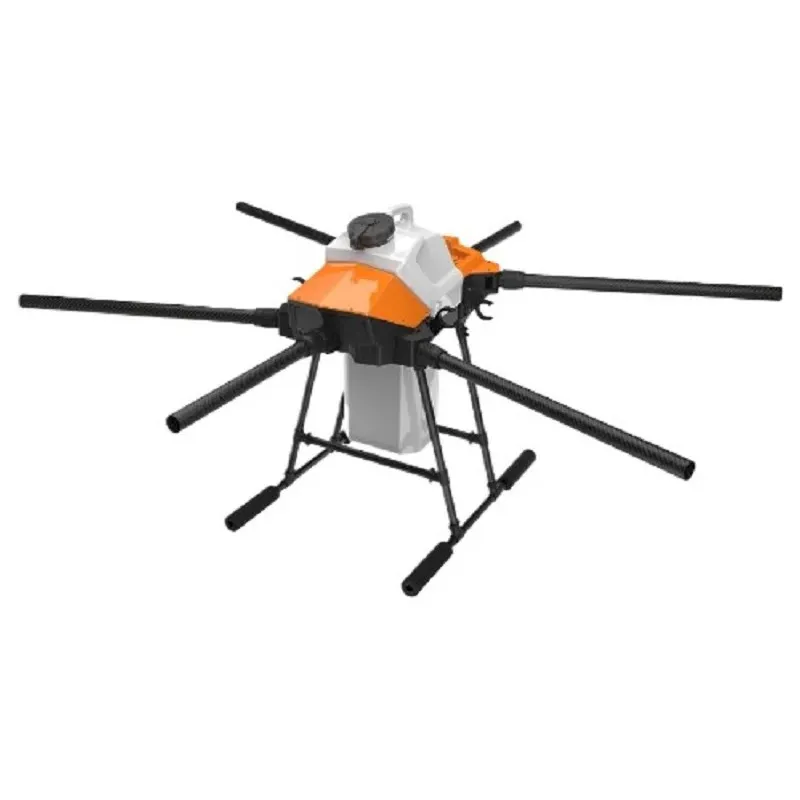

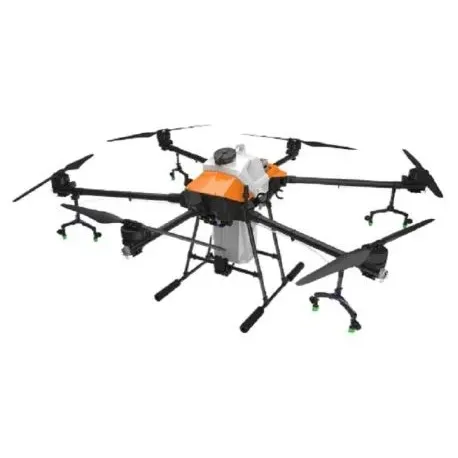

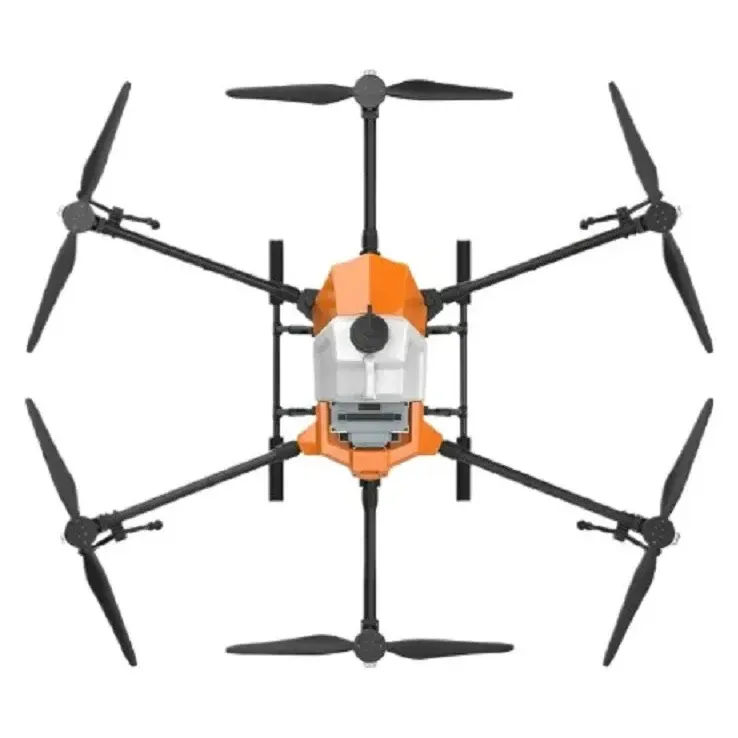

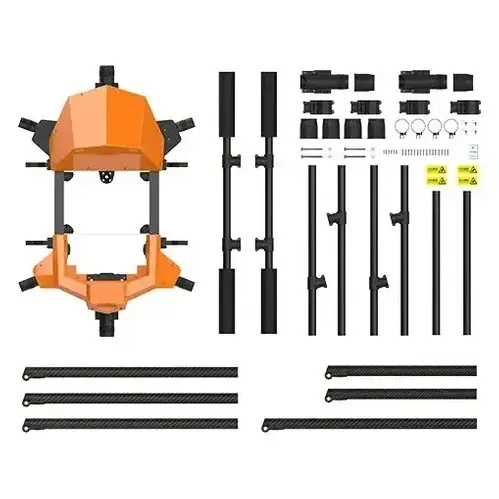

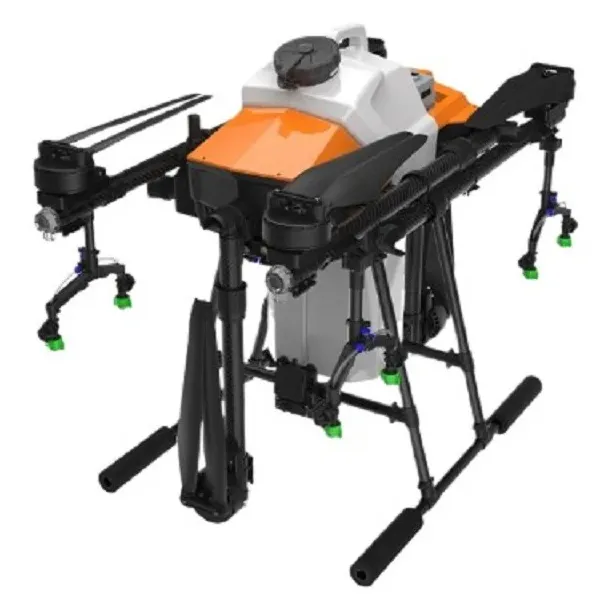

EFT G620 20L 6-Axis Agriculture Drone Frame with AS150U Connector

The EFT G620 is a 20L six-axis agricultural frame for large-field spraying and sowing, fitted with an AS150U power connector. EFT's reference build pairs it with Hobbywing X9 motors, 34-inch propellers and a 14S 22000mAh pack, reaching a full-load take-off weight of 51.2 kg.

Key features

• Integrally formed frame: a simplified structure built for strength, durability and reliability.
• Cross- and staggered-folding arms: fold the frame down to 1192 x 623 x 885 mm for transport.
• Two battery schemes: install either a smart battery or a plug-in battery.
• IP65 dust and water protection: the frame can be washed down directly with water after spraying.
• Spray or spread: the payload system can be swapped between spraying and spreading.

Specifications

• Configuration: Hexacopter (6-axis)
• Wheelbase: 2028 mm
• Tank capacity: 20L
• Frame net weight: 9.66 kg
• Full-load take-off weight: 51.2 kg (reference setup)

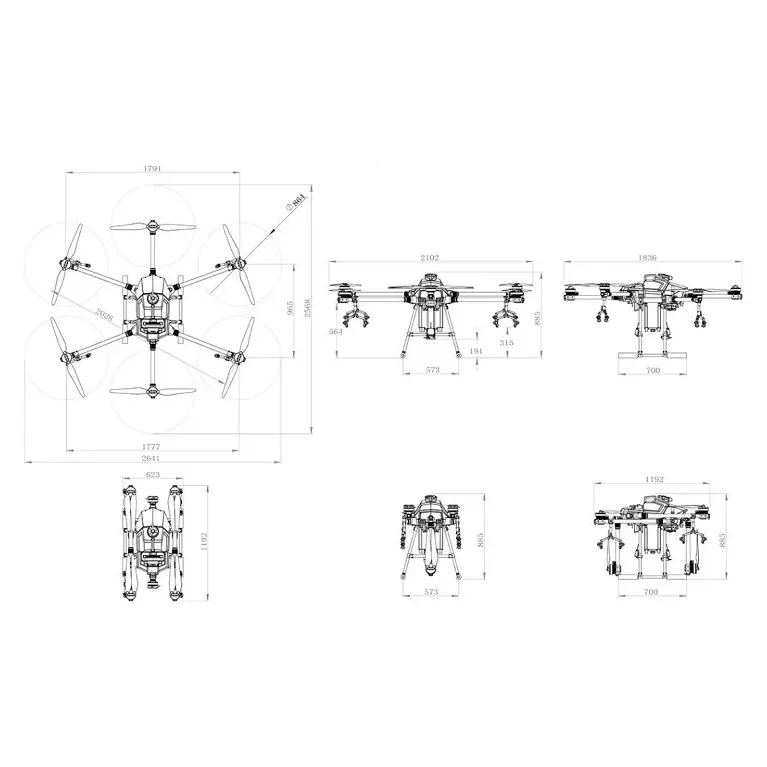

• Unfolded size: 2641 x 2568 x 885 mm
• Folded size: 1192 x 623 x 885 mm
• Arm tube diameter: 40 mm
• Recommended propulsion: Hobbywing X9 with 34-inch propellers
• Recommended battery: 14S 22000mAh (51.8 V nominal)
• Power connector: AS150U
• Flight time (reference setup): about 20.5 minutes without load, 8 minutes at full load
• Protection: IP65

Check that your batteries and charging leads use AS150U plugs before ordering this version. Motors, ESCs and propellers are not included.
