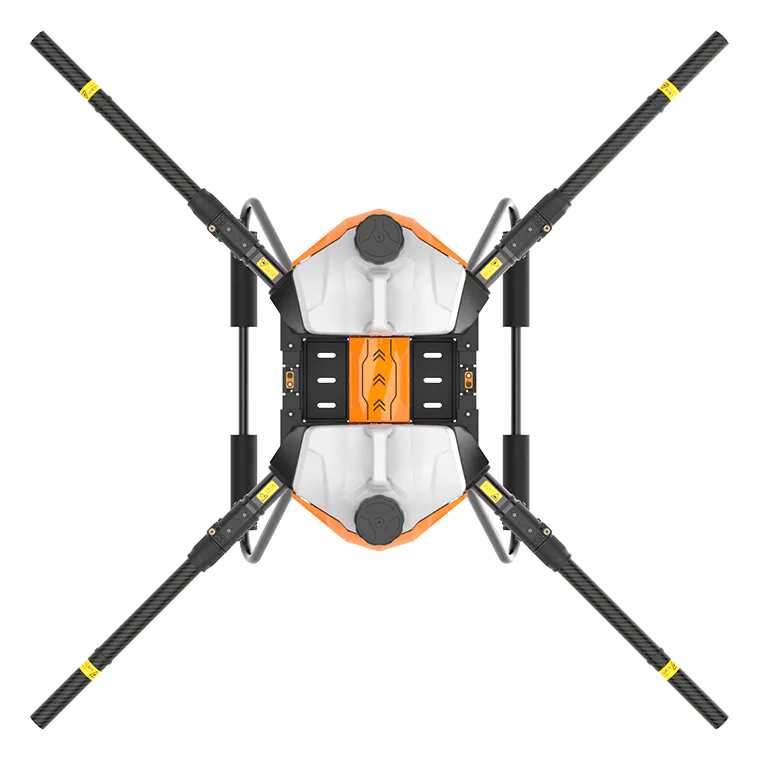

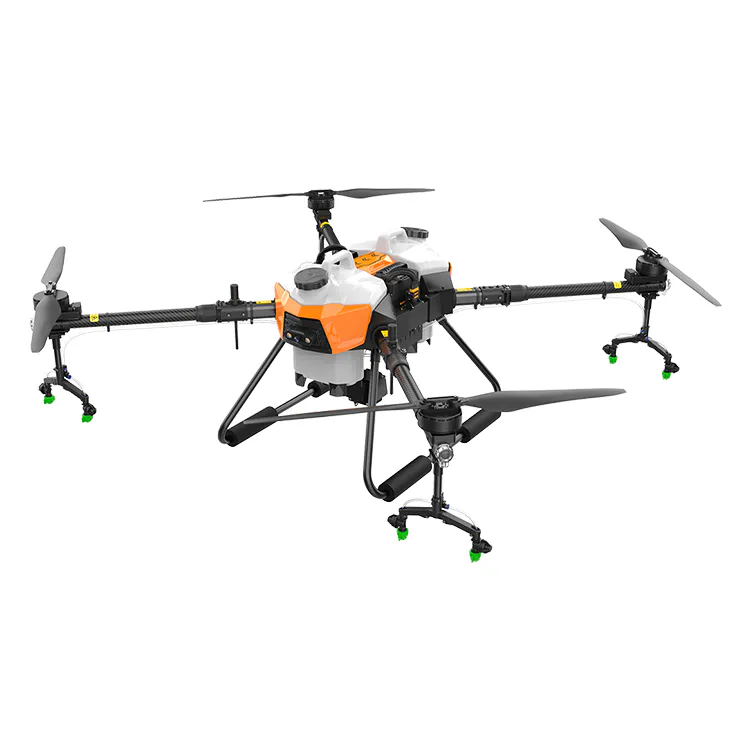

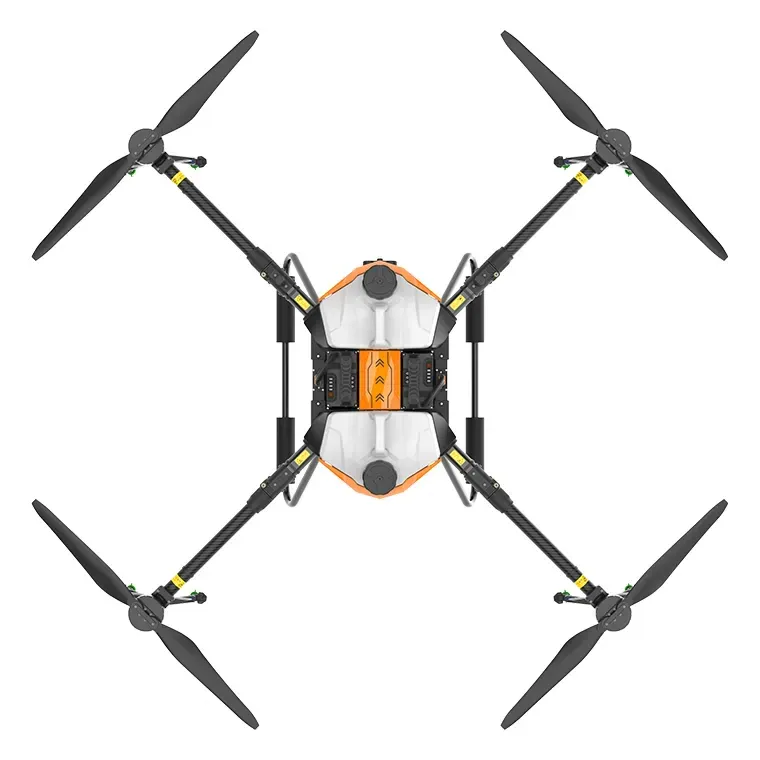

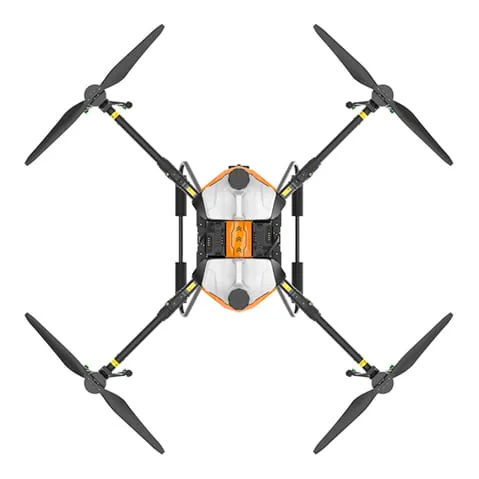

EFT G20Q 22L 4-Axis Agriculture Drone Frame
EFT G20Q 22L 4-Axis Agriculture Drone Frame
EFT G20Q 22L 4-Axis Agriculture Drone Frame
EFT G20Q 22L 4-Axis Agriculture Drone Frame
EFT G20Q 22L 4-Axis Agriculture Drone Frame
EFT G20Q 22L 4-Axis Agriculture Drone Frame
EFT G20Q 22L 4-Axis Agriculture Drone Frame
EFT
Agri Frames

EFT G20Q 22L 4-Axis Agriculture Drone Frame

₹72,759Incl. GST

SKU EFT-G20Q-22L-FRAME

Made in India: NoBrand: EFTWeight: 13100 gAxis: 4

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

The EFT G20Q is the four-axis version of EFT's G20 agricultural platform: a 22L effective payload carried in two quick-release tanks, front and rear, with two batteries mounted left and right. The fully symmetrical layout keeps the centre of gravity stable and gives the power system dual-battery redundancy.

Key features

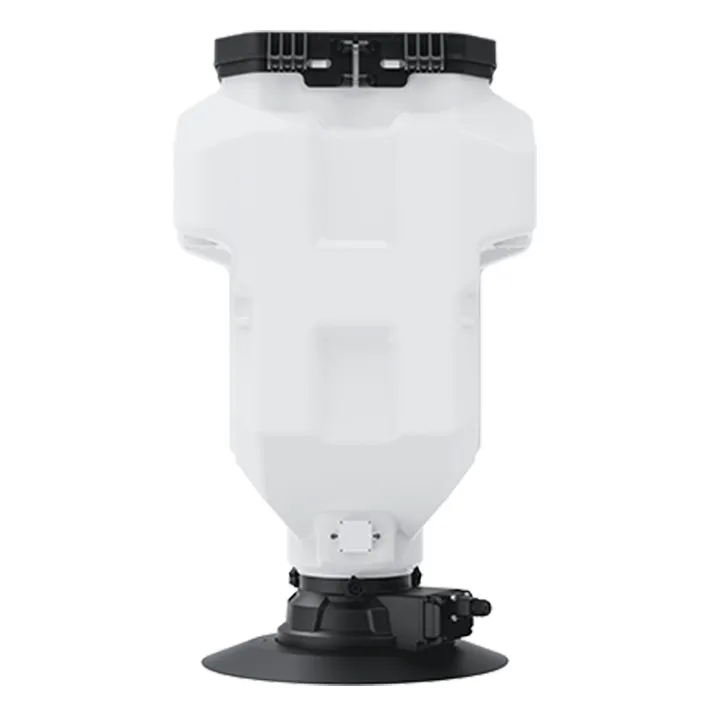

  • Dual quick-release tanks: 2 x 11L for 22L effective capacity, swapped quickly between sorties.
  • Dual quick-release batteries: left and right packs for power redundancy.
  • High-pressure spraying: takes four Y-shaped extension-rod nozzles fed by high-pressure pumps for fine atomisation and less droplet drift.
  • IP65 protection: dust-tight and protected against water jets.
  • Expansion options: provision for RTK, three-way radar and an FPV camera.

Specifications

  • Configuration: Quadcopter (4-axis)
  • Effective capacity: 22L (2 x 11L tanks)
  • Wheelbase: 1913 mm
  • Frame net weight: 13.1 kg
  • Protection: IP65
  • Motors and propellers: Not included

Motors and propellers are bought separately, and the high-pressure spray system, RTK and radar are options; size the propulsion for a 22L payload plus the 13.1 kg frame and two batteries.
