DreamflyRC F722 60A FC & ESC Stack

The DreamflyRC F722 60A stack pairs an F722 flight controller with a 4-in-1 ESC rated 50A continuous (60A for short bursts). Built for 5-inch freestyle and racing quads, this matched package cuts build time while giving you the processing power for fast loop times and headroom to push high-KV motors.

Key features

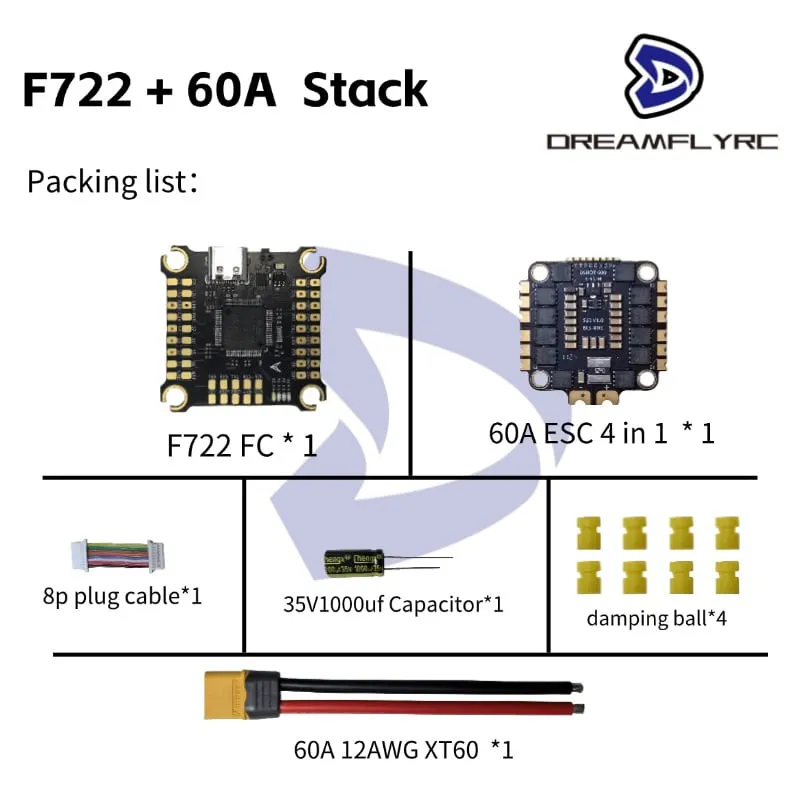

• Pre-matched flight controller and ESC hardware for straightforward integration into standard frames.

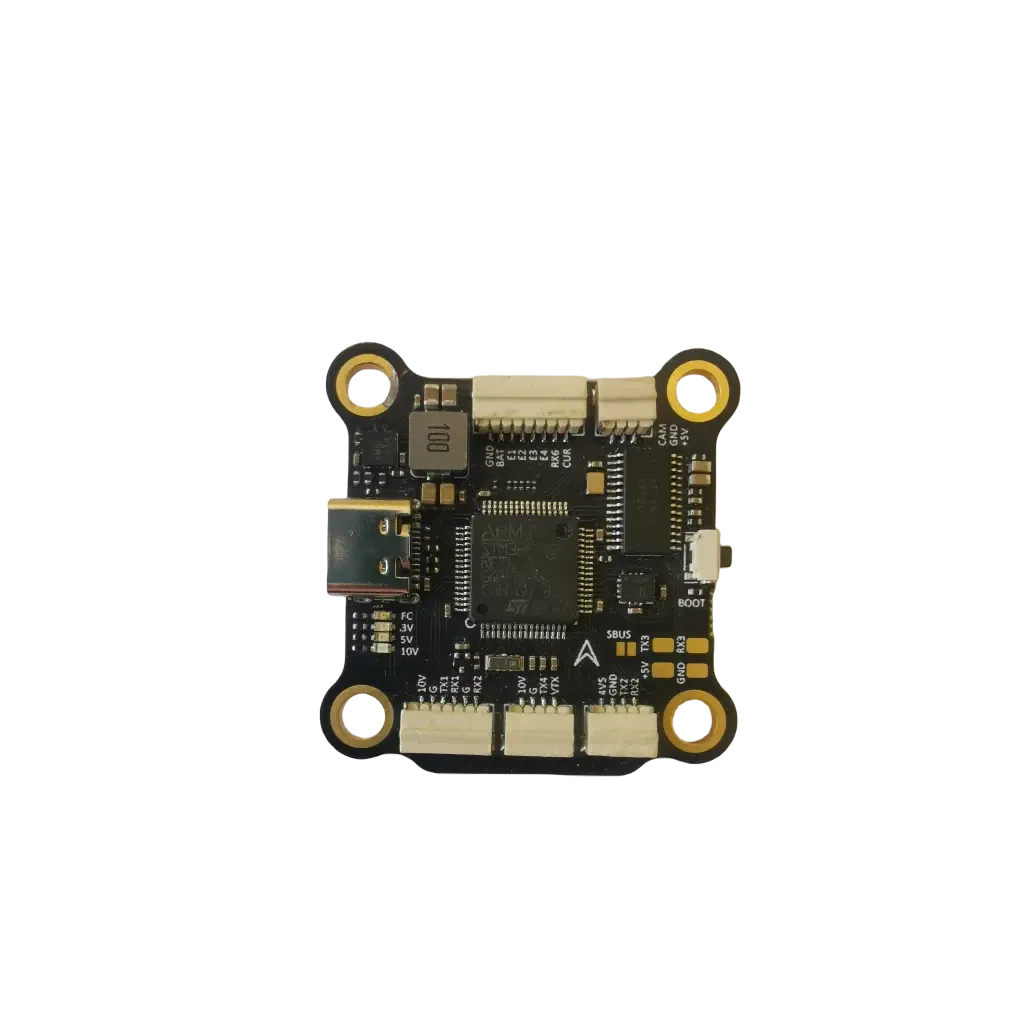

• ICM42688-P gyro and an STM32F722 MCU handle demanding Betaflight filter configurations.

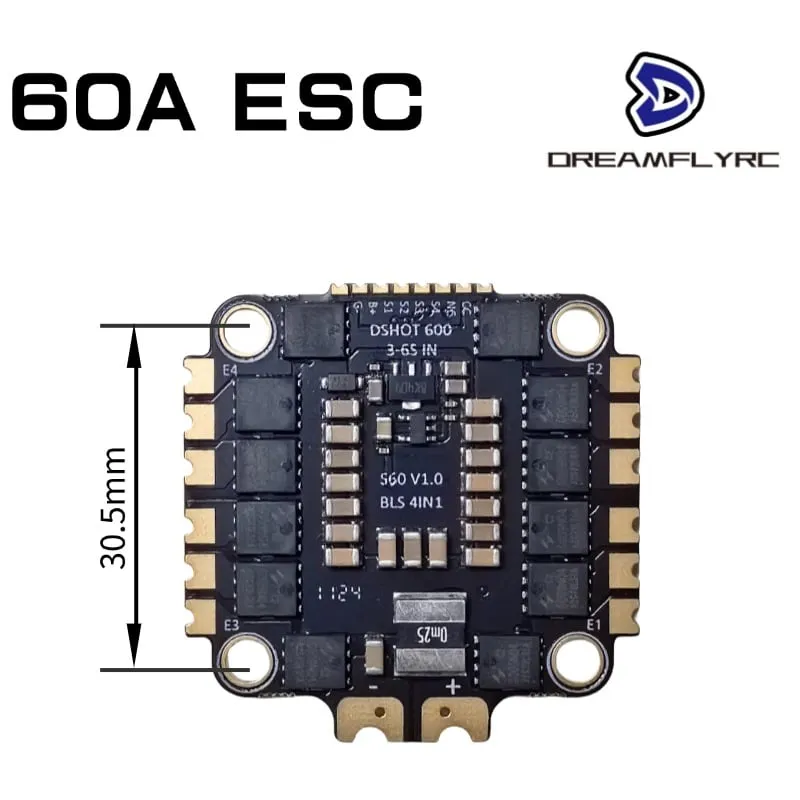

• 50A continuous / 60A 10-second peak ESC rating sustains aggressive throttle punches.
• Direct FC-to-ESC wiring harness eliminates delicate signal-pad soldering.

Specifications

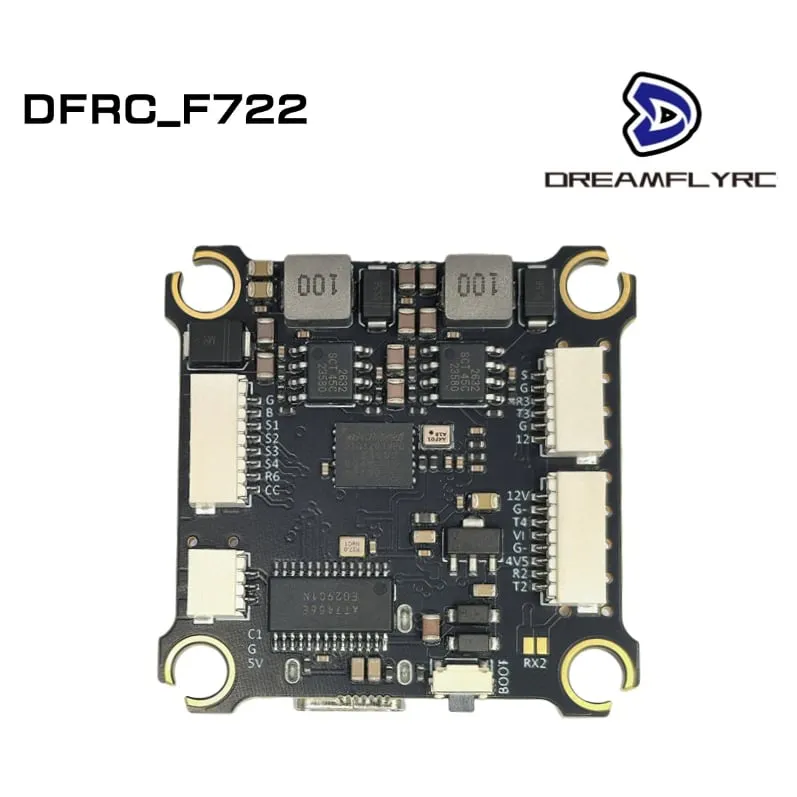

• FC processor: STM32F722
• Gyro: ICM42688-P
• Barometer: SPL06
• OSD chip: AT7456E
• Blackbox: 16Mb onboard flash
• BEC output: 5 V and 12 V
• USB: Type-C
• Motor outputs: 8 (S1-S4 on the 8-pin ESC plug)
• Other: DJI O3 air unit support, dual camera switching via PINIO, I2C
• Input voltage: 3-6S LiPo
• ESC current: 50A continuous (60A peak, 10s)
• ESC firmware: BLHeli_S, DShot300/600
• ESC MCU: EFM8BB21
• Mounting: 30.5x30.5mm (4mm holes)
• Supported firmware: Betaflight

This stack suits standard 5-inch builds where reliable power delivery and a quick, unified assembly matter most.
