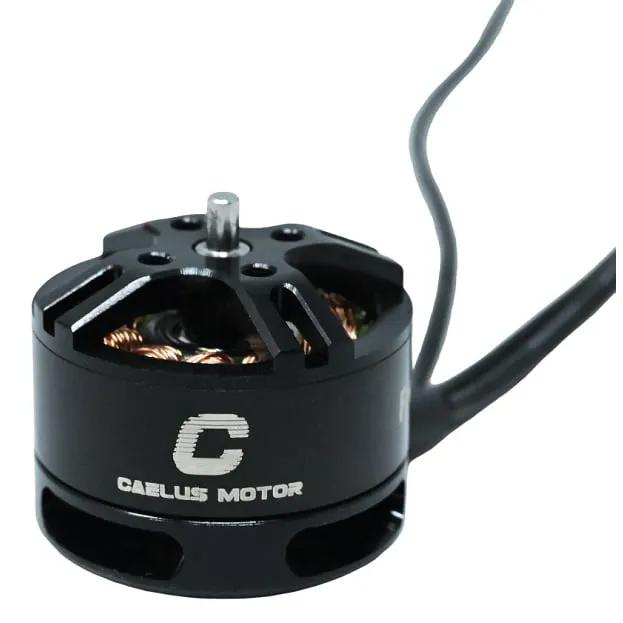

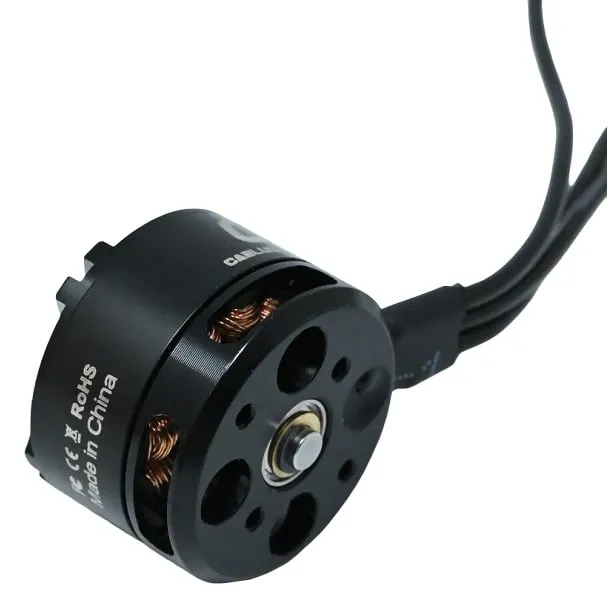

CAELUS FK1806-13 2300KV Brushless Motor
SKU CAELUS-FK1806-13-2300KV
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The CAELUS FK1806-13 2300KV is a compact brushless motor for micro and toothpick FPV builds, weighing just 23g including cables and matched to 2-4S LiPo power for high-speed freestyle and racing use.
Key features

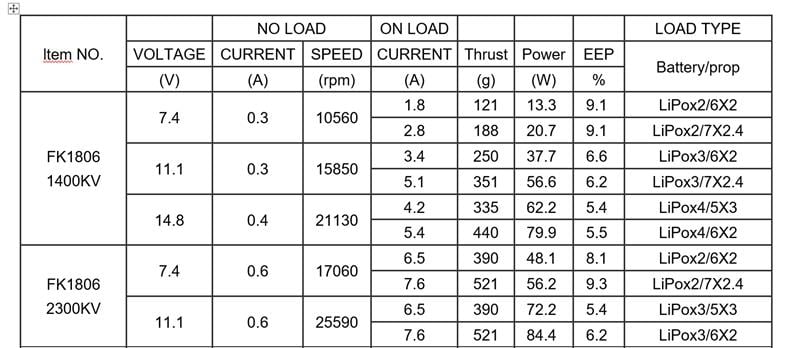

Delivers up to 521g of thrust on 4S with a GF6020 propeller, drawing around 7.6A at 84.4W peak power.
18mm stator diameter and 6mm stator height suit 4-6 inch propellers on lightweight racing frames.
Runs on a 2S-4S LiPo input range, giving flexibility across micro and toothpick builds.
1806 stator format keeps the motor compact for 3-4 inch drone frames.
Smooth, efficient operation is built to hold up over repeated hard racing passes.

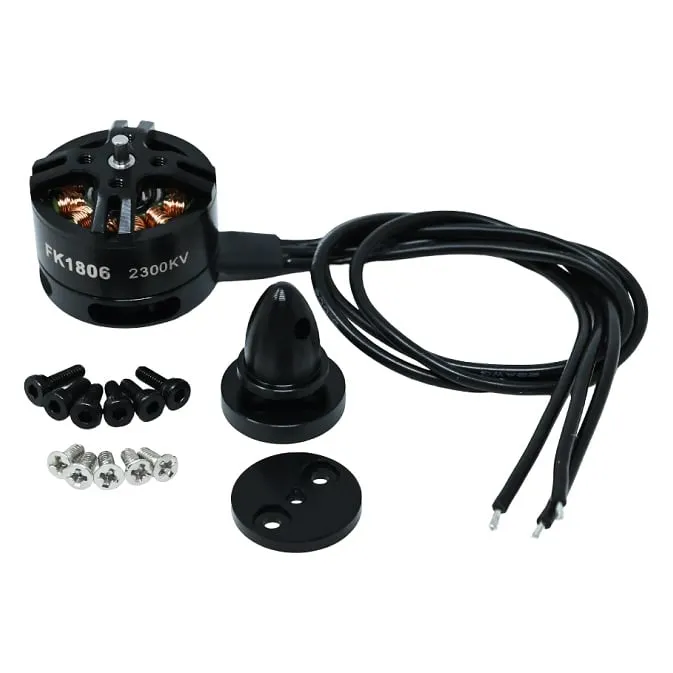

Ships with the motor and its mounting hardware, ready to bolt onto a compatible frame.
Specifications
Stator size: 1806
KV: 2300KV
Input voltage: 2-4S
Weight: 23g (including cables)
Max thrust: 521g (4S, GF6020 prop)
Check the frame's motor mounting pattern, shaft and propeller clearance, and choose a battery and propeller combination suited to your build's weight and flying style.
| Stator Size | 1806 |
|---|---|
| Stator Diameter | 18mm |
| Stator Height | 6mm |
| KV | 2300 KV |
| Pack Size | 1 |
| Input Voltage | 2–4S |
| Weight | 23 g |
| Brand | CAELUS |
| Made in India | Yes |
