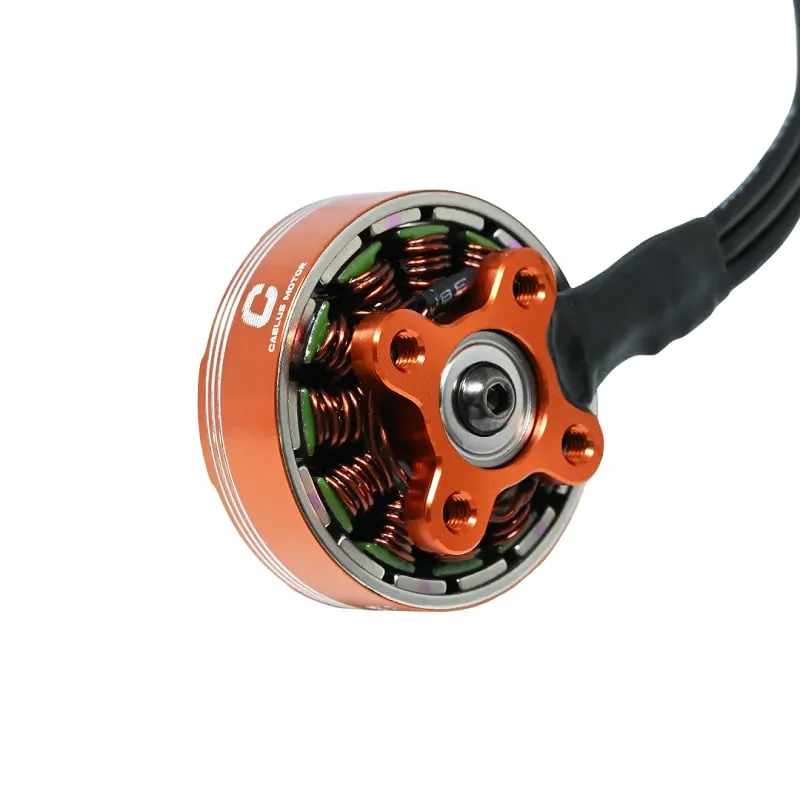

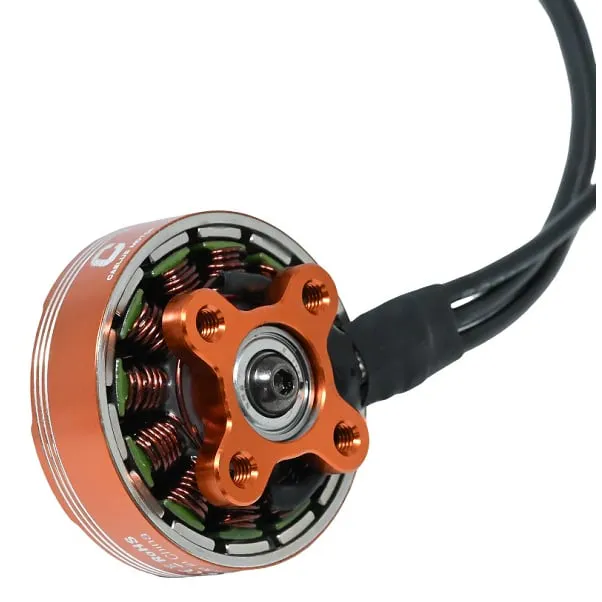

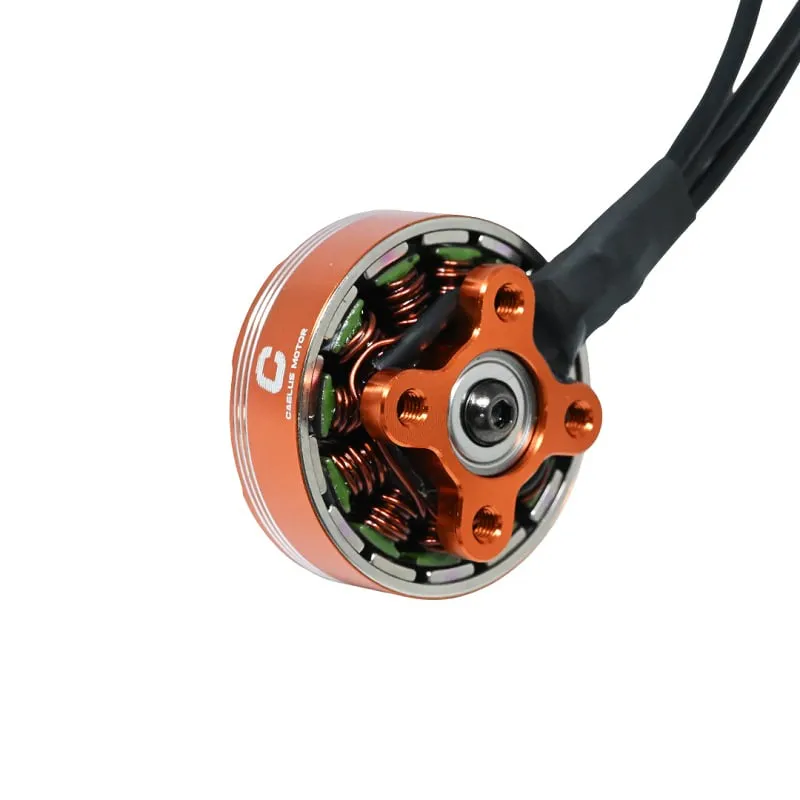

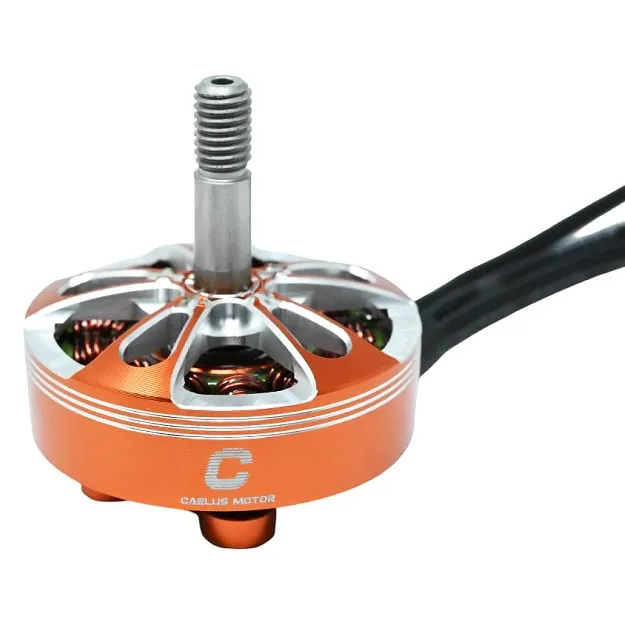

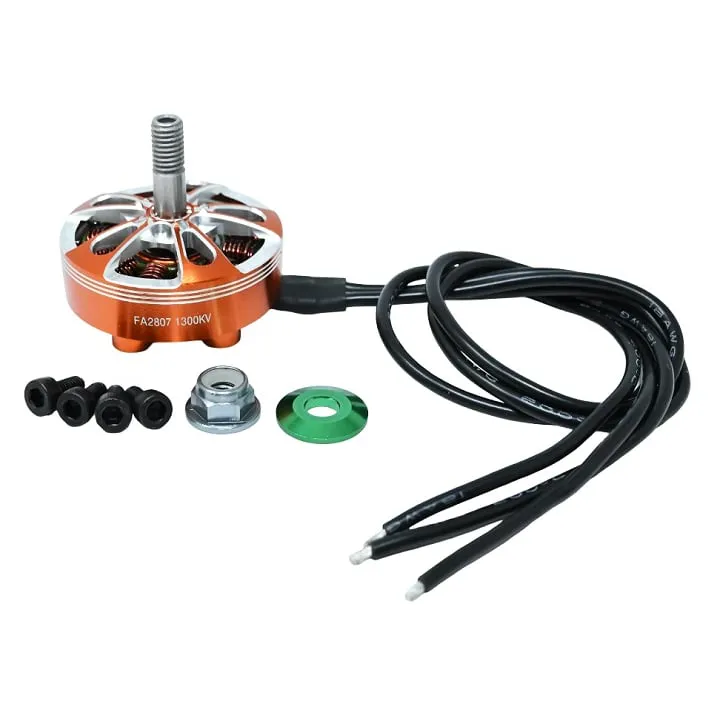

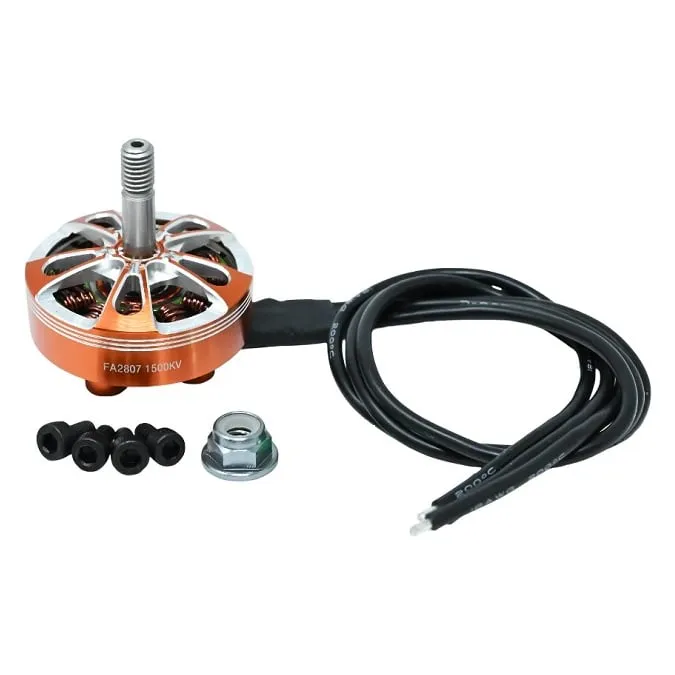

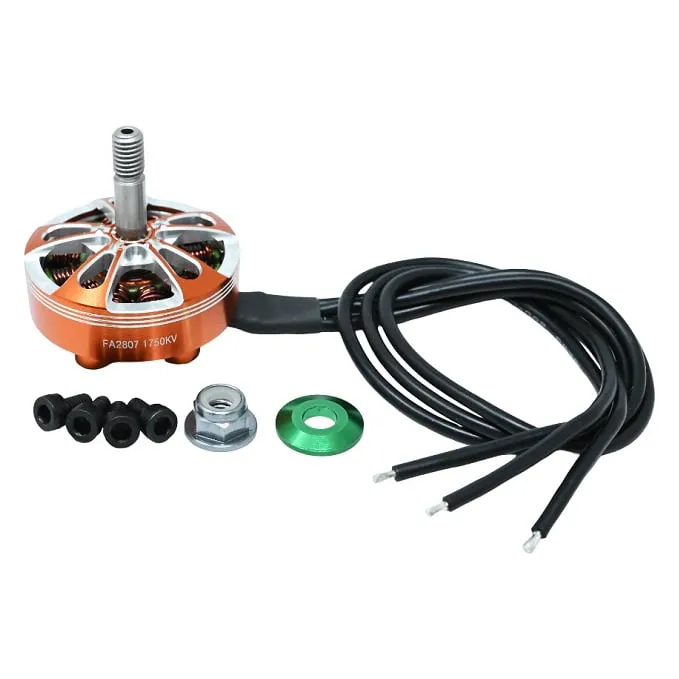

CAELUS FA2807 4-6S Brushless Motor

The CAELUS FA2807 is a brushless motor built for 7-inch long-range FPV builds, offered in 1300KV, 1500KV and 1750KV, using a 12N14P stator design for strong thrust with efficient current draw across a full flight.

Key features

• 12N14P stator winding gives strong acceleration and stable operation under sustained load.

• Delivers up to 2.22kg of maximum thrust on 7-inch propellers.

• 5mm hardened-steel shaft for smooth, durable rotation over long flights.

• 250mm 18AWG silicone motor leads for straightforward wiring into the build.

• Rated for 4S-6S LiPo power systems, giving builders flexibility in battery choice.

• Suited to freestyle, long-range and FPV cinematic platforms alike.

Specifications

• Stator size: 2807 (28 x 7 mm)

• KV: 1300KV / 1500KV / 1750KV

• Configuration: 12N14P

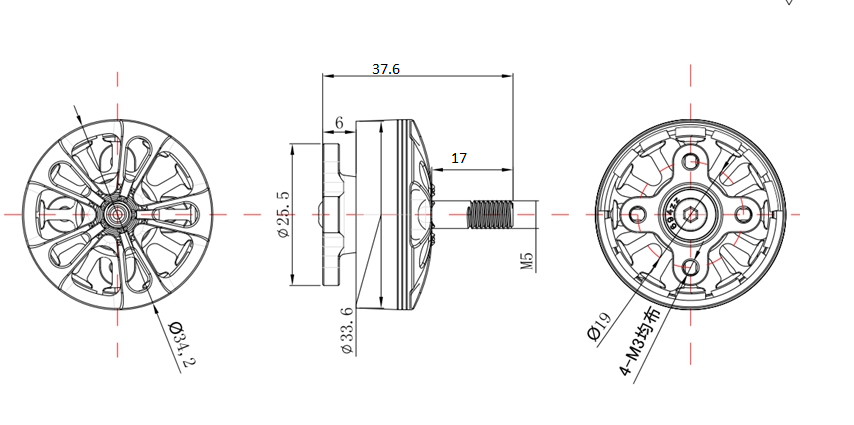

• Motor dimensions: 34.2 x 19.6 mm

• Weight: 49g (including wires)

• Shaft: 5mm

• Motor wire: 18AWG, 250 mm

• Max thrust: 2.22kg (1750KV), 2.21kg (1300KV, 7045 tri-blade)

• Recommended ESC: 50A

Fit four matched motors per build and pair with a 7-inch propeller and an ESC rated for your chosen cell count.
