Caddx 1303 6000KV Micro Motor
SKU CADDX-1303-6000KV
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

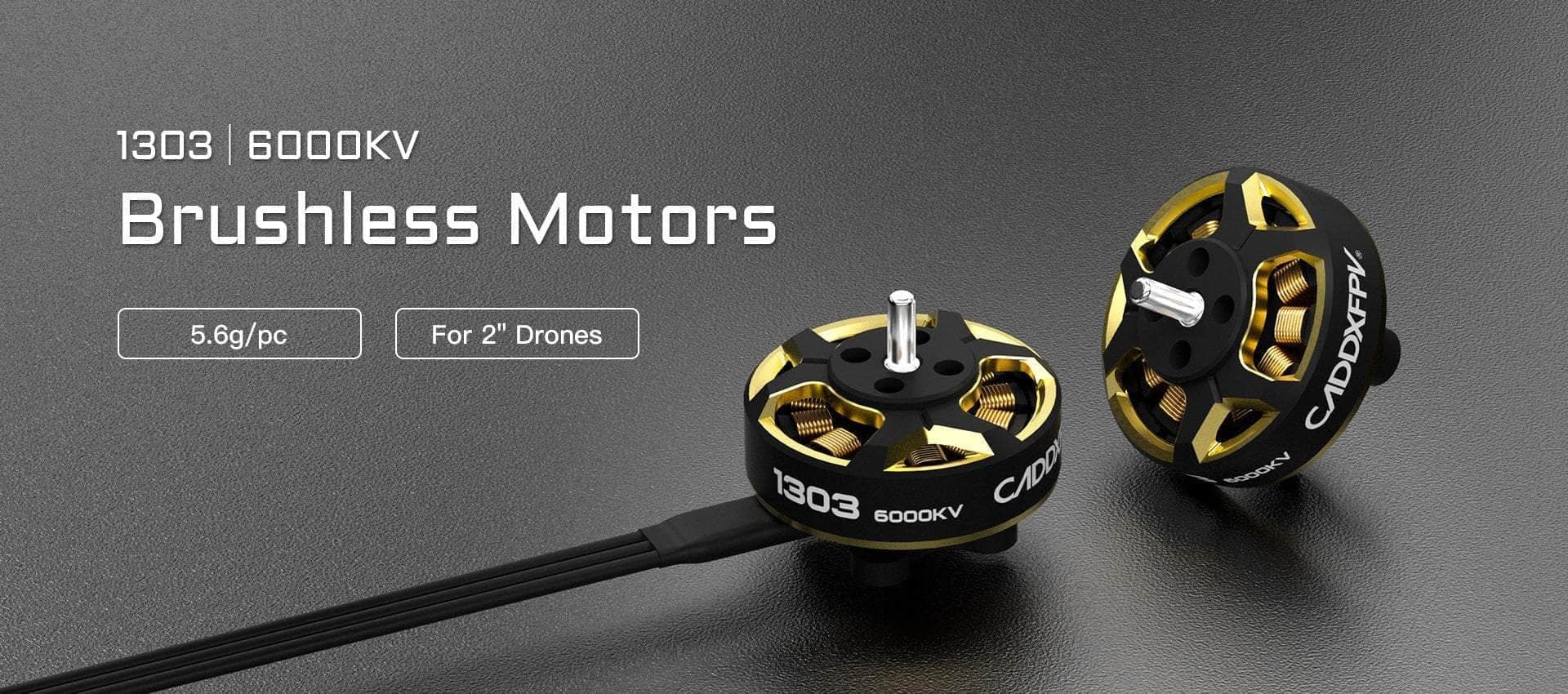

The Caddx 1303 6000KV micro motor is engineered for 2-inch to 3-inch toothpick builds and lightweight cinewhoops. Originally deployed on platforms like the Caddx GoFilm 20, this motor delivers the high RPM and efficiency required to carry digital FPV systems smoothly while maintaining snappy throttle response on 2S to 4S LiPo power.
Key features
Optimised for lightweight 2-inch to 3-inch toothpick and micro quad frames
Provides a smooth, high-RPM powerband suited for HD camera-carrying cinewhoops
Low-profile footprint to keep sub-250g builds as light as possible
Specifications
Brand: Caddx
Stator Size: 1303
KV: 6000
Recommended Propellers: 2–3 inch
Shaft Diameter: 1.5mm
Input Voltage: 2-4S LiPo
Configuration: 12N14P
Motor Dimensions: 16.5 x 10.1 mm (diameter x length)
Weight: 5.6 g (with 5 cm wire)
Max Current (3S): 16.9 A
Max Continuous Power (3S): 250 W
Pair these motors with a 15A to 20A micro AIO flight controller and standard T-mount propellers to maximise flight time and agility on your next micro build.
| Stator Size | 1303 |
|---|---|
| Stator Diameter | 13mm |
| Stator Height | 3mm |
| KV | 6000 KV |
| Pack Size | 1 |
| Prop Mount | 1.5mm |
| Shaft | 1.5mm |
| Motor Mount | 9x9mm |
| Input Voltage | 2–4S |
| Weight | 5.6 g |
| Brand | Caddx |
| Made in India | No |
