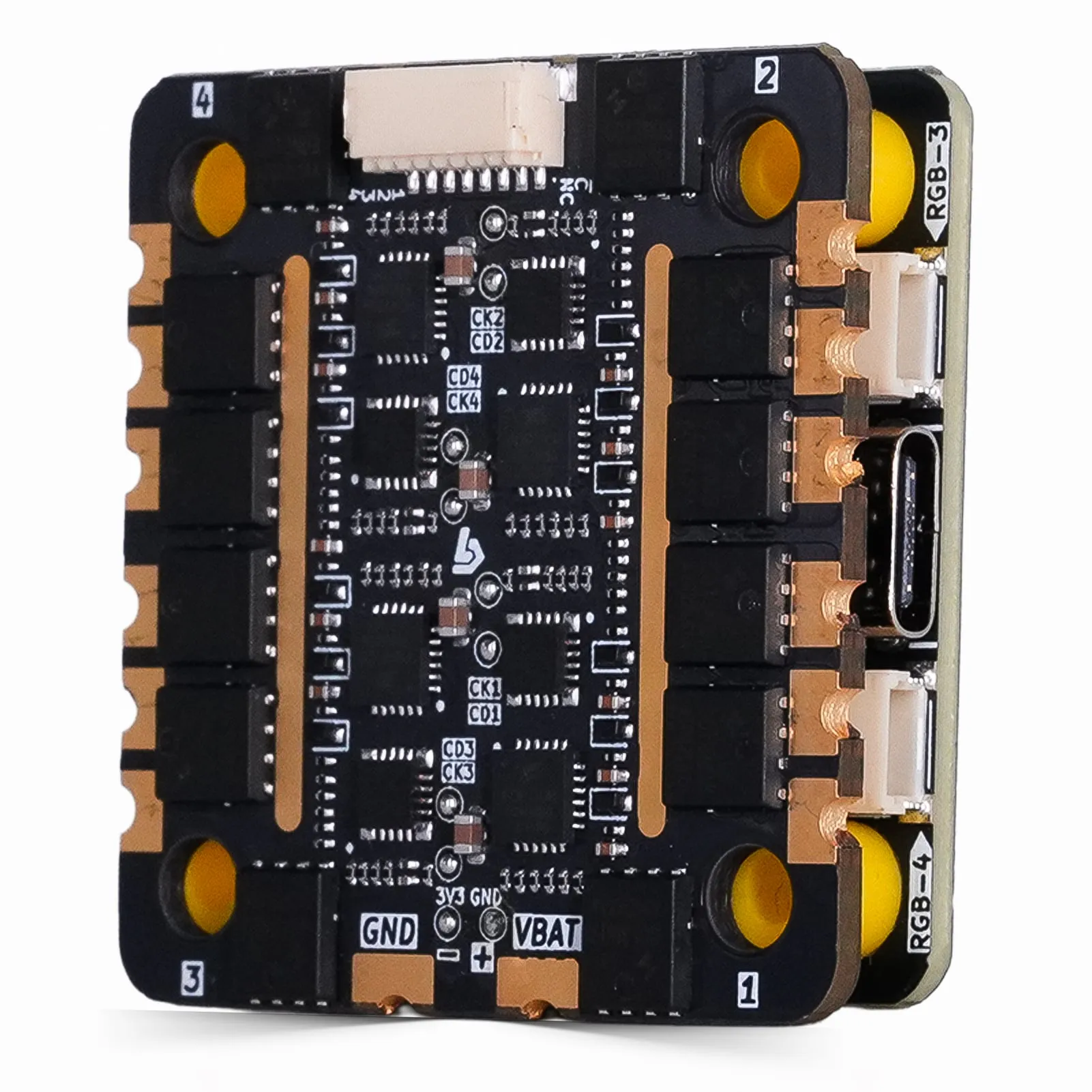

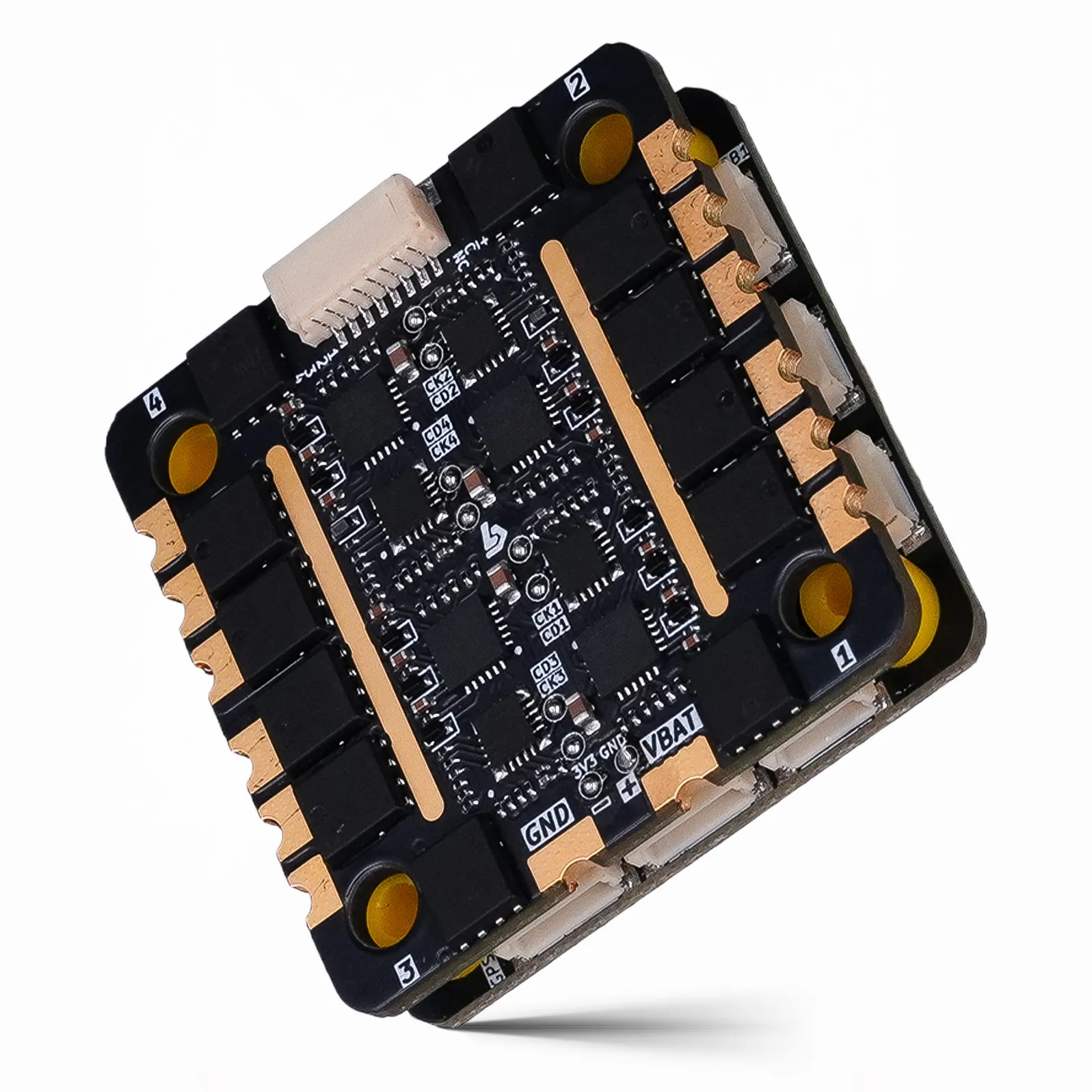

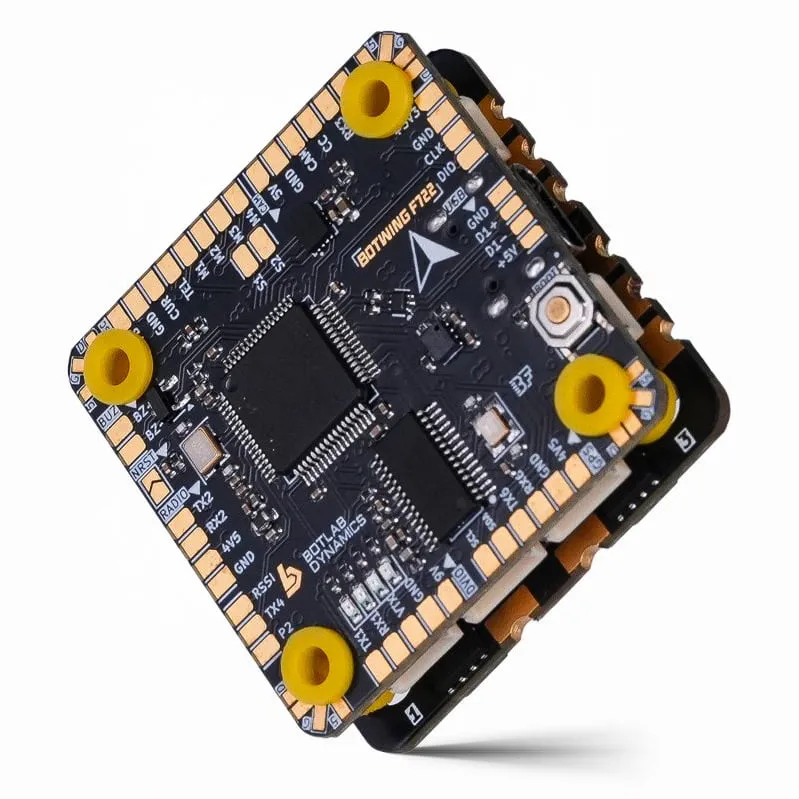

Botlab Dynamics BotStack BotWing F722 FC + BotDrive 8-Bit 50A 4-in-1 ESC Stack

The Botlab Dynamics BotStack pairs the BotWing F722 flight controller with the BotDrive 8-bit 50A 4-in-1 ESC to deliver a robust power and logic system for 5-inch freestyle rigs and medium-range cinematic builds. Designed and manufactured in India, this stack focuses on rapid assembly and straightforward field maintenance. The BotWing F722 stands out with its completely solderless layout—relying entirely on plug-and-play connectors to interface with your receiver, video transmitter, and GPS modules. This eliminates the need for a soldering iron when wiring peripherals or swapping broken components at the flight line.

The accompanying BotDrive 4-in-1 ESC pushes a continuous 50A, providing ample overhead for modern high-KV motors during heavy throttle punches. By utilising a proven 8-bit architecture, the ESC remains highly dependable and readily supports popular firmware variants to enable bidirectional DShot and RPM filtering.

Key features

• Fully solderless flight controller layout for rapid, plug-and-play wiring

• 50A continuous current capacity to drive aggressive 5-inch and 6-inch quadcopters

• 8-bit ESC architecture, ready for BLHeli_S or Bluejay firmware

• Engineered and manufactured natively in India

Specifications

• Flight Controller MCU: STM32F722

• Gyro: ICM42688P

• OSD and blackbox: onboard

• Input Voltage: 2-6S LiPo

• ESC Continuous Current: 50A

• ESC Architecture: 8-bit

• Mounting Size: 30.5x30.5 mm

• Supported Firmware: Betaflight, INAV
