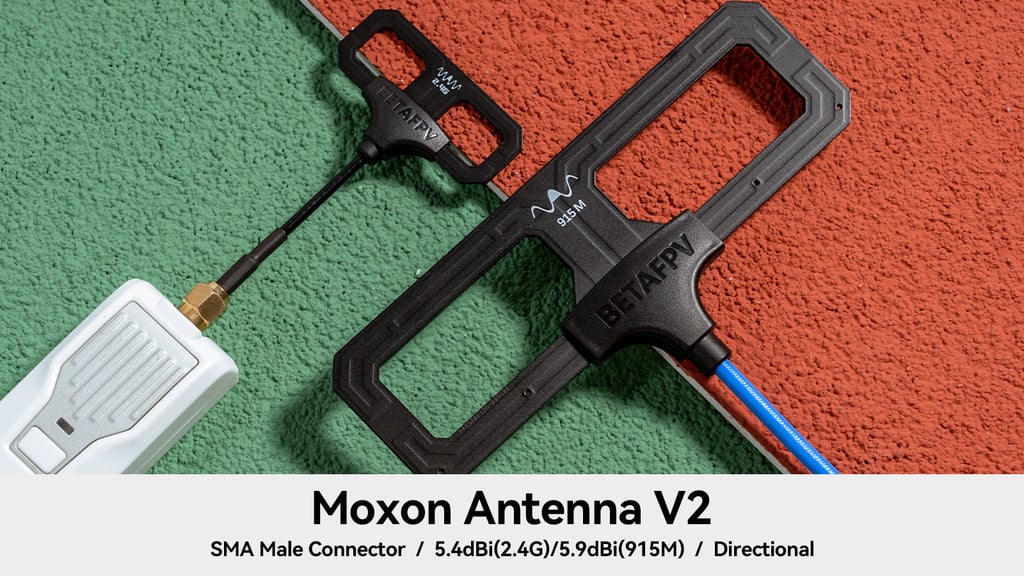

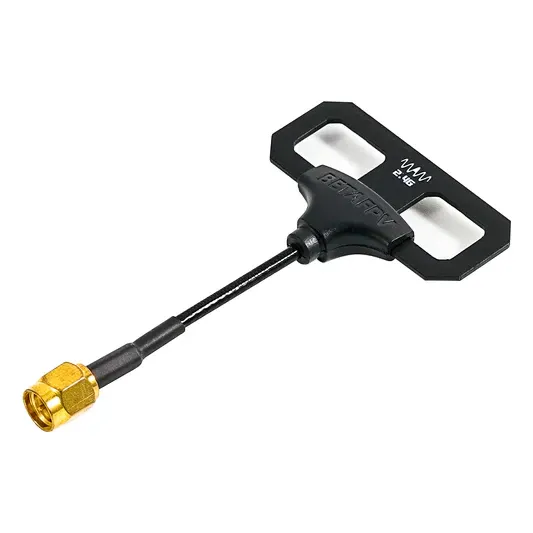

BetaFPV Moxon V2 2.4GHz Antenna
SKU BFPV-MOXON-V2-24G
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The BetaFPV Moxon V2 is a directional, linearly polarised 2.4GHz antenna for ExpressLRS and other 2.4GHz radio-control TX modules, aimed at pilots who want focused link coverage rather than an omnidirectional pattern.
Key features

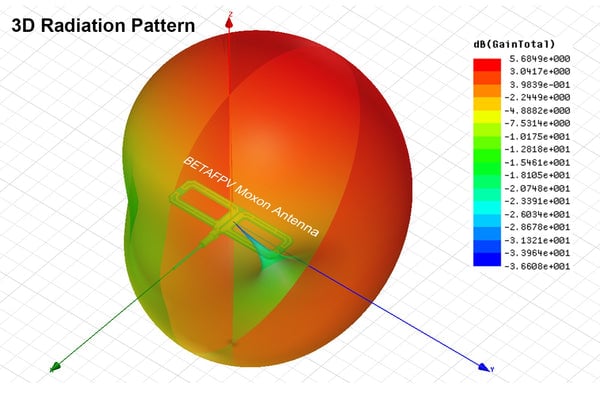

Directional Moxon design rated at 5.4dBi gain on 2.4GHz, with a VSWR under 2.0.
SMA male connector on a 65mm coaxial cable soldered directly to the antenna element for lower transmission loss.
Linear polarisation, so orientation relative to the receiver matters more than with a circularly polarised antenna.
Suited to BetaFPV Nano and Micro TX modules and other 2.4GHz TX modules or radios with a matching connector.
Specifications
Frequency: 2.4GHz
Antenna type: Moxon V2, directional
Polarisation: Linear
Connector: SMA male
Gain: 5.4dBi
Cable length: 65mm
Point the antenna toward your flying area and check connector gender and thread type against your radio or TX module before fitting.
| RC Protocol | ELRS |
|---|---|
| Antenna Connector | SMA |
| Made in India | No |
| Brand | BetaFPV |
| Frequency | 2.4GHz |
| Gain | 5.4 dBi |
| Polarization | Linear |
