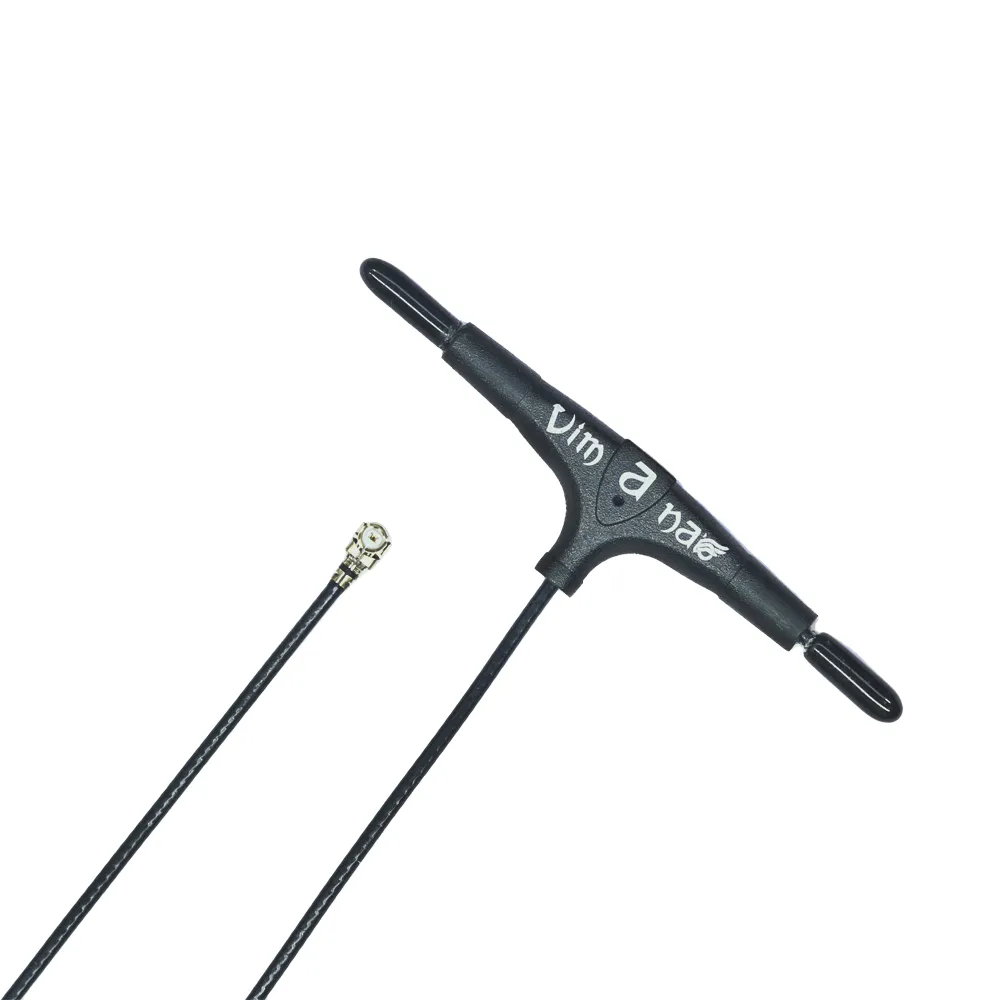

VimanaFPV 2.4GHz ELRS Replacement Antenna

VimanaFPV 2.4GHz ELRS Replacement Antenna is a compact T-style antenna for ExpressLRS gear that uses a U.FL socket. It suits pilots replacing a damaged stock antenna on a 2.4GHz ELRS receiver or module, especially where a short, low-profile lead is easier to route than a larger external antenna.

Key features

• Built for ELRS 2.4GHz systems, so it matches the common 2.4GHz ExpressLRS band used on many modern radios and receivers.

• U.FL plug-in connector for direct replacement on compatible boards without needing an SMA pigtail or adapter.

• Compact T-style layout keeps the antenna profile small, which helps in tight builds and protected mounting positions.

• Light cable construction makes it suitable when you want a neat, minimal replacement rather than a bulky whip-style antenna.

• Black finish blends in with most FPV radio and receiver setups.

Specifications

• Brand: VimanaFPV

• Antenna Connector: U.FL

• RC Protocol: ELRS 2.4GHz

• Frequency: 2.4Ghz

• Type: omnidirectional dipole with built-in balun

• Gain: 2 dBi

• Polarisation: horizontal (linear)

• Impedance: 50 ohm

• VSWR: below 1.4

• Operating temperature: -40 to 60 C

Use this only if your ELRS device has a matching U.FL antenna socket; it is not a direct-fit replacement for SMA or MMCX antennas.
