Maple Wireless 915MHz Moxon Directional Antenna
SKU MAPLE-MOXON-915-RPSMA
Connector: RP-SMA
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

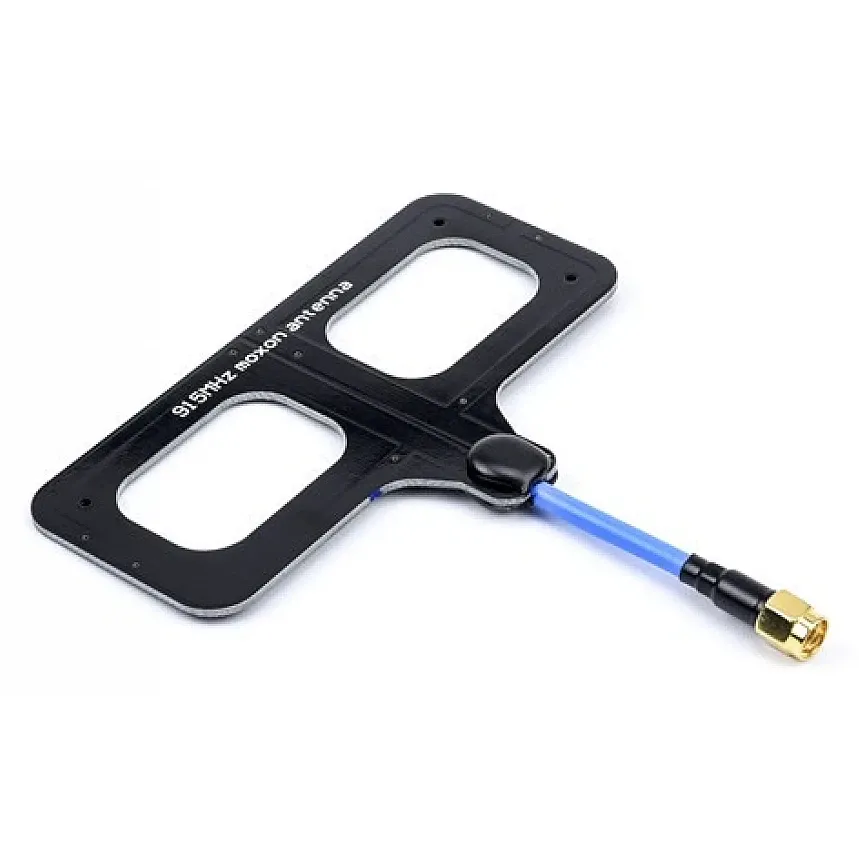

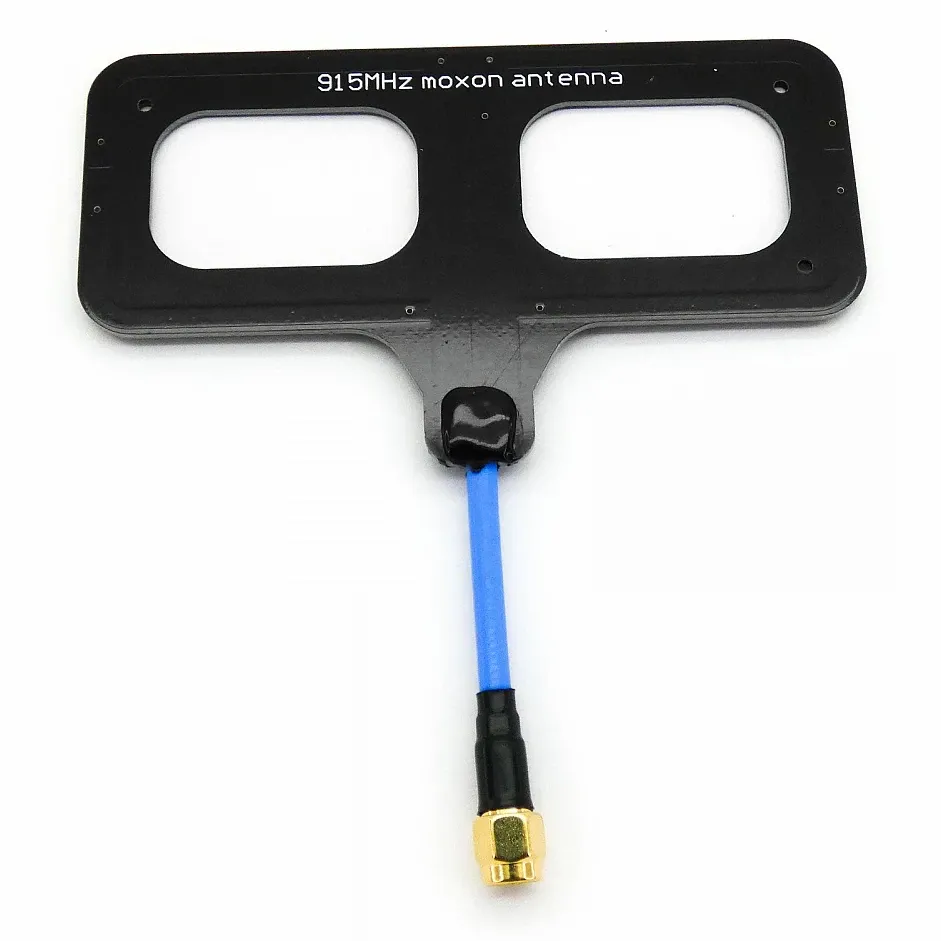

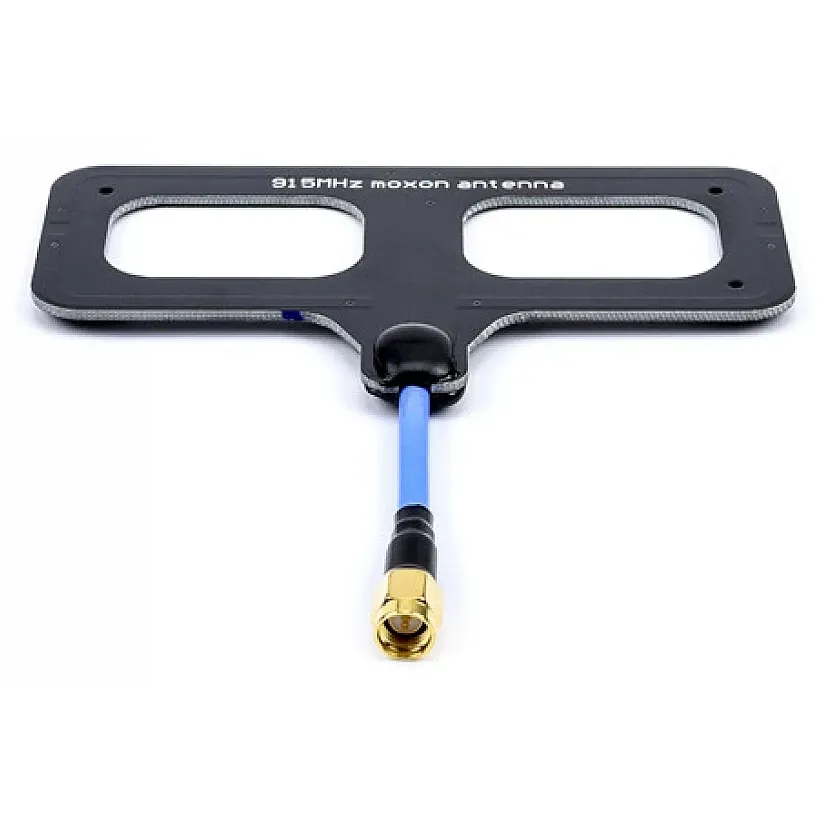

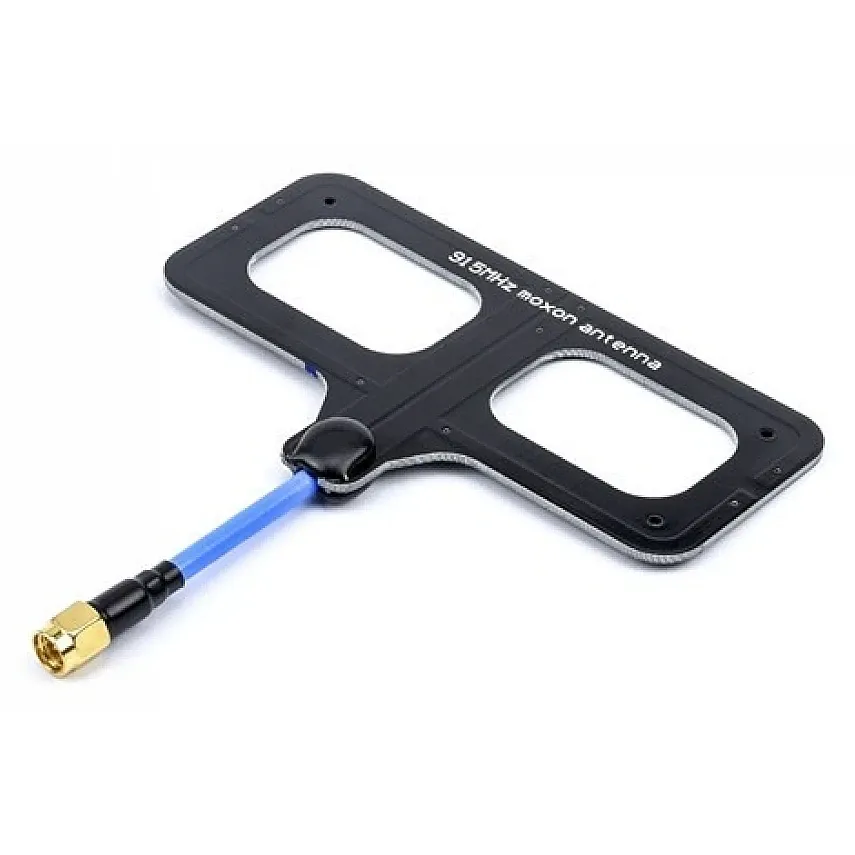

A Maple Wireless Moxon antenna tuned for 915 MHz, the band used by 900 MHz ELRS and TBS Crossfire control links and long-range telemetry radios. The Moxon is a compact directional design that concentrates signal towards the direction it faces, so it belongs on the ground side: on a radio's TX module or a telemetry ground station.
Key features
- Directional Moxon pattern for more range and a stronger signal in the direction it points
- Linear polarisation, matching the dipole-style antennas used on 900 MHz receivers

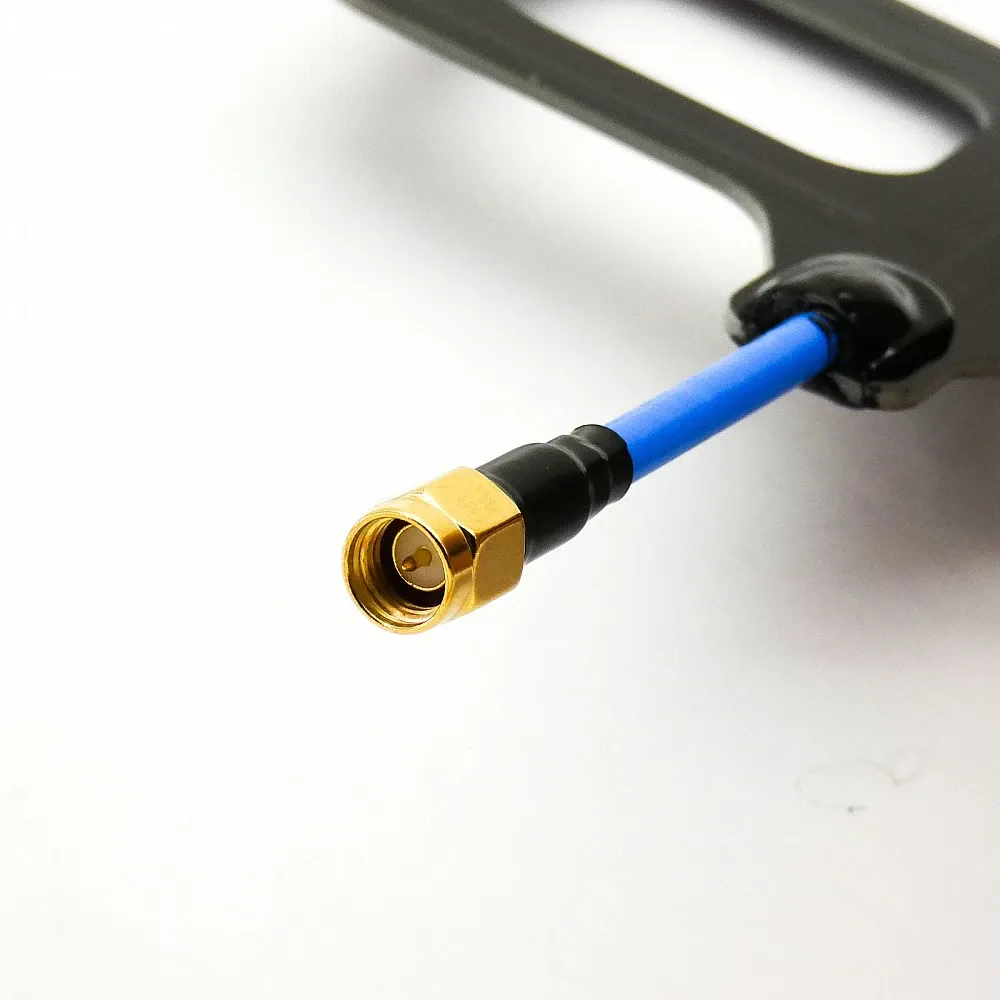

- Available with an RP-SMA or an SMA male connector
- Suits RC control and telemetry links in the 915 MHz band

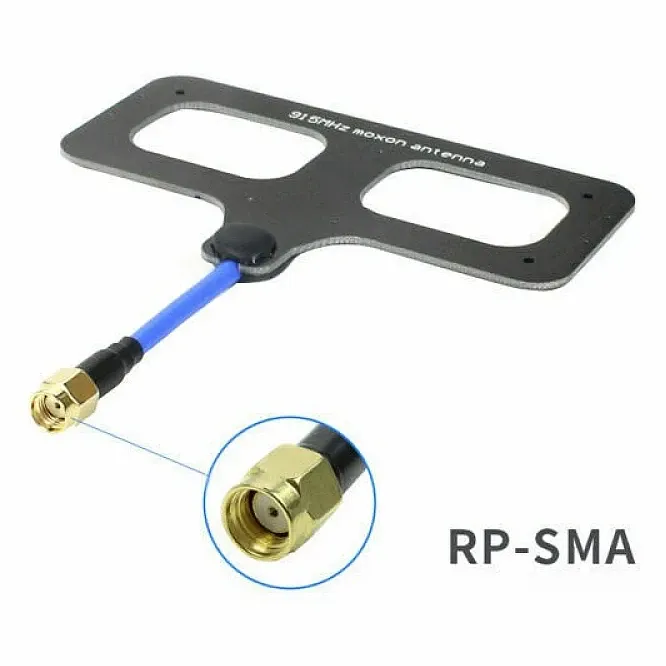

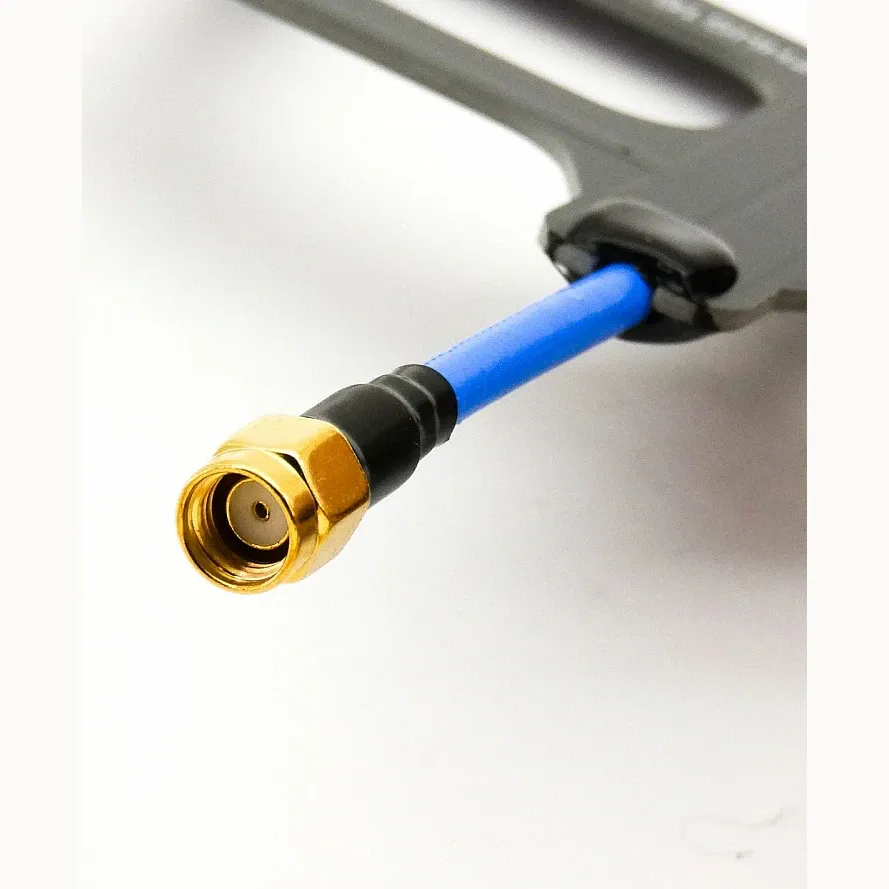

Choose the connector that mates with your module's antenna port: SMA and RP-SMA look alike but do not interchange. Orient the Moxon's elements the same way as the receiver antenna on the aircraft (both vertical or both horizontal) and point it towards your flying area, since coverage behind the antenna is reduced.
| RC Protocol | ELRS, Crossfire |
|---|---|
| Antenna Connector | SMA, RP-SMA |
| Made in India | No |
| Brand | Maple Wireless |
| Frequency | 868/915MHz |
| Polarization | Linear |
