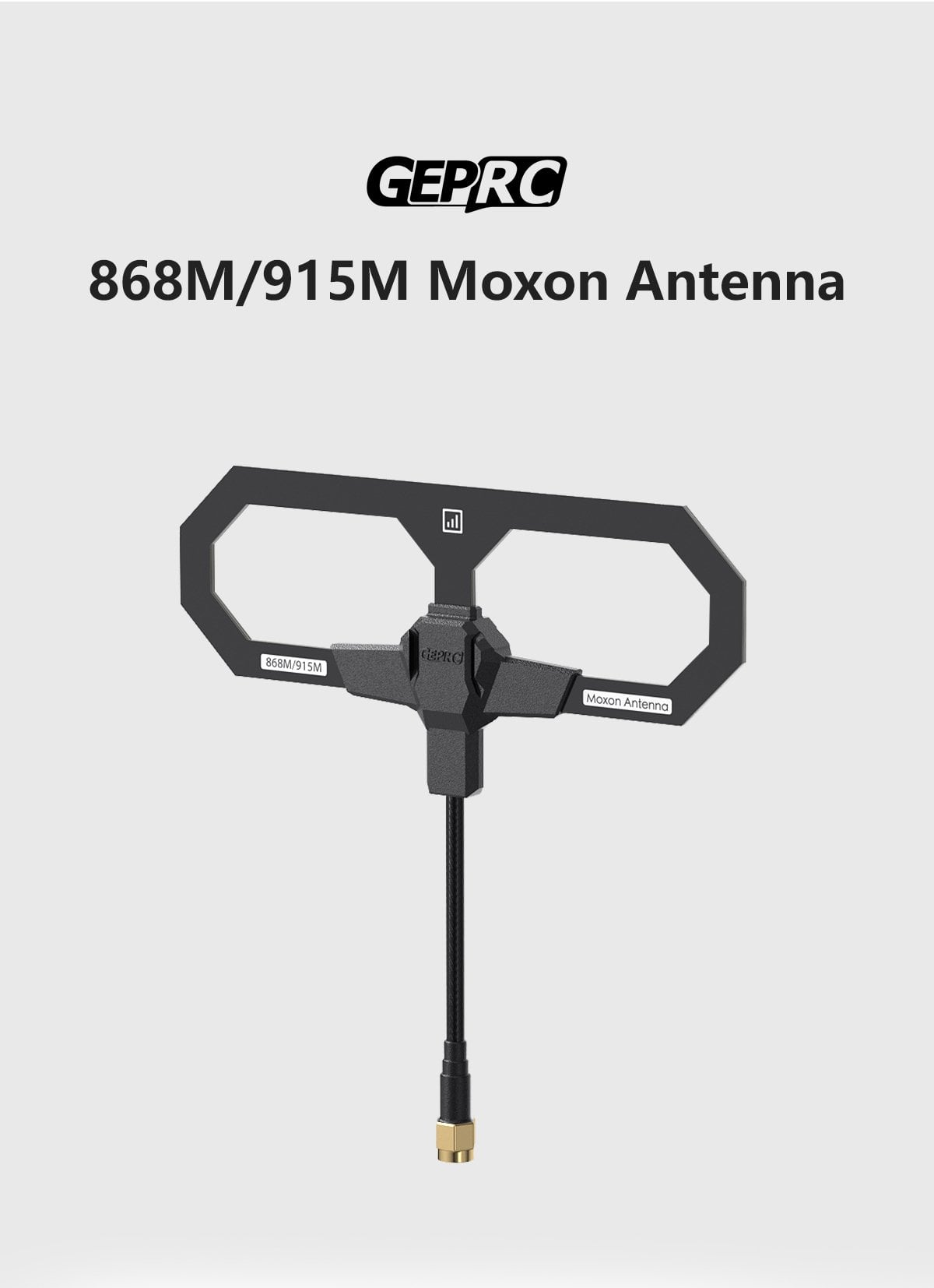

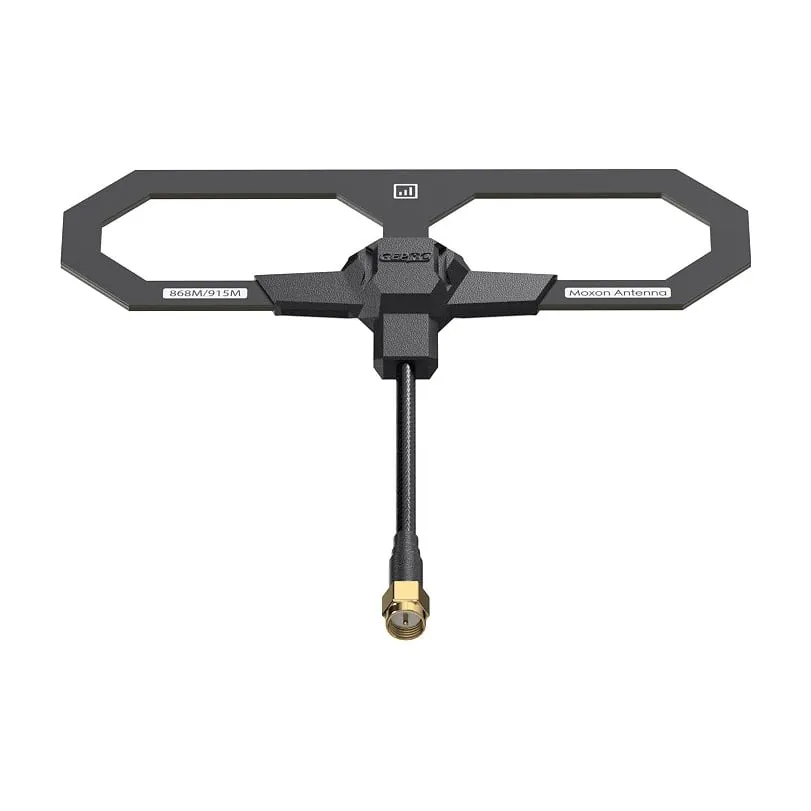

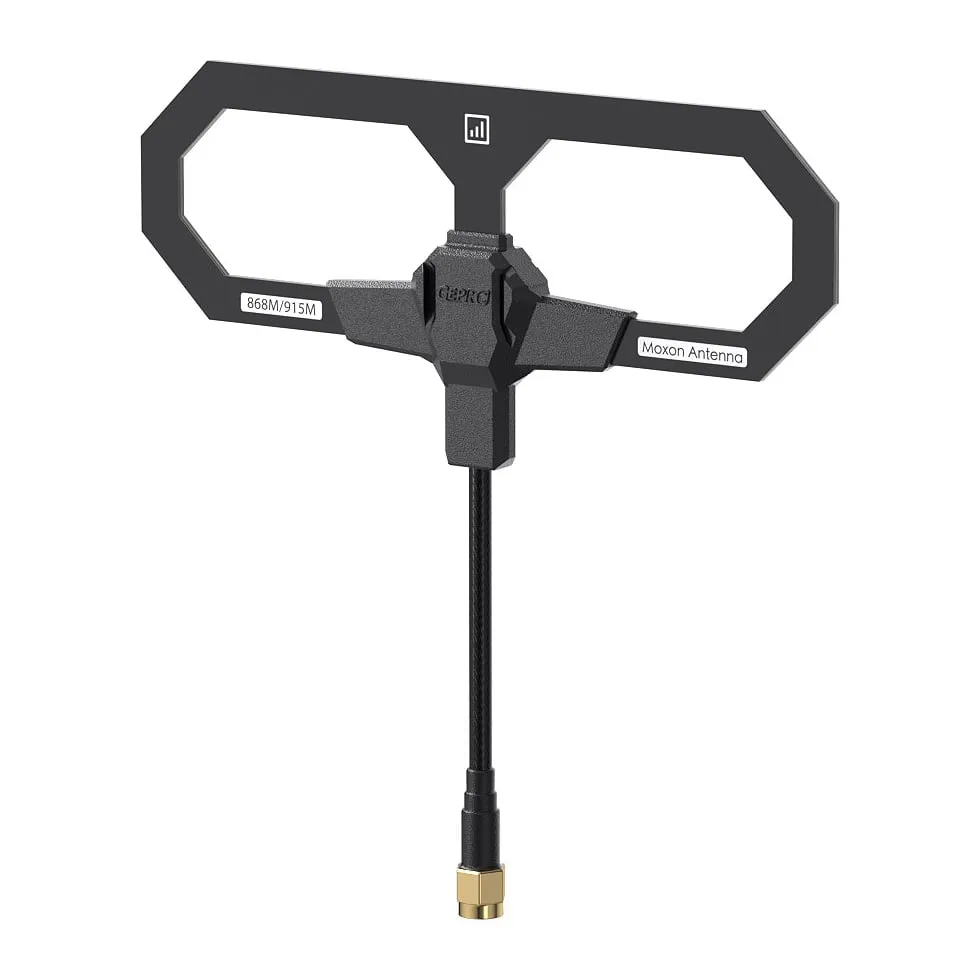

GEPRC 868M/915M Moxon Antenna

The GEPRC 868M/915M Moxon antenna is a directional antenna for long-range ELRS TX modules operating in the sub-GHz 868/915MHz band.

Key features

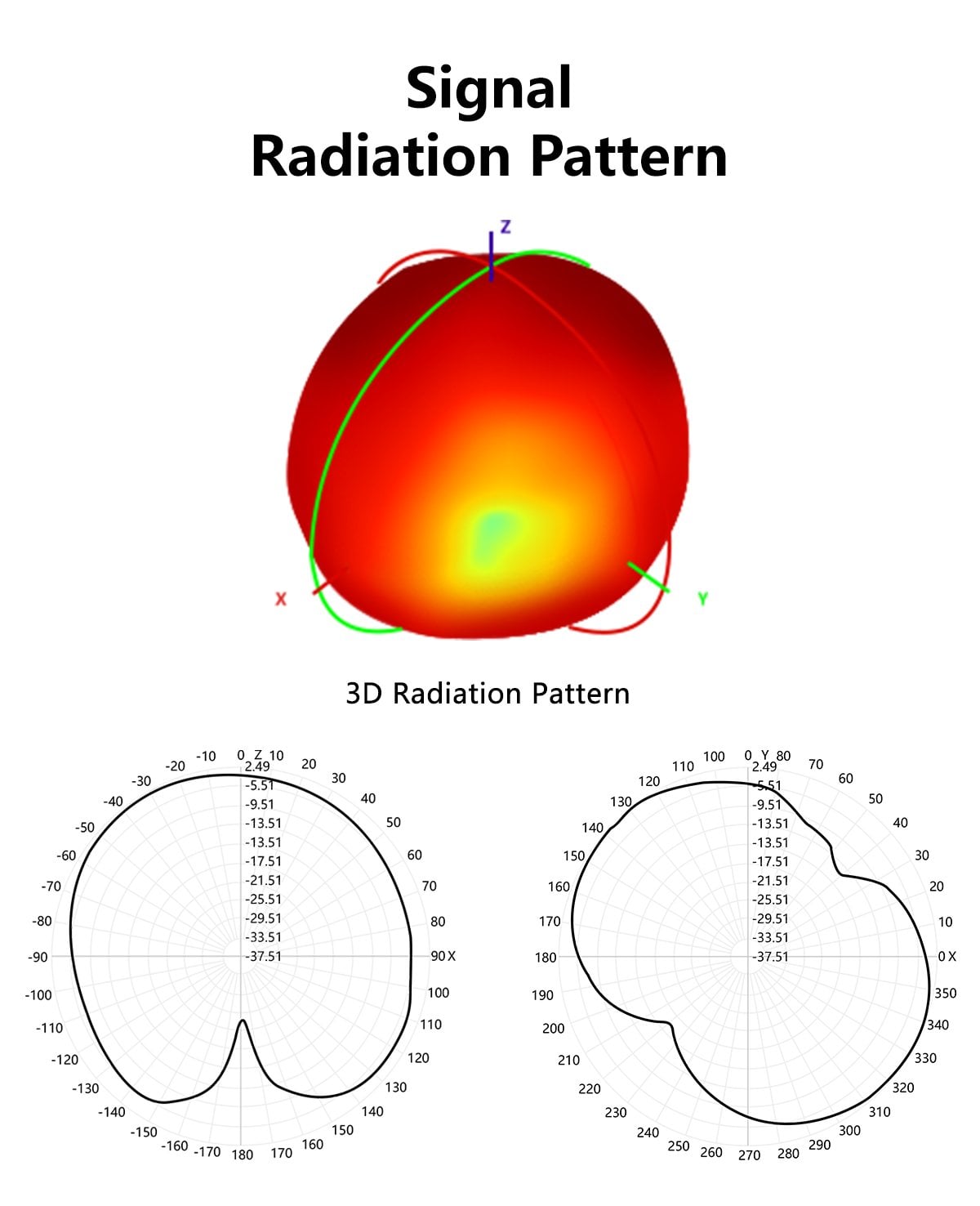

• Directional Moxon pattern with 4dBi average gain focuses radio energy towards the flying area for extra range.

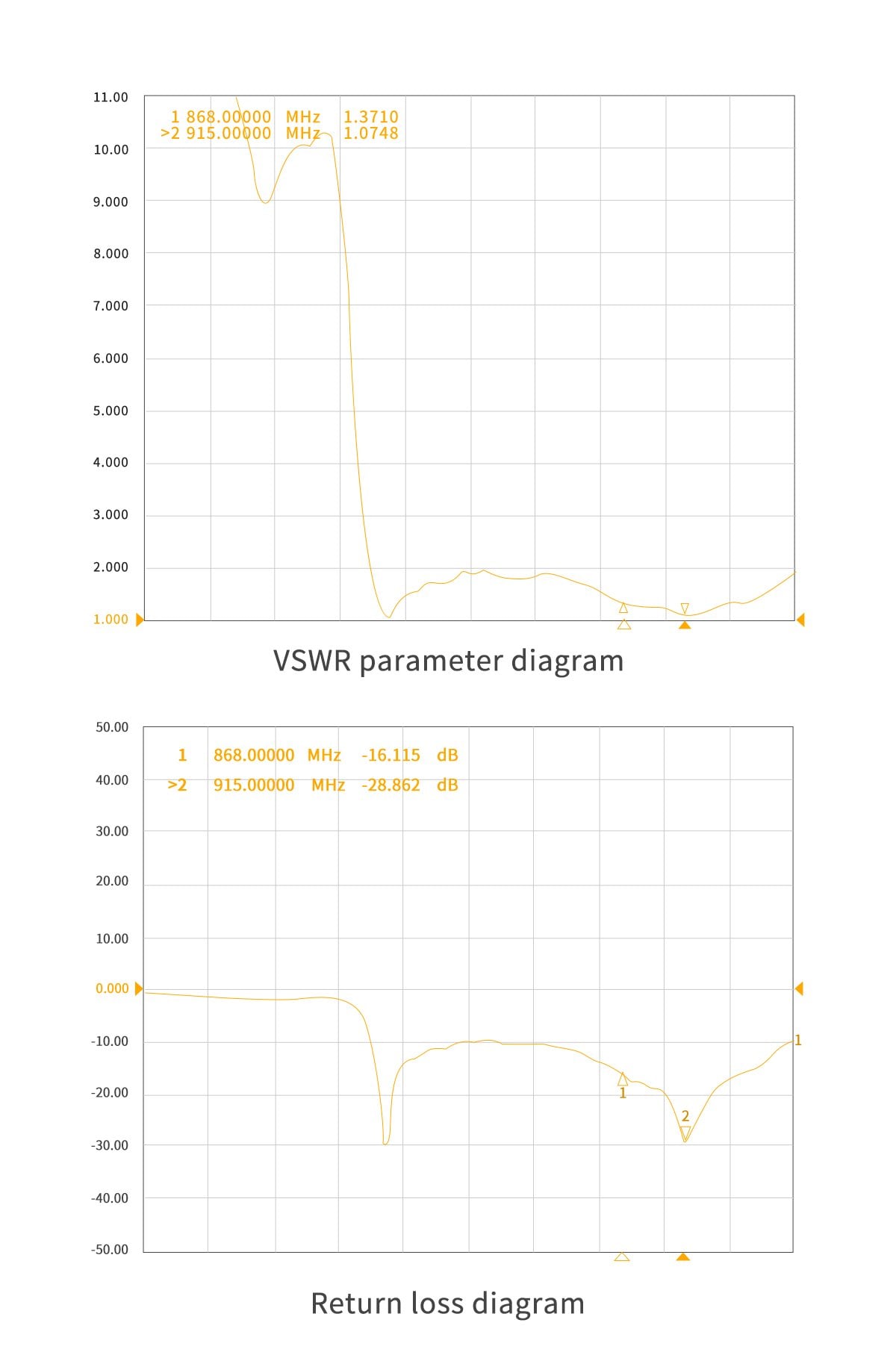

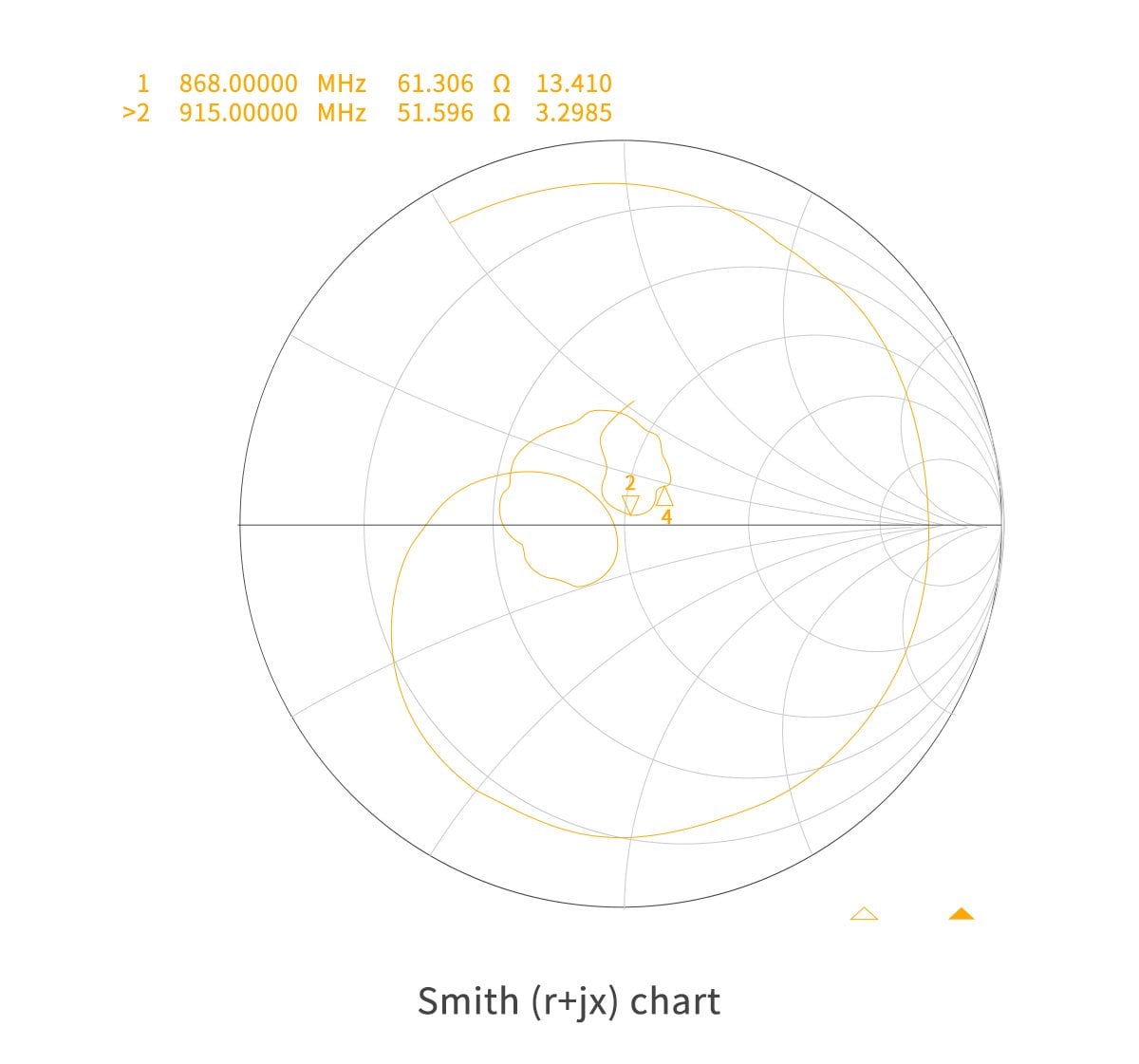

• Linear polarisation and a low average VSWR under 1.5 keep the antenna well matched across the 860-930MHz band.

• Built for the ELRS TX module end of the link, not the aircraft's onboard antenna.

• SMA connector (inner thread, inner pin) on an 80mm coaxial pigtail.

• Weighs 24g, light enough to mount directly on a TX module or ground station.

• Compact enough to pack alongside a portable ELRS TX module for field use away from the workshop.

Point the antenna towards the aircraft for best performance, and confirm your ELRS TX module uses an SMA connector before fitting.

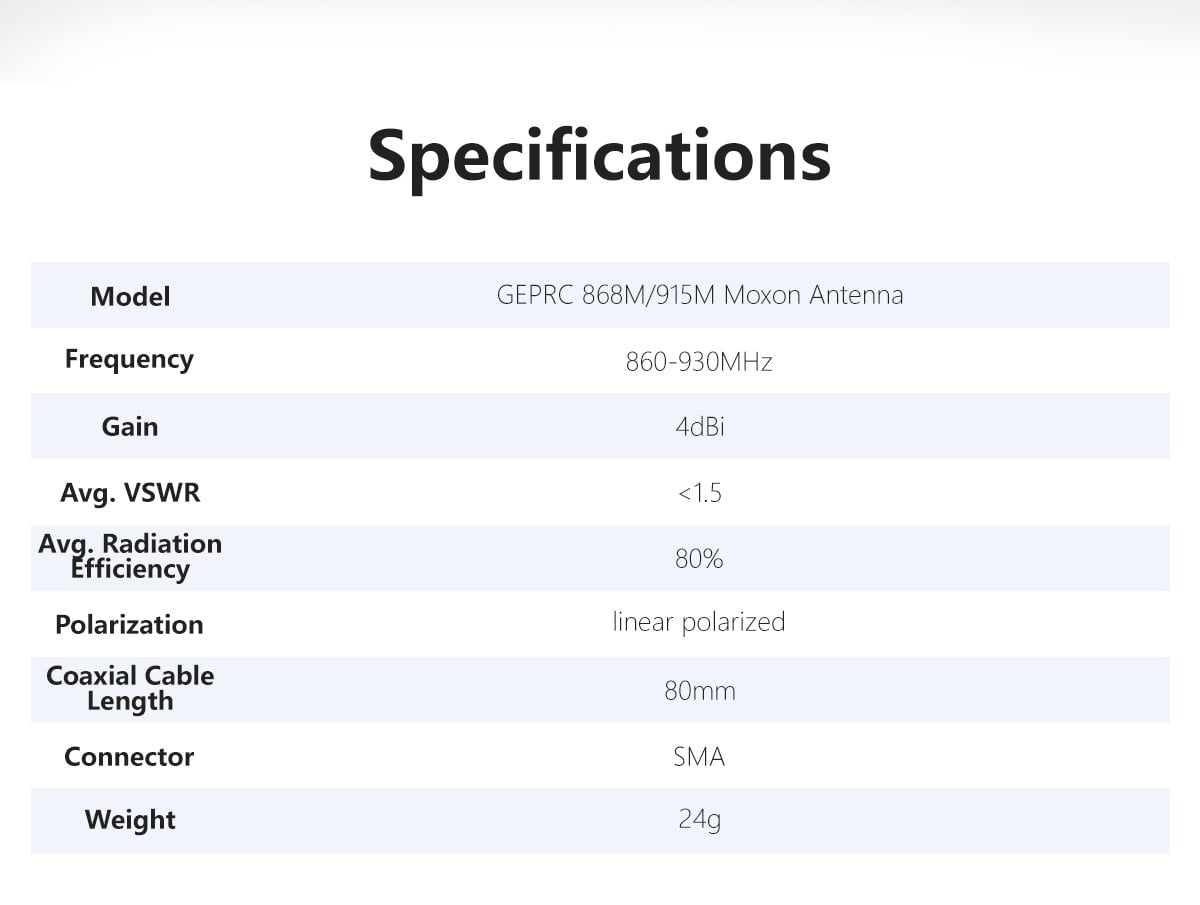

Specifications

• Frequency: 860-930 MHz (868/915MHz)

• Gain: 4 dBi average

• Polarization: Linear

• Connector: SMA

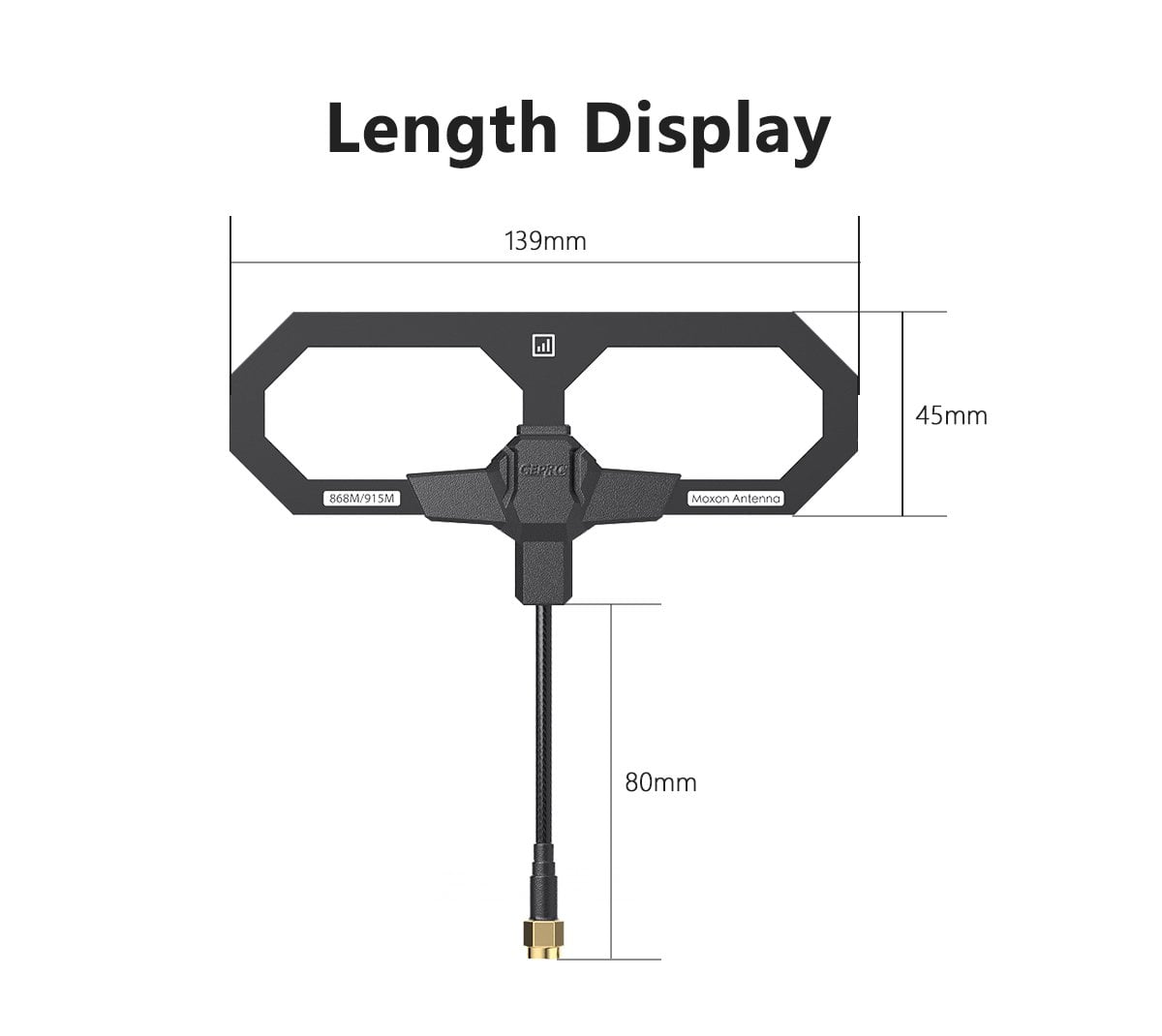

• Cable length: 80 mm

• Weight: 24 g
