2.4GHz IPEX Dipole Antenna for RC Transmitters and Receivers
SKU GEN-24G-IPEX-DIPOLE-ANT
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
A universal 2.4 GHz replacement antenna with an IPEX1 (U.FL) plug, for RC receivers and for radios whose internal antenna connects on an IPEX lead. Use it to replace a cut, frayed or snapped receiver antenna after a crash, or keep a couple as spares in the field kit.
Key features

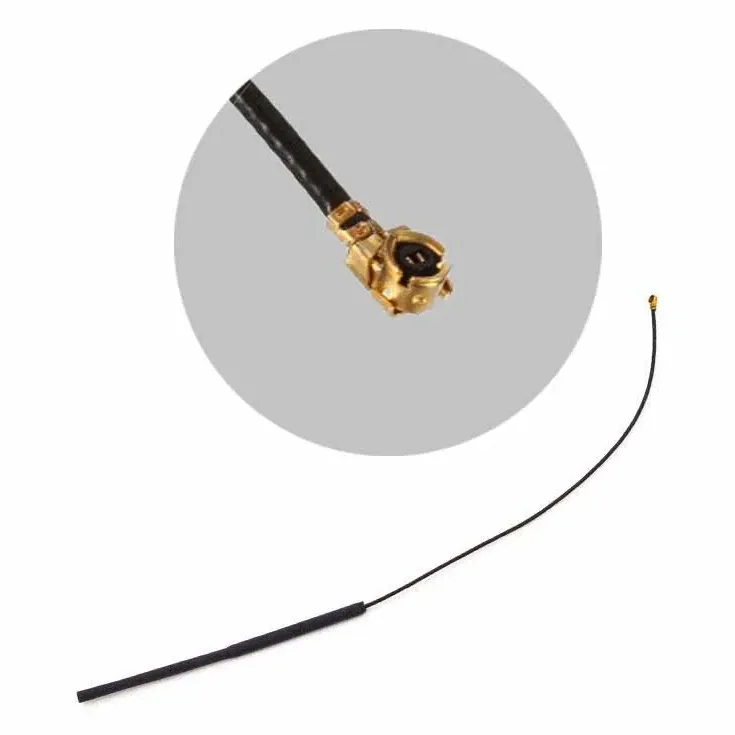

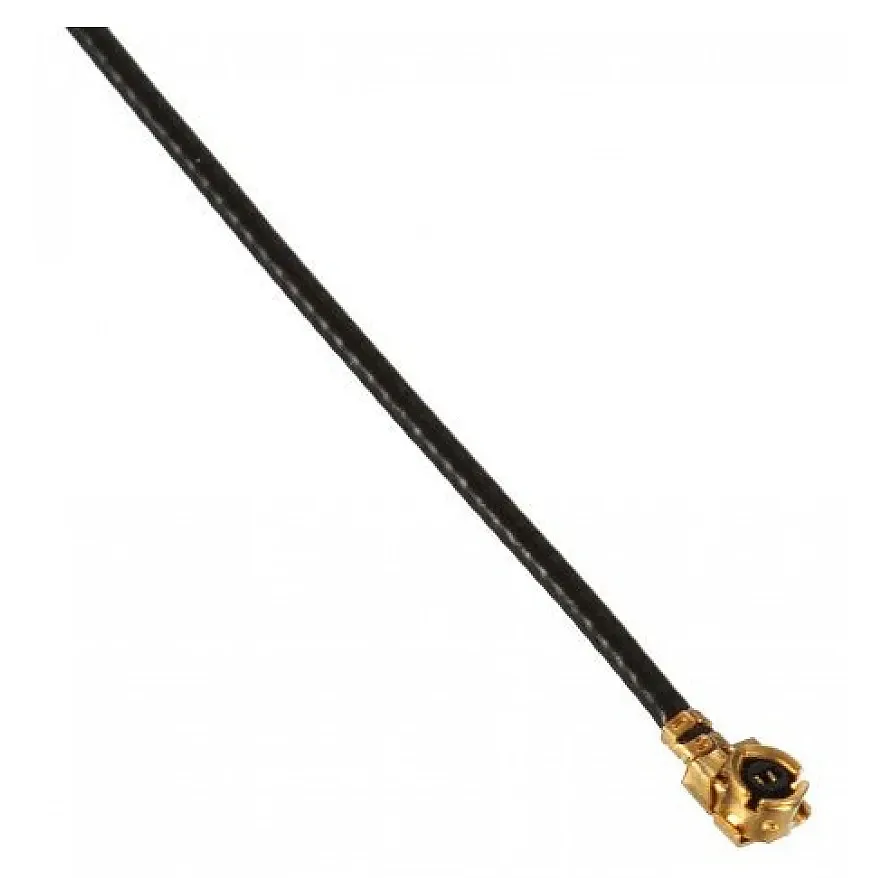

- IPEX1 / U.FL plug — the small snap-on connector used on most 2.4 GHz receivers.

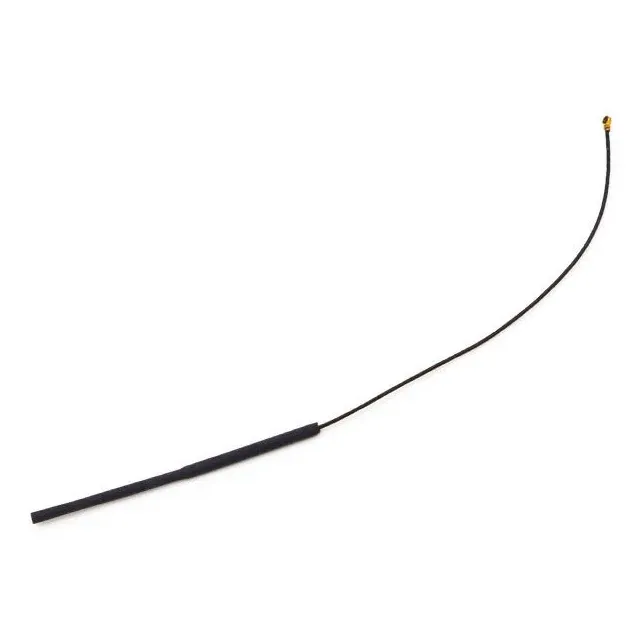

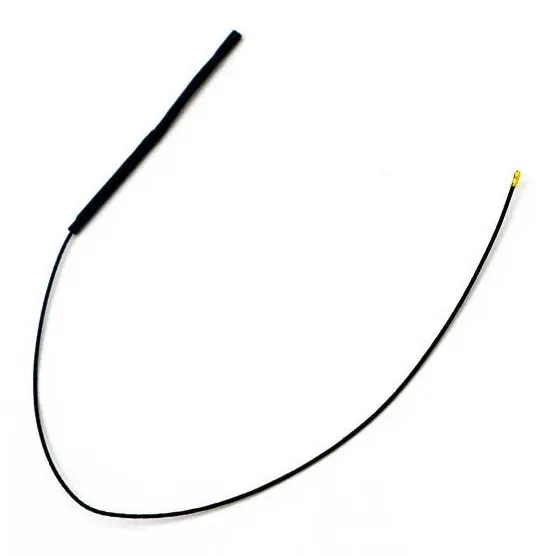

- Copper-tube dipole element on a thin coax lead, about 10 cm long.
- Works with any 2.4 GHz RC link — FrSky, FlySky, Radiolink or 2.4 GHz ELRS receivers with a U.FL socket.
- Linear polarisation, the standard for receiver dipoles.
Specifications
- Frequency: 2.4 GHz
- Connector: IPEX1 (U.FL)
- Type: copper-tube dipole
- Length: approx. 10 cm
It suits FrSky X6R, X8R, XSR and D-series receivers and similar FlySky and Radiolink units. Check the socket on your receiver before ordering: many newer compact receivers use the smaller IPEX4 (MHF4) socket, which this plug will not fit. Press the plug straight down onto the socket, route the copper-tube end away from carbon plates and power wiring, and on diversity receivers set the two antennas at 90 degrees to each other.
| Antenna Connector | U.FL |
|---|---|
| Made in India | No |
| Brand | Generic |
| Frequency | 2.4GHz |
| Polarization | Linear |
