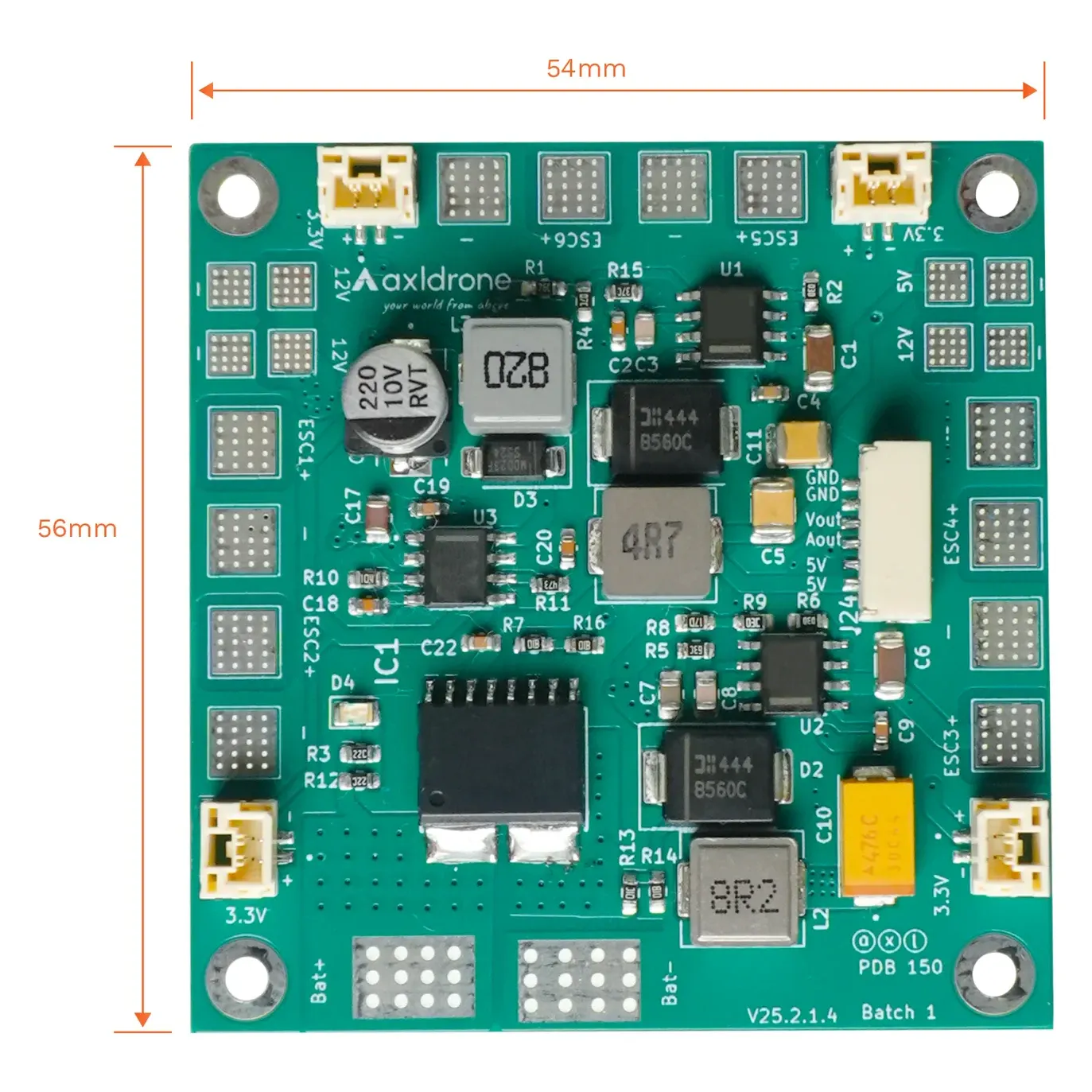

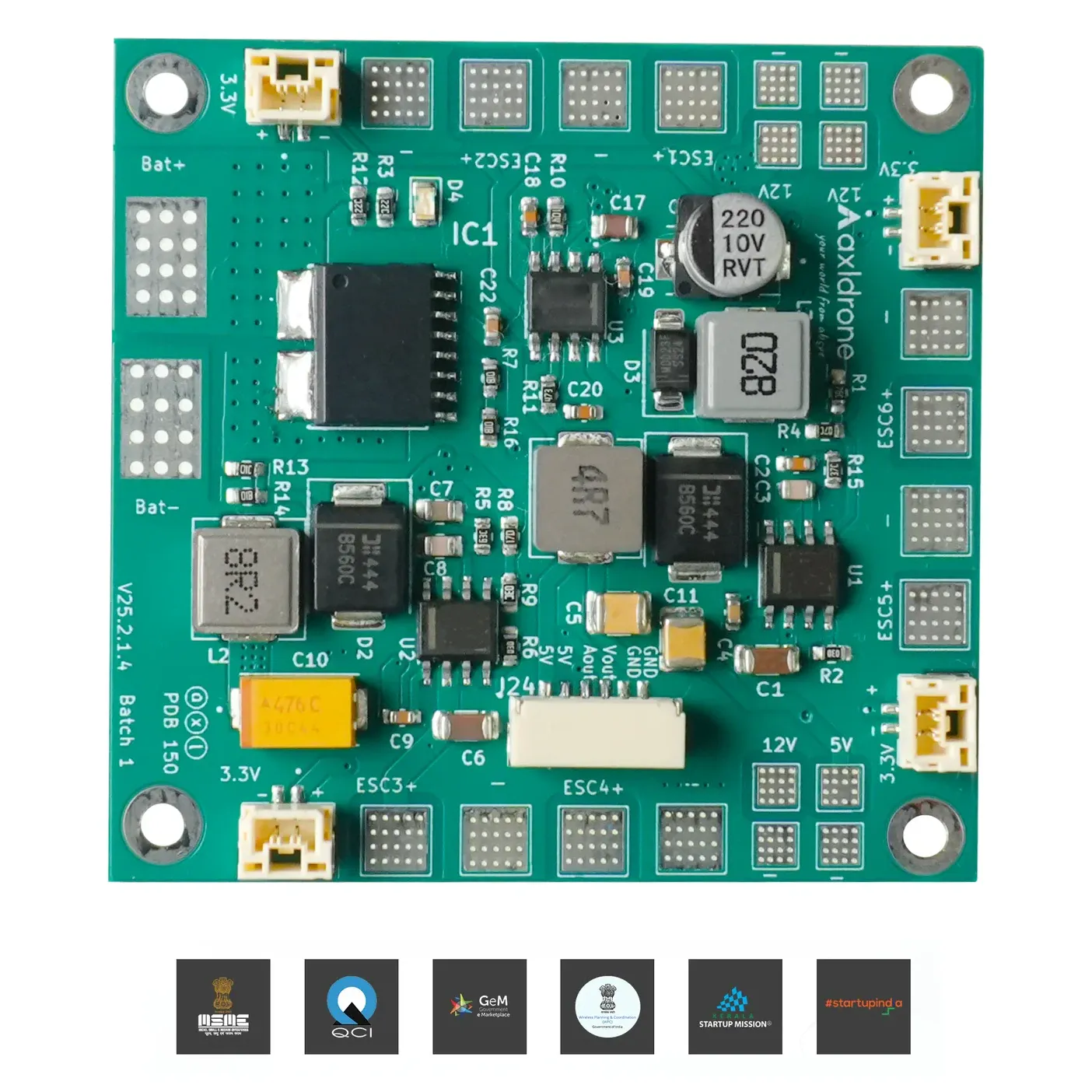

AXL Power Distribution Board 150 with Hall Current Sensor

An Indian-made power distribution board for quadcopters and hexacopters, combining an 80A current path with a built-in hall-effect current sensor and three regulated supply rails. It feeds up to six ESCs from solder pads and powers the flight controller, telemetry, camera and other onboard electronics from one board.

Key features

• 80A continuous current through the sensed path
• Hall-effect current sensor for accurate current and consumption telemetry to the flight controller
• Input up to 30 V, covering packs up to 6S
• Regulated outputs: 5 V / 4 A, 12 V / 4 A and 3.3 V / 1.5 A
• Solder pads for up to six ESCs, for quad or hex layouts
• Designed and made in India

Specifications

• Continuous current: 80 A
• Input voltage: up to 30 V (6S)
• 5 V rail: 4 A
• 12 V rail: 4 A
• 3.3 V rail: 1.5 A
• Current sensor: Hall effect
• ESC outputs: up to 6, solder pads

The 12 V rail suits video transmitters, cameras and LED lighting, while the 5 V rail can power a flight controller or receiver. Calibrate the current sensor scale in Betaflight, INAV or ArduPilot against a measured recharge before relying on the mAh readout.
