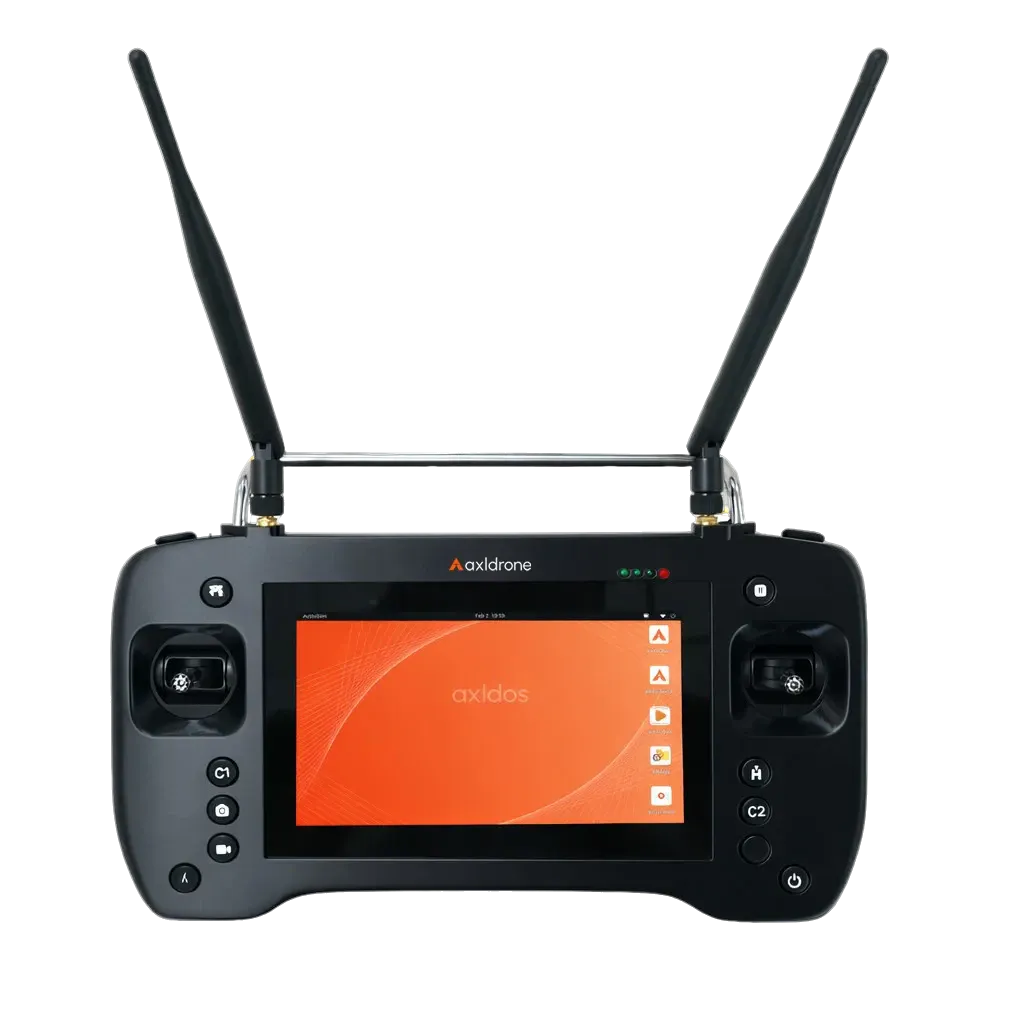

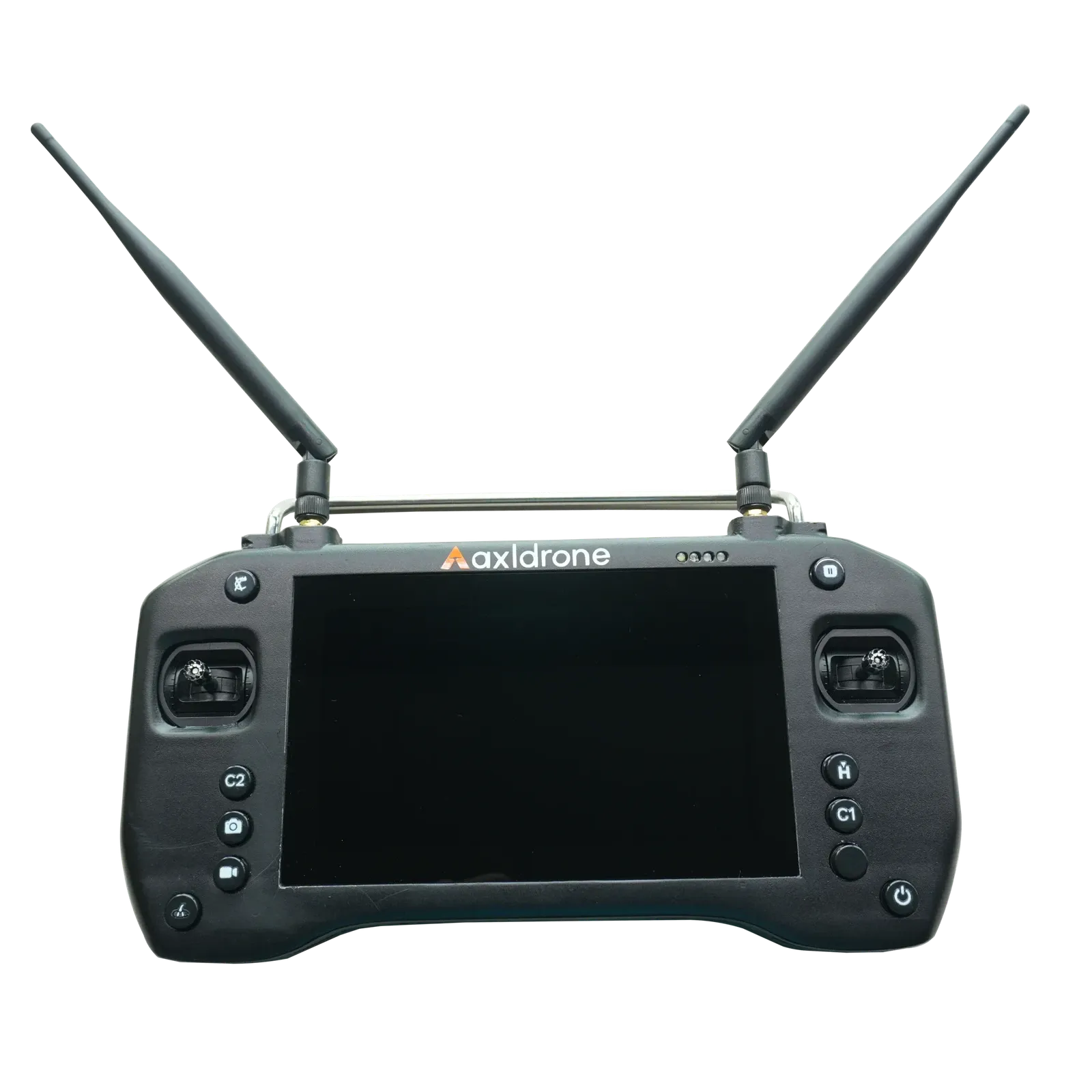

AXL OneView 7-inch Drone Radio Controller with Air Unit

AXL OneView is a handheld ground control station from Indian maker AXL, pairing a 7-inch touchscreen controller with a matched air unit for long-range control of drones, UAVs and UGVs. It targets mapping, inspection and surveillance teams that want mission planning, live monitoring and stick control in one unit.

Key features

• Long-range link: 2.4GHz dual-antenna radio at 1 W (30 dBm) with a 4 MHz signal bandwidth, rated up to 10 km.
• Built-in computer: Intel N-series processor and 64 GB storage running the axlDOS secure OS with AXL's axlGC ground control software for mission planning.
• Flexible air unit: 16 control channels delivered over SBUS, UART or LAN to the flight controller or payload.
• Mesh networking and encryption: multi-drone connectivity and video streaming over a mesh, with encrypted data transmission.
• Flight logging: mission data is recorded on the controller and can be downloaded after each sortie.
• Field connectivity: USB, HDMI, LAN and AUX out plus Wi-Fi and Bluetooth, powered by a swappable 3000mAh battery.

Specifications

• Display: 7-inch LCD touchscreen, 1024 x 600
• Frequency: 2.4GHz, dual antennas
• RF power: 1 W (30 dBm)
• Control range: Up to 10 km
• Channels: 16
• Air unit outputs: SBUS, UART, LAN
• Interfaces: USB, HDMI, LAN, AUX out, Wi-Fi, Bluetooth
• Processor and storage: Intel N-series, 64 GB
• Battery: 3000mAh swappable, up to 2 hours
• Recommended power input: 12 V
• Dimensions: 300 x 192 x 68.2 mm
• Weight: Approx. 1120 g with battery and antennas
• Operating temperature: -10 to 55 degC
• In the box: Controller, air unit, Type-C charger, 2 stick antennas

Check that your flight controller accepts SBUS or a UART link before buying; for an IP-based payload or companion computer, use the air unit's LAN output. Keep a spare battery for full-day survey work.
