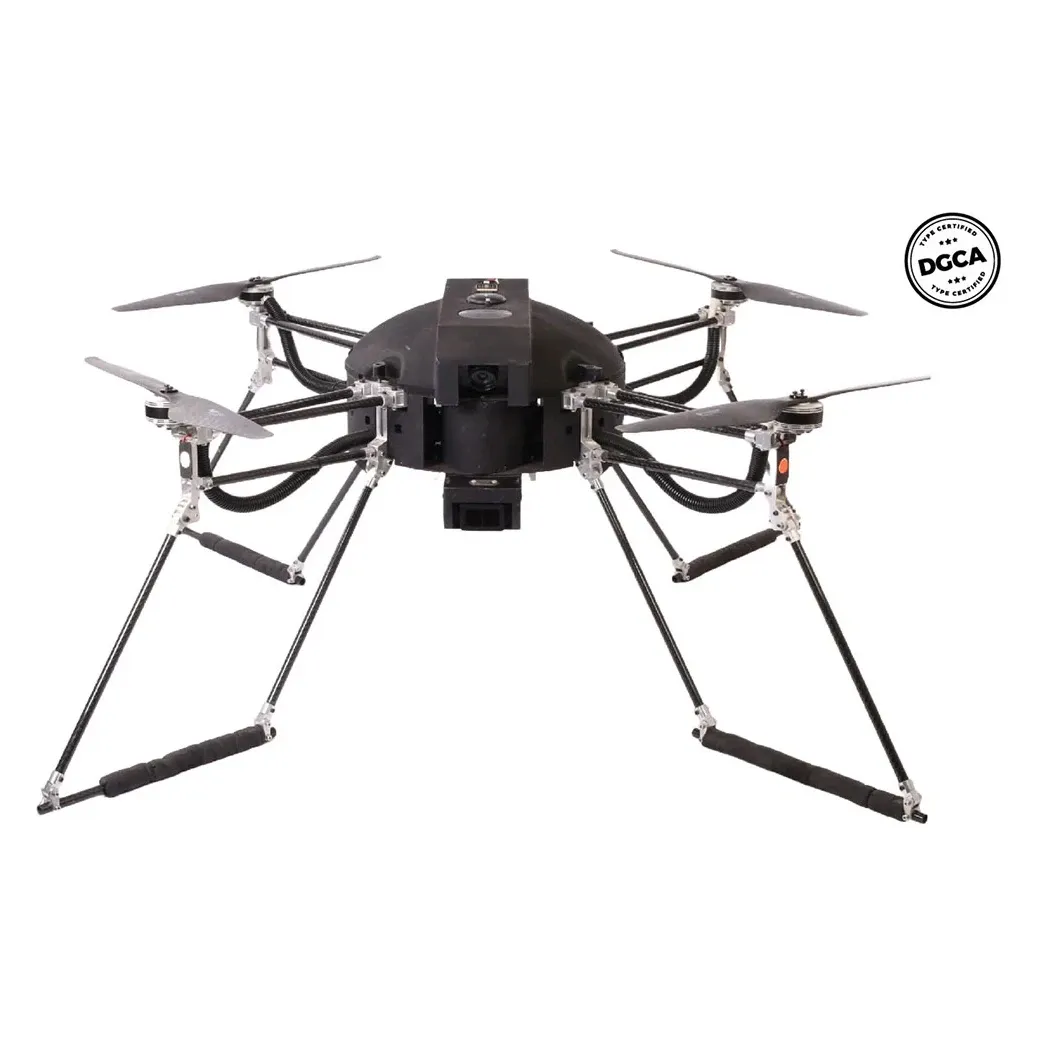

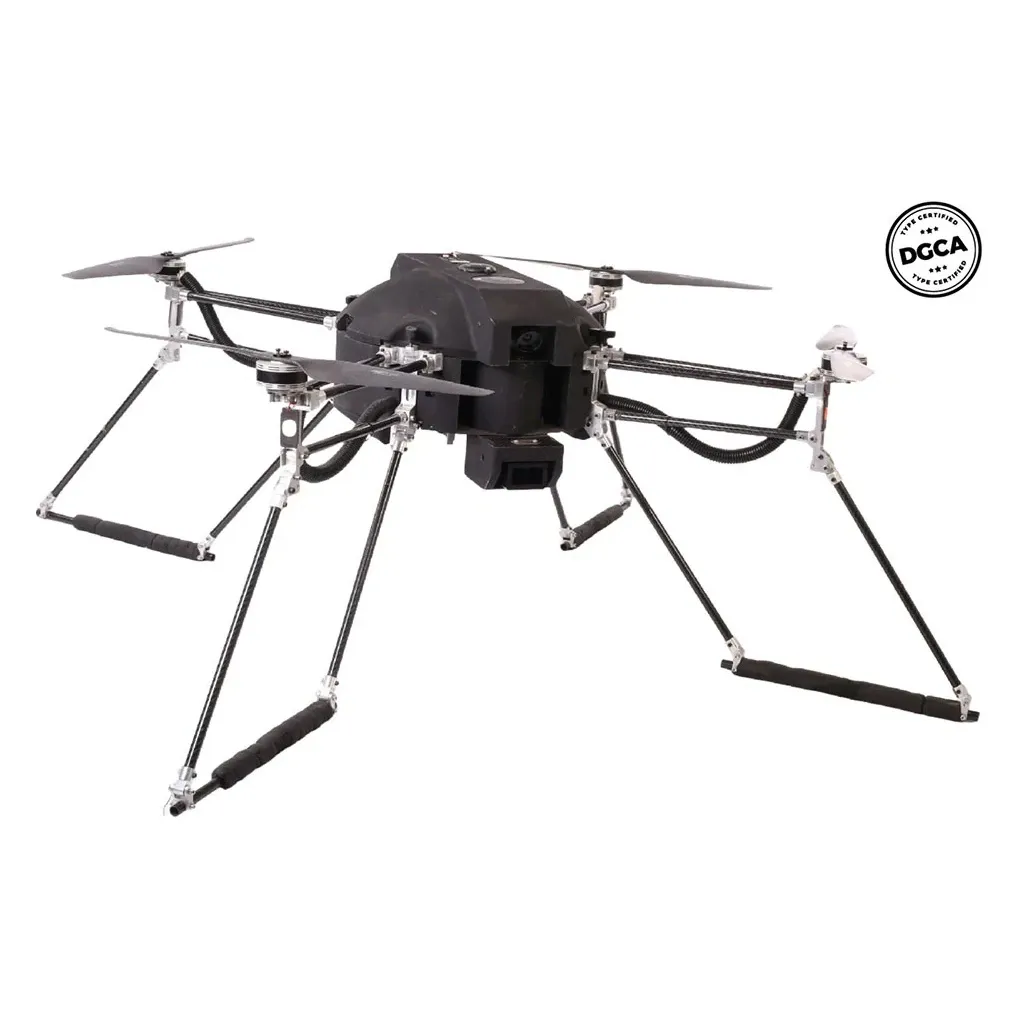

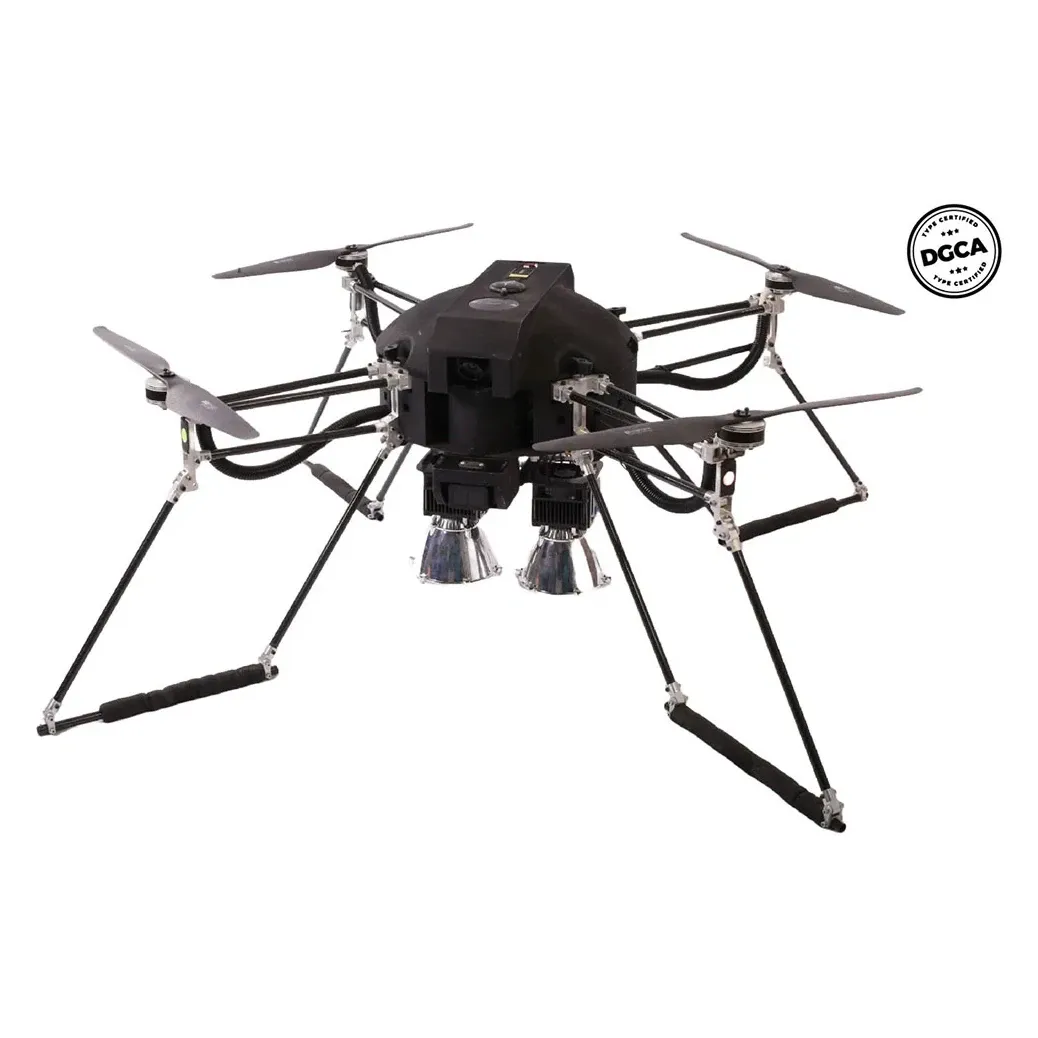

AXL F400 DGCA Certified Industrial BVLOS Drone, 11.5kg MTOW, 10km Range

The AXL F400 is a DGCA-certified, Indian-made industrial quadcopter for long-range BVLOS survey, delivery, surveillance and disaster-response work. It carries up to 2.5 kg of payload over a range of up to 10 km.

Key features

• Up to 2.5 kg payload on a 6.35 kg empty airframe, for an 11.5 kg maximum take-off weight.

• 4K gimbal camera onboard; the standard configuration ships with the A2 Mini camera.

• Multi-directional range finders for obstacle awareness, with GNSS positioning and axl avionics.

• Carbon fibre, aluminium and nylon fibre body driven by brushless DC motors.

• Handheld radio controller with an integrated 5.5-inch, 1000-nit display for clear viewing in daylight.

• Standard package: drone, radio controller, two 22000mAh batteries, battery charger, fibreglass protective case, user manual, warranty card and online installation assistance.

Specifications

• Configuration: quadcopter (rotorcraft)

• Max payload: 2.5 kg (5.5 lb)

• Empty weight: 6.35 kg (14 lb)

• MTOW: 11.5 kg (25 lb)

• Endurance: 18 to 20 min without payload

• Range: up to 10 km

• Cruise speed: 8 m/s (28.8 km/h)

• Max cruise speed: 10 m/s (36 km/h)

• Batteries: 2 x 22000mAh, included

• Positioning: GNSS

• Controller display: 5.5-inch, 1000 nits

Endurance is quoted without payload, so plan shorter sorties when flying with a full 2.5 kg load, and carry the spare battery for back-to-back missions.
