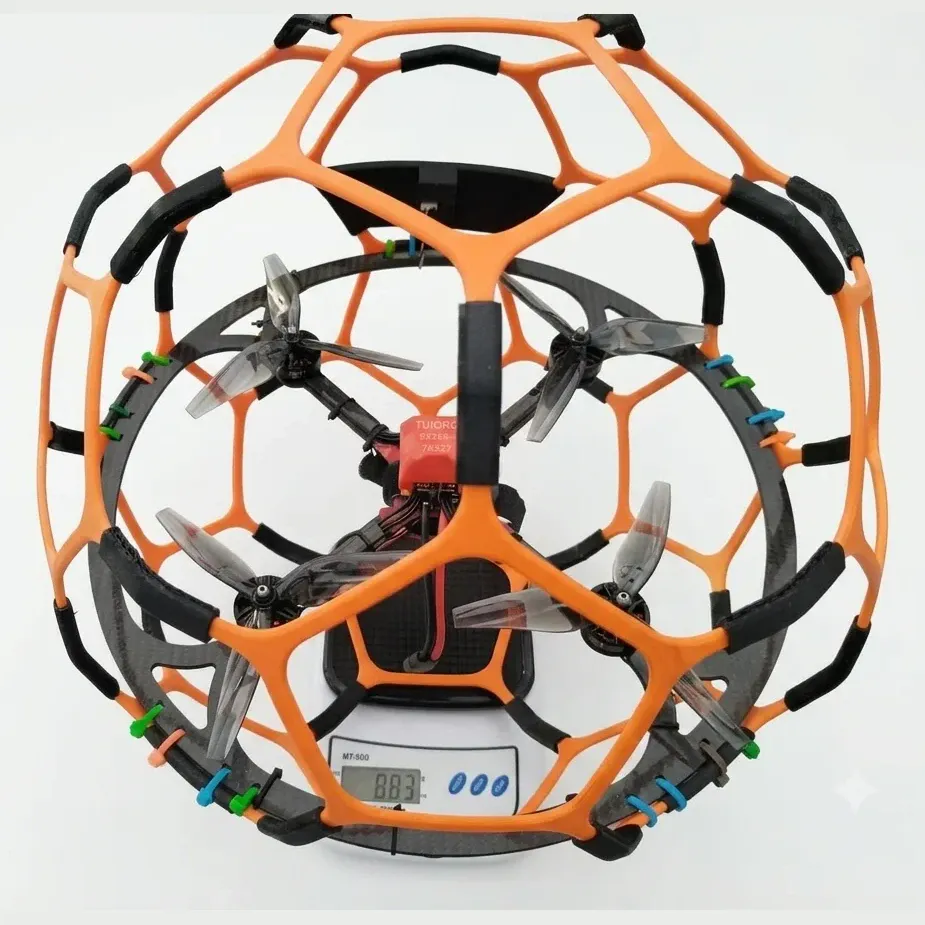

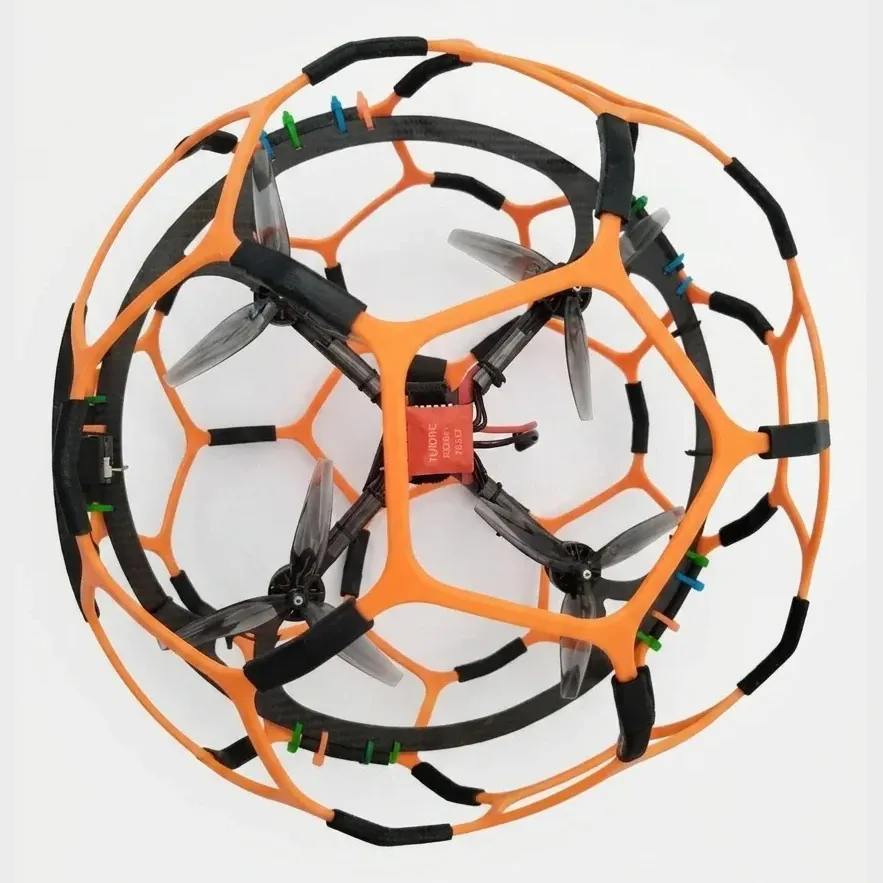

TP-70 400mm Caged Soccer Drone, 2807 Motors, ELRS

The TP-70 is a 400 mm caged drone built for drone-soccer matches and cage flying: a CNC-cut carbon-fibre main frame sits inside a TPU and PETG outer shell designed to absorb hard hits against the goal, the floor and other players. It comes fully assembled and tested with an ELRS receiver installed, in two versions: a line-of-sight edition for standard match play and an FPV edition with an analog 5.8 GHz camera and video transmitter.

Key features

• 2807 1300KV brushless motors on 6-inch propellers for strong torque and quick recovery after impacts
• Zerodrag Nova F405 flight controller with a Zerodrag Boost 55A 4-in-1 ESC
• 2.4 GHz ELRS receiver fitted, ready to bind to your ELRS radio
• Runs on 3S-4S LiPo or LiHV through an XT60 lead; a 4S 5000 mAh pack gives up to about 12 minutes
• FPV edition adds an analog 5.8 GHz camera and VTX for real-time pilot video; the line-of-sight edition leaves them out

Specifications

• Frame diameter: 400 mm
• Main frame: CNC-cut carbon fibre
• Outer cage: TPU and PETG
• Motors: 2807 1300KV
• Propellers: 6-inch
• Flight controller: Zerodrag Nova F405
• ESC: Zerodrag Boost 55A 4-in-1
• Receiver: 2.4 GHz ELRS
• Battery: 3S-4S LiPo/LiHV, XT60 (4S 5000 mAh recommended)
• Weight: 833 g without battery
• Flight time: Up to 12 min on 4S 5000 mAh
• In the box: Assembled drone with outer cage, set of 6-inch propellers, battery strap

Radio and battery are not included: you need an ELRS transmitter and 4S packs with an XT60 plug. Choose the FPV edition if you will fly through 5.8 GHz analog goggles, or the line-of-sight edition for standard soccer play and big-quad practice from outside the cage.
