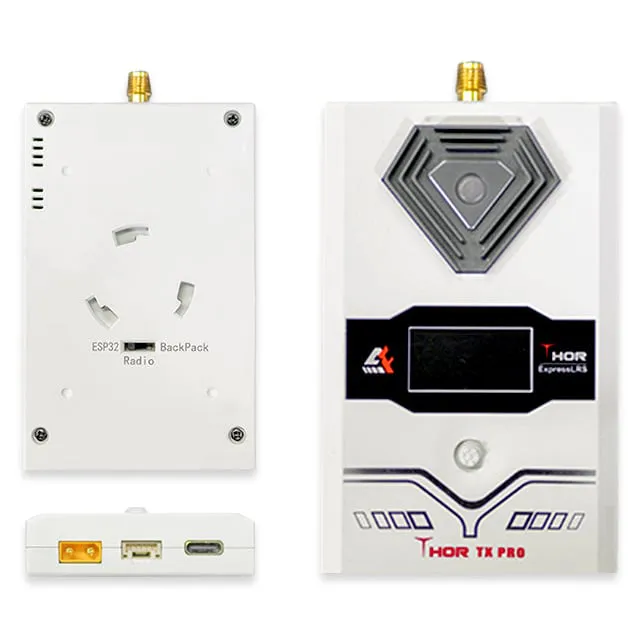

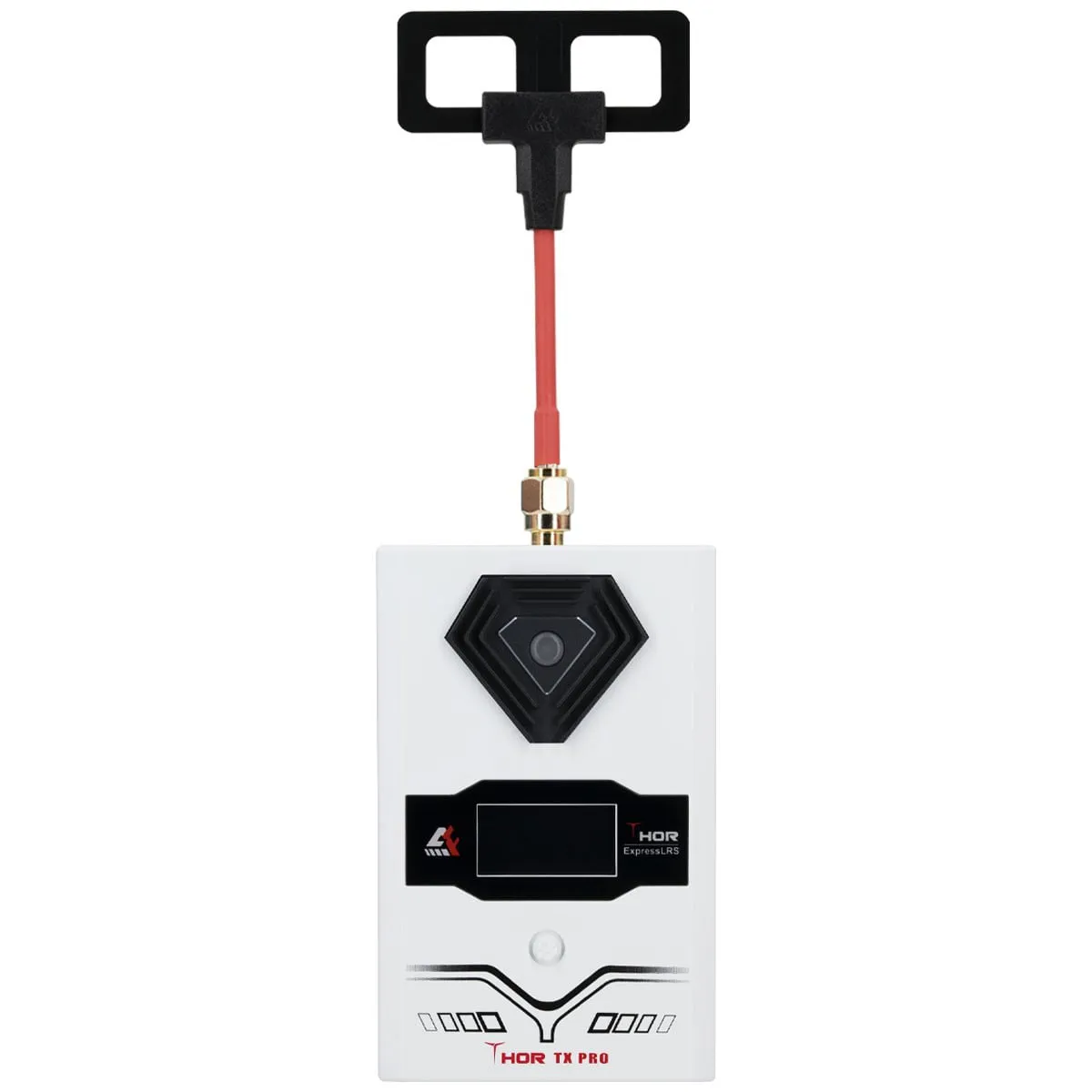

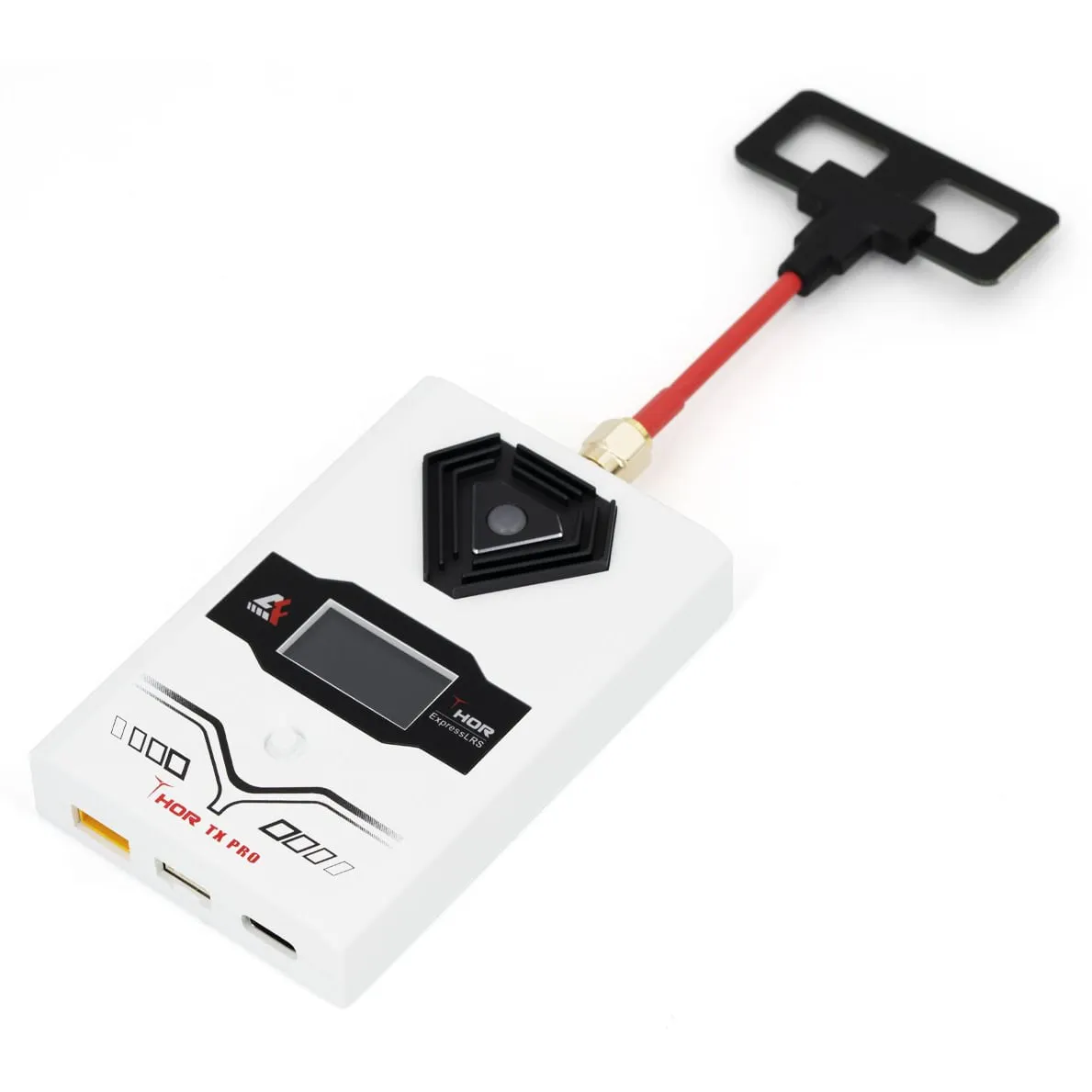

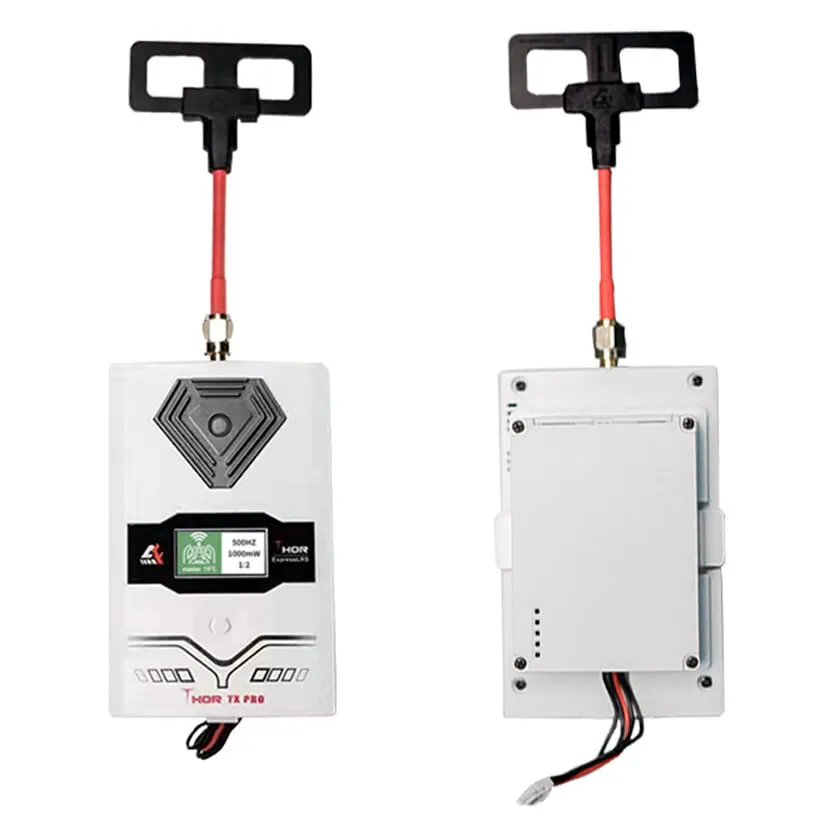

Axisflying Thor TX Pro ELRS 2.4GHz Micro Module (10–1000mW)

The Axisflying Thor TX Pro is a high-output ExpressLRS 2.4GHz transmitter module designed to give freestyle, long-range, and bando pilots a robust control link. Engineered to fit standard Micro (JR-style) module bays found on popular transmitters like the RadioMaster TX16S and Boxer, this module scales its RF output from a battery-conserving 10mW all the way up to a heavy-duty 1000mW (1W). This maximum output guarantees deep signal penetration through concrete and thick foliage, keeping your quad connected even in highly congested RF environments.

Key features

• Adjustable RF output scaling from 10mW up to a full 1000mW (1W) for extreme range and obstacle penetration
• Built on the open-source ExpressLRS 2.4GHz protocol, ensuring industry-leading low latency and high packet refresh rates
• Fully compatible with ELRS dynamic power, automatically adjusting transmission strength based on live telemetry link quality
• Direct drop-in fit for radios equipped with standard Micro (JR-style) external module bays

Specifications

• Brand: Axisflying
• Model: Thor TX Pro
• Frequency: 2.4GHz ISM
• RC protocol: ExpressLRS (ELRS)
• RF output power: 10mW / 25mW / 50mW / 100mW / 250mW / 500mW / 1000mW
• Bay compatibility: Micro (JR style)
• Packet rates: 50 / 150 / 250 / 500 Hz
• Input voltage: 5-12 V
• External power: XT30 port, 7-21 V (do not use 6S or higher)
• Display: built-in colour screen with joystick control
• Cooling: active cooling fan, aluminium case

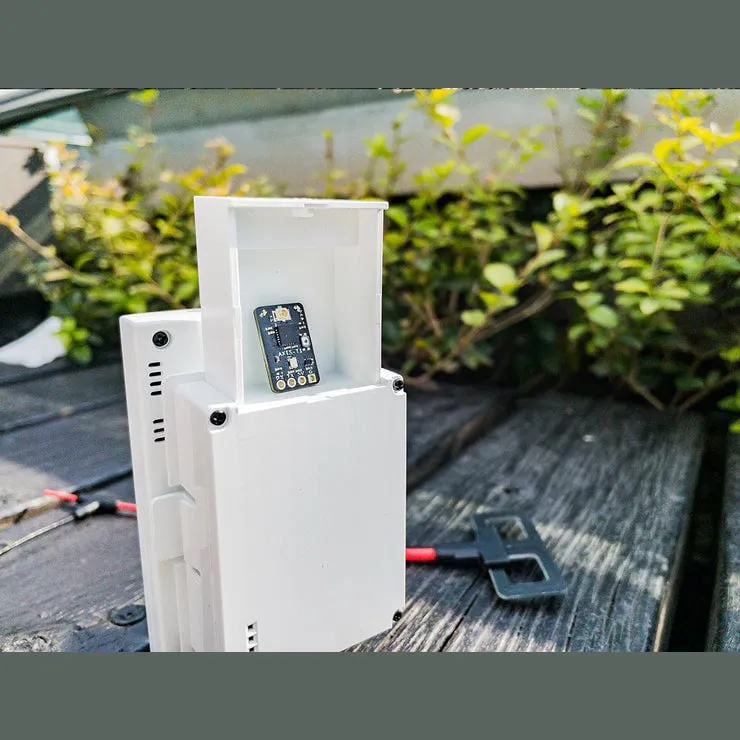

• Other: ELRS backpack, Wi-Fi firmware updates, USB Type-C port, receiver storage bay (29 x 29 x 15.5 mm)

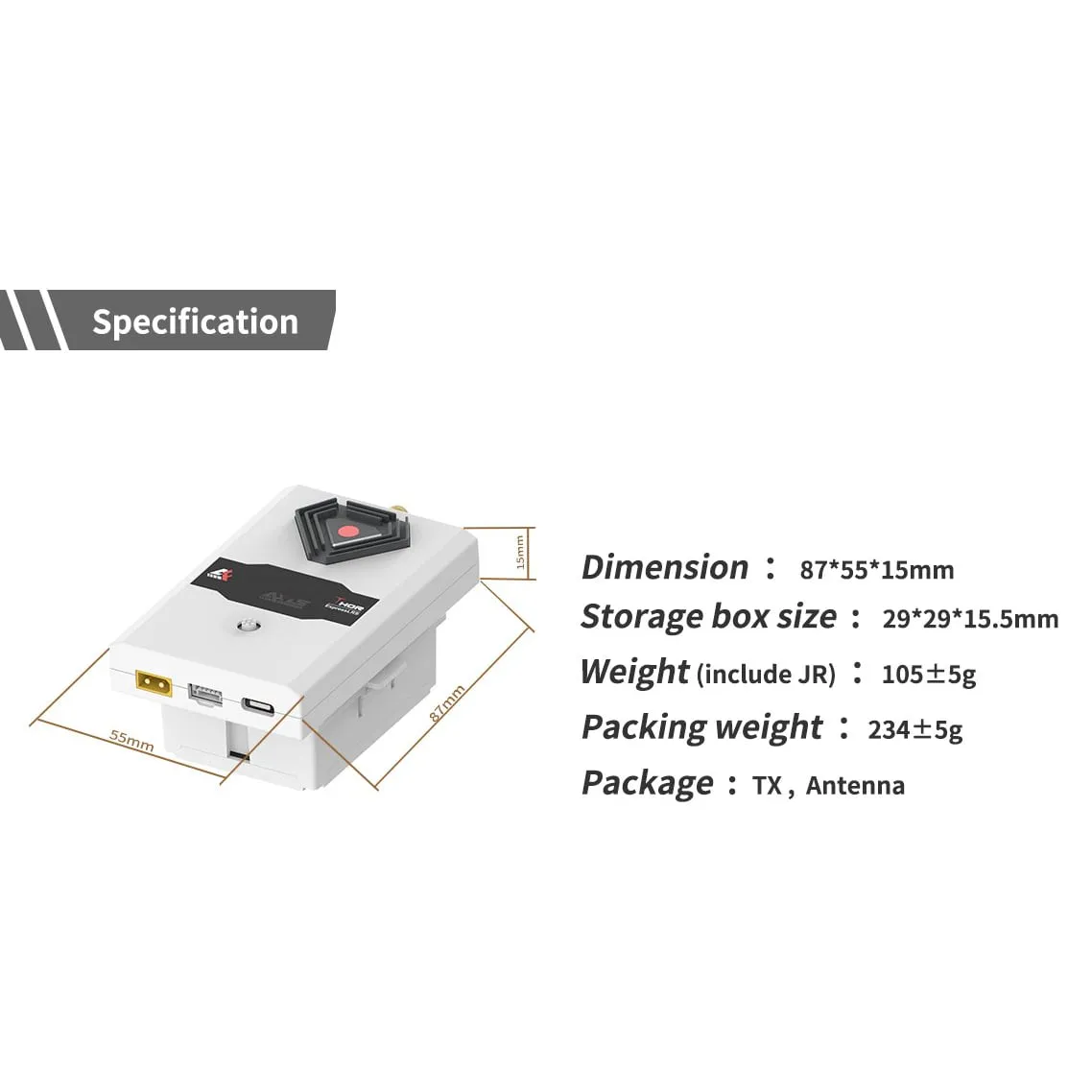

• Dimensions: 87 x 55 x 15 mm
• Weight: approx. 105 g (including JR adapter)

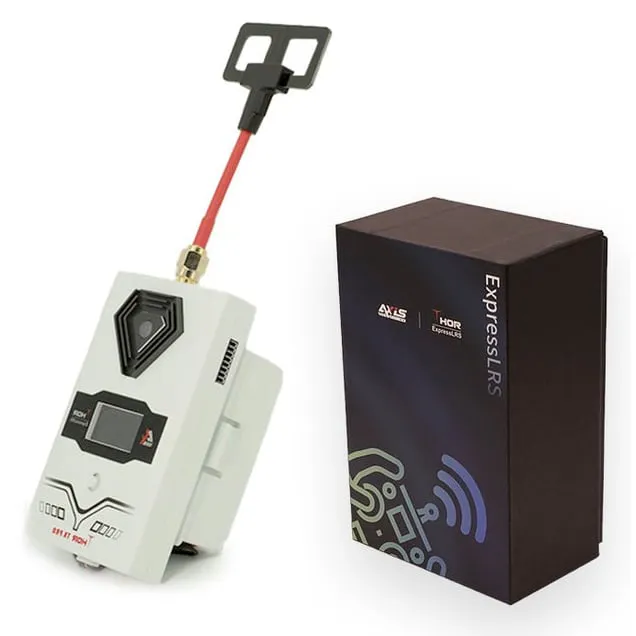

• In the box: Thor TX Pro module, 2.4GHz antenna, Micro JR bay adapter, silicone wiring

When running this module at the maximum 1W output for extended flight sessions, ensure your transmitter is equipped with a high-capacity battery capable of sustaining the increased current draw to prevent unexpected radio shutdowns.
