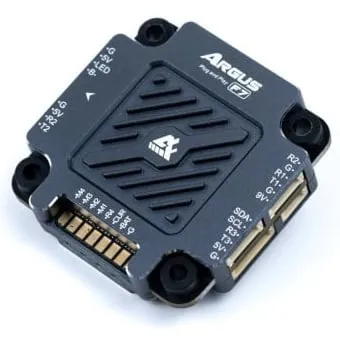

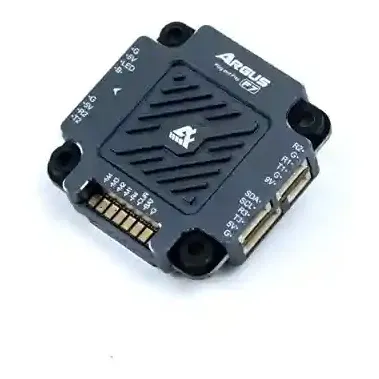

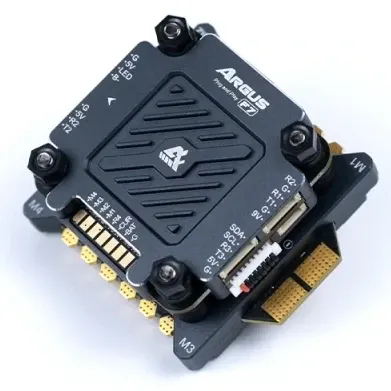

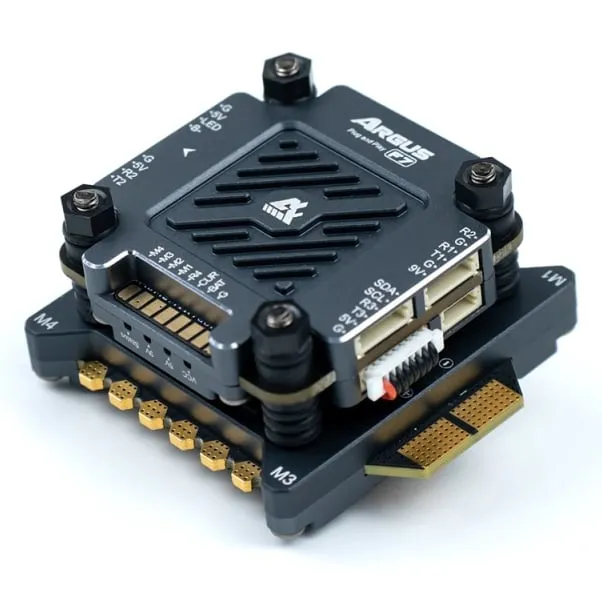

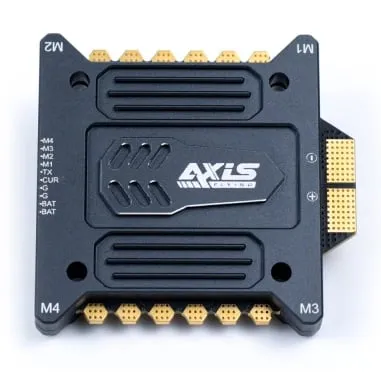

Axisflying Argus PRO F7 55A Plug and Play Stack

The Argus PRO plug-and-play stack pairs an STM32F722 flight controller with a 55A BLHeli_32 4-in-1 ESC, both enclosed in CNC-machined aluminium covers rated IP54. It is built for 3-6S freestyle, long-range and cinematic builds, including X8 coaxial frames, where pilots want splash protection and solder-free peripheral wiring.

Key features

• IP54 dust and splash resistance from the full aluminium housing; it is not designed for submersion or flying underwater.

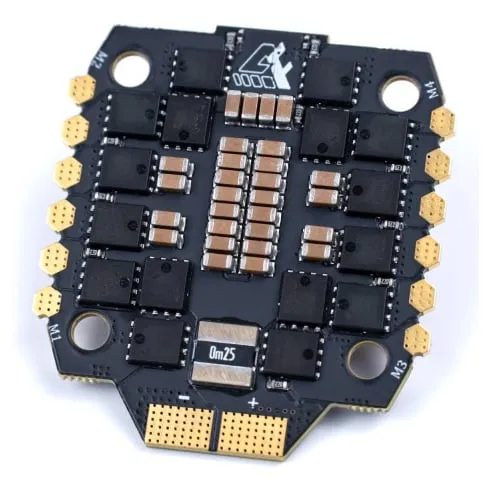

• Aluminium covers double as heatsinks, keeping the large, low-resistance MOSFETs cool under sustained throttle.
• Plug-in connectors for HD air unit, analog camera, GPS and other common peripherals, with direct connection for the DJI O3 Air Unit.
• Up to 8 motor outputs for X8 builds, plus RGB LED strip, beeper and ESC sensor support.
• Dual BEC supplying 5V 2A and 9V 2A; runs Betaflight or INAV.

Specifications

• FC MCU: STM32F722
• Gyro: ICM42688P
• Blackbox: 16MB flash
• UARTs: 4
• BEC: 5V 2A, 9V 2A
• ESC: 55A, BLHeli_32, 96kHz
• Input voltage: 3-6S LiPo
• Protection rating: IP54
• Mounting: 30.5 x 30.5mm, M3
• Stack size: 48.6 x 46.6 x 26mm
• Weight: 59g

At 26mm tall the enclosed stack needs more room than a bare-PCB stack, so check the clearance between your frame plates before ordering.
