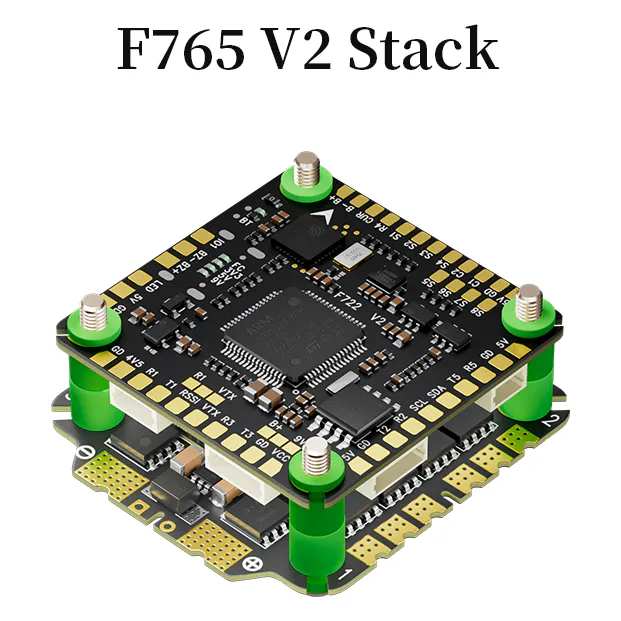

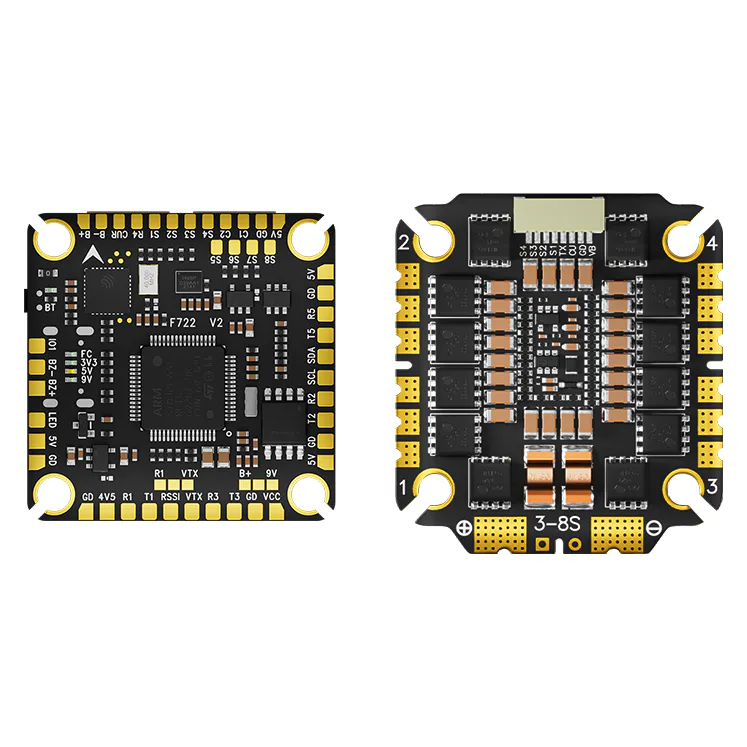

Aocoda-RC F765 V2 FC + 3065 AM32 65A 4-in-1 ESC Stack 30×30

The Aocoda-RC F765 V2 and 65A AM32 stack pairs a high-memory F7 flight controller with a heavy-duty 32-bit ESC for robust 3-6S builds. Built on a standard 30.5x30.5 mounting footprint, this stack offers the processing headroom and current capacity required for aggressive 5-inch freestyle quads, fast 7-inch long-range platforms, and demanding cinelifters.

Key features

• STM32F765 microcontroller provides expanded flash memory, accommodating the heavier resource demands of complex Betaflight, INAV, or ArduPilot configurations.
• 65A continuous current rating effortlessly sustains high-kV motors and heavy payloads during aggressive throttle punches.
• AM32 open-source ESC firmware delivers smooth low-RPM torque, dynamic PWM frequency scaling, and extremely fast motor commutation.
• Standard 30.5x30.5 mounting layout ensures straightforward integration into most mid-to-large FPV frames.

Specifications

• Flight Controller MCU: STM32F765
• ESC Continuous Current: 65 A
• Input Voltage: 3-6S LiPo
• ESC Firmware: AM32

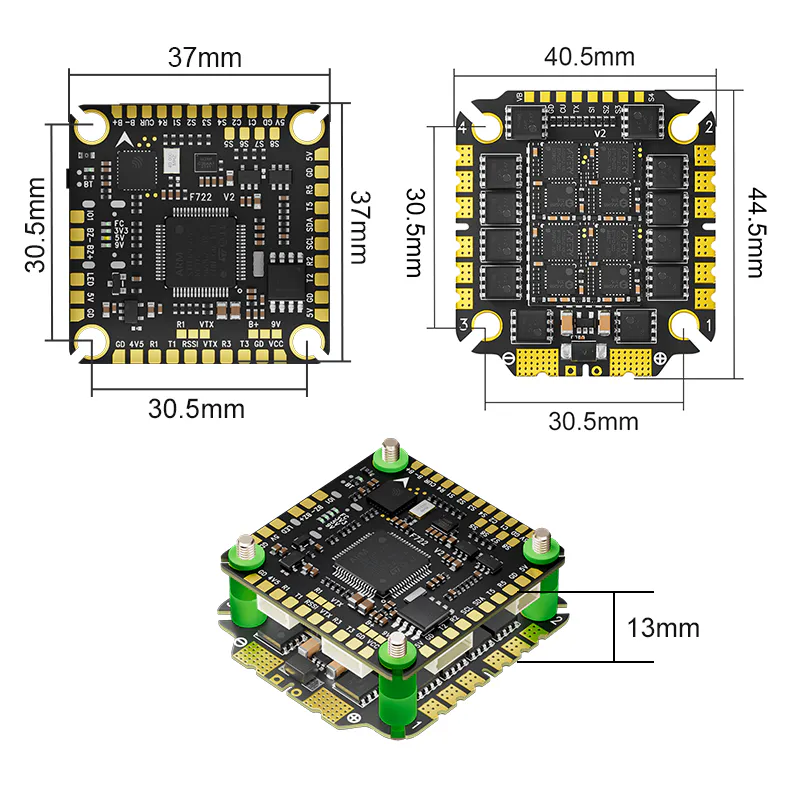

• Mounting Size: 30.5x30.5 mm

Running native AM32 firmware, this ESC responds rapidly to throttle inputs while maintaining excellent efficiency, ensuring consistent, sag-free power delivery when you push your quad to the limit.
