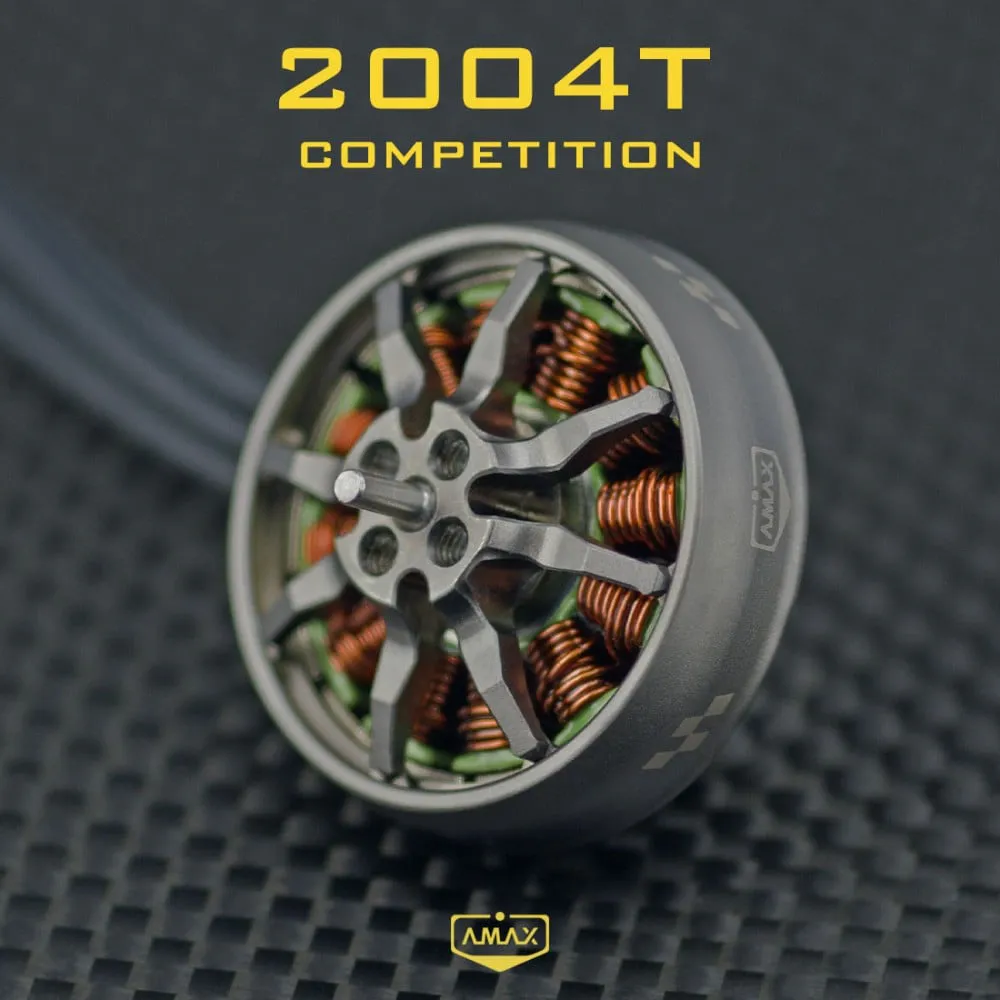

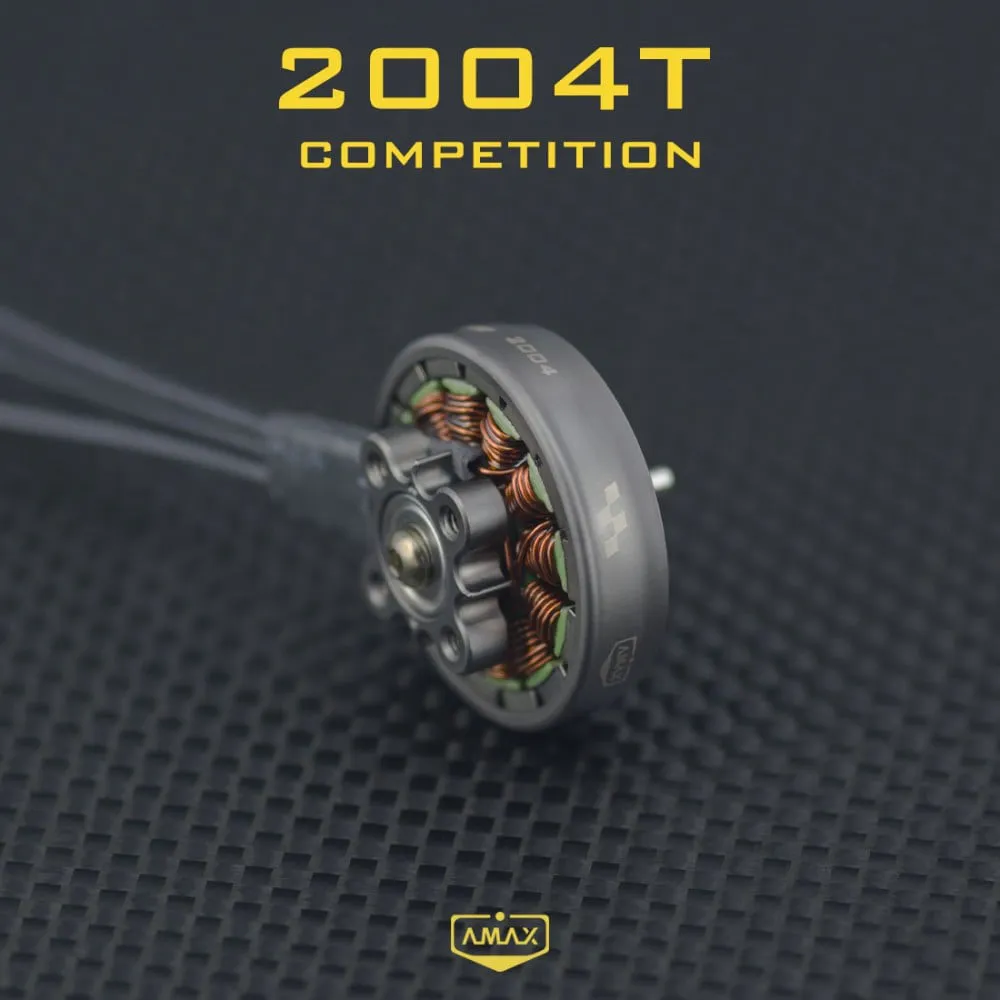

AMAX Competition 2004T Motor

The AMAX Competition 2004T is a specialised brushless motor engineered for sub-250g ultralight builds, micro long-range 4-inch platforms, and high-performance 3.5-inch freestyle quads. The "T" designation indicates a T-mount shaft, keeping rotating mass low and ensuring direct compatibility with lightweight, low-pitch propellers. At 1850KV, this variant is strictly optimised for efficiency, smooth throttle resolution, and extended flight times on 6S LiPo power.

Key features

• Designed specifically for lightweight 3.5-inch and 4-inch FPV flight platforms.
• T-mount shaft design significantly reduces propeller mounting weight and inertia.
• Wide 20mm stator diameter provides highly responsive low-end torque compared to narrower micro motors.

Specifications

• Stator size: 2004
• KV: 1850
• Shaft: 1.5mm (T-Mount)
• Supported voltage: 6S LiPo
• Mounting pattern: 12x12mm, M2

Pair this 1850KV motor with a lightweight 6S battery (typically 550mAh to 750mAh) and a 30A AIO flight controller to build a highly responsive, long-endurance micro drone that comfortably stays under regulatory weight limits.
