Amass XT60-L Locking Battery Connector (1 Pair)

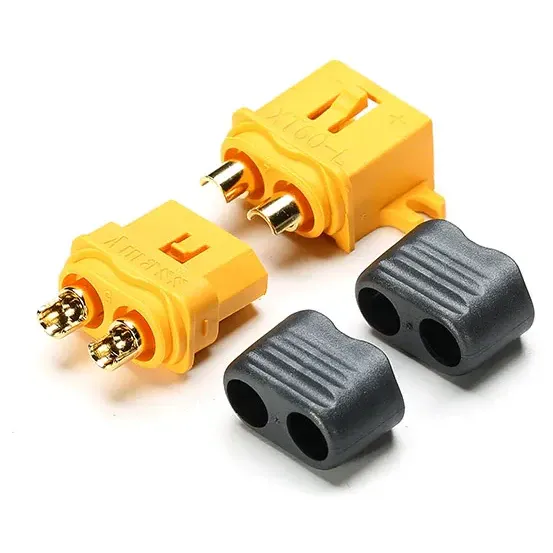

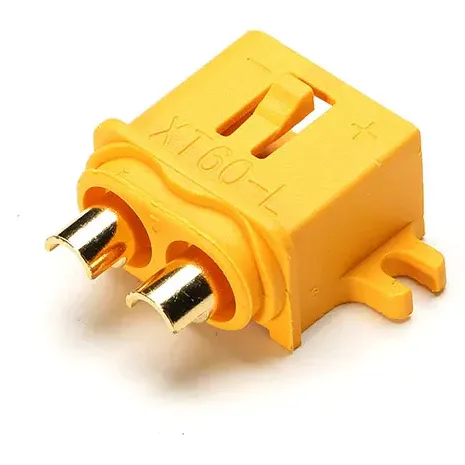

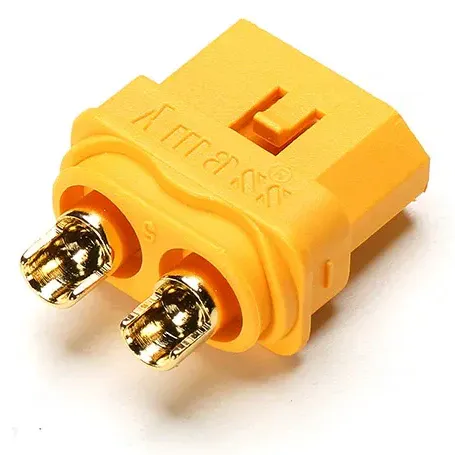

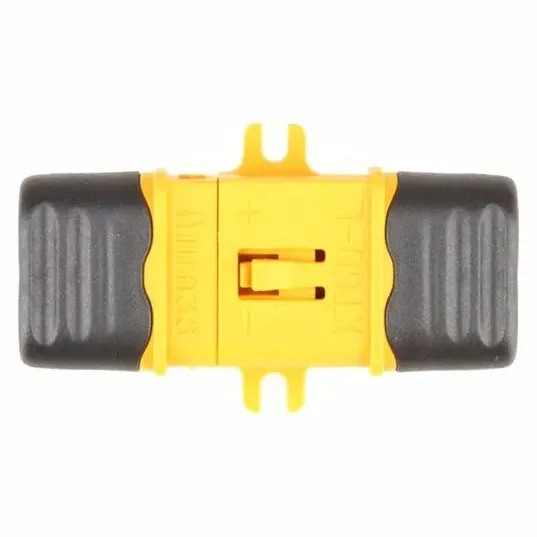

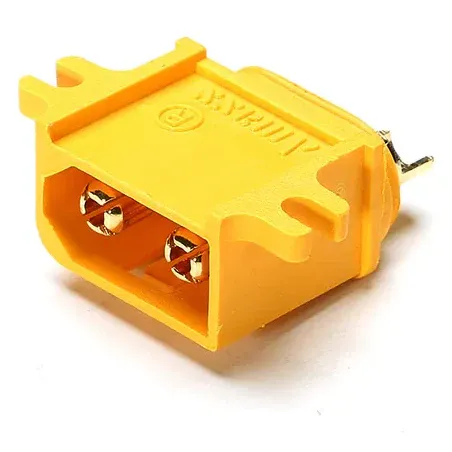

The Amass XT60-L is the XT60 battery connector with an added locking clasp that holds a mated pair together, helping keep a pack from working loose under vibration or in a crash. It mates with standard XT60 plugs, so existing batteries and leads stay usable. This pair contains one male and one female plug.

Key features

• Rated 60 A continuous and 100 A burst
• Gold-plated copper contacts with 0.8 mΩ internal resistance keep heat and voltage drop low
• Nylon (PA) housing rated from -20 °C to 120 °C
• 3 kg pull-out force and a recommended life of 1,000 mating cycles
• Recommended for 12AWG wire

Specifications

• Current rating: 60 A continuous, 100 A burst
• Internal resistance: 0.8 mΩ
• Contacts: Gold-plated copper
• Housing: Nylon (PA)
• Recommended wire: 12AWG
• Pull-out force: 3 kg
• Operating temperature: -20 °C to 120 °C
• Rated life: 1,000 mating cycles
• Recommended soldering: 480 °C for 4 seconds
• In the box: 1 male and 1 female XT60-L

Solder each contact at about 480 °C for no more than 4 seconds; holding the iron on longer softens the nylon and lets the contact shift. Slide heat-shrink over every joint before mating the plugs.
