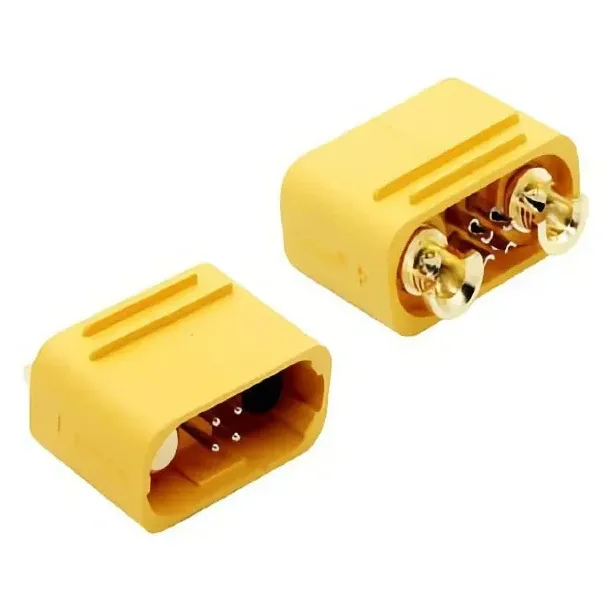

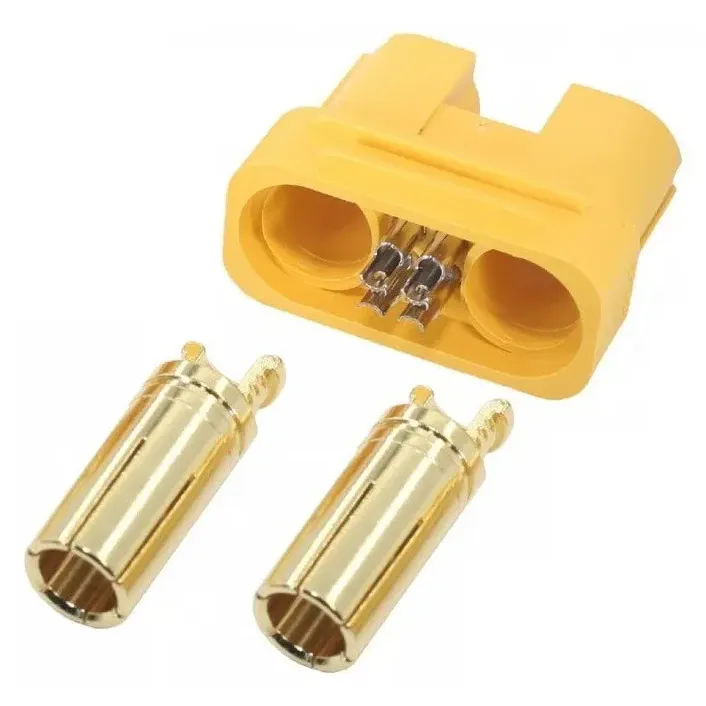

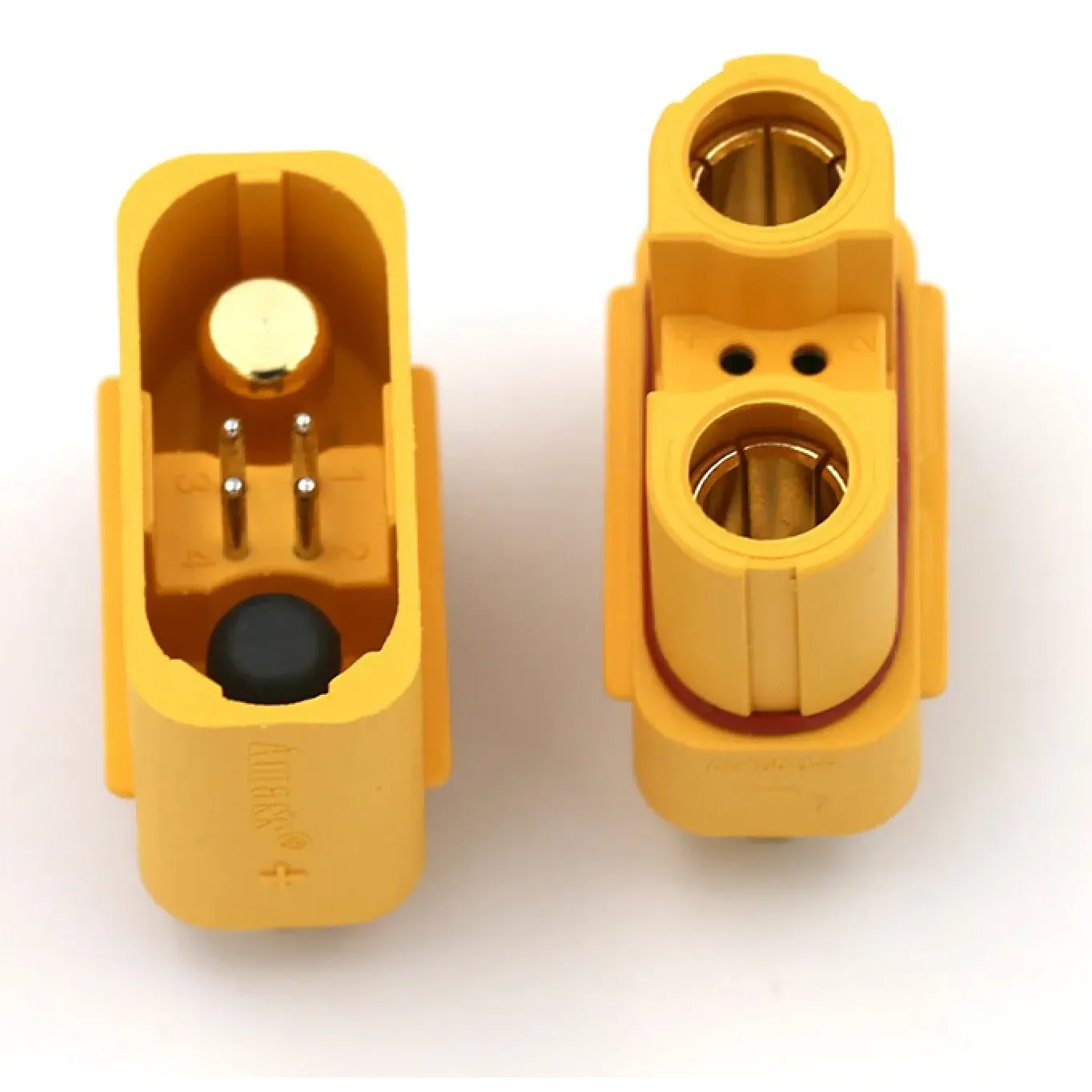

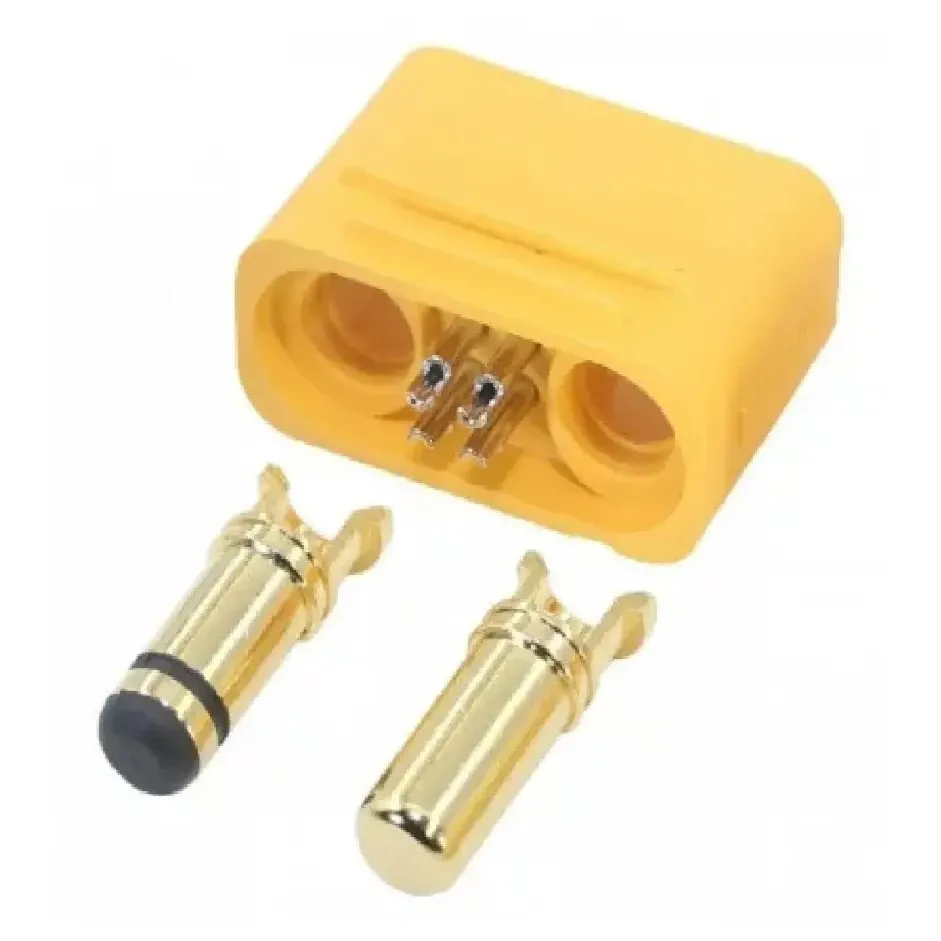

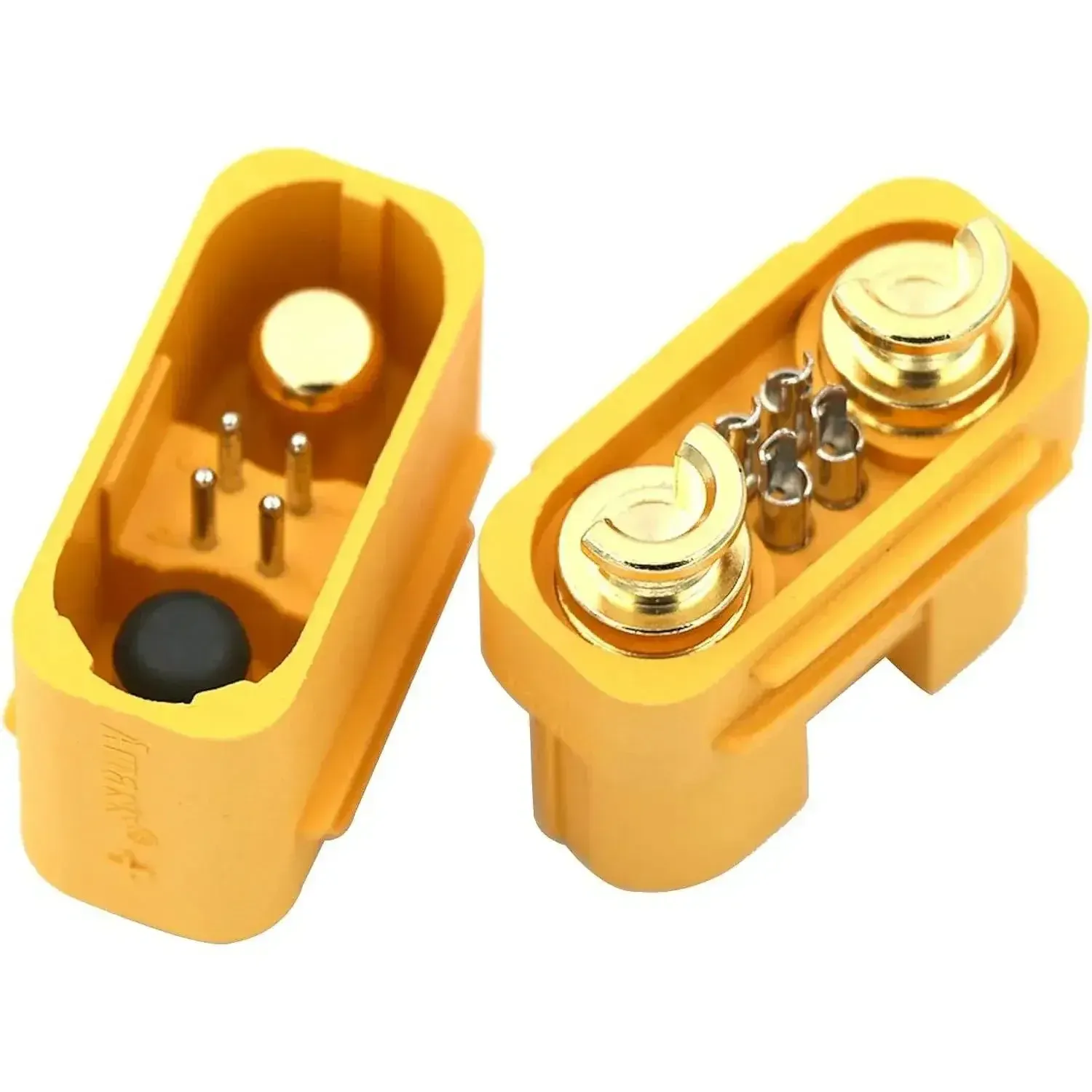

Amass AS150U 6-Pin Power and Signal Connector

Genuine Amass AS150U connector that carries main power and signal lines through one plug, for VTOL and fixed-wing UAVs with motors and servos in the wings, as well as lithium batteries, controllers and chargers. Choose a bare male, female or mated male + female set, or the same with a pre-attached wire lead.

Key features

• 6 pins in one housing: 2 high-current power pins plus 4 signal pins
• 75 A rated current, 140 A instantaneous, rated for 500 V DC
• Contact resistance of 0.8 mΩ or less for minimal voltage drop across the joint
• PA6 insulation with a UL94 V0 flame-retardant rating, working from -20 °C to 120 °C
• 8 AWG wire recommended for the power pins

Specifications

• Pins: 6 (2 power, 4 signal)
• Rated current: 75 A
• Instantaneous current: 140 A
• Rated voltage: 500 V DC
• Contact resistance: ≤0.8 mΩ
• Insulation: PA6, UL94 V0
• Operating temperature: -20 °C to 120 °C
• Recommended wire: 8 AWG

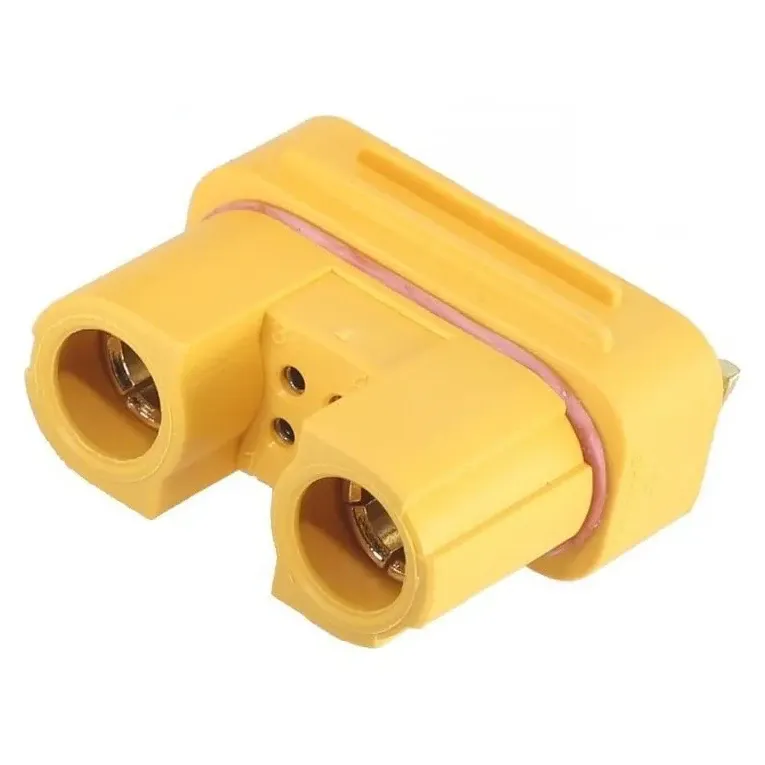

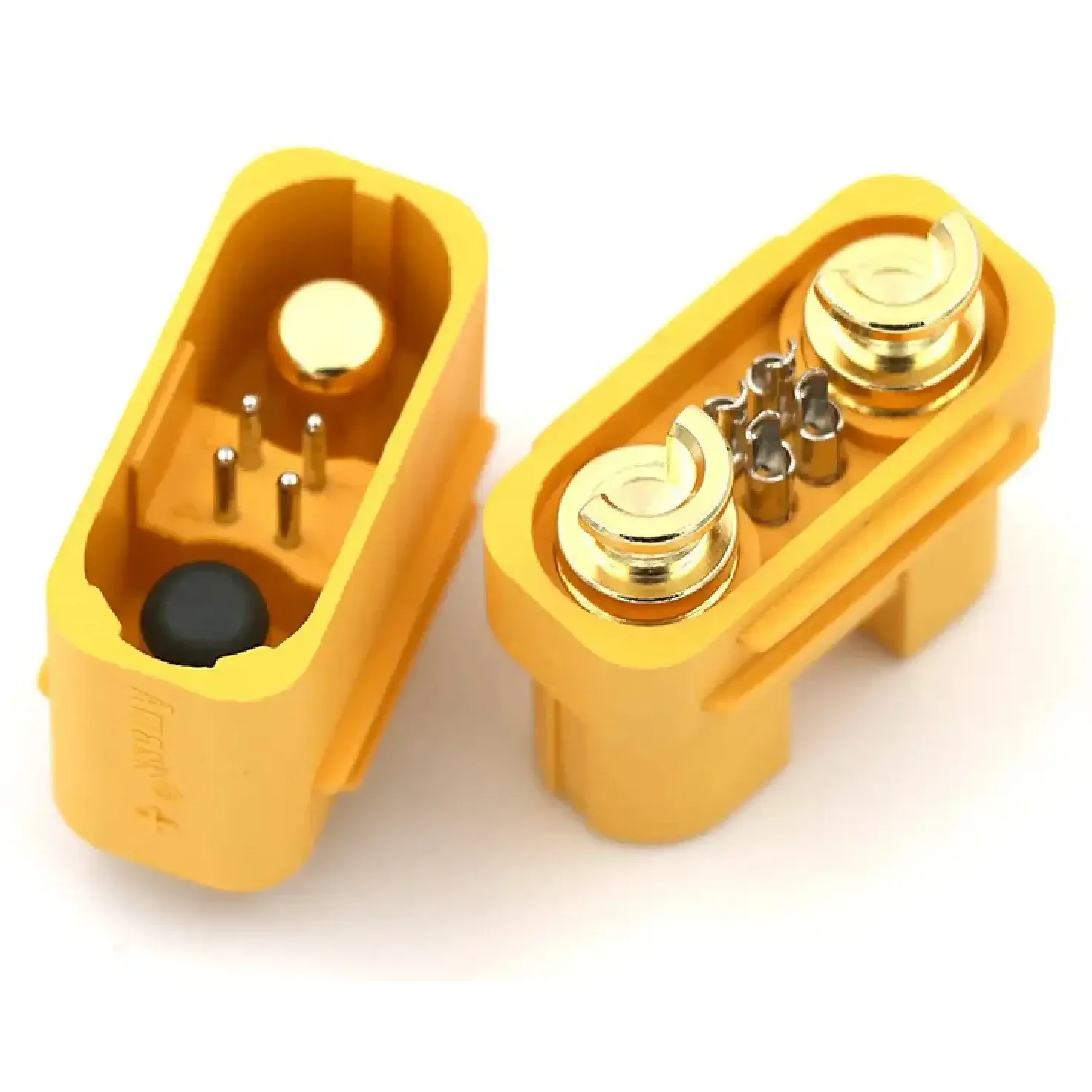

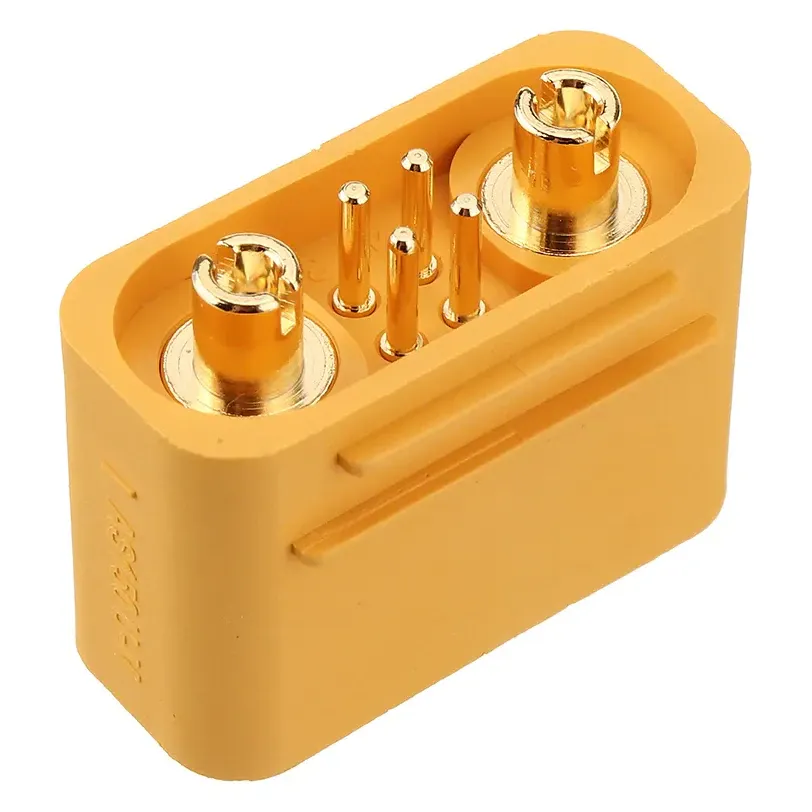

• Options: Male, female or male + female; bare or with wire

Because the signal pins share the housing with the power pins, a detachable wing's motor and servo wiring, or a battery's power and data lines, connect through a single plug. Order the male + female set when fitting both sides of a new joint.
