7.2V-16V 320A Brushed ESC with Reverse and Brake

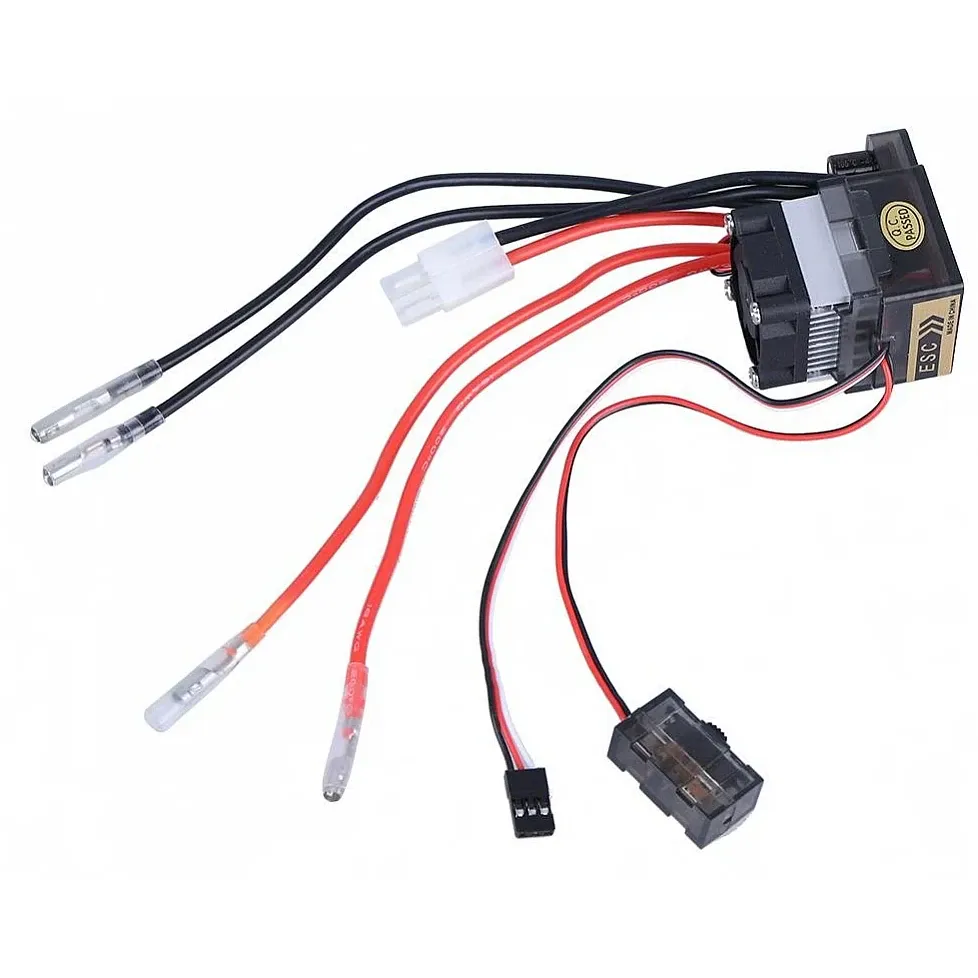

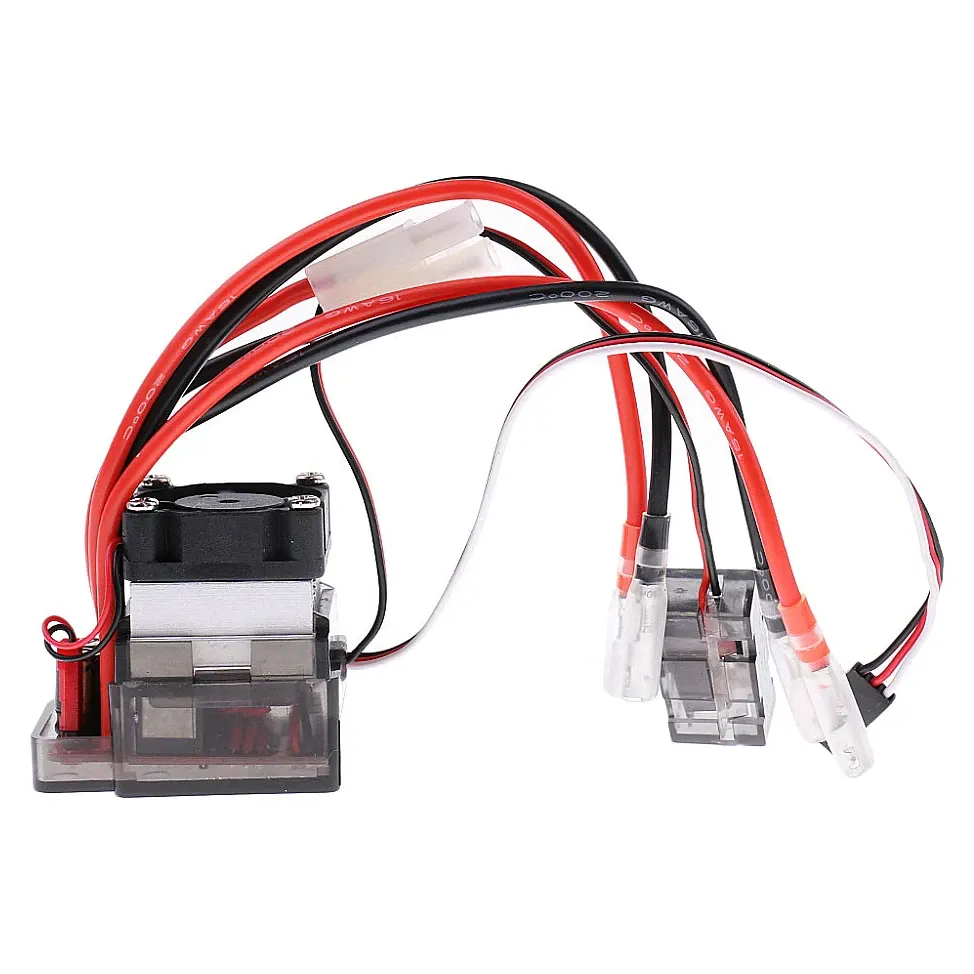

A high-current brushed motor speed controller with forward, reverse and brake functions, made for 540-size brushed motors in RC cars and boats. It drives a single motor or a dual-motor setup and runs on 2–4S LiPo or 6–12 cell NiMH/NiCd packs (7.2–16 V).

Key features

• Single or dual motor: one controller handles one 540 brushed motor or a pair of them.
• Built-in BEC: 5.6 V at 2 A powers the receiver and steering servo without a separate regulator.
• Protection: battery low-voltage cut-off, over-heat protection and throttle signal-loss protection.

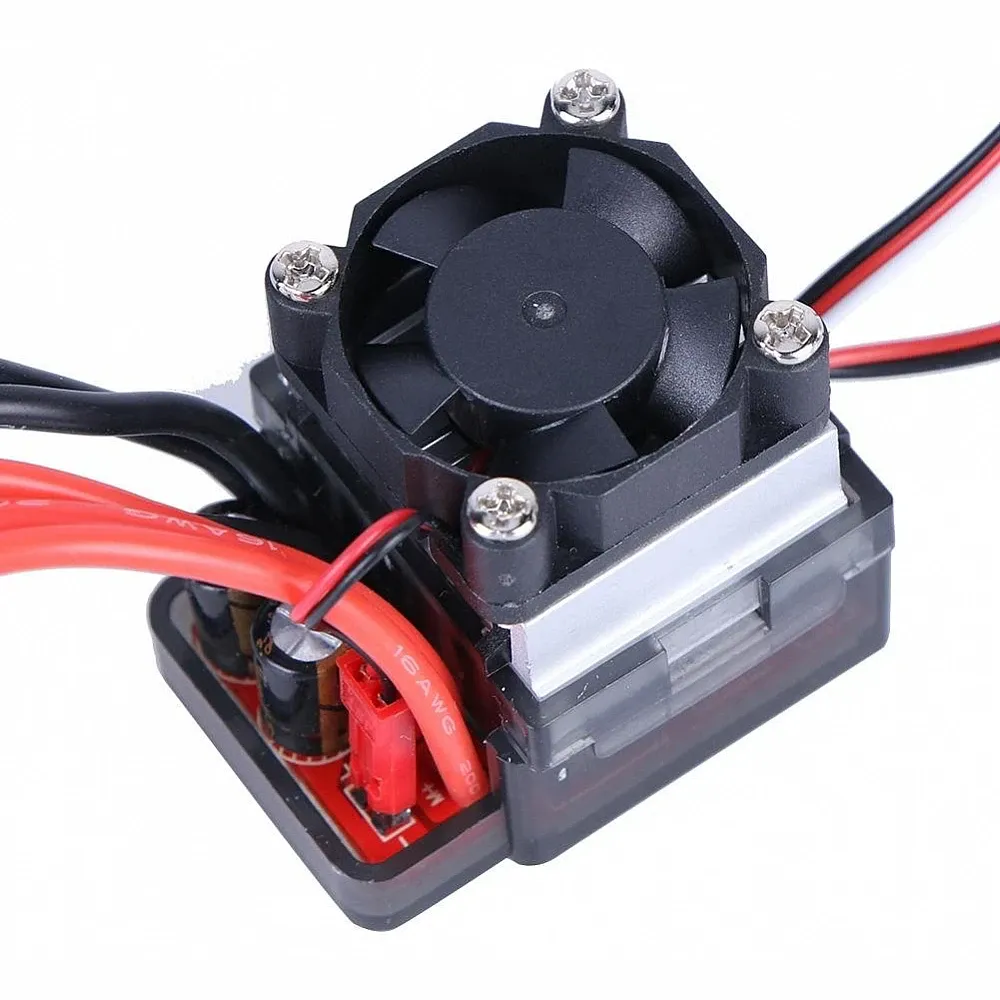

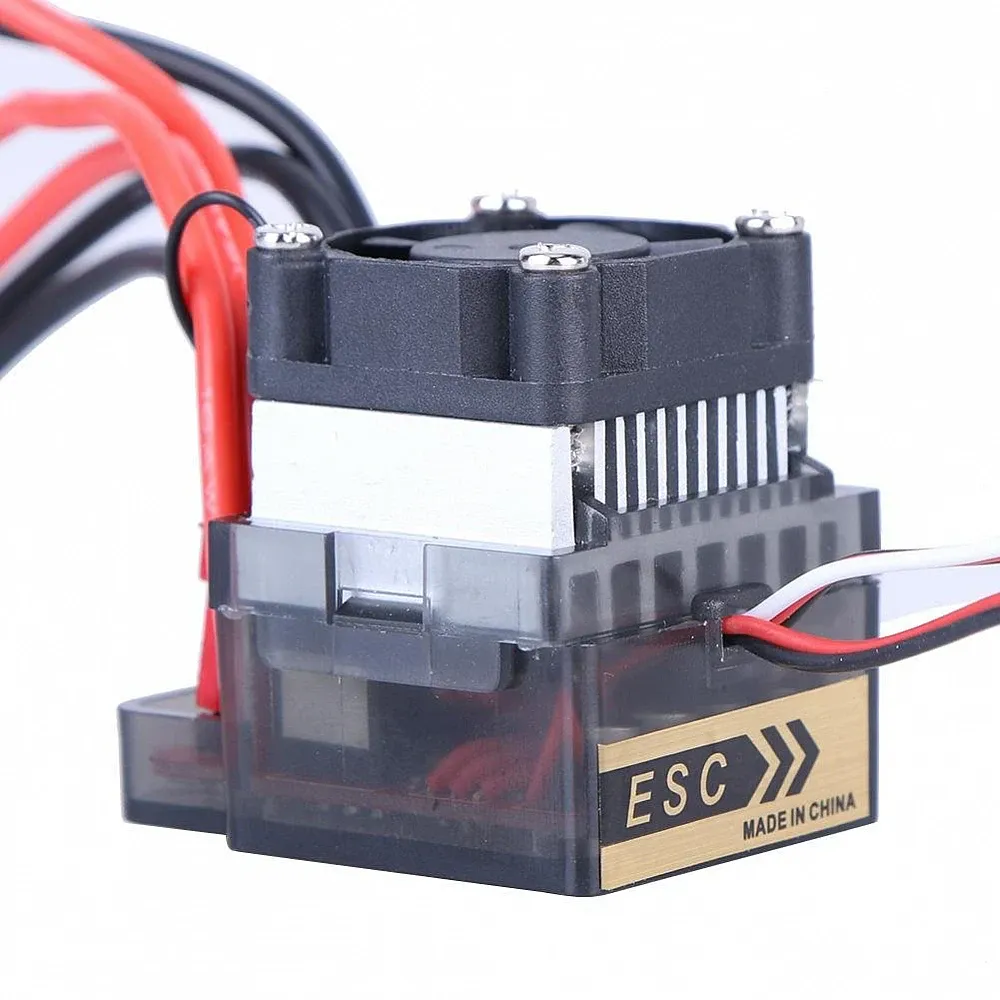

• Heat sink: an integrated heat sink disperses heat during long runs.

Specifications

• Input voltage: 7.2–16 V (2–4S LiPo or 6–12 cell NiMH/NiCd)
• Rated current: 320 A
• BEC output: 5.6 V, 2 A
• Motor type: Brushed, 540 size, single or dual

This controller drives brushed motors only — brushless drone and plane motors need a brushless ESC. Its reverse function makes it a natural fit for RC cars, crawlers and boats rather than aircraft.
