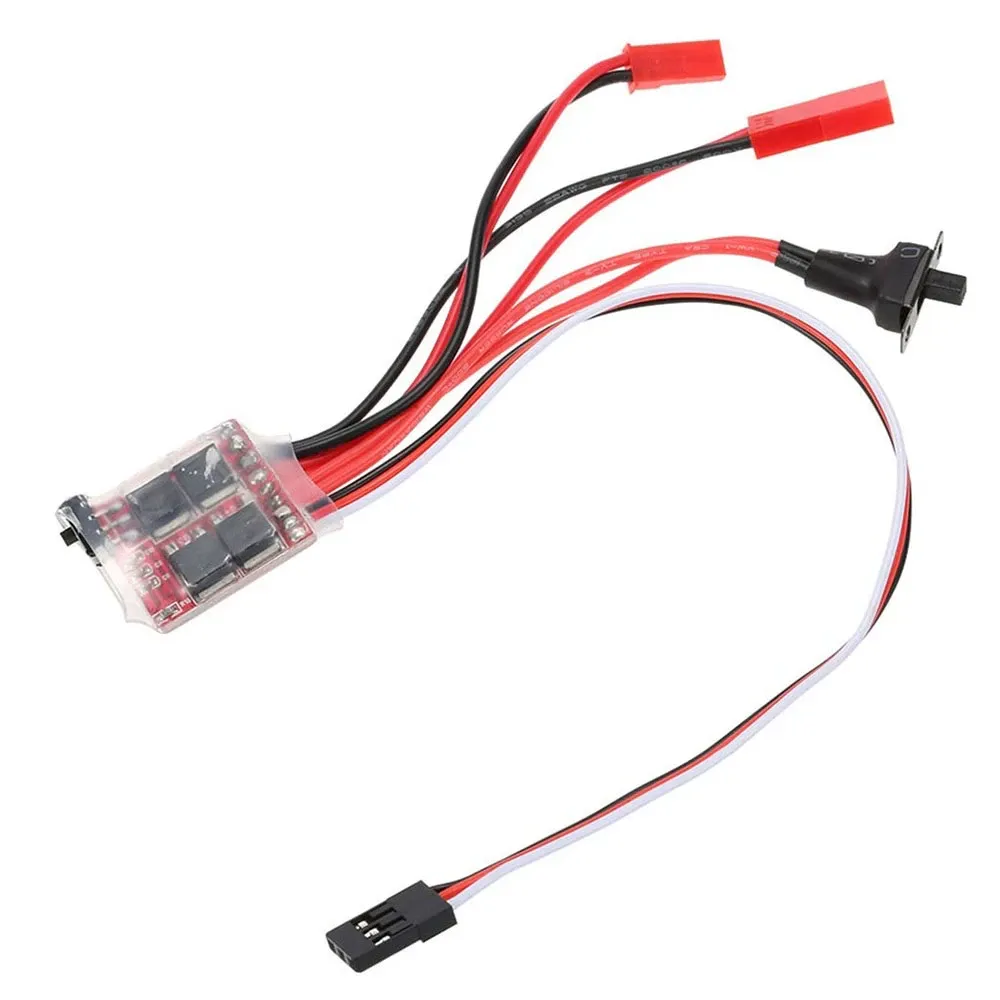

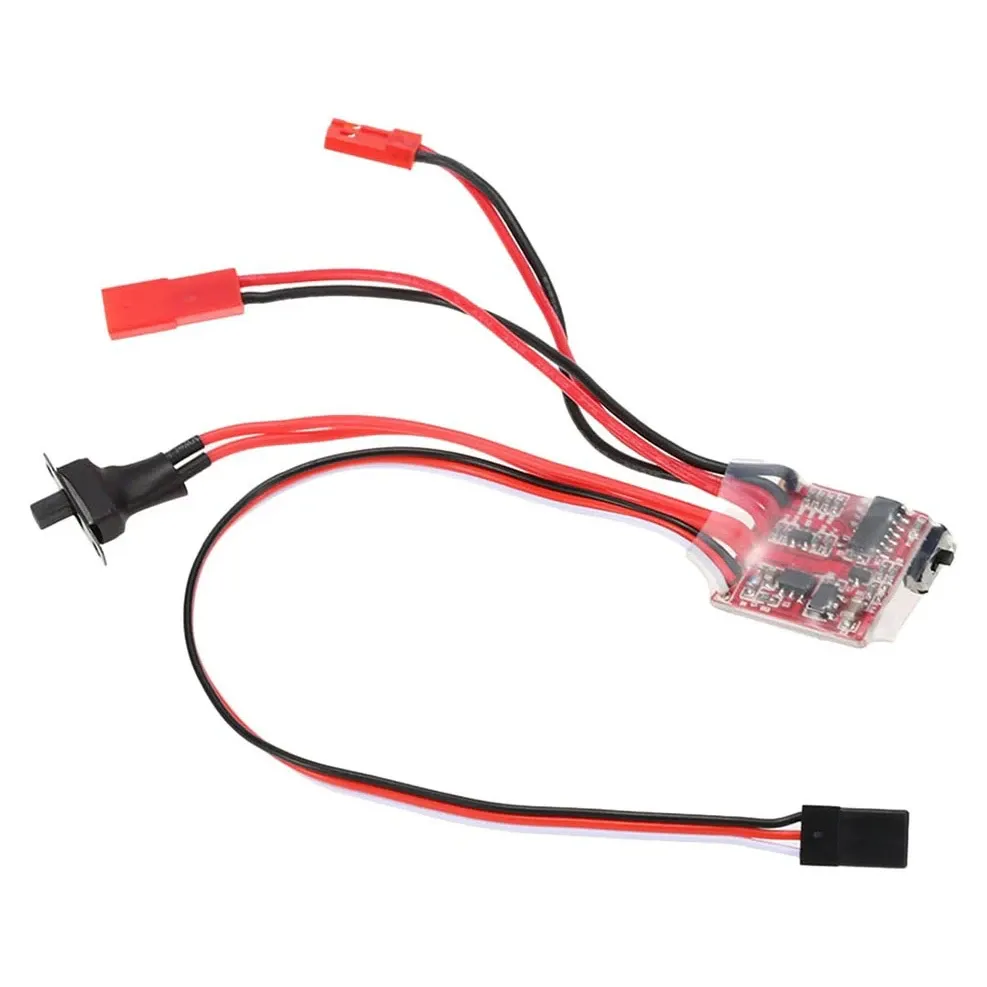

ReadyToSky 10A Brushed ESC 2S with Brake Switch and 5V 1A BEC

A compact 10A speed controller for brushed motors in small electric models running a 2S LiPo or a 4-7 cell NiMH/NiCd pack. It suits brushed RC cars, boats, planes and DIY robots that need simple throttle control from a standard receiver channel, and its built-in BEC powers the receiver straight from the drive battery.

Key features

• 10A continuous with 15A available for short bursts

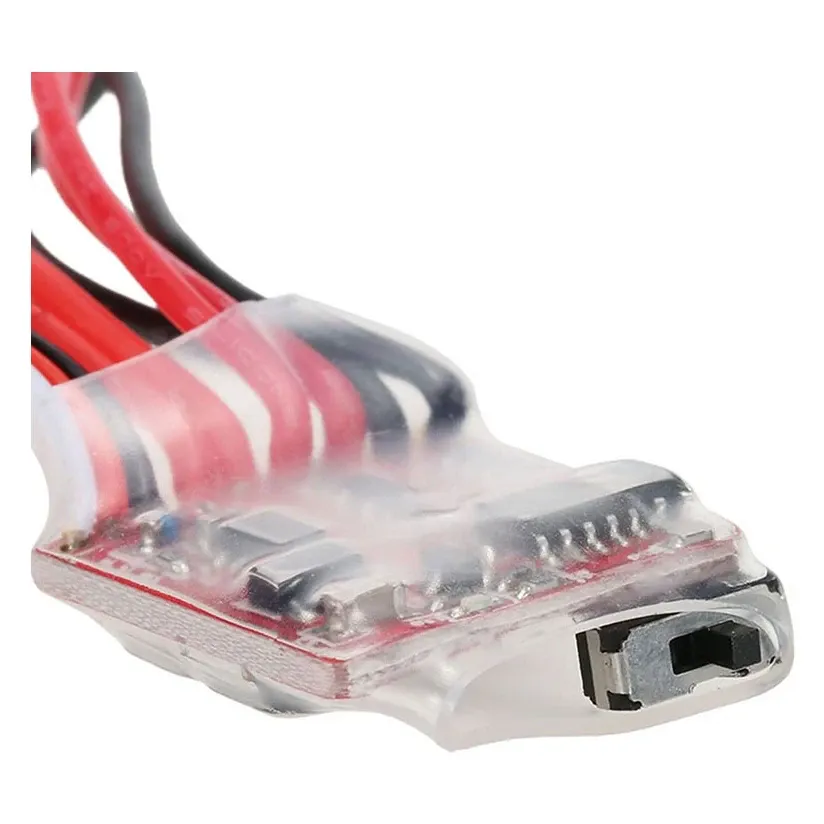

• Brake function enabled or disabled with an on-board switch
• 5V 1A BEC removes the need for a separate receiver pack
• Takes the standard servo-pulse signal from any RC receiver
• Weighs just 9 g, so it fits tight fuselages and small chassis

Specifications

• Continuous current: 10A
• Maximum current: 15A
• Input voltage: 4.8-8.4V (2S LiPo or 4-7 cell NiMH/NiCd)
• BEC output: 5V, 1A
• Input signal: Standard receiver pulse (PPM)
• PWM frequency: 8 kHz
• Driver frequency: 2 kHz
• Motor type: Brushed
• Weight: 9 g

Brushed motors only: this ESC cannot run a three-wire brushless motor. Stay at 2S, since a 3S LiPo exceeds the 8.4V input limit, and choose a motor whose current draw sits within the 10A continuous rating.
