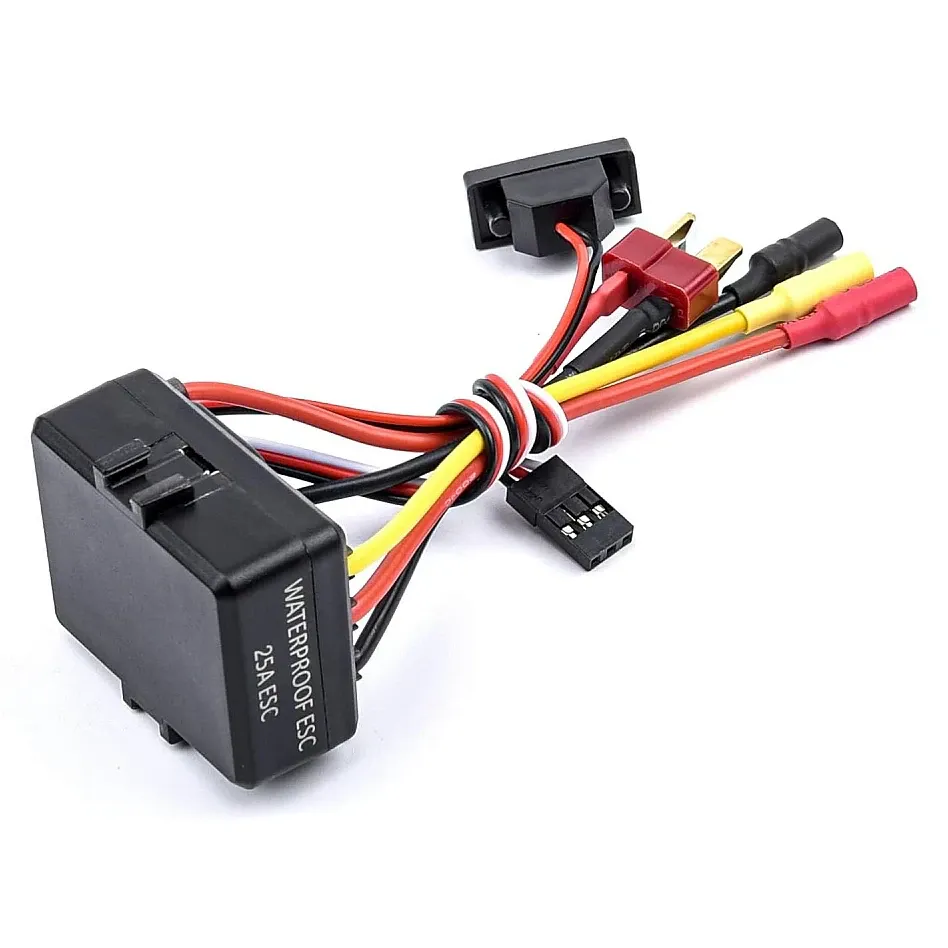

25A Waterproof RC Car ESC (2-3S, T-Plug)

A sealed 25A speed controller for brushless-powered RC cars and other ground models running 2S or 3S LiPo. It comes with a T-plug battery connector and a built-in BEC, so the receiver and steering servo run straight off the main pack without a separate regulator.

Key features

• Waterproof and dustproof construction for wet tracks, grass and dirt
• 30A peak rating above the 25A continuous figure for short bursts of acceleration
• Built-in 5 V / 2 A BEC for the receiver and steering servo
• T-plug battery connector fitted, ready for T-plug packs
• Light 42 g body that fits small chassis

Specifications

• Continuous current: 25 A
• Peak current: 30 A
• Input: 2–3S LiPo (7.4–11.1 V nominal)
• BEC: 5 V, 2 A
• Battery plug: T-plug
• Weight: 42 g

Match the motor to the 25A rating: a motor that pulls more than 25A continuously under load will overheat this ESC, so keep gearing mild on 3S. If your steering servo draws heavily, a 2 A BEC can sag under load — power the servo from a separate UBEC in that case.
