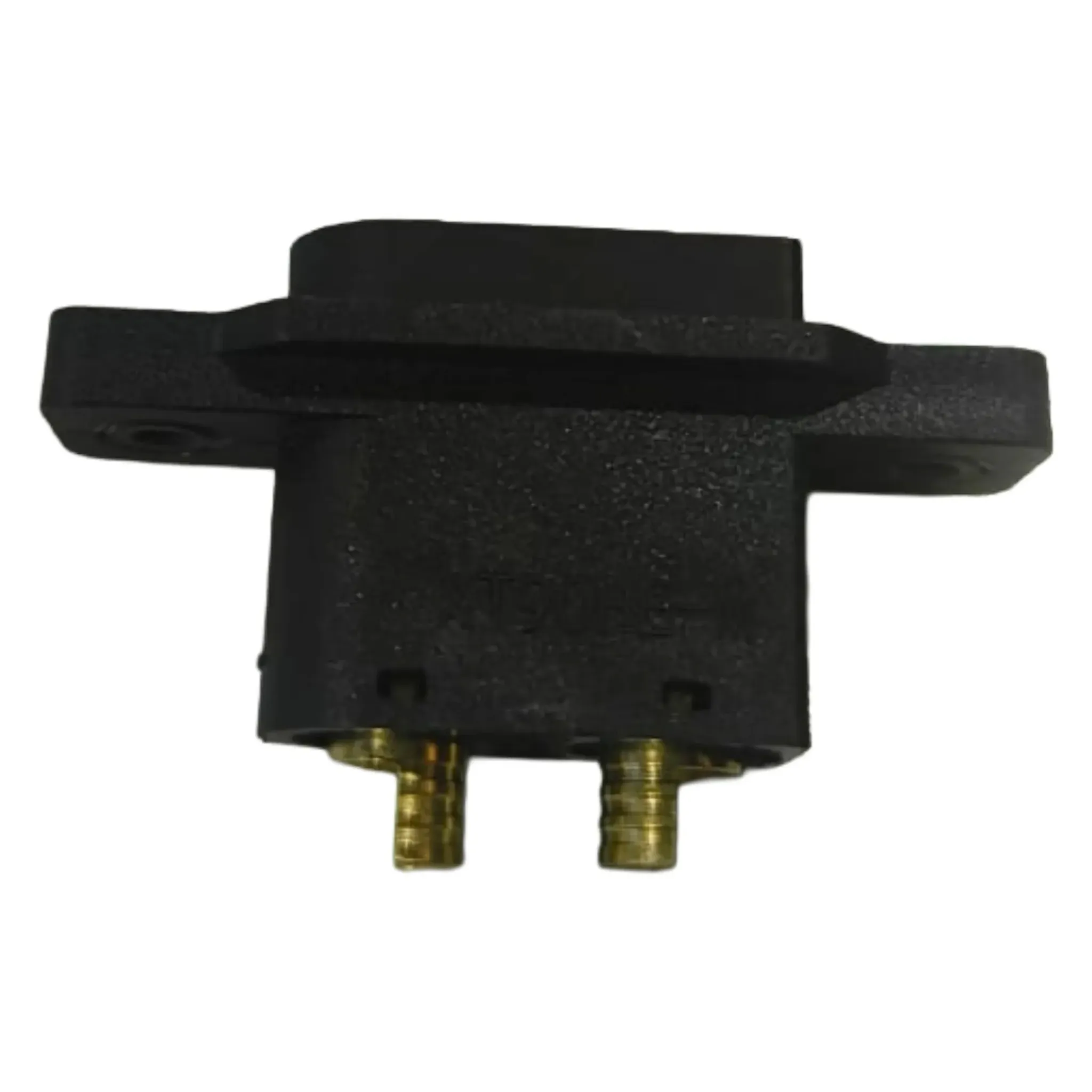

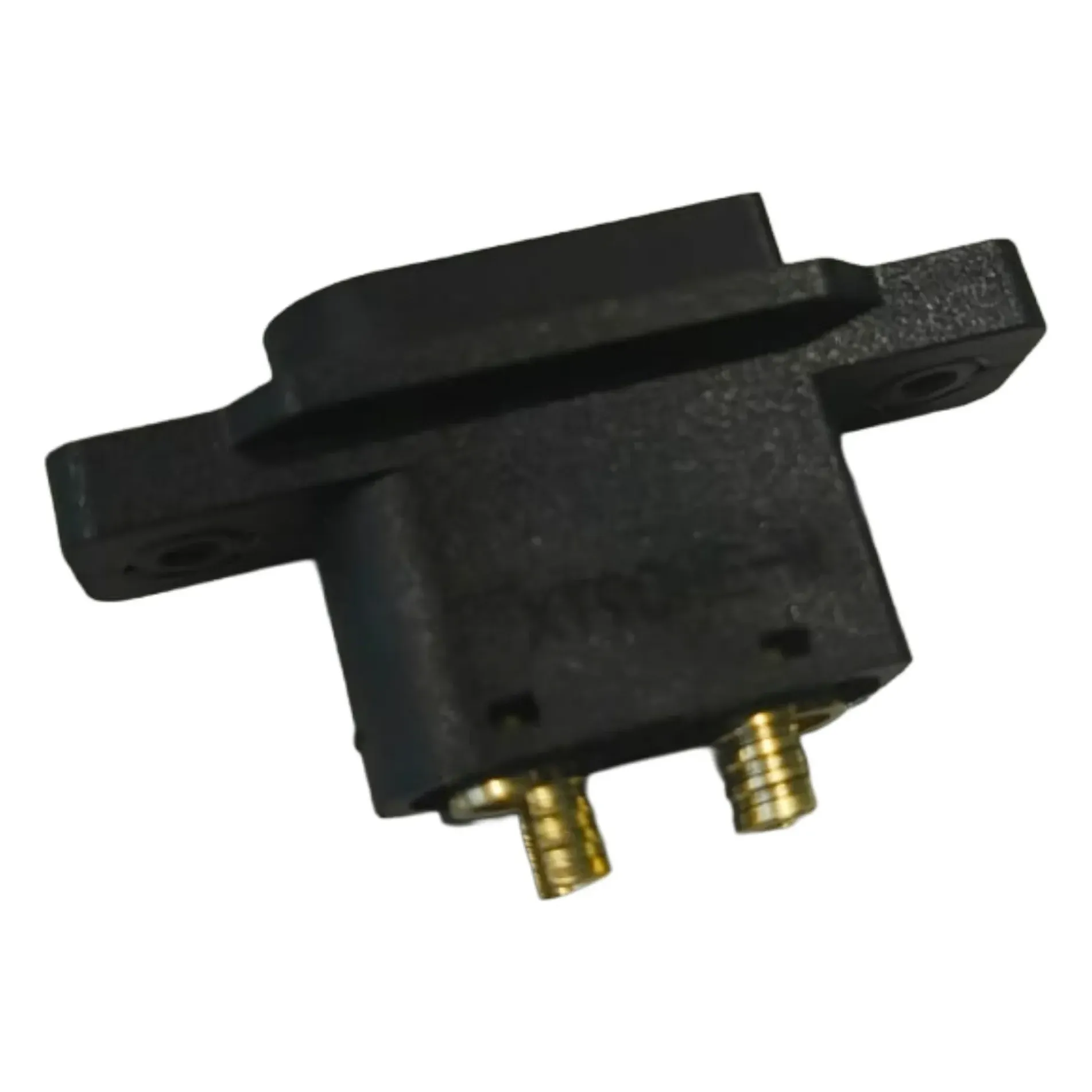

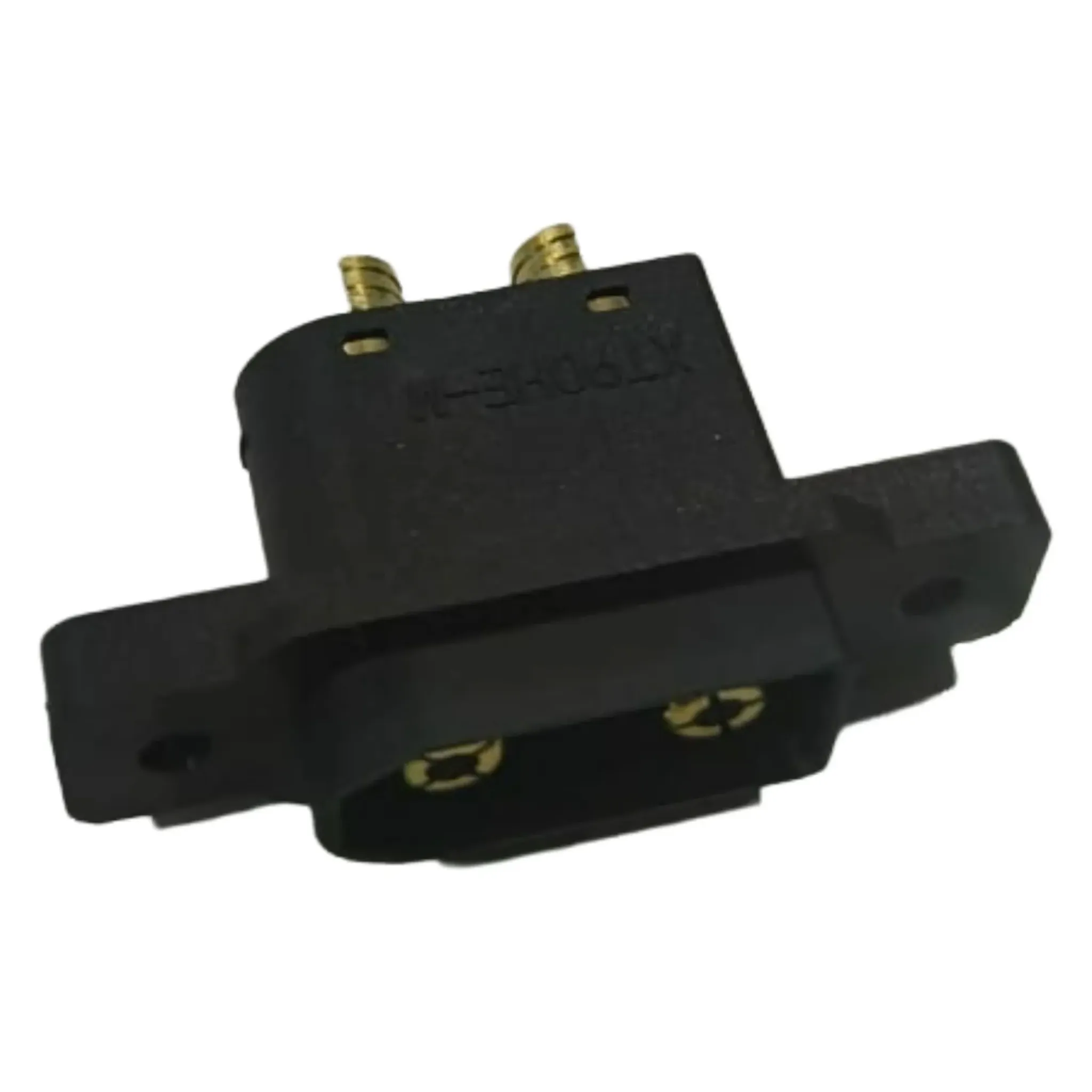

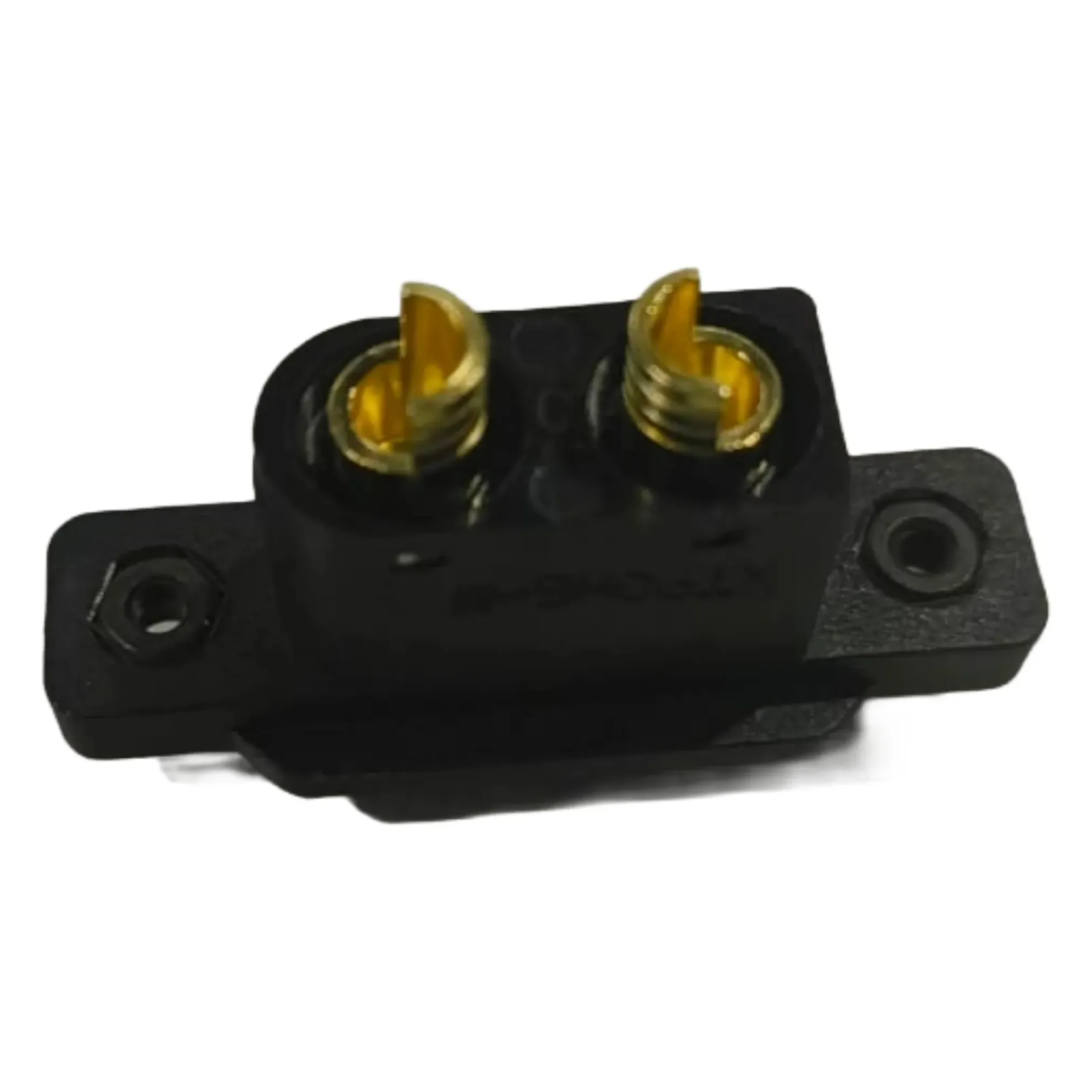

XT90E-M Male Connector with 3.0mm Weld Legs, Black

The XT90E-M is the board-mount version of the XT90 male connector: instead of solder cups for wire, it has weld legs that solder to a circuit board. Use it on power distribution boards, ESCs, battery-management and charging boards that need an XT90 battery input.

Key features

• Gold-plated male XT90 contacts; mates with XT90 female plugs
• 3.0 mm weld legs for soldering to a PCB
• UL94-V0 flame-retardant black housing
• IP40 protection and an operating range of -20 °C to +120 °C

Specifications

• Type: XT90E-M, male, board-mount
• Rated current: 45 A max (temperature rise under 85 °C)
• Maximum voltage: 500 V DC
• Weld leg height: 3.0 mm
• Protection: IP40
• Flame rating: UL94-V0
• Operating temperature: -20 °C to +120 °C
• Colour: Black

The 45 A board-mount rating sits below the figure usually quoted for wire-lead XT90 plugs, so size the board's copper and your fusing to it. For a battery or ESC wire lead, choose a standard XT90 or XT90H connector with solder cups instead.
