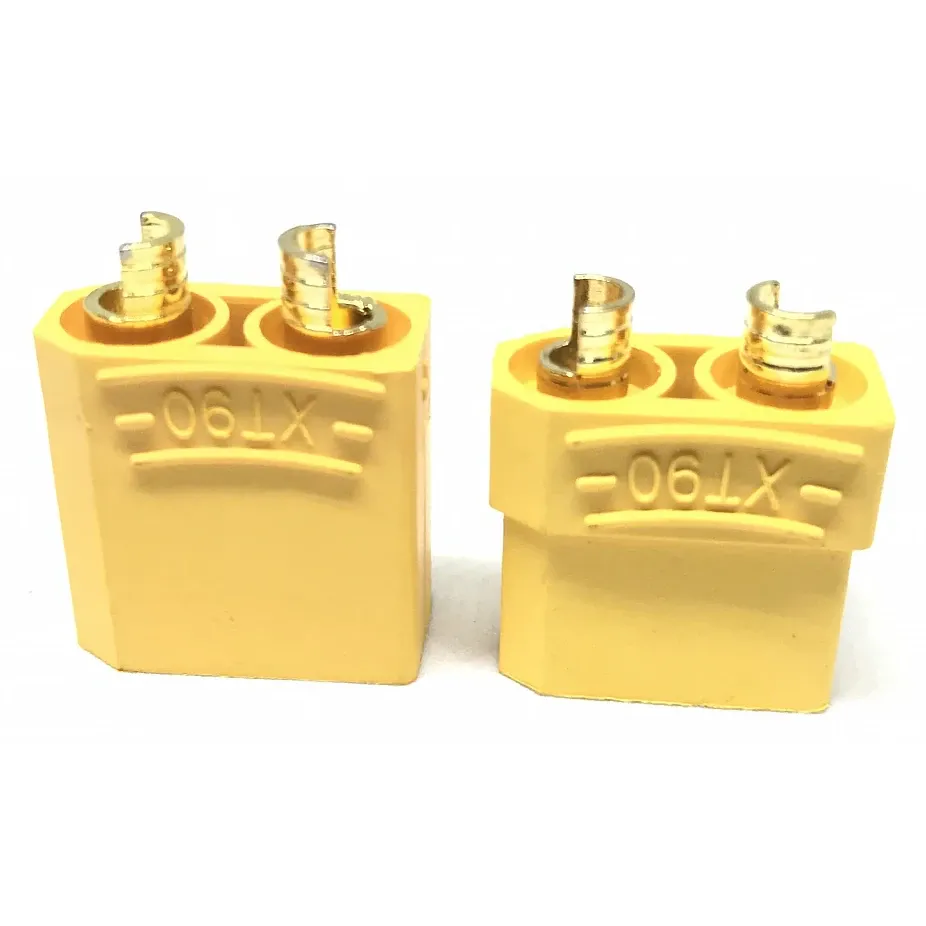

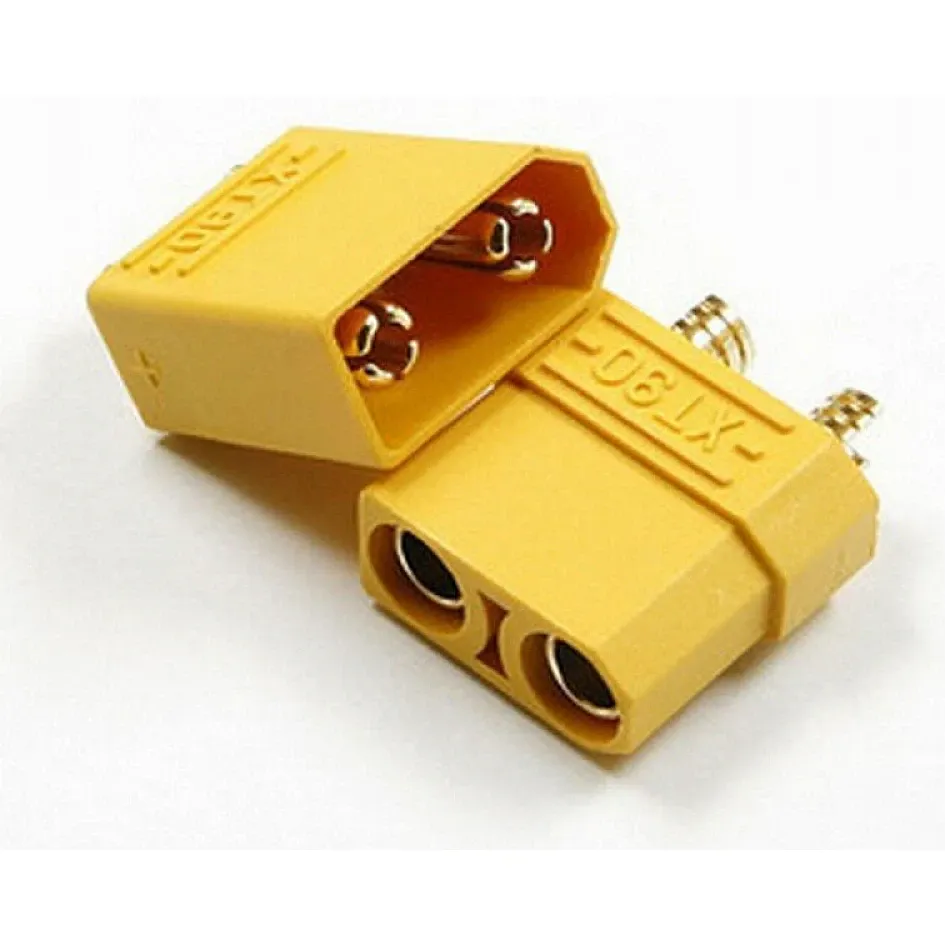

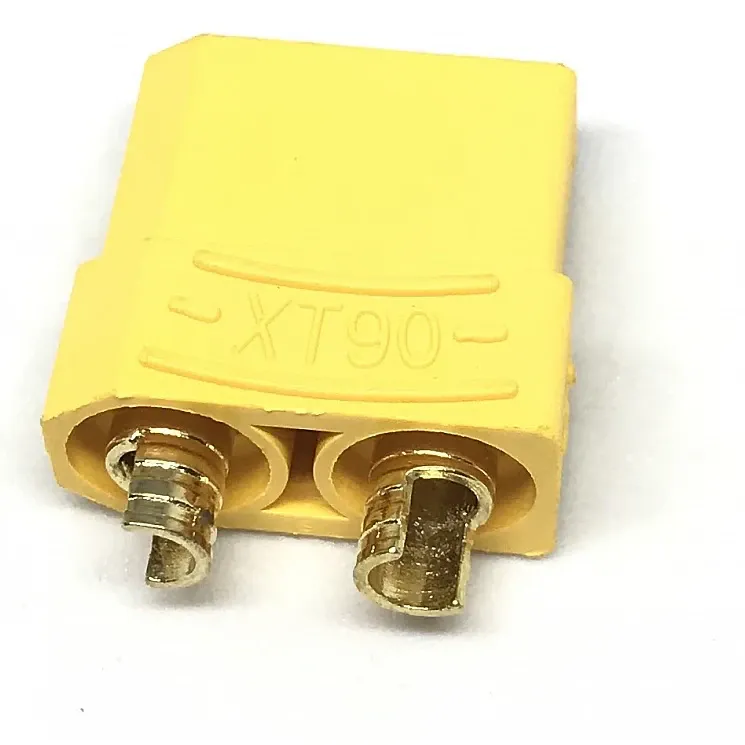

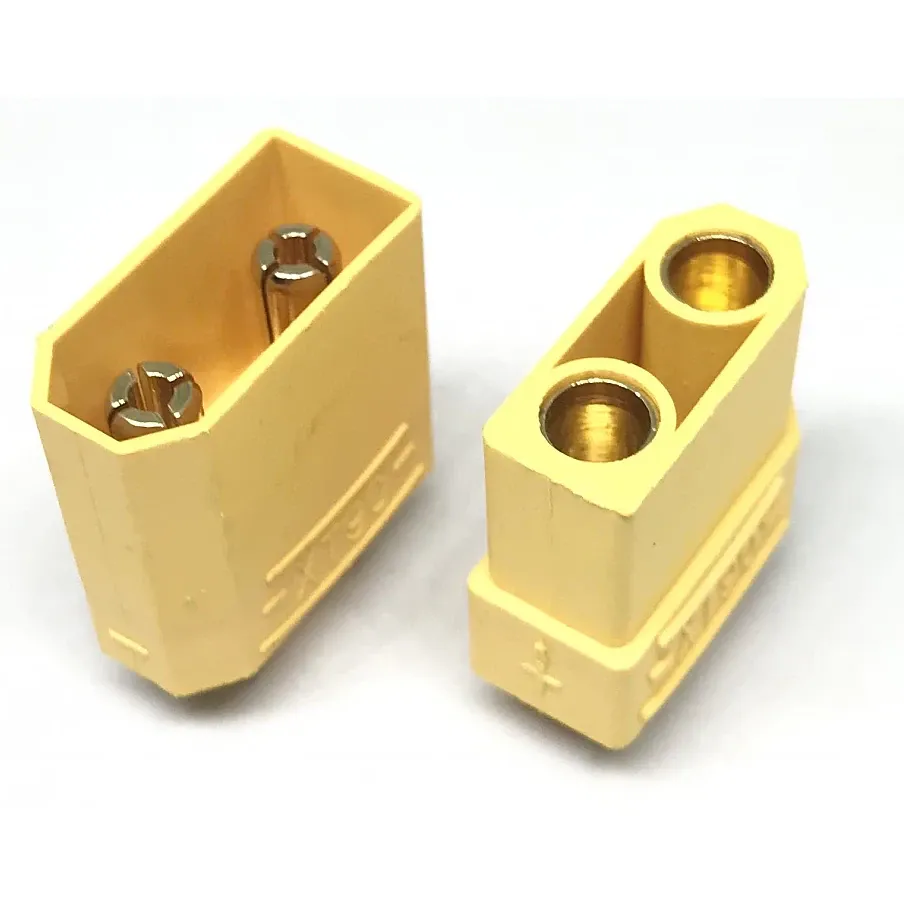

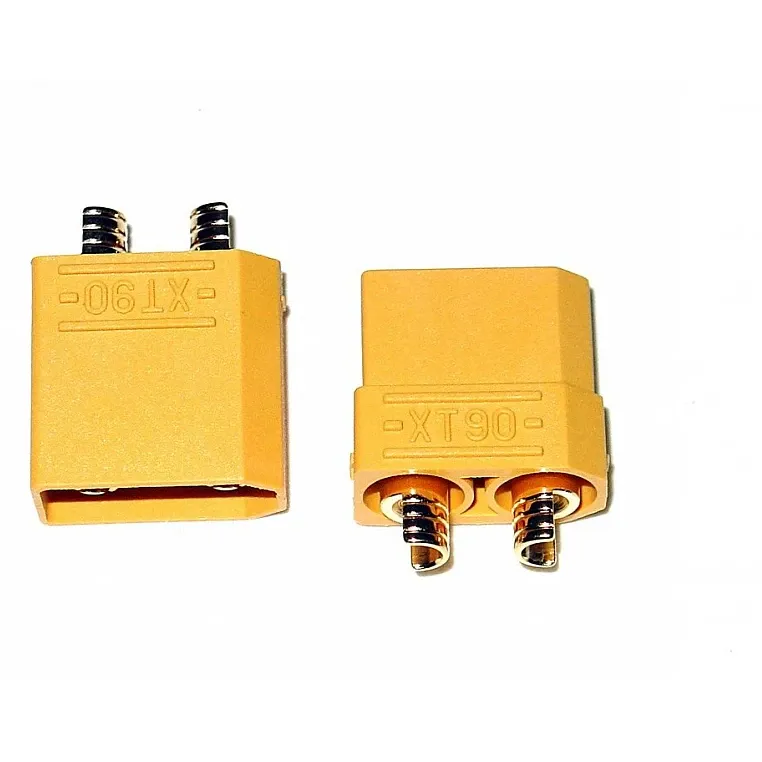

XT90 Male + Female Battery Connector Pair
SKU GEN-XT90-MF-PAIR
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
A matching male and female XT90 pair for high-current battery and power leads on heavy-lift multirotors, agri sprayers, large fixed-wing aircraft and RC builds that outgrow XT60. Solder one half to the battery lead and the other to the ESC or PDB lead.
Key features
90 A continuous: rated for sustained 90 A draw.
Polarity-proof housing: the shaped shell mates only one way and shields the contacts against shorts.
Gold-plated brass contacts: 4.5 mm spring contacts moulded into a high-temperature nylon housing for a tight, low-resistance fit.
Takes up to 8AWG wire: semicircular solder cups make thick wire easier to seat and solder.
Specifications
Connector: XT90
Contents: 1 male, 1 female
Rated current: 90 A continuous
Contact size: 4.5 mm
Contact material: gold-plated brass
Housing: high-temperature nylon
Max wire size: 8AWG
Operating temperature: -20 to 120 °C
| Battery Connector | XT-90 |
|---|---|
| Made in India | No |
| Brand | Generic |
| Connector Gender | Male + Female |
