DYS Waterproof 60kg 14V Brushless Digital Servo (IP67)

A 60 kg·cm brushless digital servo for 10–14 V systems, optimised for 14 V and able to run straight from a 3S LiPo (12.6 V fully charged) without a step-down BEC. Reinforced steel gears on dual ball bearings sit in a CNC aluminium case sealed to IP67, for heavy payload-release mechanisms, large fixed-wing control surfaces, robotic arms and big RC crawlers. Available in 180° and 270° travel versions.

Key features

• Stall torque of 48 kg·cm at 10 V, 55 kg·cm at 12 V and 60 kg·cm at 14 V
• 0.11 s per 60° at 14 V
• Reinforced steel gear train for high holding loads
• Brushless motor for less heat and longer life than brushed servo motors
• Digital PWM control at 50–333 Hz frame rates
• IP67 sealing for wet, muddy and dusty conditions

Specifications

• Operating voltage: 10–14 V (optimised for 14 V)
• Stall torque: 48 / 55 / 60 kg·cm at 10 / 12 / 14 V
• Speed: 0.15 / 0.13 / 0.11 s per 60° at 10 / 12 / 14 V
• PWM frequency: 50–333 Hz

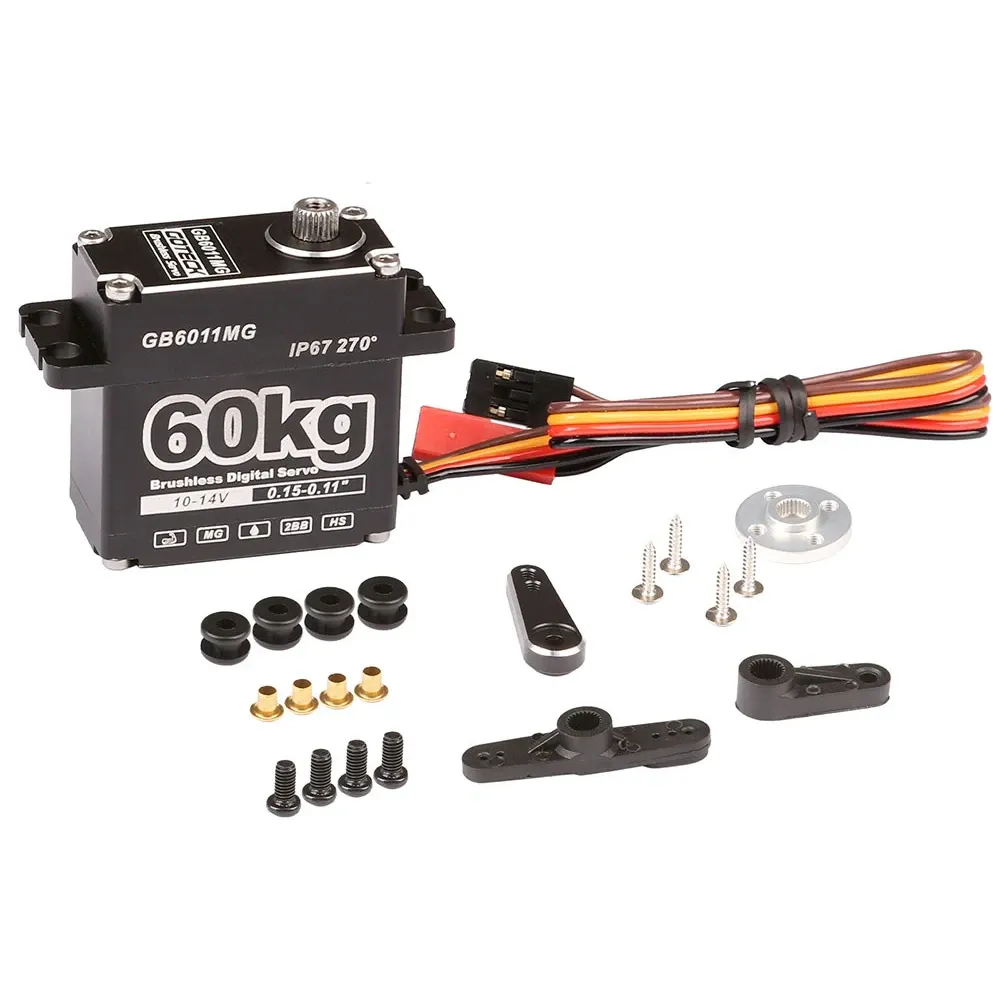

• Travel: 180° or 270° (by variant)
• Motor: Brushless
• Gears: Reinforced steel, dual ball bearings
• Case: CNC aluminium
• Ingress protection: IP67

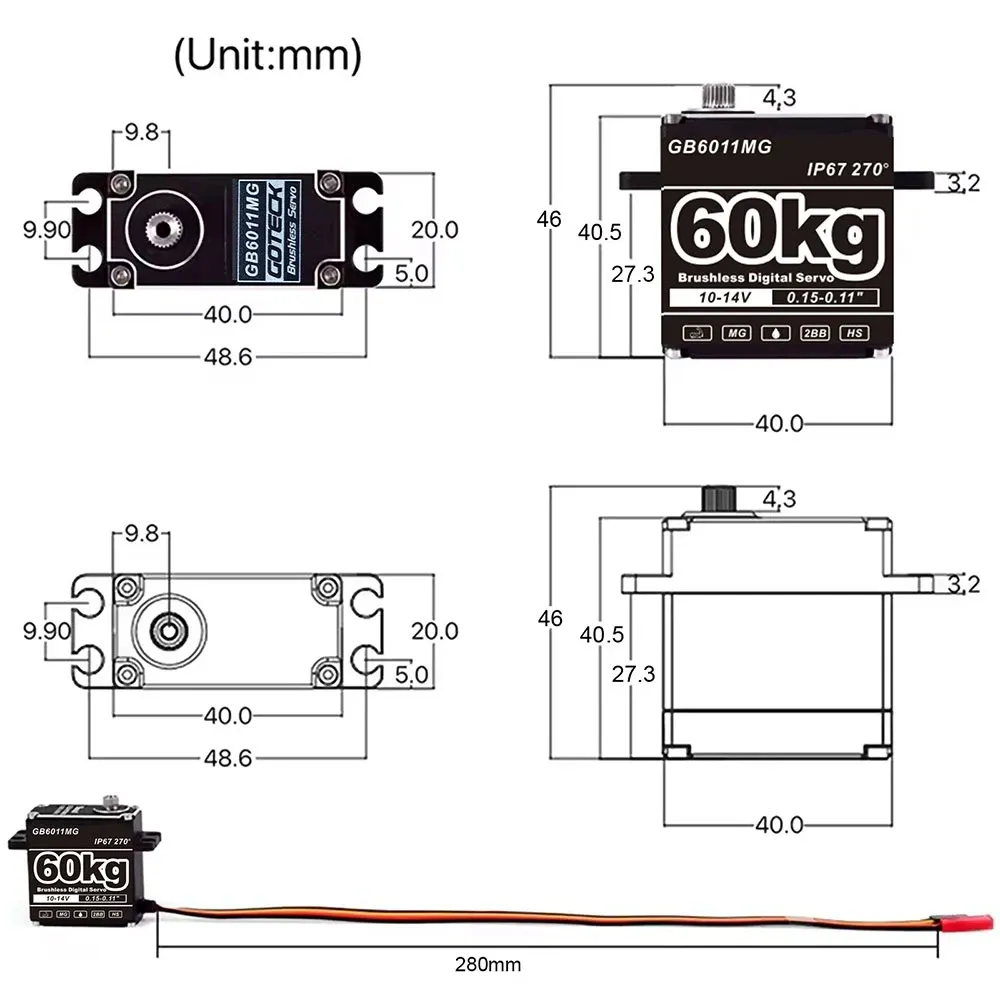

• Dimensions: 40 x 20 x 40.5 mm
• Weight: 83 g
• Lead length: 280 mm
• Operating temperature: -20 to +60 °C

Keep it off 4S packs: 16.8 V fully charged is above its 14 V limit. A 5 V or 6 V receiver rail is below the 10 V minimum, so take power from the flight battery or a 12 V regulator and only the signal from the receiver or flight controller.
