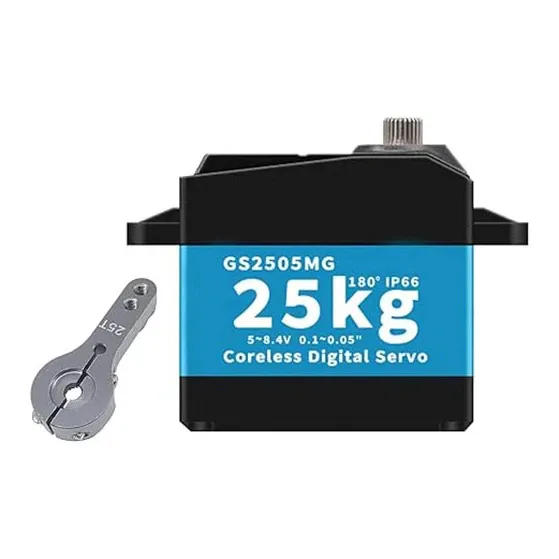

DYS Waterproof 25kg 8.4V Digital Servo, Full Metal Gear (IP66)
₹2,999Incl. GST
SKU GEN-SERVO-25KG-IP66-180
Rotation: 180°
Brand: DYSMade in India: NoWeight: 60 g
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
A high-voltage 25kg-class waterproof digital servo with full metal gears and IP66 sealing, made for RC crawler and truck steering, heavy aircraft control surfaces, drone payload mechanisms and robotics in wet, dusty conditions. Its 6.0–8.4 V range lets it run straight from a 2S LiPo or an HV BEC.
Key features
- IP66 rating: dust-tight and protected against powerful water jets
- Full metal gear train on dual ball bearings
- Engineering plastic and aluminium alloy case

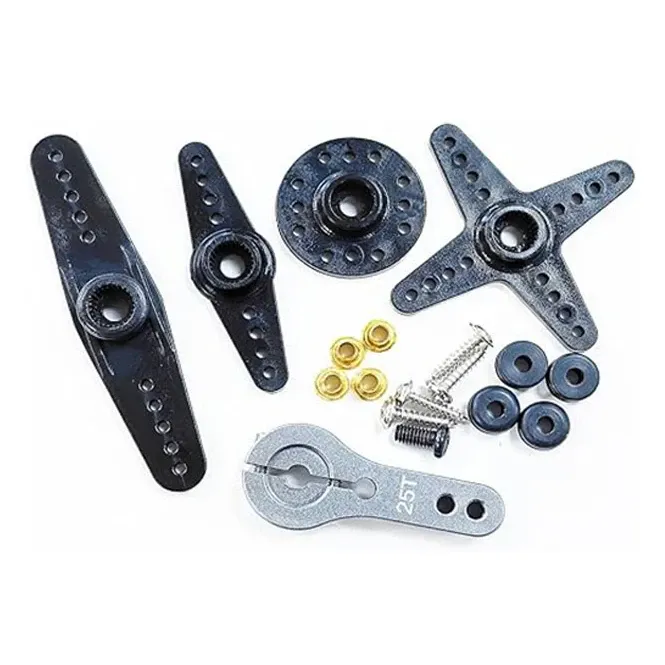

- 25T output spline (5.9 mm) takes standard-size servo horns

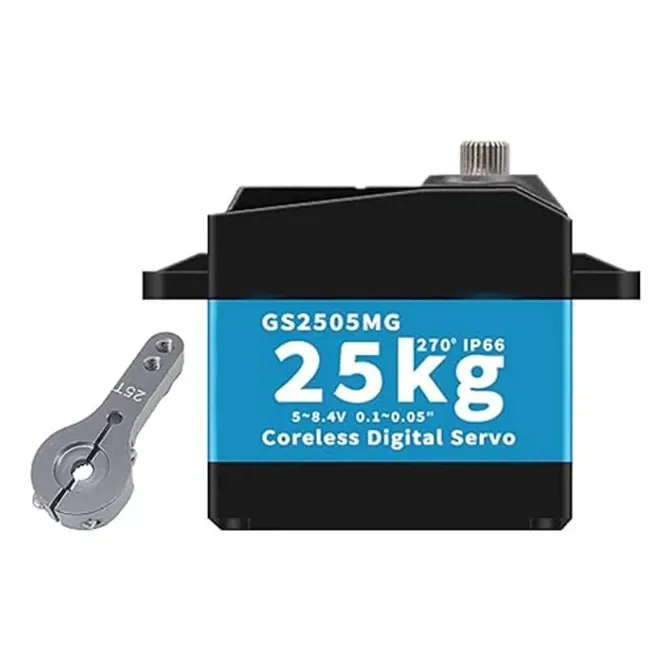

- Available in 180° and 270° travel versions; accepts 50–330 Hz PWM
Specifications
- Operating voltage: 6.0–8.4 V
- Torque class: 25 kg·cm
- Travel: 180° or 270° (by variant)
- Pulse range: 500–2500 µs, 1500 µs neutral
- Direction: counter-clockwise for 1000 to 2000 µs
- Dead band: 3 µs
- PWM frequency: 50–330 Hz
- Output spline: 25T, 5.9 mm
- Bearings: 2 ball bearings
- Waterproofing: IP66
- Dimensions: 40 x 20 x 40.5 mm
- Weight: 60 g
- Lead length: 450 mm
- Operating temperature: -25 to 70 °C
The IP67 25kg servo in the same range has a CNC aluminium case and a 300 mm lead; this IP66 version is lighter at 60 g and its 450 mm lead reaches a receiver further from the servo.
| Brand | DYS |
|---|---|
| Made in India | No |
| Weight | 60 g |
