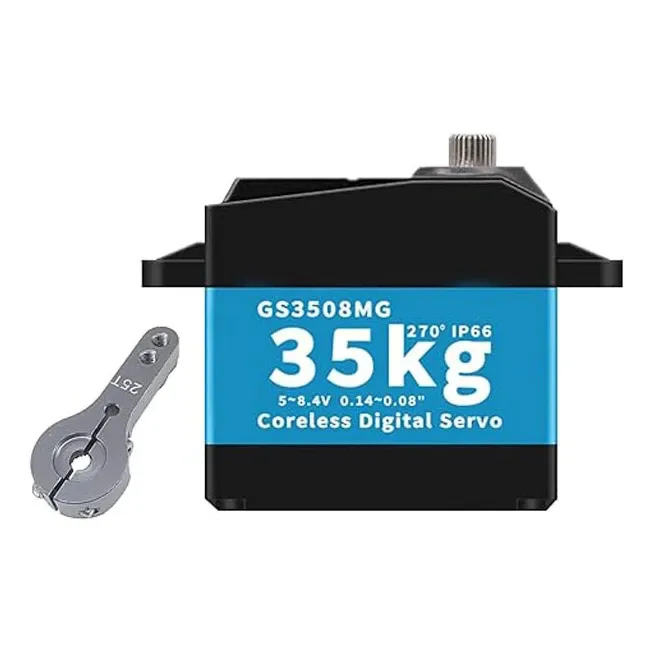

DYS Waterproof 35kg 8.4V Digital Servo, Full Metal Gear (IP66)

A 35kg-class high-voltage digital servo with full metal gears and IP66 sealing, for large RC cars and crawlers, robotic arms, automation rigs and drone mechanisms that face dust and water spray. It runs on 6.0–8.4 V, straight from a 2S LiPo or an HV BEC.

Key features

• About 28–30 kg·cm at 6 V, 32–34 kg·cm at 7.4 V and 35 kg·cm at 8.4 V
• 0.09 s/60° at 7.4 V and 0.08 s/60° at 8.4 V
• Coreless brushed motor driving a full metal gear train on two ball bearings
• IP66: dust-tight and protected against powerful water jets
• 25T (5.9 mm) output spline; available in 180° and 270° travel versions

Specifications

• Operating voltage: 6.0–8.4 V
• Torque: approx. 28–30 kg·cm (6 V), 32–34 kg·cm (7.4 V), 35 kg·cm (8.4 V)
• Speed: 0.09 s/60° (7.4 V), 0.08 s/60° (8.4 V)
• Pulse range: 500–2500 µs, 1500 µs neutral
• Direction: counter-clockwise for 1000 to 2000 µs
• Dead band: 3 µs
• Travel: 180° or 270° (by variant)
• Output spline: 25T, 5.9 mm
• Bearings: 2 ball bearings
• Case: Engineering plastic and aluminium alloy
• Waterproofing: IP66
• Dimensions: 40 x 20 x 40.5 mm
• Weight: 60 g
• Lead length: 450 mm
• Operating temperature: -15 to 70 °C

Need sealing against immersion? The IP67 35kg servos in the same range are the step up; this IP66 version comes with a 450 mm lead for long runs to the receiver.
