DYS Waterproof 35kg 8.4V Brushless Digital Servo (IP67)

A 35kg-class brushless digital servo with metal gears, an aluminium case and IP67 sealing: the long-life choice for heavy crawler and truck steering, robotic joints, mechanical actuators and drone payload mechanisms. It runs on 6.0–8.4 V, straight from a 2S LiPo or an HV BEC.

Key features

• Brushless motor has no brushes to wear, so it outlasts coreless and brushed servos under continuous load
• 30 kg·cm at 6 V, 31 kg·cm at 7.4 V and 35 kg·cm at 8.4 V
• Fast transit: 0.09 s/60° at 6 V down to 0.06 s/60° at 8.4 V
• IP67 sealing for mud, rain and temporary immersion

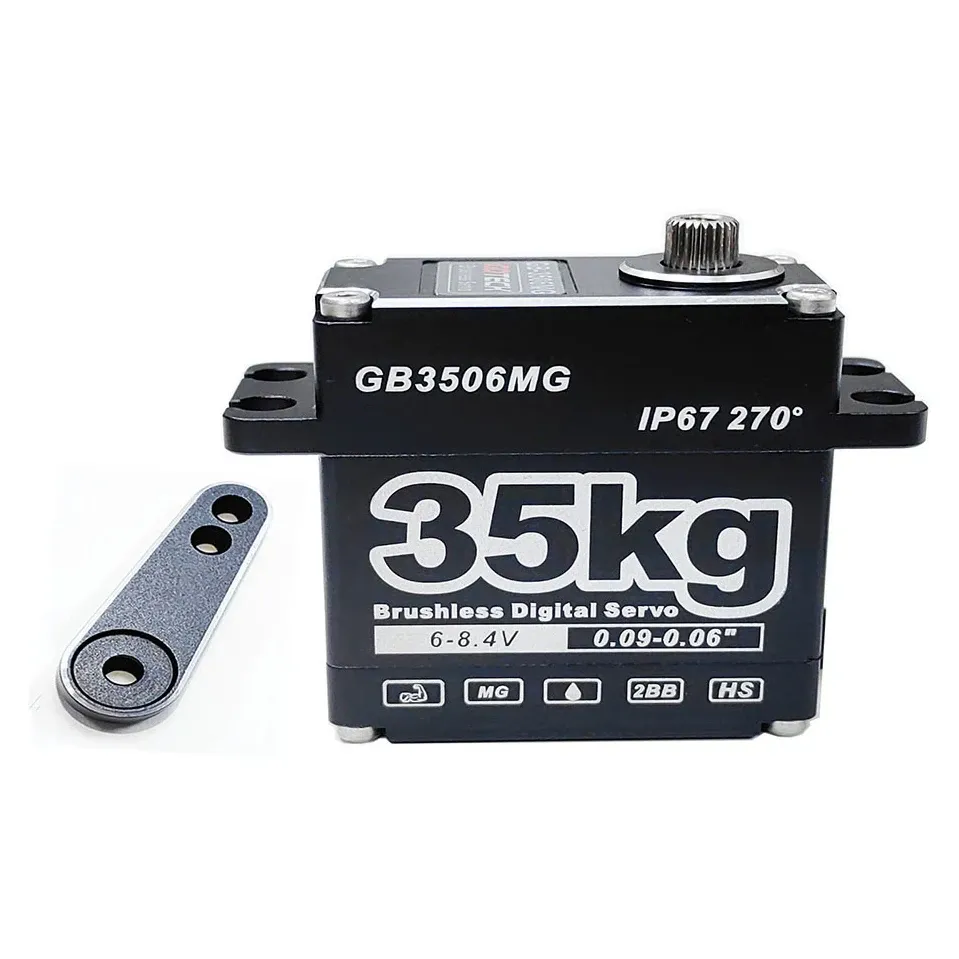

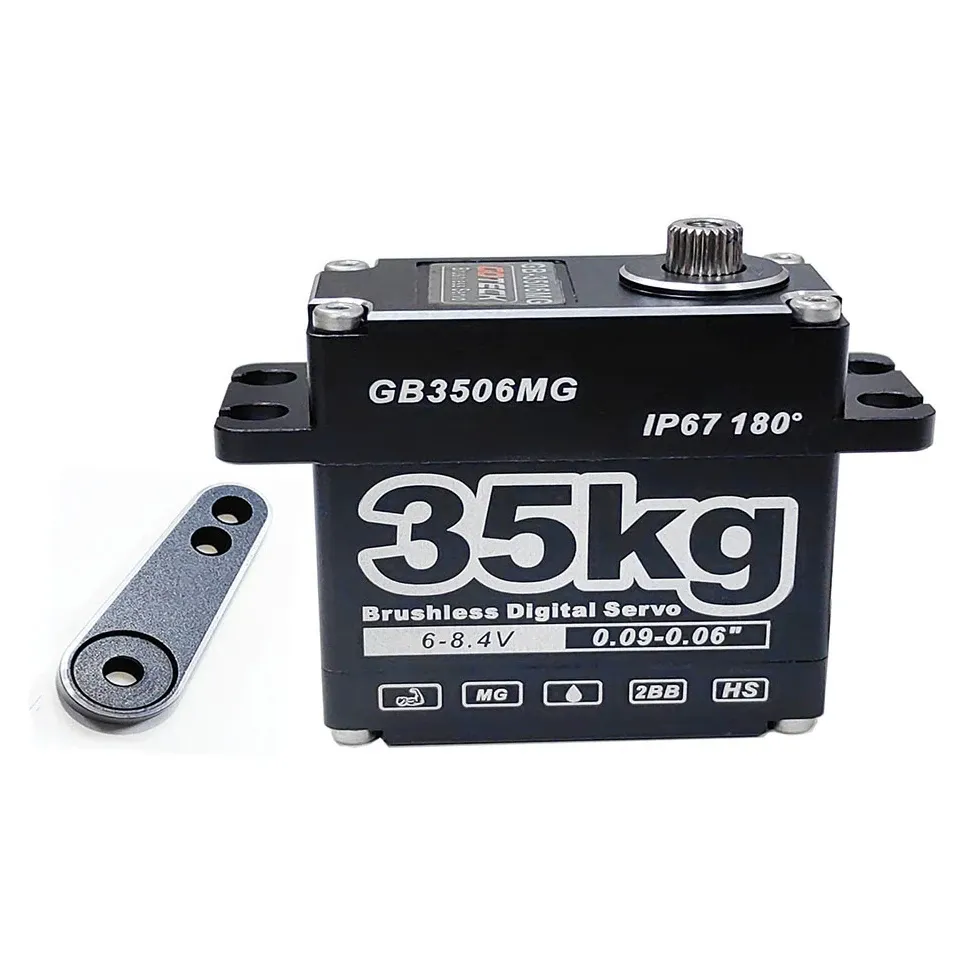

• Available in 180° and 270° travel versions; 1 µs dead band for precise holding

Specifications

• Operating voltage: 6.0–8.4 V
• Torque: 30 kg·cm (6 V), 31 kg·cm (7.4 V), 35 kg·cm (8.4 V)
• Speed: 0.09 s/60° (6 V), 0.08 s/60° (7.4 V), 0.06 s/60° (8.4 V)
• Idle current: 300 mA (6 V), 320 mA (7.4 V), 350 mA (8.4 V)
• Running current: 4.2 A (6 V), 5.5 A (7.4 V), 6.5 A (8.4 V)
• Control: PWM, 500–2500 µs, 1500 µs neutral
• Dead band: 1 µs
• Travel: 180° or 270° (by variant)
• Gears: Metal
• Bearings: 2 ball bearings
• Case: Aluminium
• Dimensions: 40 x 20 x 40.5 mm
• Weight: 75 g (without horn)
• Lead: 300 mm, 22AWG (brown negative, red positive, yellow signal)
• Operating temperature: -20 to 60 °C

Running current reaches 6.5 A at 8.4 V, so power it from a high-current BEC or directly from the pack; a receiver's onboard regulator is not enough.
