RadioMaster UFL 2.4GHz T Antenna for ELRS Receivers

This RadioMaster 2.4GHz T-antenna is a direct replacement or upgrade for ExpressLRS receivers utilising a standard U.FL connector. Designed as a lightweight, linear-polarised dipole, it delivers consistent omnidirectional signal coverage for FPV builds ranging from micro whoops to full-size freestyle quads.

Key features

• True half-wave dipole design ensures uniform omnidirectional reception and minimal null zones.

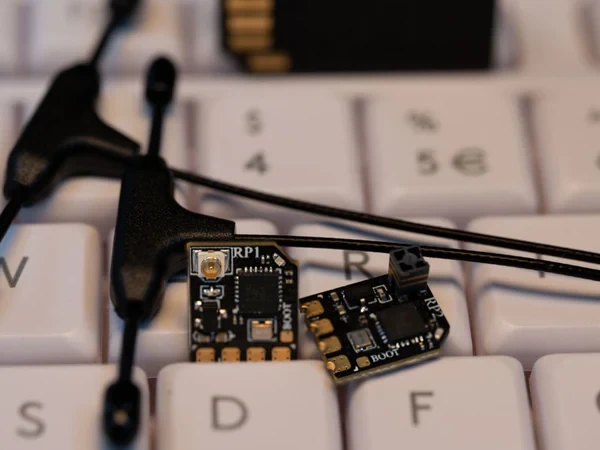

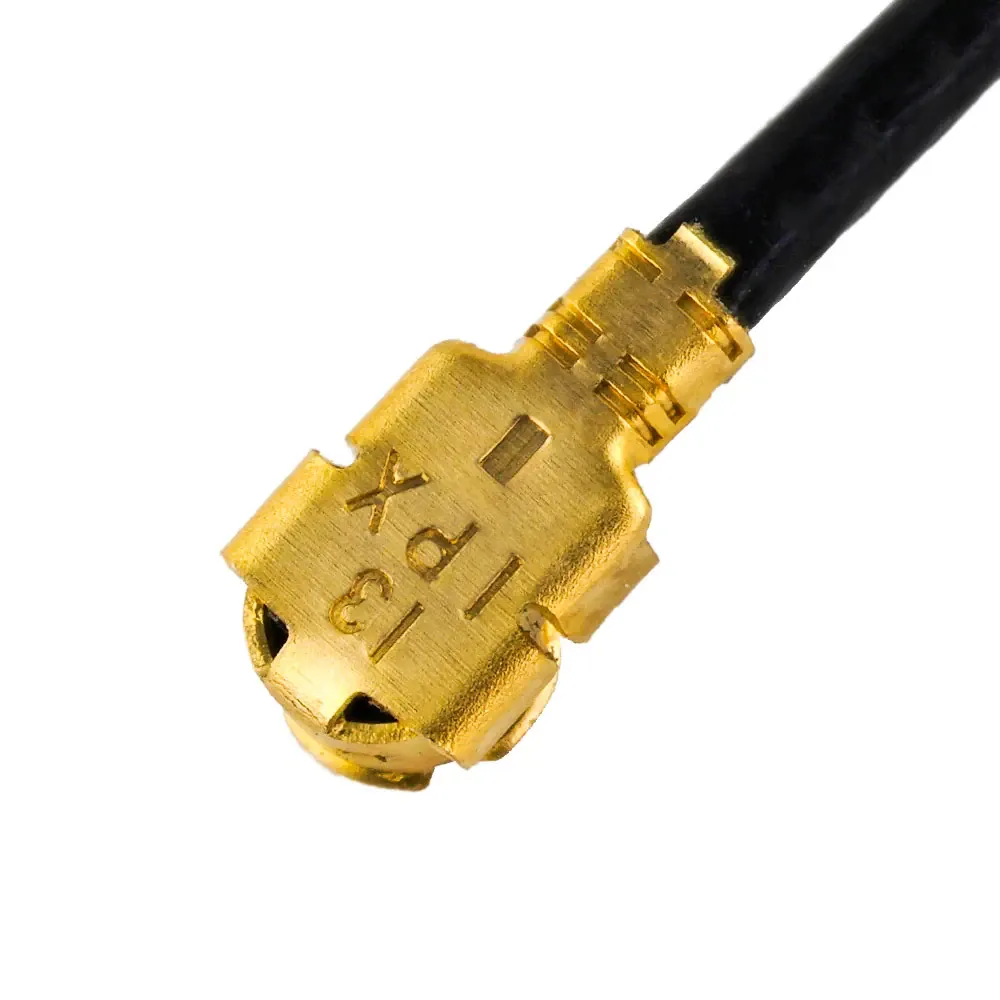

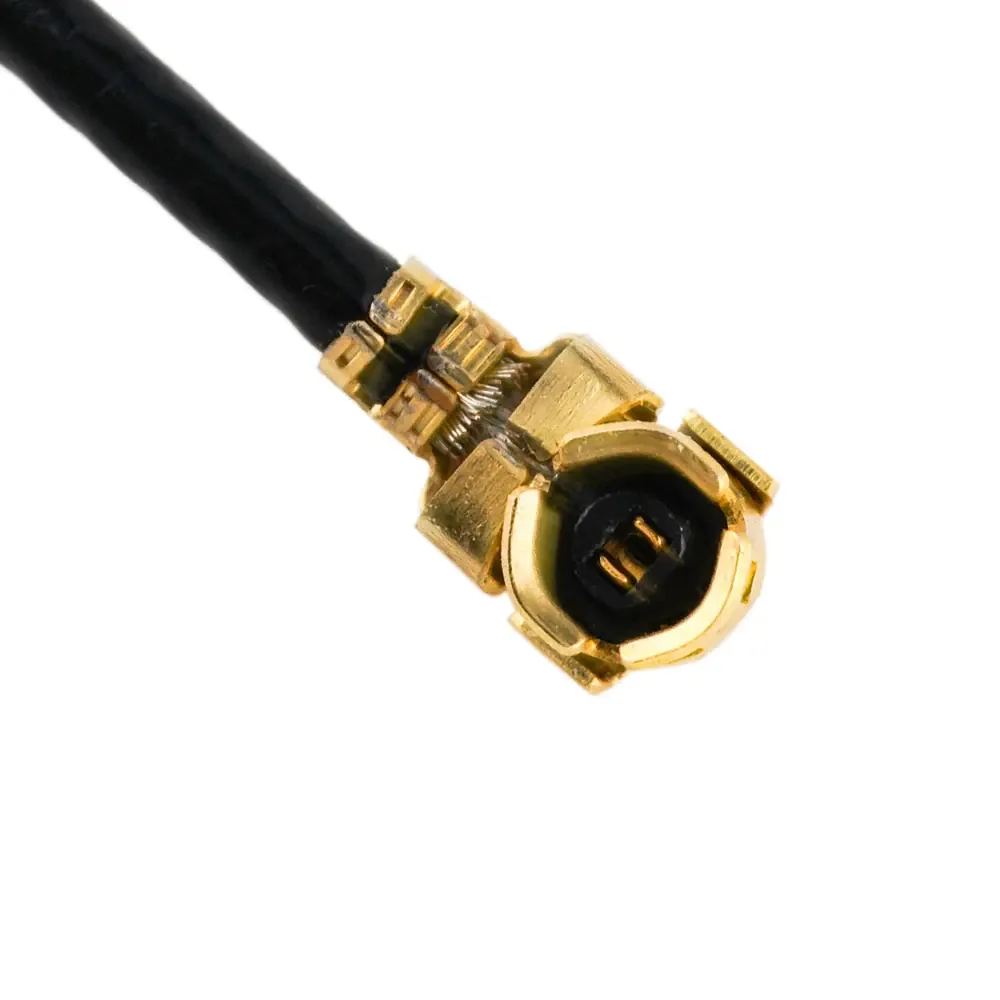

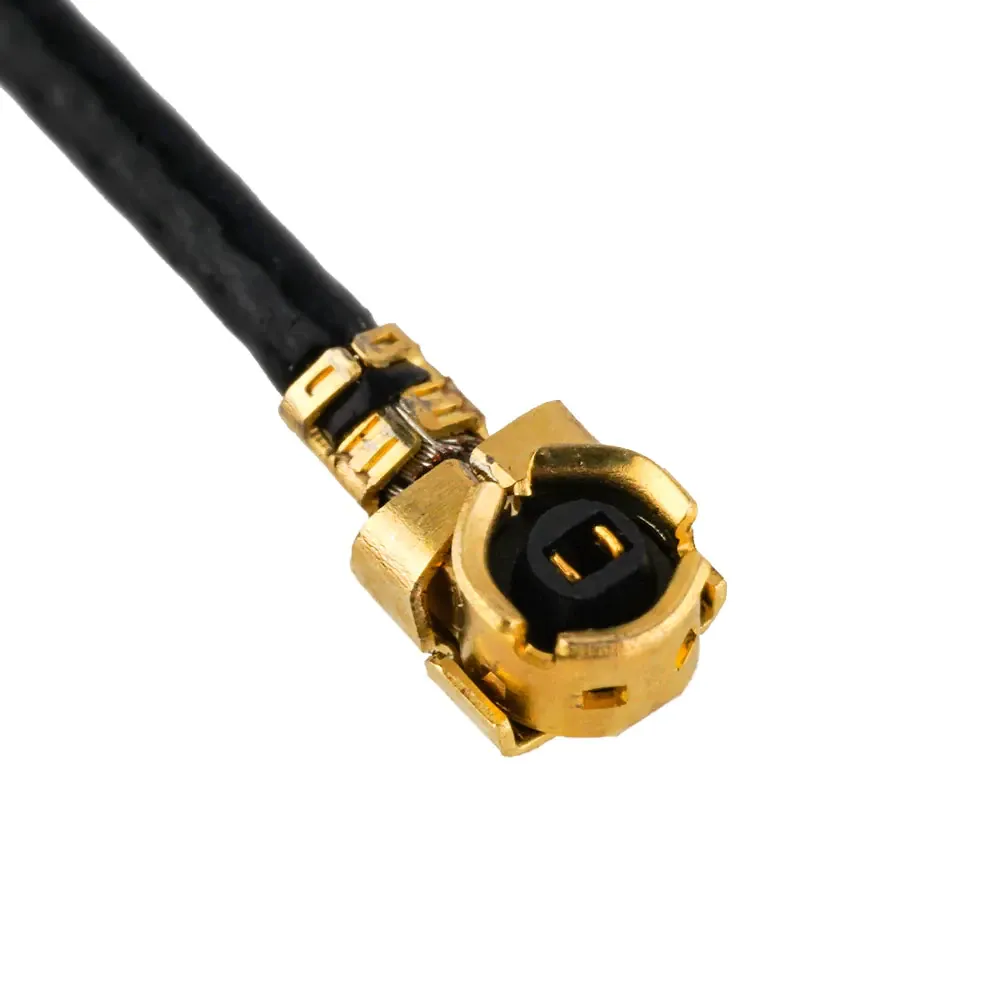

• Snap-on U.FL (IPEX1) connector directly fits most popular 2.4GHz nano receivers, including the RadioMaster RP1, HappyModel EP1, and BetaFPV Nano.

• Flexible coaxial centre section allows for easy routing through 3D printed TPU mounts while absorbing crash impacts.

Specifications

• Frequency band: 2.4GHz

• Antenna type: Omnidirectional T-dipole

• Polarisation: Linear

• Connector: U.FL (IPEX1)

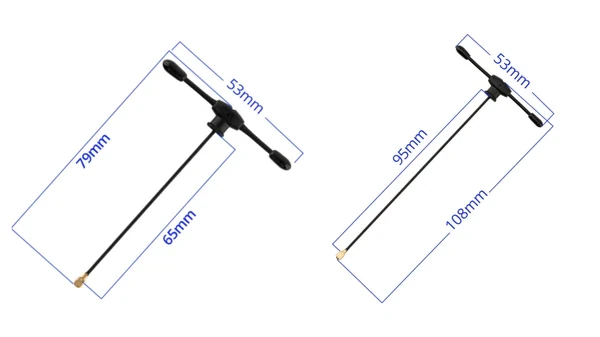

• Available lengths (end-to-end): 65mm, 95mm

Select the 65mm version for tight installations in micro drones and 3-inch toothpicks. The 95mm variant is ideal for 5-inch and 7-inch frames, providing enough cable length to route the active T-element well clear of signal-blocking carbon fibre plates and battery packs to maximise your RC link penetration.
