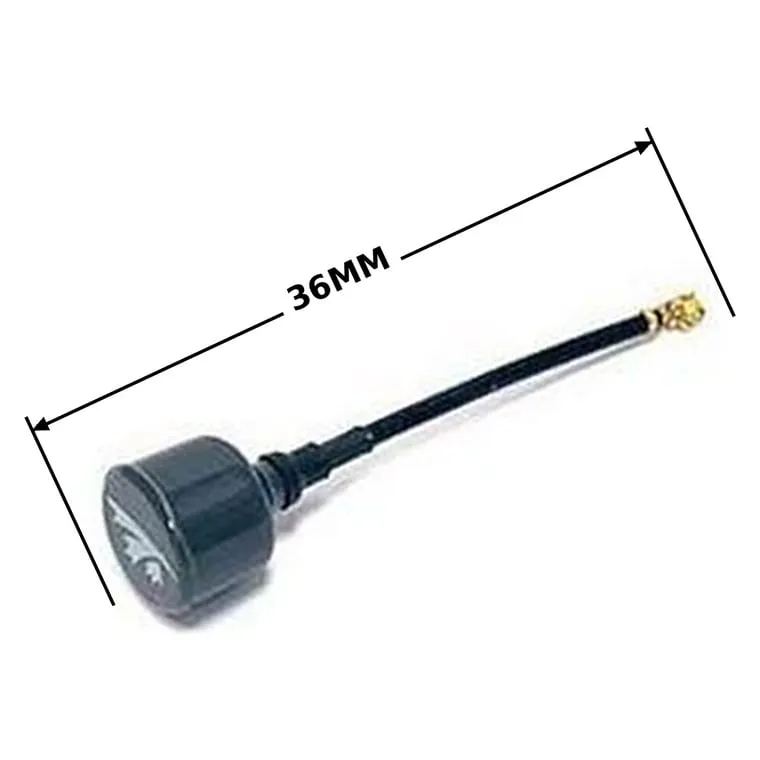

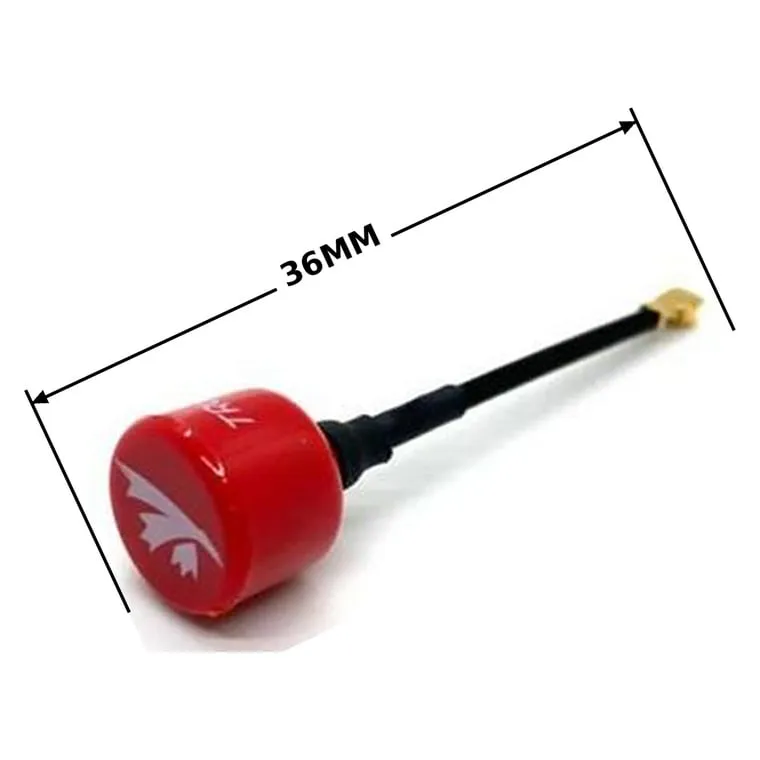

TrueRC Singularity 5.8 U.FL Short Antenna (36mm)
SKU TRUERC-SING-58-UFL-36-LHCP
Polarization: LHCP
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The TrueRC Singularity 5.8 is a compact circularly polarised video antenna, supplied here in the short 36 mm U.FL version. The small head and short lead suit whoops, toothpicks and cinewhoops whose VTX or air unit has a U.FL (IPEX1) socket and little room for a longer antenna.
Key features
- 1.9 dBic gain with 99% radiation efficiency
- Tuned for 5.6-6.0 GHz, covering Raceband and the main 5.8 GHz video channels
- SWR of 1.5:1 or better and -15 to -30 dB cross-polar rejection to reject multipath reflections
- 11.8 x 8.2 mm head keeps weight and snag points to a minimum
- Choice of RHCP or LHCP to match your goggles or video receiver
Specifications
- Frequency range: 5.6-6.0 GHz
- Gain: 1.9 dBic
- Radiation efficiency: 99%
- SWR: 1.5:1 or better
- Cross-polar rejection: -15 to -30 dB
- Head: 11.8 mm diameter x 8.2 mm high
- Nominal length: 36 mm
- Connector: U.FL
- Polarisation: RHCP or LHCP
Both ends of the video link must share the same polarisation; an RHCP antenna paired with LHCP loses a large share of signal. U.FL plugs are not made for repeated swapping, so secure the lead with a mount or a dab of glue once fitted.
| Polarization | RHCP, LHCP |
|---|---|
| Antenna Connector | U.FL |
| Frequency | 5.8GHz |
| Made in India | No |
| Brand | TrueRC |
| Gain | 1.9 dBi |
| Antenna Type | Omni |
