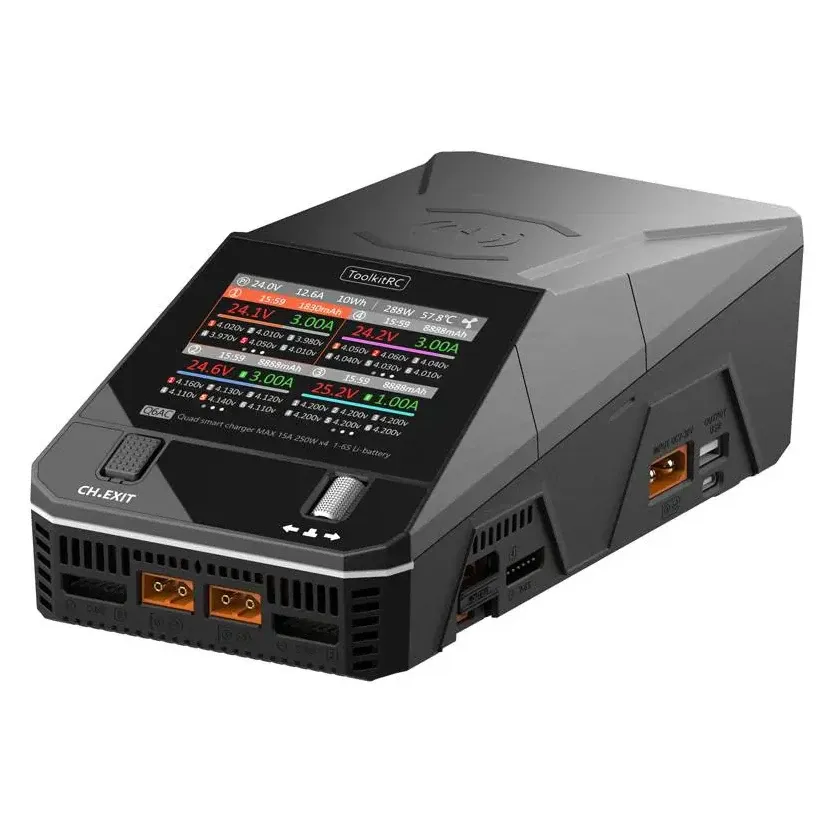

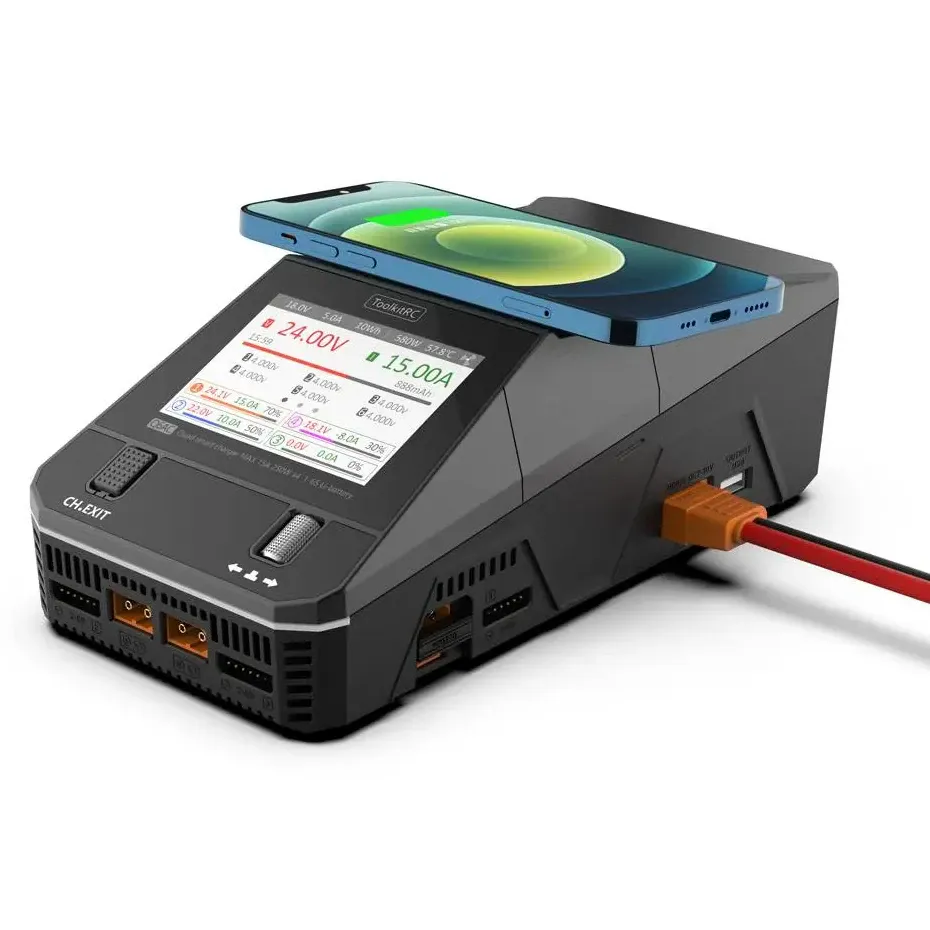

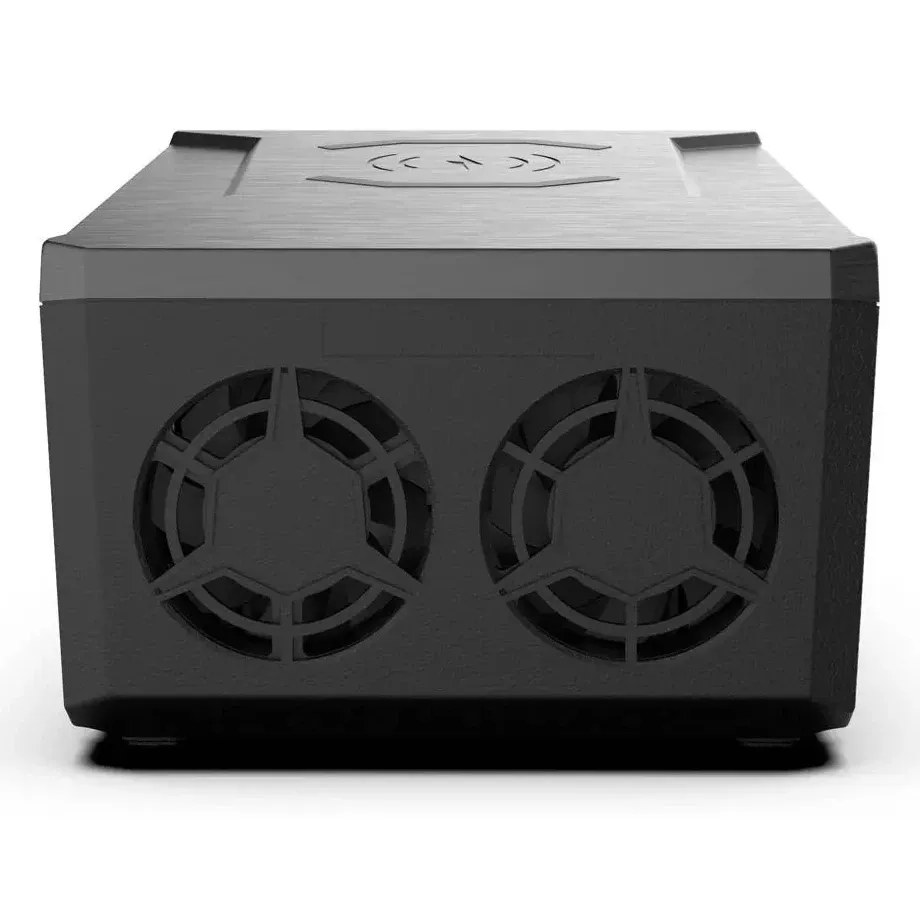

ToolkitRC Q6AC 1-6S AC 250W / DC 1000W Quad Smart Charger

The ToolkitRC Q6AC is a high-capacity, four-channel smart charger built for FPV pilots managing multiple 1-6S flight packs. Capable of outputting a massive 1000W on DC power (250W across four independent channels) or drawing from its integrated AC power supply for workshop use, it rapidly turns around freestyle, racing, or heavy-lift cinelifter batteries without the risks of parallel charging.

Key features

• Four independent charging ports delivering up to 15A per channel for simultaneous pack management.

• Dual AC/DC inputs for seamless transitions between the bench and field charging via high-capacity source batteries.

• Integrated 65W USB-C output supporting Power Delivery (PD) and Quick Charge (QC) protocols for powering radios, goggles, or laptops.

• High-visibility 3.5-inch IPS colour display with a metal scroll wheel for straightforward menu navigation.

• Multi-language interface with comprehensive battery internal resistance testing and balancing tools.

Specifications

• Input voltage: AC 100–240V / DC 7.0–30.0V (Max 50A)

• Charge power (DC): 4x 250W (1000W total) @ 0.1–15A

• Charge power (AC): 400W total distributed

• Discharge power: 12W @ 0.1–3A (Internal) / 250W @ 0.1–15A (Recycle) per channel

• Supported battery types: LiPo, LiHV, LiFe, Li-ion, LTO (1-6S) / NiMH (1-16S) / Pb (1-10S)

• Main output connectors: 4x XT60

• USB output: 1x USB-C (Max 65W), 1x USB-A (Max 18W)

• Display: 3.5-inch 480x320 IPS LCD

• Dimensions: 220 x 113 x 82 mm

• Weight: 1120g

With XT60 ports natively integrated into the chassis for all four outputs, this charger completely eliminates the need for external parallel boards, allowing you to safely charge packs of different capacities and discharge states simultaneously.
