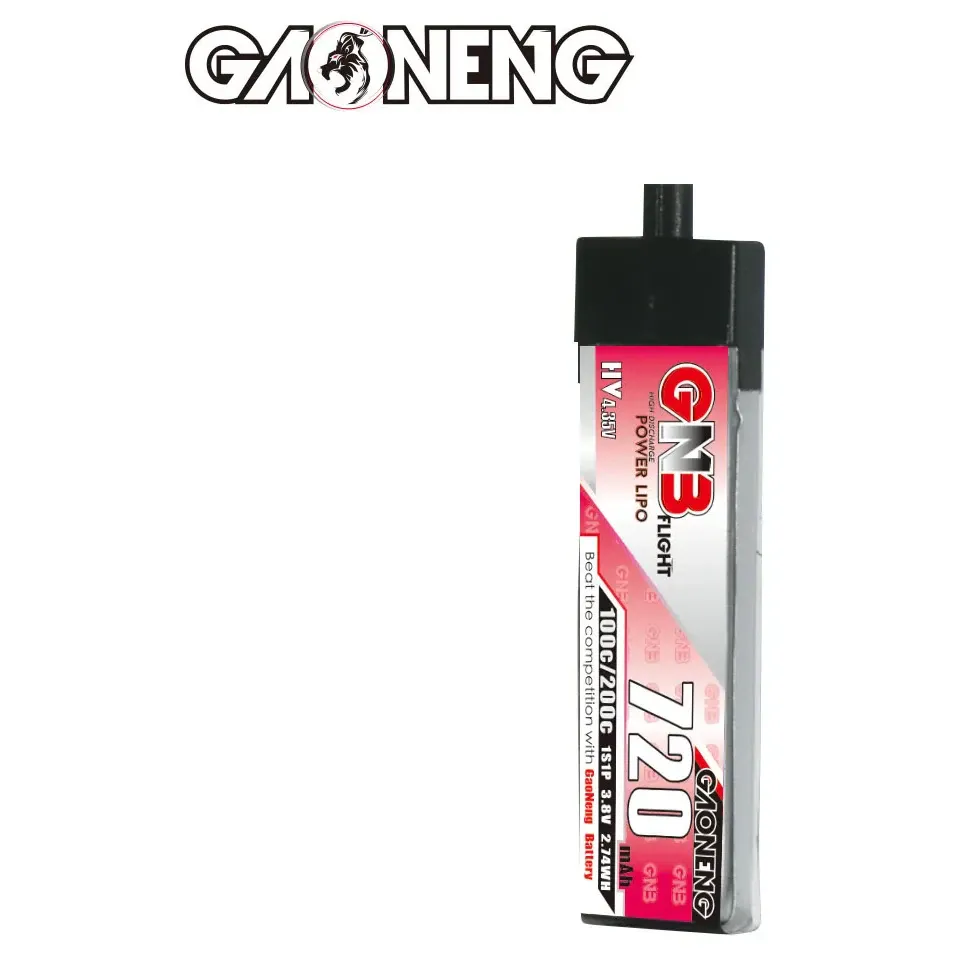

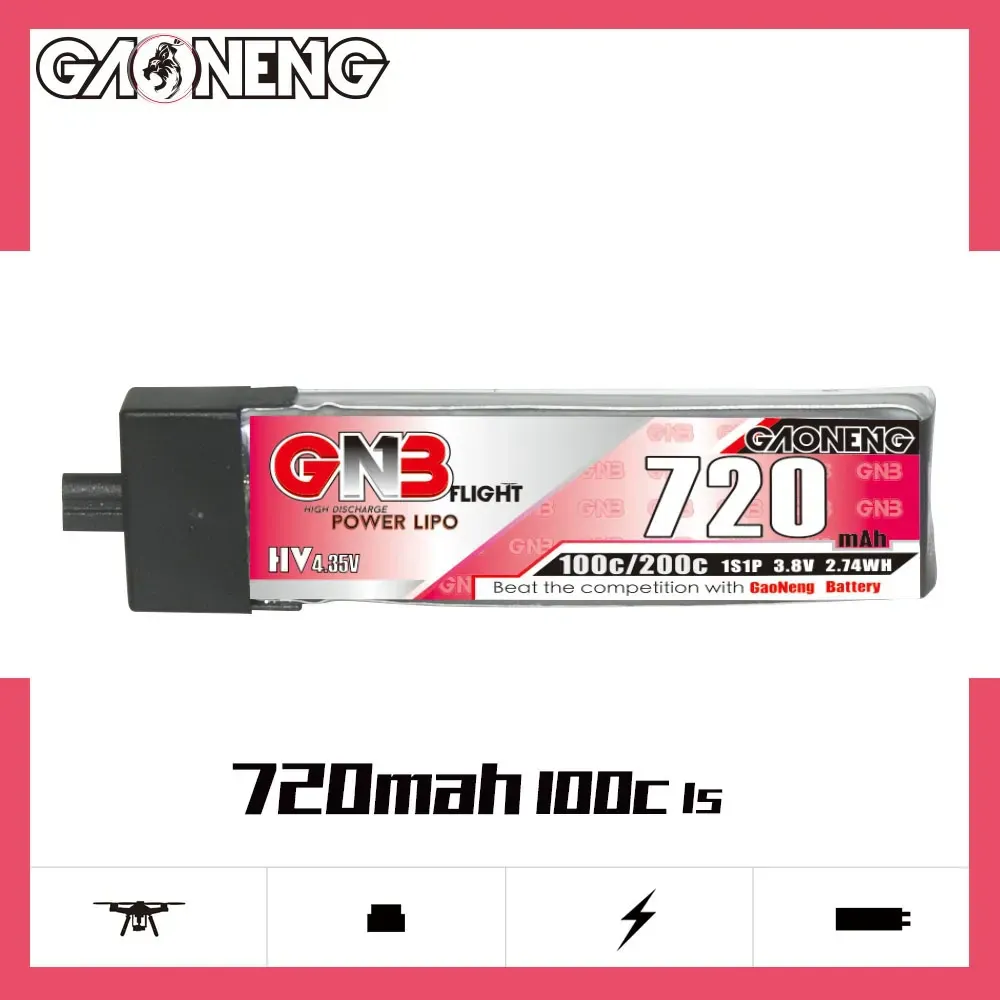

Gaoneng GNB 1S 720mAh 100C 3.8V LiHV Battery (A30 Plastic Head)

The Gaoneng (GNB) 720mAh 1S LiHV battery delivers high-capacity power for 75mm to 85mm micro drones and lightweight 1S toothpick builds. It features a wire-free "plastic head" design with an integrated A30 connector, eliminating pigtail resistance and severely reducing voltage sag during aggressive throttle punches.

Key features

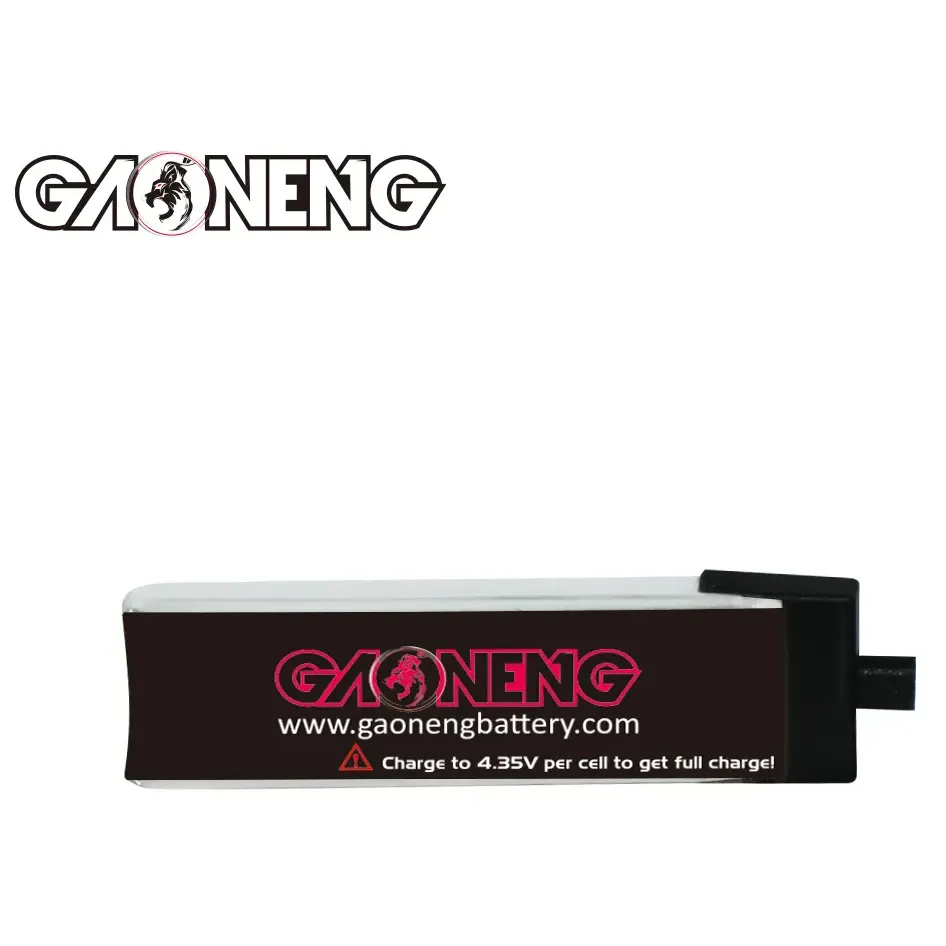

• High-voltage 3.8V nominal chemistry (chargeable to 4.35V) for extended flight times.

• 100C continuous discharge rating provides immediate current delivery for demanding micro motors.

• Direct-plug A30 connector minimises internal resistance compared to standard folded-pin PH2.0 cables.

• Pigtail-free plastic cap design saves weight, lowers the profile and prevents cable snags in tight canopies.

Specifications

• Brand: Gaoneng (GNB)

• Capacity: 720mAh

• Voltage: 1S (3.8V nominal, 4.35V max)

• Discharge rate: 100C continuous

• Charge rate: 1C to 5C

• Connector: A30 (Integrated Plastic Head)

• Chemistry: LiHV

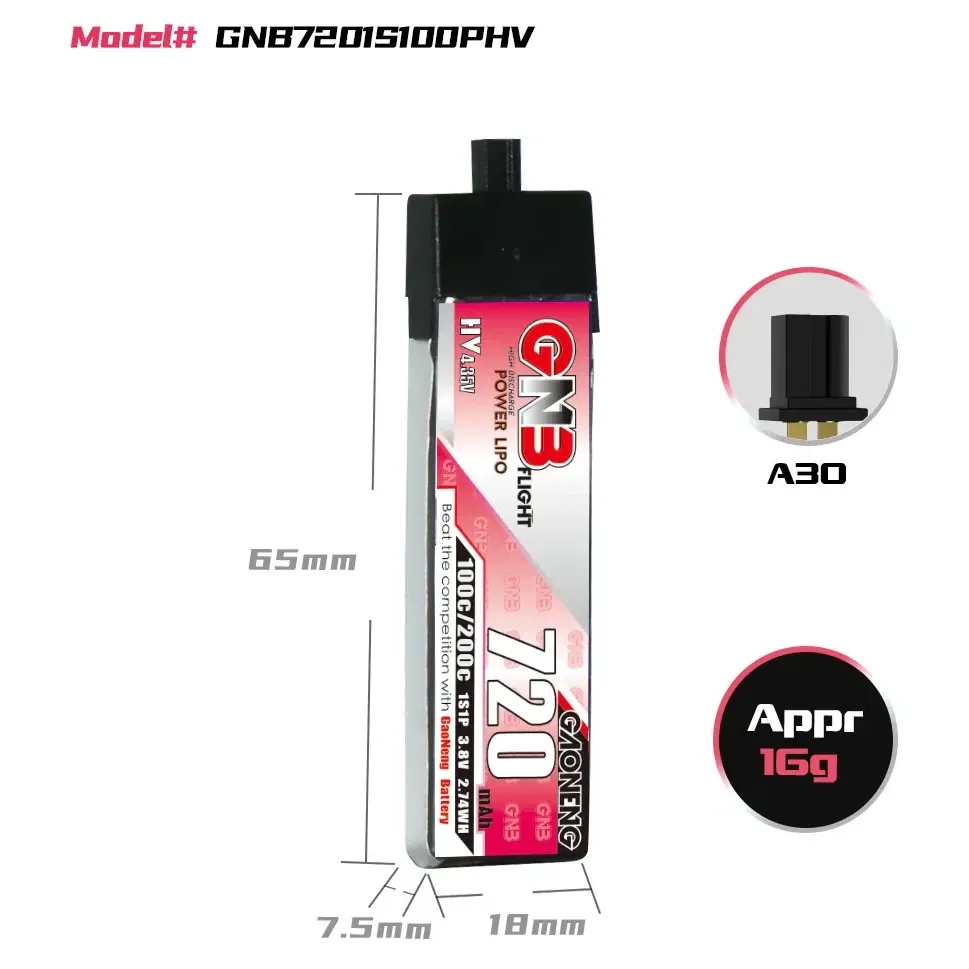

• Dimensions: 65 x 18 x 7.5 mm

• Weight: 16 g

Ensure your drone's battery tray can accommodate a solid-head battery, as the lack of a flexible wire pigtail restricts mounting orientation. The A30 plug is cross-compatible with standard BT2.0 flight controller receptacles.
