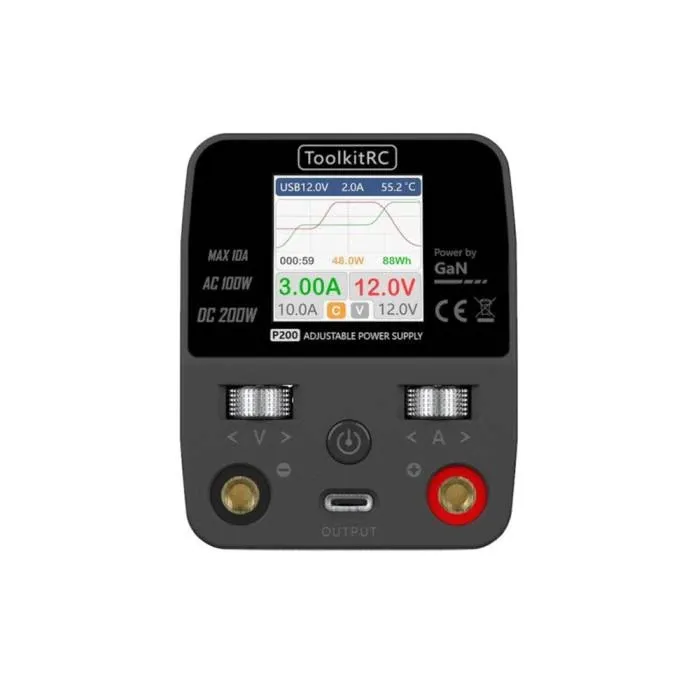

ToolkitRC P200 V2 30V 200W 10A Mini Power Supply XT60

The ToolkitRC P200 V2 is a compact Gallium Nitride (GaN) desktop power supply designed to drive DC chargers or act as a variable bench power source for testing drone electronics. Delivering up to 200W via a front-mounted XT60 port, it easily powers high-capacity field chargers from an AC wall socket while taking up minimal workspace. With its adjustable current limiting, it also doubles as a precise testing supply for safely powering up a newly soldered quadcopter build.

Key features

• Adjustable DC output from 1.0V to 30.0V (up to 10A) through a standard XT60 connector.

• Integrated 65W USB-C fast charging port (PD, QC, AFC, FCP, SCP) to power radios, soldering irons, or action cameras.

• 1.54-inch IPS colour display paired with a physical scroll wheel for rapid voltage and current limit adjustments.

• Gallium Nitride (GaN) technology provides high power density and thermal efficiency in a miniature desktop footprint.

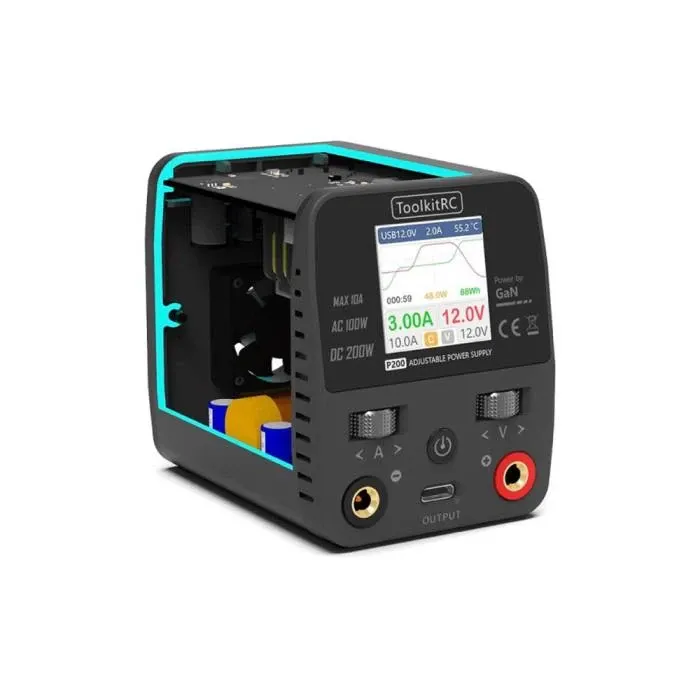

• V2 design features an updated internal layout and cooling profile for improved reliability under sustained 200W loads.

Specifications

• Input Voltage: AC 100-240V (50/60Hz)

• Main Output: 1.0-30.0V DC (Max 10A / 200W)

• USB-C Output: 5.0-20.0V (Max 65W)

• Connector: XT60

• Display: 1.54" IPS LCD (240x240)

• Dimensions: 84 x 63 x 78 mm

• Weight: 340g

Set a low current limit to safely test a new flight controller and ESC stack without a conventional smoke stopper, or run it at a steady 24V to maximise the charging efficiency of your primary multi-channel DC LiPo charger.
