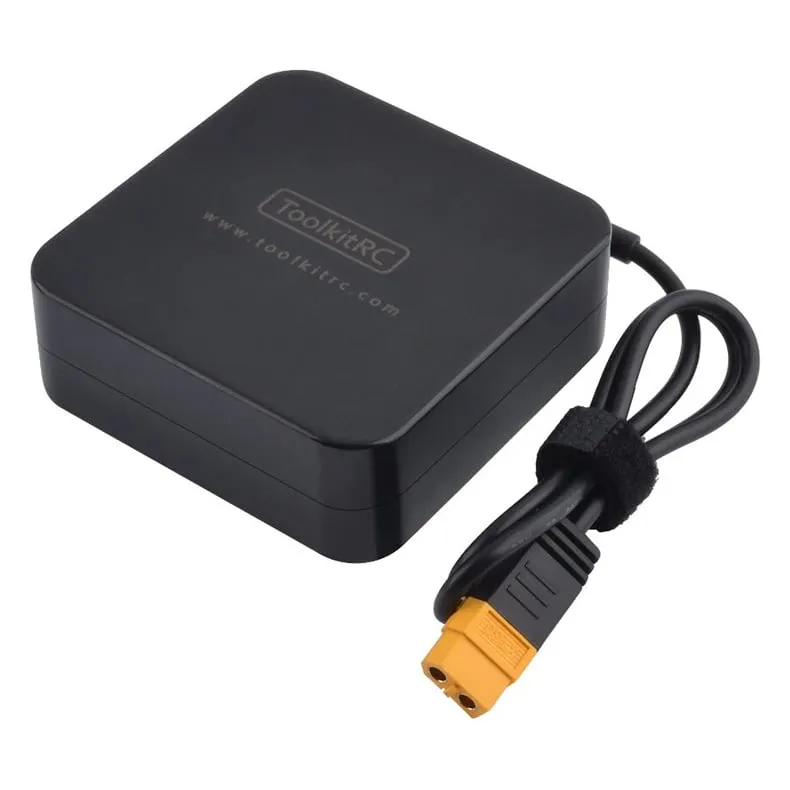

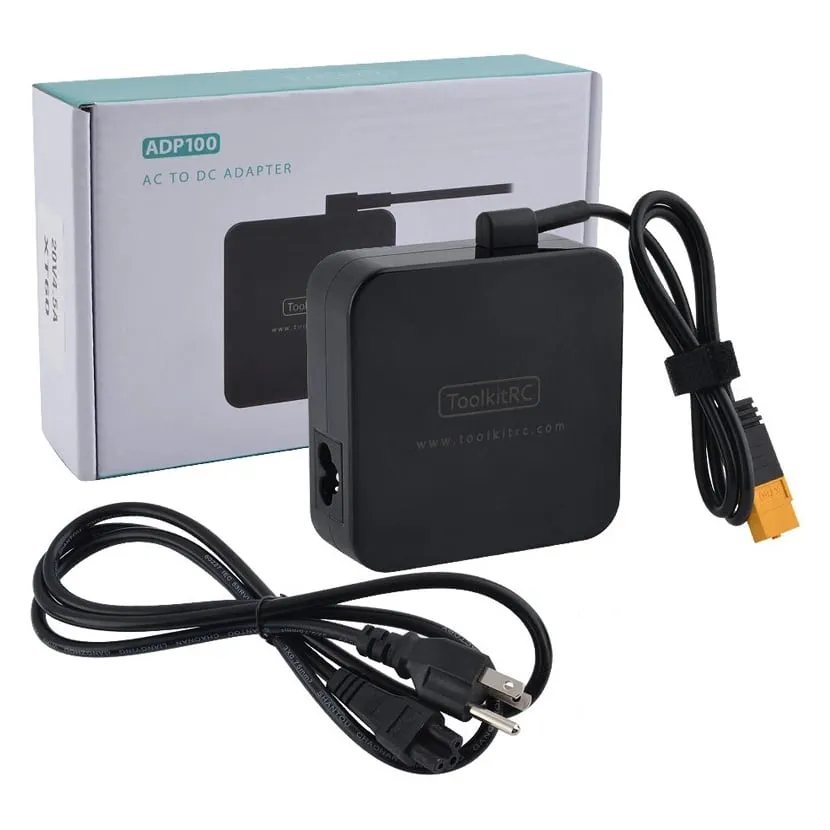

ToolkitRC ADP100 100W 20.0V 5A Power Supply Unit w/ XT60 Output

The ToolkitRC ADP100 is a compact 100 W power supply unit designed to convert AC mains power into a stable 20 V DC output for your FPV charging setup. Terminated with a native XT60 connector, it plugs directly into modern DC-only smart balance chargers, eliminating the need for bulky benchtop supplies or custom wiring adapters on your workbench.

Key features

• Universal 100–240 V AC input allows direct plug-and-play operation from standard wall sockets without step-down transformers.

• Delivers up to 5 A of continuous current at 20.0 V, providing ample overhead to saturate 100 W class single and dual-channel chargers.

• Pre-wired XT60 output cable connects natively to the DC input ports of modern RC battery chargers.

• Built-in over-current and short-circuit protection safeguards your connected charging equipment.

• Low-profile casing minimizes desk footprint and packs easily into field bags alongside your drone gear.

Specifications

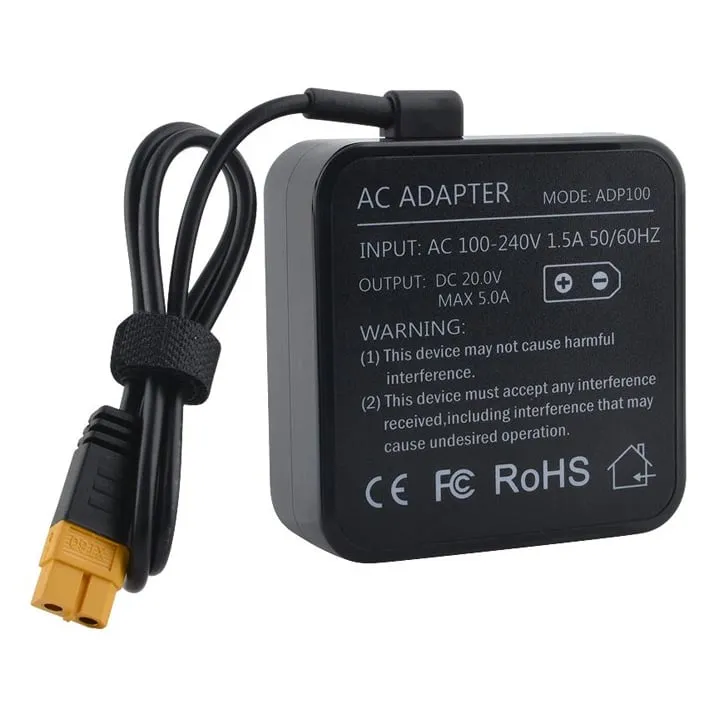

• Input Voltage: AC 100–240 V (50–60 Hz, 1.5 A max)

• Output Voltage: DC 20.0 V

• Output Current: 5.0 A max

• Continuous Power: 100 W

• Output Connector: XT60

• Dimensions: 90 x 90 x 32 mm

• Weight: 215 g

The ADP100 is an ideal AC companion for compact DC balance chargers like the ToolkitRC M4Q, M6, M6D, and M8S, as well as ISDT Q-series models. Ensure your balance charger supports a DC input voltage of at least 20 V before connecting.
