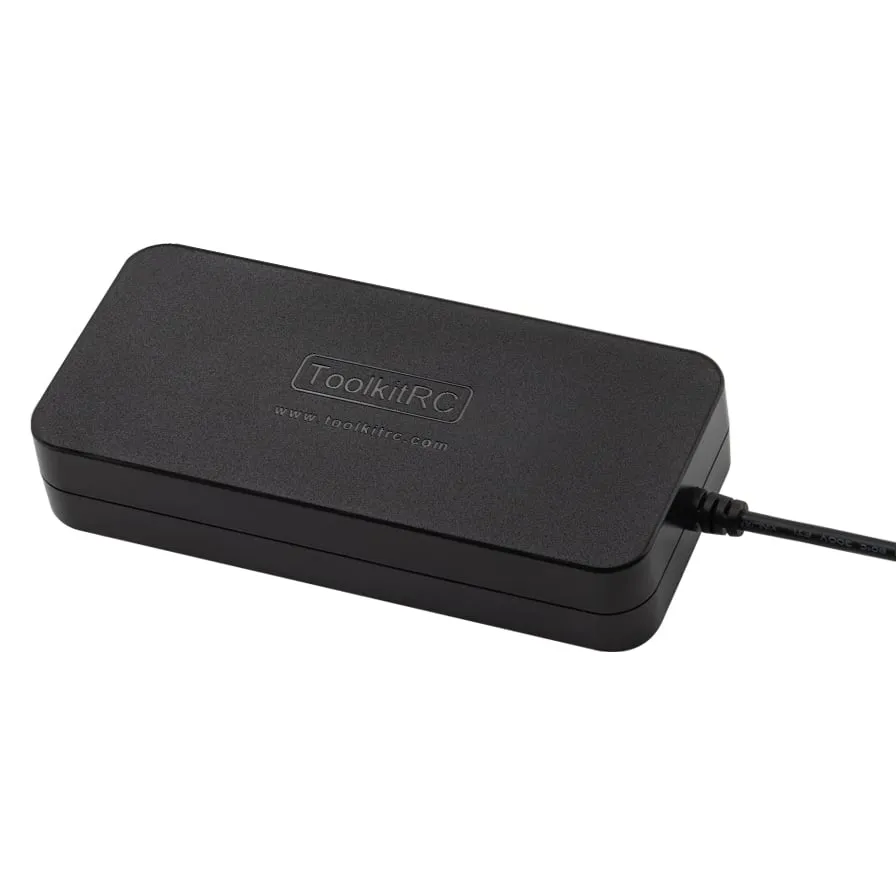

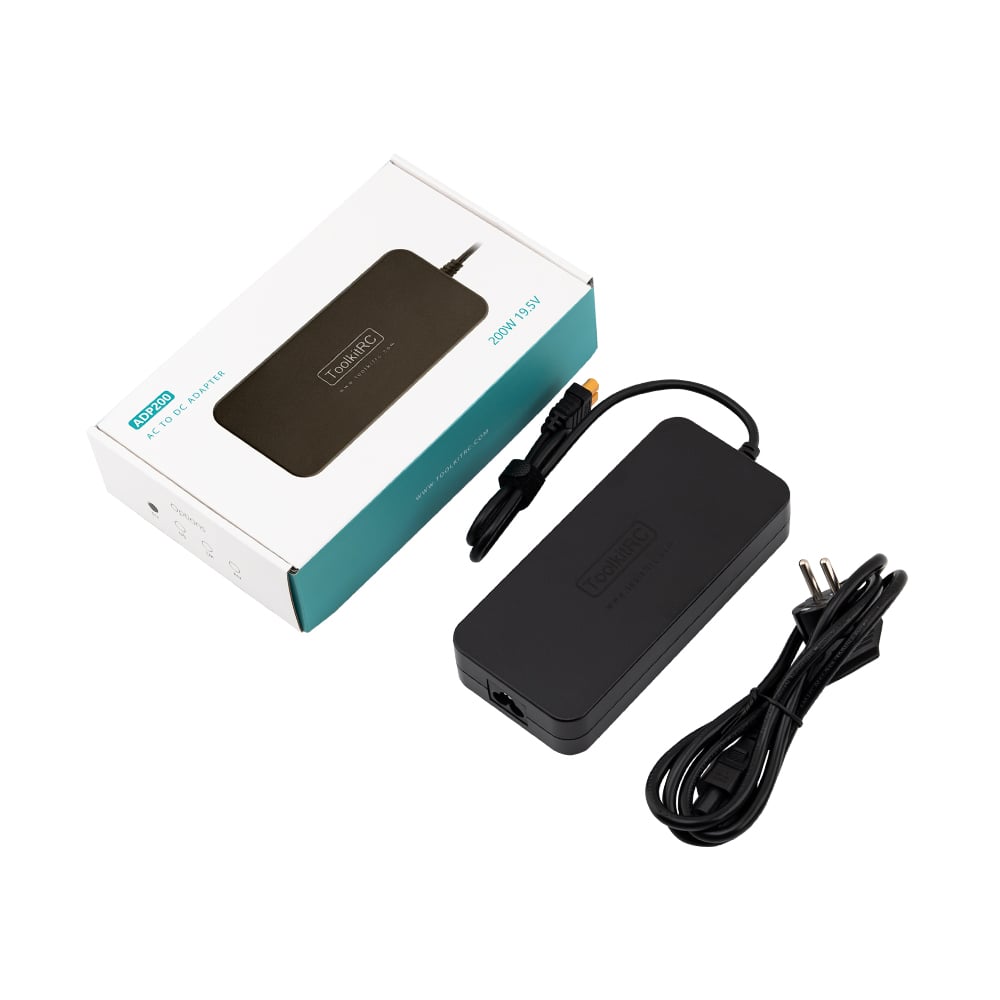

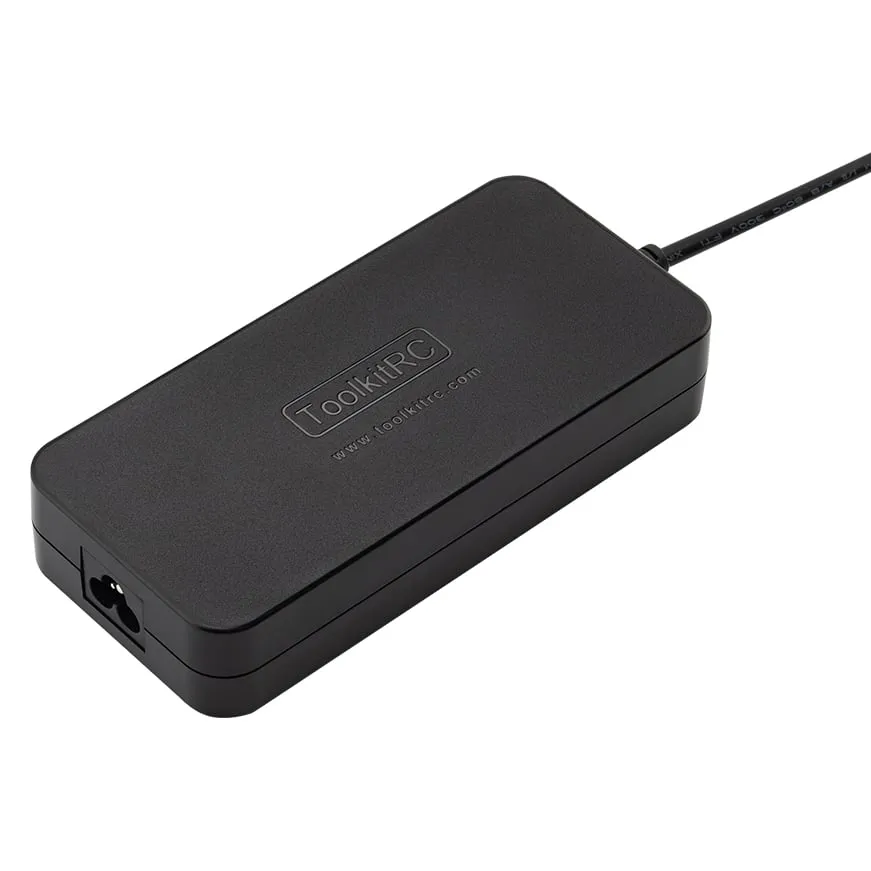

ToolkitRC ADP200 Power Supply Unit for DC Chargers

The ToolkitRC ADP200 is a dedicated AC-to-DC power supply designed to feed compact DC field chargers like the ToolkitRC M6 or M8 series, as well as ISDT and Hota units lacking an internal mains supply. Delivering a solid 200W via a pre-soldered XT60 connector, it is ideal for powering your charging station efficiently without the bulk of a converted server power supply.

Key features

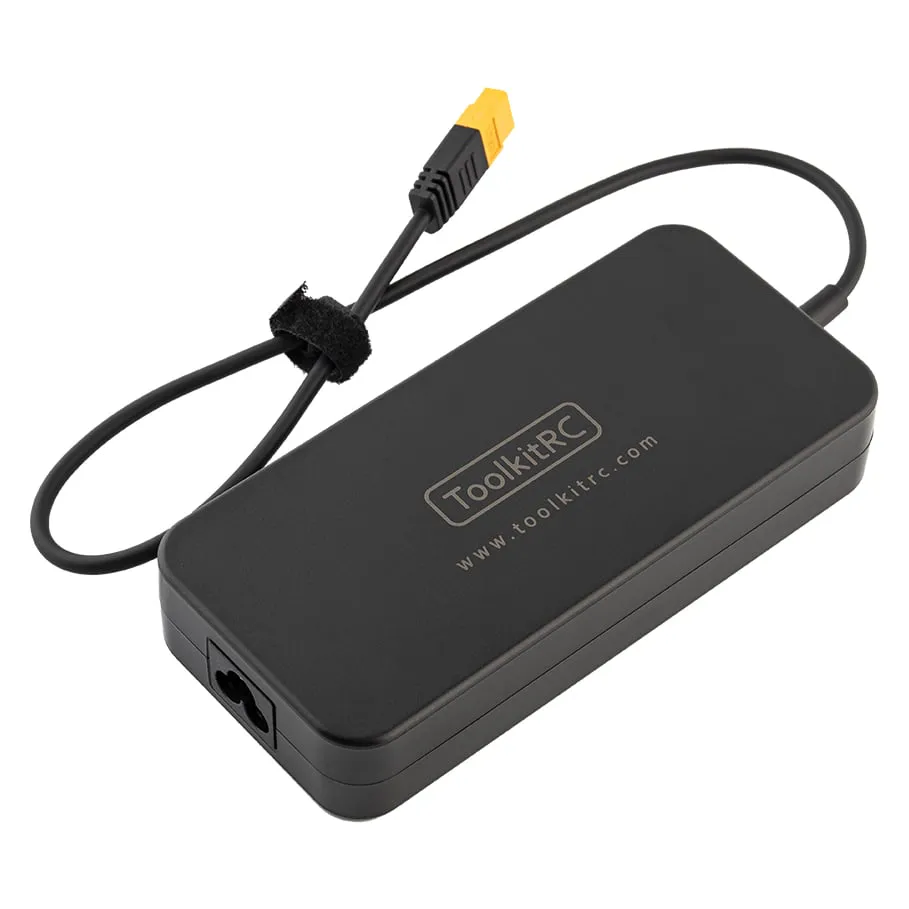

• Pre-terminated with an XT60 output connector for direct plug-and-play compatibility with most FPV smart chargers.

• Outputs a stable 19.5V at up to 10.3A, easily sustaining a true 200W load.

• Wide 100–240V AC input range accommodates regional power grids for safe bench operation.

• Integrated protection circuits guard against overcurrent and short circuits during heavy-duty LiPo charging.

Specifications

• Input voltage: AC 100-240V (50-60Hz)

• Output voltage: 19.5V DC

• Max output current: 10.3A

• Max power: 200W

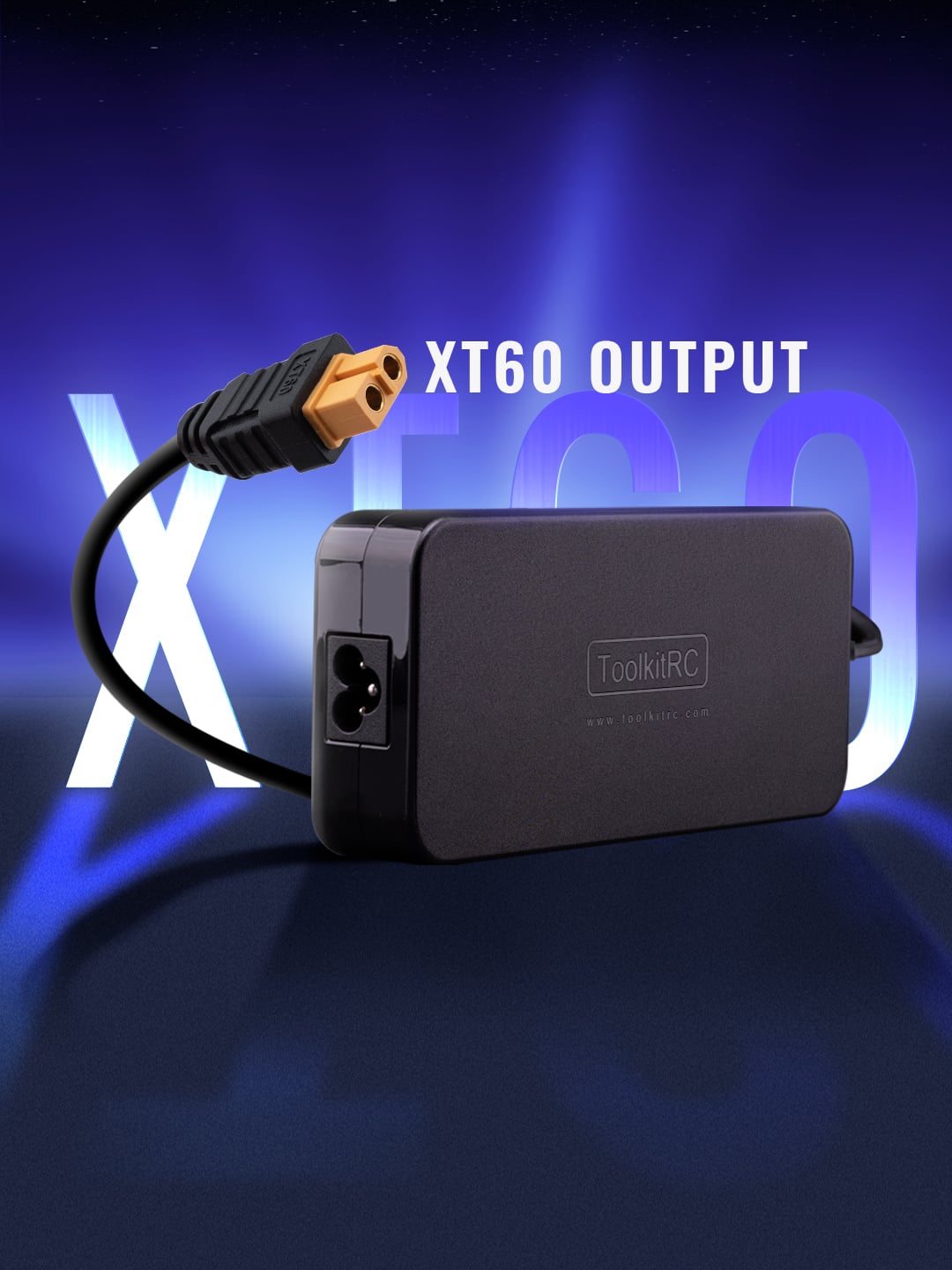

• Output connector: XT60

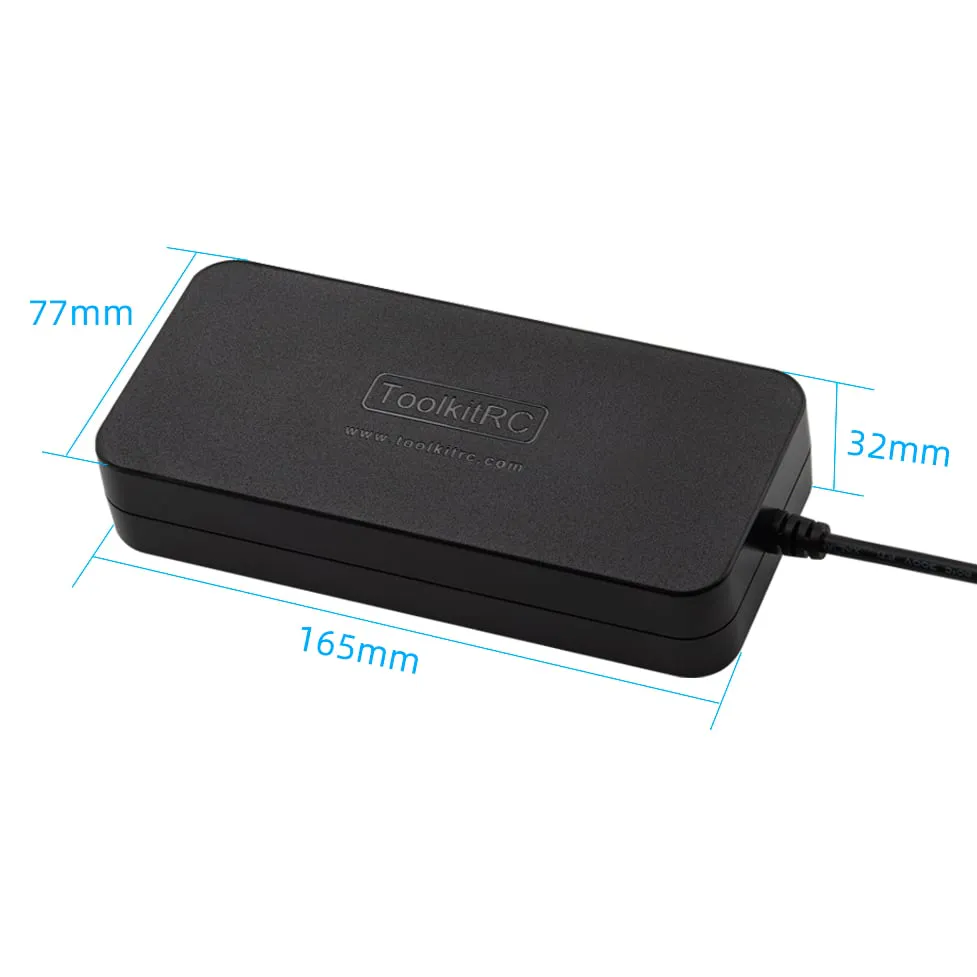

• Dimensions: 165 x 77 x 32 mm

• Weight: 518g

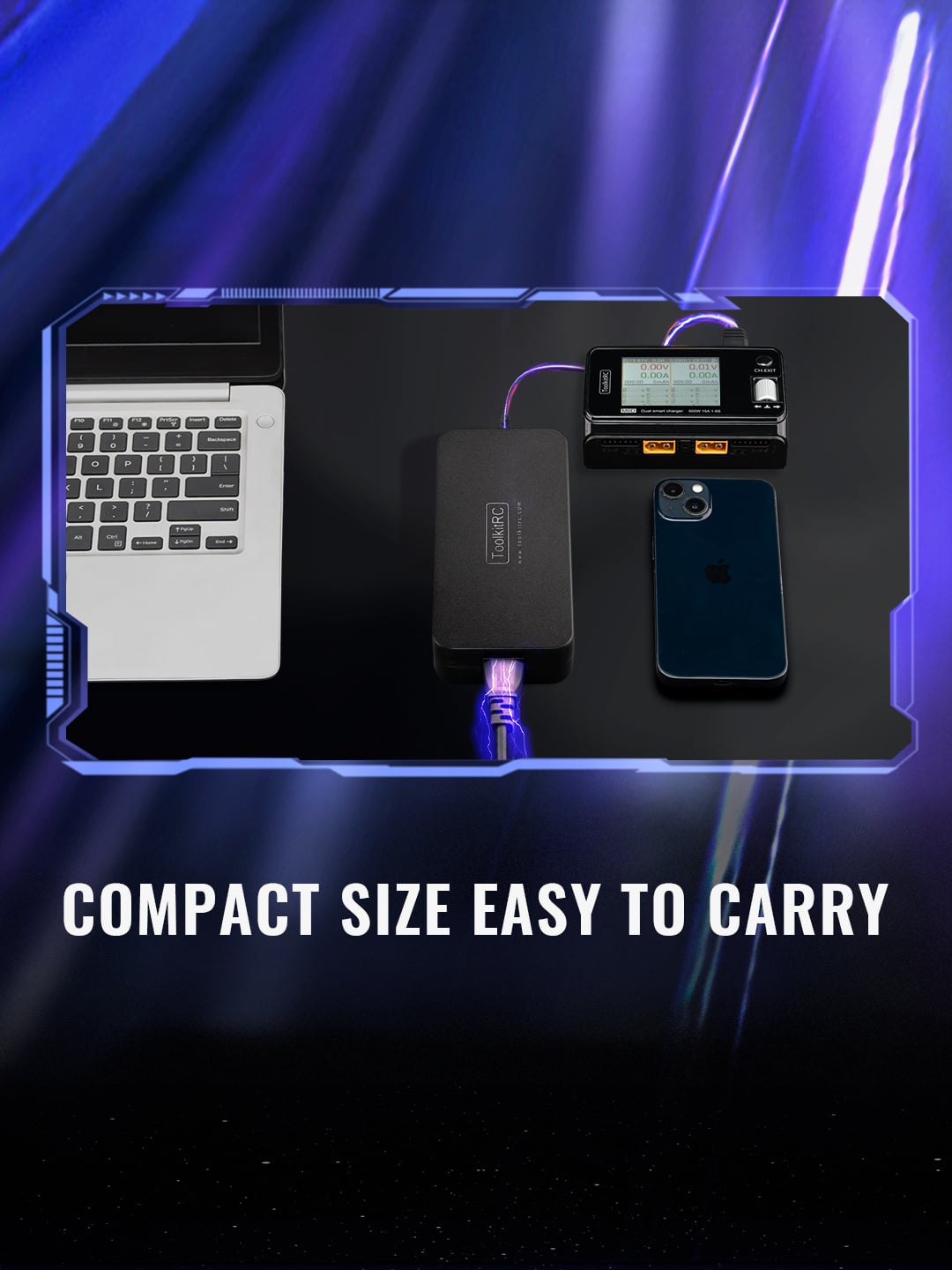

With its low-profile footprint and standard XT60 lead, the ADP200 tucks neatly onto a workbench or inside a pit case. It offers plenty of overhead for parallel charging 4S and 6S packs at high current when paired with a capable DC charger.
