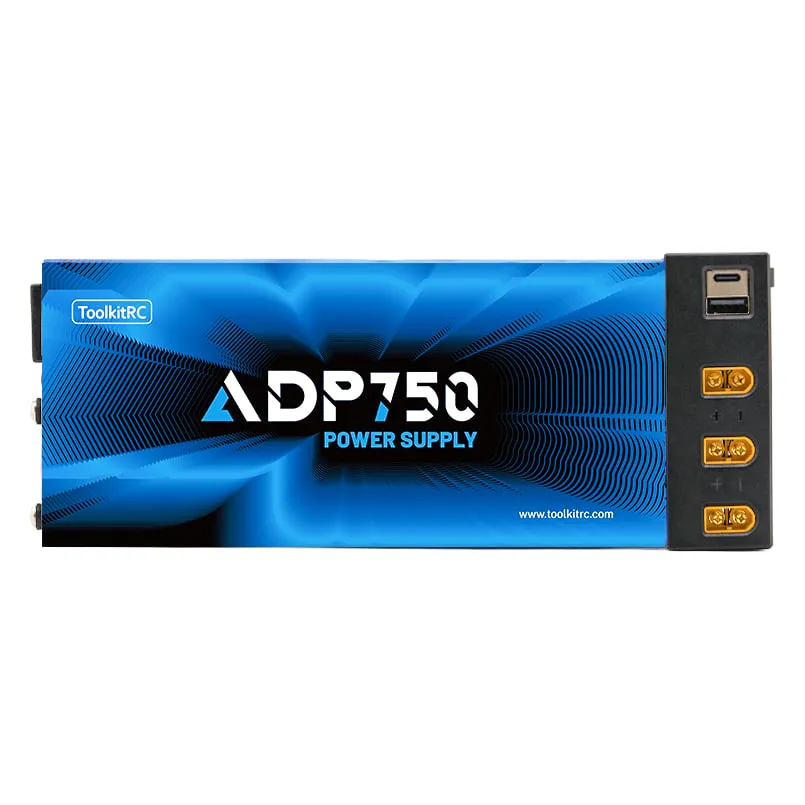

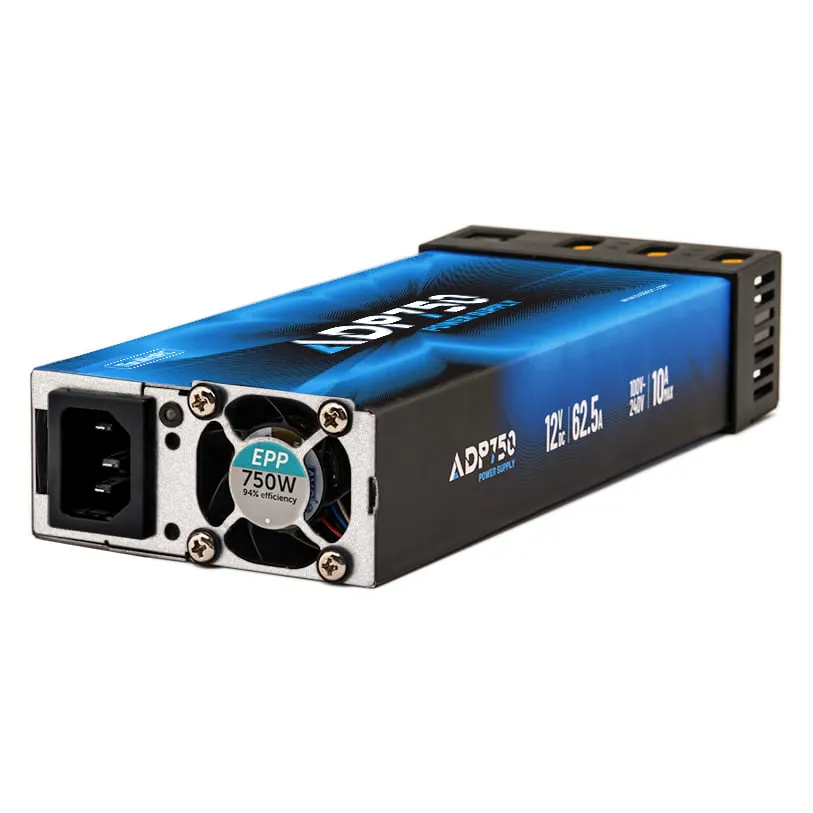

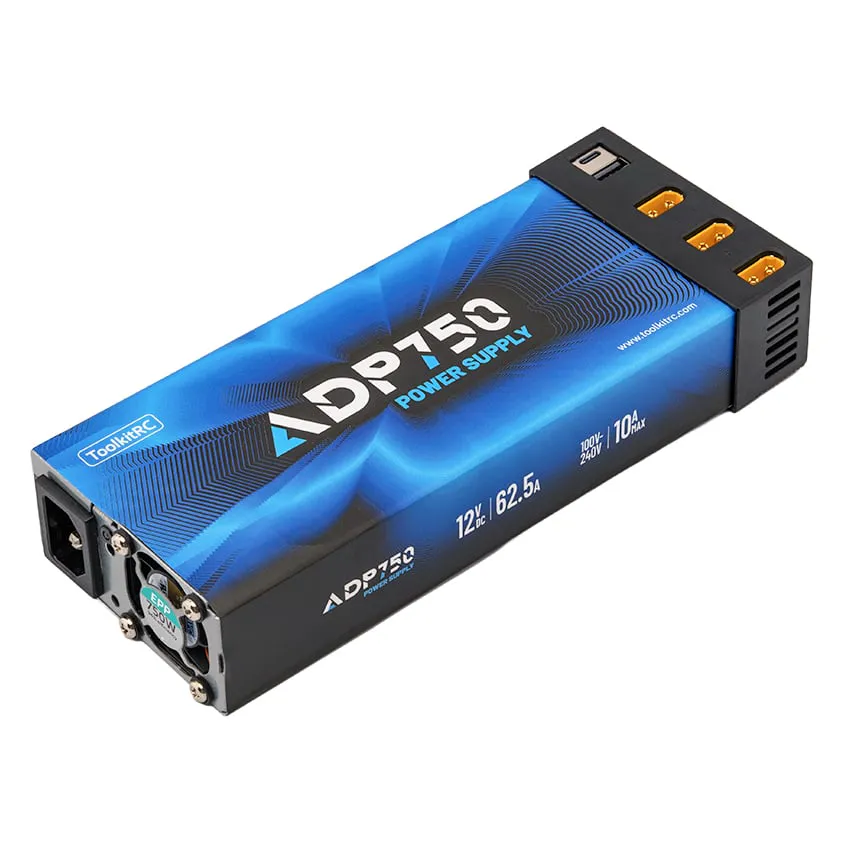

ToolkitRC ADP750 750W 12V 62.5A Power Supply

The ToolkitRC ADP750 is a high-capacity AC-to-DC power supply for the workbench, converting 100-240V mains into a stable 12V DC feed for multi-channel smart chargers. It is built for parallel-charging large FPV and heavy-lift LiPo packs without input power limits or voltage sag.

Key features

• Delivers 750W continuous at 12V, up to 62.5A, across three XT60 and two 4mm bullet output ports that can all run at once.
• Universal 100-240V AC input suits any workshop or field charging station.
• Also outputs USB-C PD3.0 and USB-A QC2.0, each up to 30W, for charging radios, phones and other devices.
• Auto-speed cooling fan plus short-circuit, overcurrent, overtemperature, overload and overvoltage protection.

Specifications

• Output power: 750W
• Output voltage: 12V DC
• Max output current: 62.5A
• Input: 100-240V AC, 50/60Hz, up to 10A

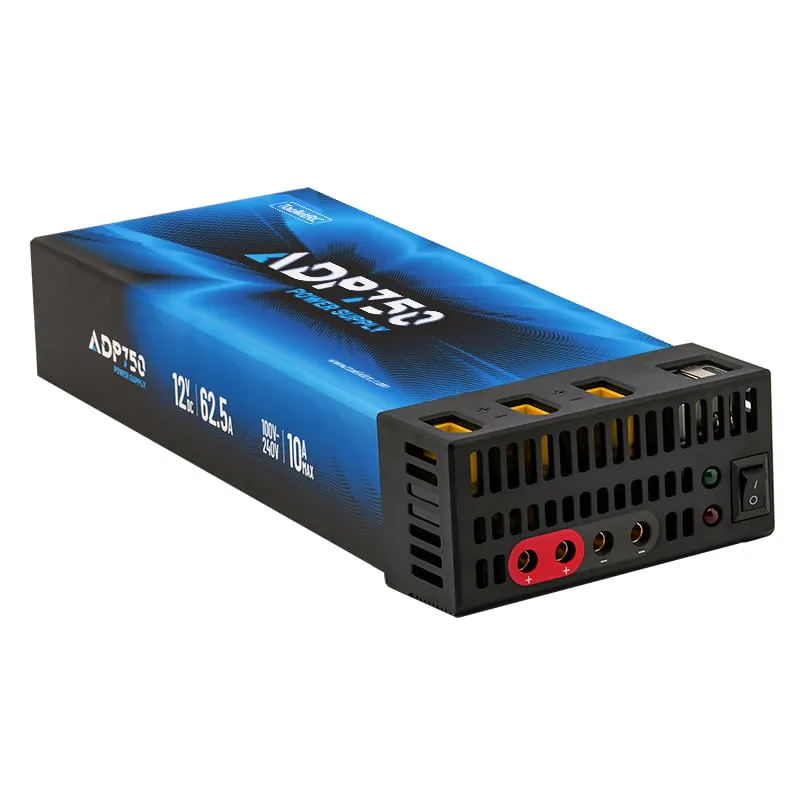

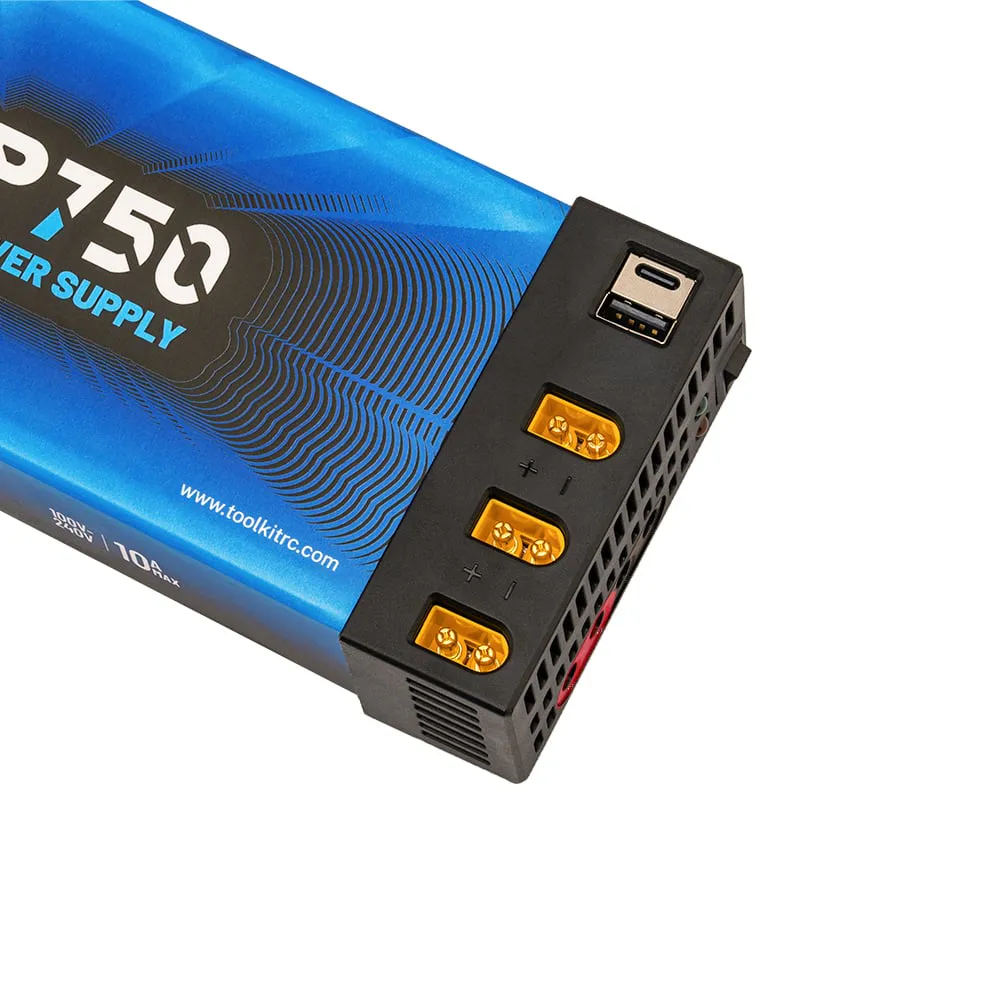

• Output ports: 3 x XT60 male and 2 x 4mm bullet sets (12V, up to 30A per port type), 1 x USB-C, 1 x USB-A
• USB outputs: 5V/9V at 3A or 12V at 2.5A, 30W max each
• Weight: 1050 g

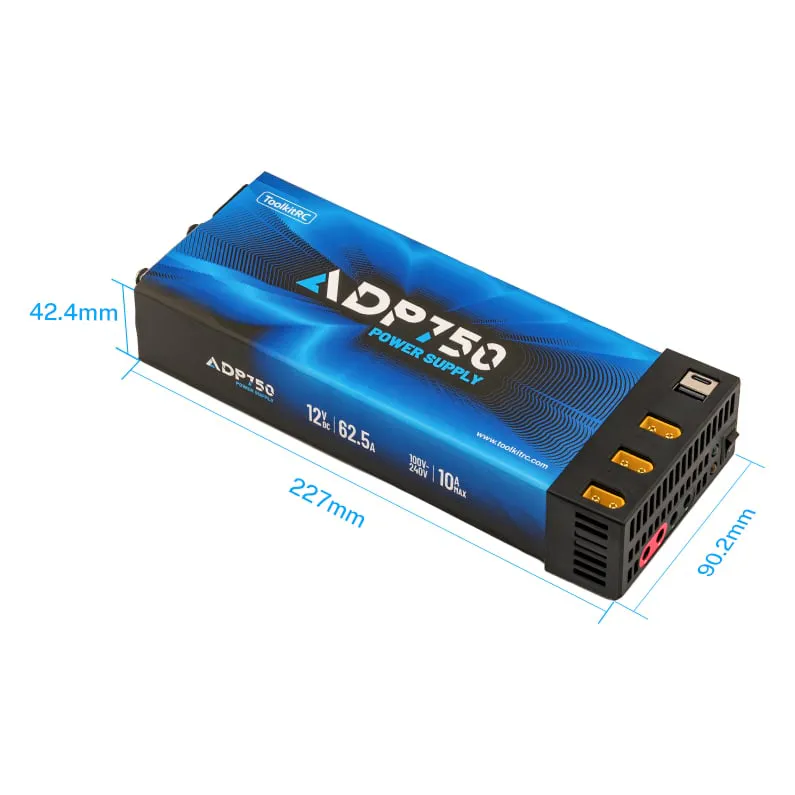

• Dimensions: 227 x 90.2 x 42.4 mm
• Operating temperature: -10 to 40 C

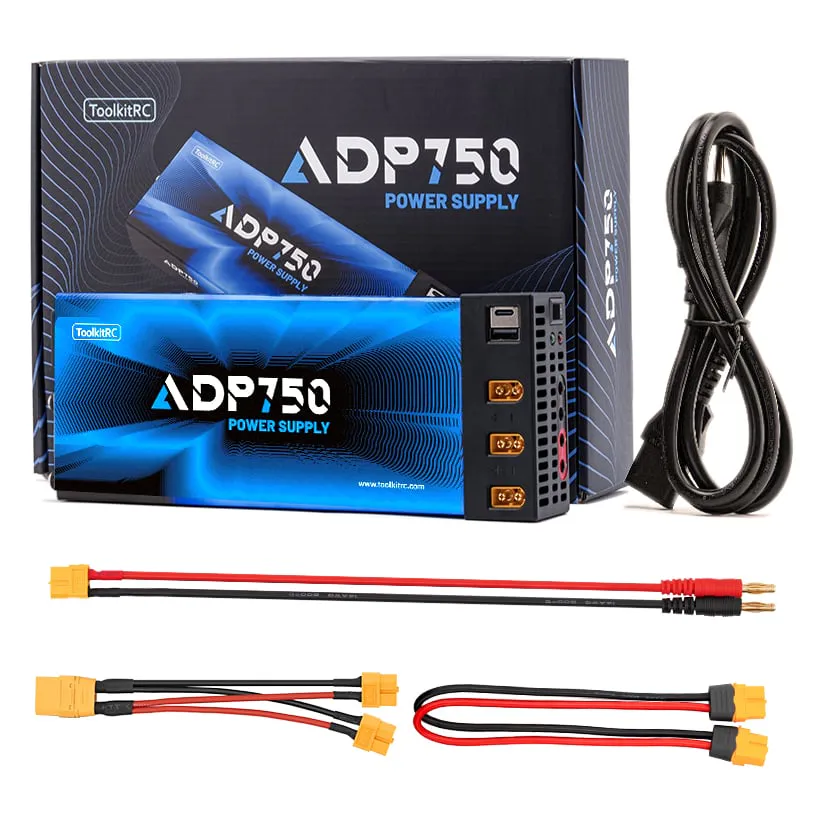

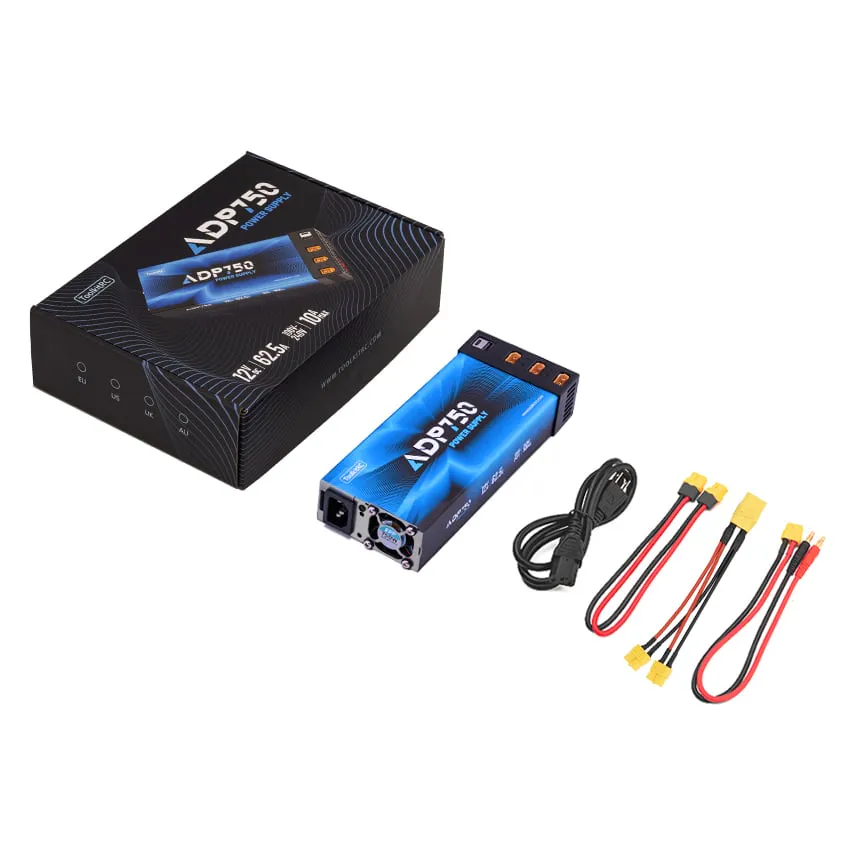

• In the box: power supply, AC input cable, XT60 female to XT60 female cable, dual XT60 female to XT90 female cable, XT60 female to 4mm banana cable

Pair this power supply with multi-channel DC smart chargers rated for a 12V input, and use cabling rated for the full 62.5A when running several channels in parallel.
