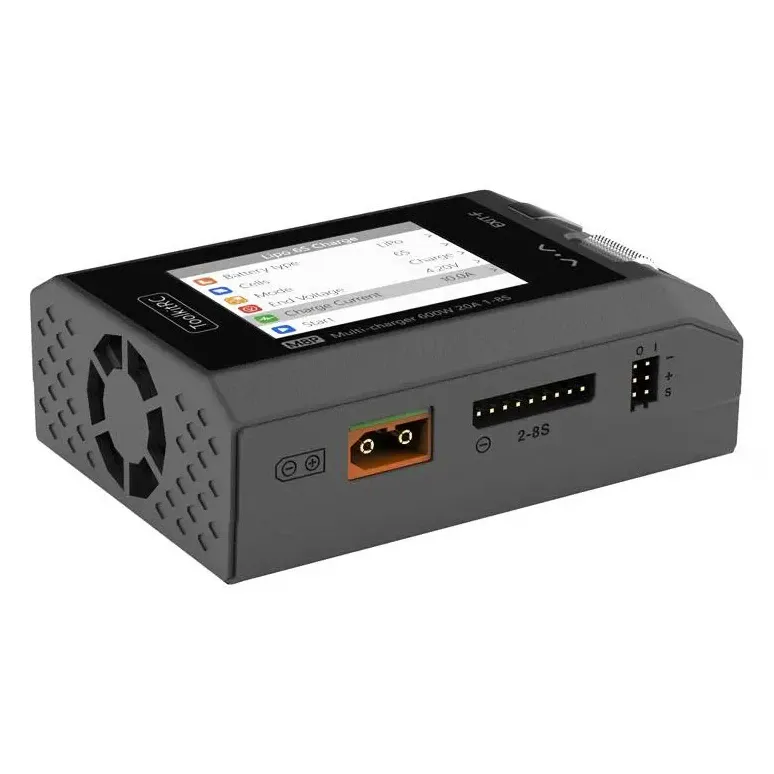

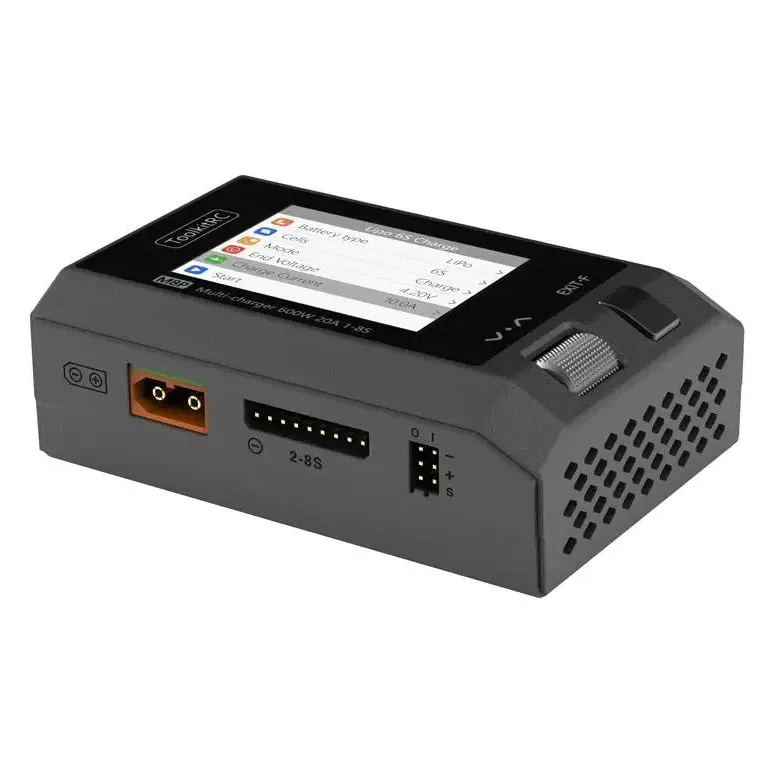

ToolkitRC M8P 600W 20A DC Balance Charger (1-8S, XT60)

The ToolkitRC M8P is a high-output DC smart charger that pushes up to 600W and 20A for rapid field or bench charging. Built for demanding FPV builds, cinelifters and X-Class drones, it safely handles 1S to 8S lithium packs through a standard XT60 input and output, backed by a strong 1A-per-cell balance current for fast, even charging of high-capacity packs.

Key features

• 600W maximum charge power at up to 20A current
• Full support for high-voltage 8S setups alongside standard 4S and 6S FPV packs
• Up to 600W regenerative discharge when powered from a suitable input battery

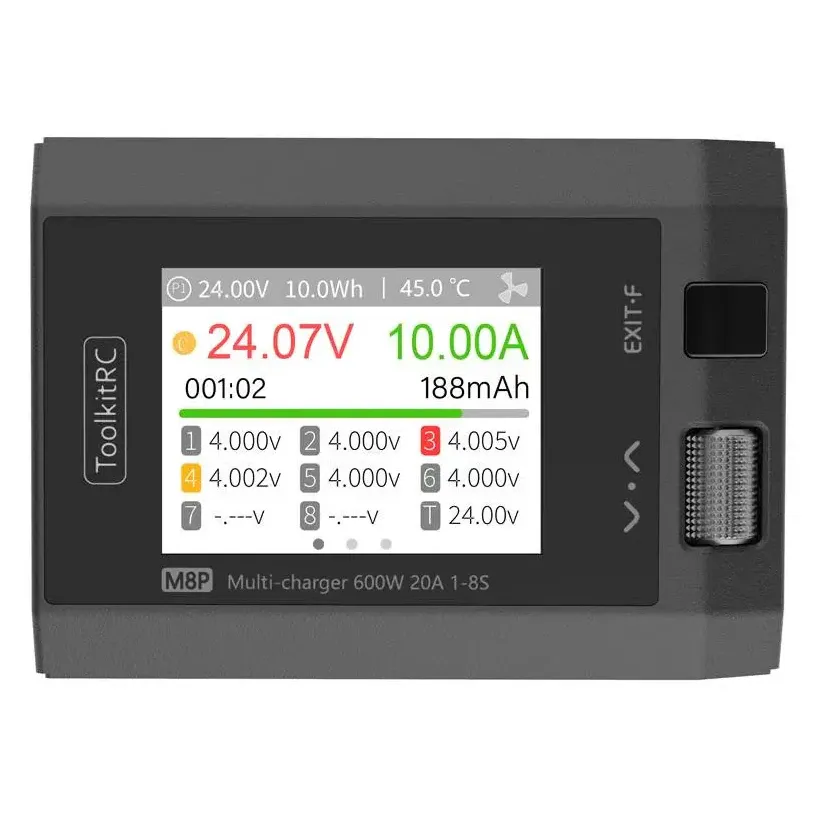

• Bright 2.4-inch IPS colour display for cell voltage and internal resistance monitoring
• Integrated XT60 connectors for both DC input and main battery output

Specifications

• Input voltage: 7.0-35.0V DC (max 25A)
• Supported chemistries: LiPo, LiHV, LiFe, Li-Ion, LTO (1-8S), NiMH (1-20S), Pb (1-10S)
• Charge power: 600W (max 20A)
• Discharge power: 600W (max 20A recycle) / 20W (max 3A normal)
• Balance current: 1000mA per cell
• USB port: 2.1A at 5.0V (firmware upgrade and USB charging)
• Display: 2.4-inch IPS LCD (320x240)
• Other functions: servo/receiver signal tester and generator (PWM, PPM, SBUS), cell voltage and internal resistance meter, adjustable DC power output 1-35 V up to 20 A
• Dimensions: 100 x 71 x 34 mm
• Weight: 200 g

This is a DC-only charger: to reach the full 600W on the bench you need a 24V+ DC supply rated for 25A, while at the flight line it can be powered directly from a large 6S or 8S field battery through the XT60 input.
