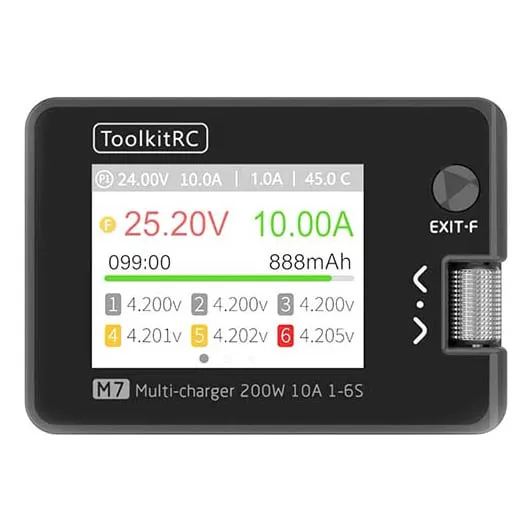

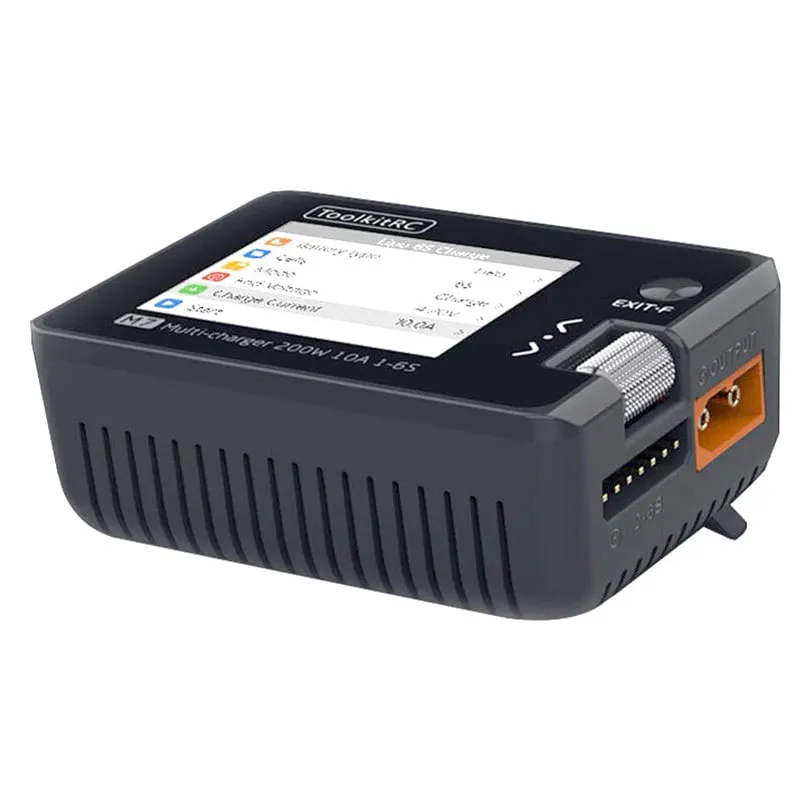

ToolkitRC M7 200W 10A DC Balance Charger (2–6S)

The ToolkitRC M7 is a compact 200W DC balance charger and diagnostic multi-tool designed for FPV builders. Pushing up to 10A for 2–6S flight packs, it is built for rapid field charging off a larger donor battery or a dedicated bench power supply.

Key features

• Delivers up to 200W and 10A for charging, alongside up to 250W of recycle discharging.
• Integrated diagnostic tools include PWM, PPM, and SBUS signal reading and generation for troubleshooting receivers, flight controllers, and servos.
• Functions as a variable DC power supply with adjustable voltage (1–28V) and current (1–10A).
• Bright 2.0-inch wide-angle IPS colour display paired with a rotary dial for fast menu navigation.

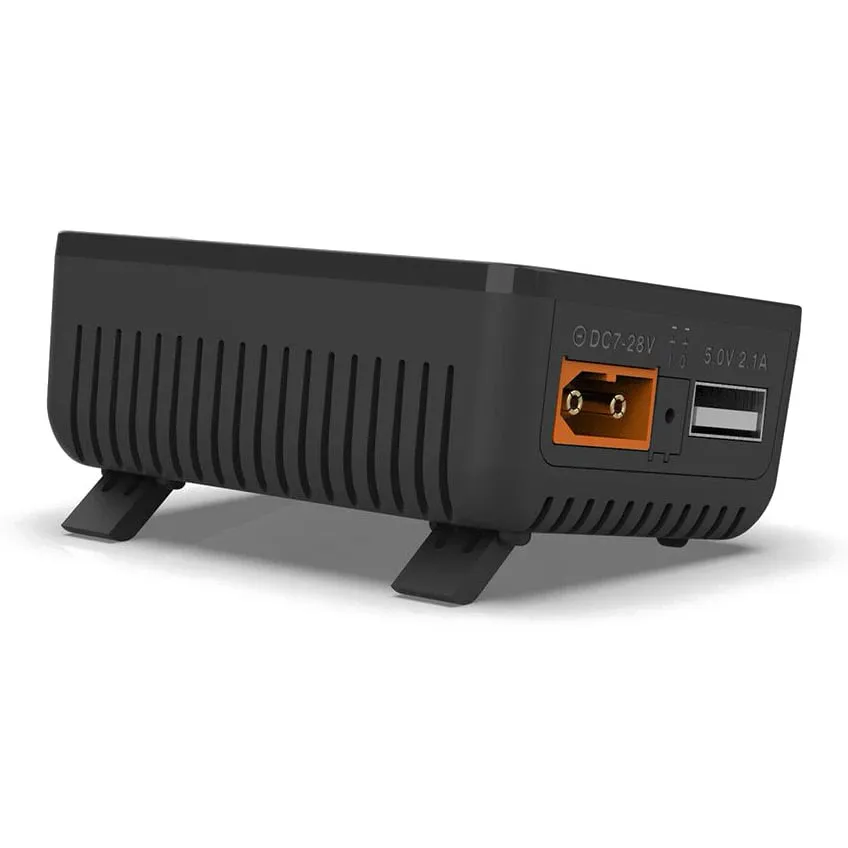

• Native XT60 input and output ports for direct compatibility with standard FPV drone batteries.

Specifications

• Input Voltage: 7–28V DC (12A Max)
• Supported Battery Types: LiPo, LiHV, LiFe, Li-ion (1–6S) / NiMH (1–16S) / Pb (1–10S)
• Charge Power: 0.1–10A @ 200W
• Discharge Power: 0.1–10A @ 250W (Recycle mode) / 0.1–3A @ 10W (Internal mode)
• Balance Current: 400mA (2–6S)
• Display: 2.0-inch IPS LCD (320x240)
• Dimensions: 73x51x27 mm
• Weight: 90g

This is a DC-only charger. To operate it from a mains wall socket, you will need a separate AC-to-DC power supply capable of providing up to 200W via an XT60 connector.
