TinysLEDs RGB Racelitewire Mini LED (4PCS)

The TinySLEDs RGB Racelitewire Mini combines motor wire protection with vibrant addressable RGB lighting in a highly compact footprint. Mounted directly onto your quadcopter's carbon arms, these boards act as a rigid bridge for your motor phases, preventing bent propellers from slicing through standard silicone wires mid-flight. Alongside physical wire protection, each board features integrated RGB LEDs to add customisable Betaflight lighting, telemetry alerts, or racing visibility to your drone. The mini format is highly versatile, making it ideal for 3-inch to 4-inch frames or tight 5-inch racing builds where standard racewires would overhang.

Key features

• Protects vital motor phase wires from propeller strikes during crashes

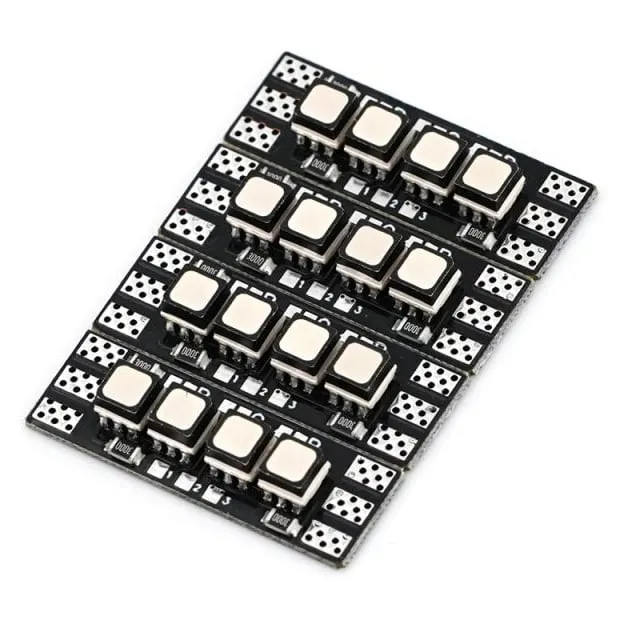

• Integrated addressable RGB LEDs for custom Betaflight lighting and visual alerts
• Compact "Mini" length designed for smaller frames and tight arm profiles
• Dedicated Data-In (Din) and Data-Out (Dout) pads for easy daisy-chaining across arms

Specifications

• Component type: Motor wire extension with integrated LEDs
• LED type: Addressable RGB
• Operating voltage (LEDs): 5V
• Package contents: 4x Racelitewire Mini boards

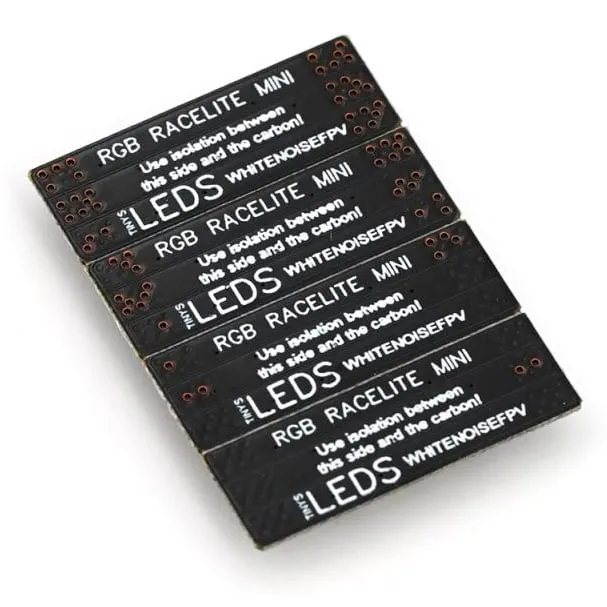

Always insulate the underside of the boards with double-sided tape or heat shrink during installation to prevent electrical shorts against the conductive carbon fibre frame. The LEDs require a clean 5V source and a data connection to your flight controller's LED_STRIP pad.
