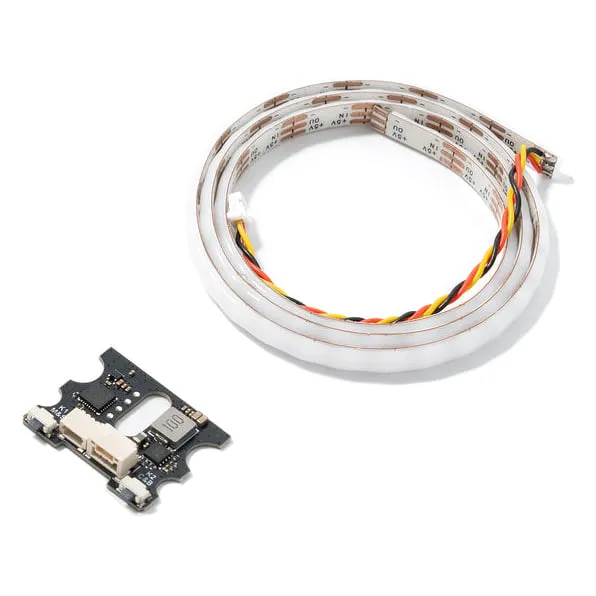

BetaFPV NightFire RGB LED Strip for Pavo 20 Pro

The BetaFPV NightFire RGB LED Strip lights up a Pavo20 Pro, Pavo20 Pro II or Pavo Pico II cinewhoop with the same addressable RGB strip used on the NightFire Limited Edition, adding night-flying visibility and a set of built-in lighting effects.

Key features

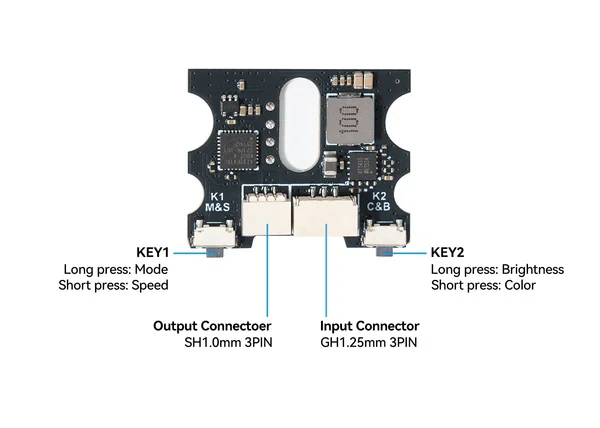

• WS2812B addressable RGB LEDs (up to 128 beads) run 10 lighting modes, including a Betaflight-driven mode, and 7 solid colours, switched via two buttons on the inline controller.
• 500mm strip wraps around the Pavo20 Pro's duct perimeter for full coverage.
• Inline controller also sets brightness (100/75/50/25%) and animation speed (fast/medium/slow) without touching Betaflight.
• Controller accepts 2S–4S (6–18V) directly from the battery and regulates it down to a clean 5V/3A supply for the LED strip.

Specifications

• LED type: WS2812B addressable RGB, up to 128 beads
• Strip length: 500mm
• Controller input: 2–4S LiPo (6–18V)
• Controller output: 5V @ 3A
• Connectors: GH1.25 3-pin (input), SH1.0 3-pin (input/output)

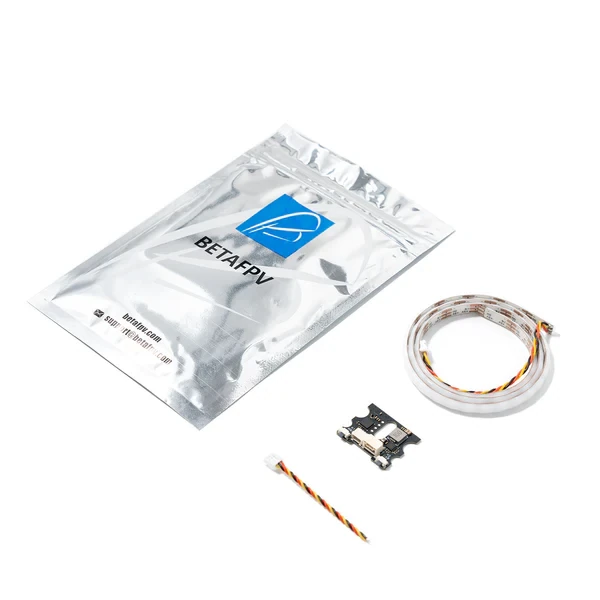

• In the box: 1x RGB LED strip (500mm), 1x RGB controller, 1x GH1.25 3-pin cable (50mm)

Wire the controller straight to your battery lead (2S–4S) rather than a 5V pad — it needs the higher input voltage to regulate its own 5V output to the strip.
